Summary of Contents for rayence 1012WCC

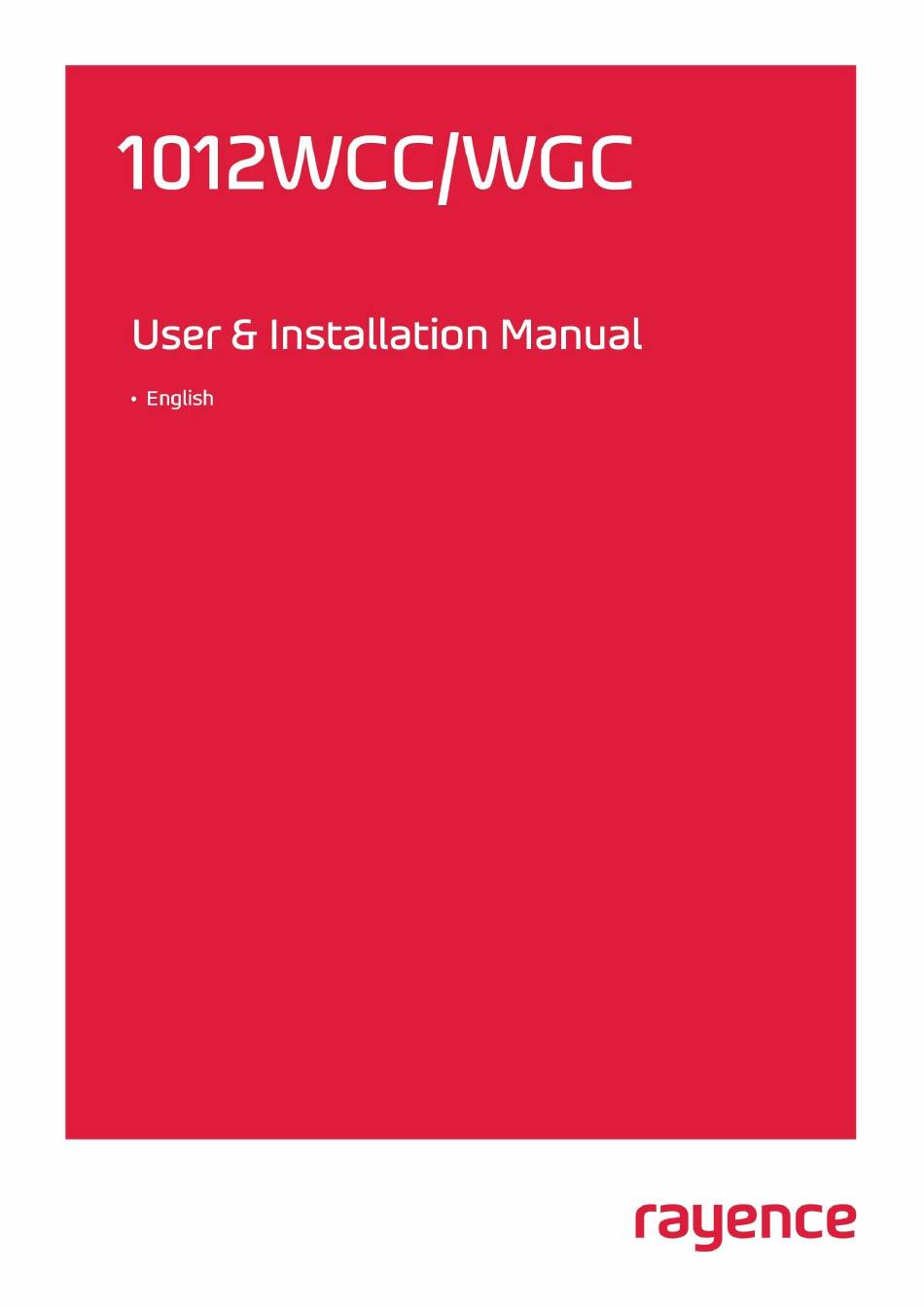

  • Page 1 PART II. Service Manual...
  • Page 2 R-USM-028/029 Version: 7.0 Date: 2020-02-14...
  • Page 3 VATECH Global France SARL 51 Quai de Dion Bouton 92800, Puteaux, France Tel : +33 1 64 11 43 30 Fax : +33 1 64 11 43 39 Rayence Co., Ltd. 14, Samsung 1-ro 1-gil, Hwaseong-si, Gyeonggi-do, Korea www.rayence.com 1012WCC/WGC...

  • Page 4: Table Of Contents

    Replaceable Parts and Instruction of Replacement ....... 117 Disposal or Recycling ................118 Warranty ....................119 Warranty ................... 119 PART II. Service Manual Overview ....................121 FPD Manager Instruction (IP, SSID Set Up / Firmware, FPGA Update)..... 122 Detector IP Address Set Up ..............122 1012WCC/WGC...
  • Page 5 Set Windows Firewall to use FPD_Manager (For Win 7) ......128 Multi Detector Set Up .................. 130 Troubleshooting ..................134 LAN Connection Issue ................. 134 Lost IP Address (Use one of the methods below) ......... 136 When using a reciprocating bucky ............136 Auto Trigger Mode ................138 1012WCC/WGC...
  • Page 6 Contents 1012WCC/WGC...

  • Page 7: Part I. User & Installation Manual

    PART I. User & Installation Manual PART I. User & Installation Manual 1. Safety Information ........... 8 2. Product Introduction and Specification ....24 3. Installation ............44 4. Usage ..............97 5. Maintenance ............116 6. Warranty ............... 119 1012WCC/WGC...

  • Page 8: Safety Information

    Reorient or relocate the equipment. Increase the separation between the equipment. ▪ ▪ Connect the equipment into an outlet on a circuit different from that to which the other devices are connected. ▪ Contact Rayence Customer Service team or authorized agent for help. 1012WCC/WGC...

  • Page 9: Radio Frequency Compliance

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in CFR §2.1093. When you use the detector with wire mode, the wireless function is automatically off. • 5150-5250 MHz band is restricted to indoor operations only. 1012WCC/WGC...

  • Page 10: Electromagnetic Compatibility Information

    ▪ The use of accessories and cables other than those sold by RAYENCE Co., Ltd. as internal components, may result in increased emissions or decreased electromagnetic immunity of this device.
  • Page 11 Disturbances Induced Wired mode IEC 61000-4-6 Between 0.15 MHz and 80 by RF fields 80% AM at 1 kHz Power Frequency EN 61000-4-8 30 A/m Wired & Wireless Magnetic Field mode IEC 61000-4-8 50 Hz & 60 Hz Immunity 1012WCC/WGC...
  • Page 12 Wired & Wireless Voltage dips mode IEC 61000-4-11 0 % U ; 1 cycle and 70 % U ; 25/30 cycles Single phase: at 0º EN 61000-4-11 Wired & Wireless Voltage interruptions 0 % U ; 250/300 cycle mode IEC 61000-4-11 1012WCC/WGC...

  • Page 13: Symbols

    X-ray tube. This is a Type B applied part according to UL 60601-1 and IEC 60601-1 Handle with care Non-ionizing radiation Partial Pressure Limit Overall Pressure Read carefully Manufacturer Date of manufacture 1012WCC/WGC...
  • Page 14 Recognized Component Mark for Canada and the United States For Korea Symbol for safety For Japan Product Safety of Electrical Appliance & Materials For JAPAN Japan Radio Law Certification Keep dry Fragile, handle with care This side up 4 layer stacking Temperature limit 1012WCC/WGC...

  • Page 15: Warning

    When Problem Occurs ▪ Should any of the following occur, immediately turn OFF the power of each detector, unplug the power supply cord from the AC outlet, and contact Rayence Customer Service team or authorized agent. ▪ When there is smoke, odd smell or abnormal sound.
  • Page 16 ▪ Any service related to the human life safety cannot be supported since this wireless detector has potential electric wave interference. ▪ This wireless detector has potential electric wave interference during use. 1012WCC/WGC...

  • Page 17: Caution

    For safety reasons, be sure to turn off the power of each equipment when detector is not used. ▪ This detector is contraindicated for pregnant woman. Location of Cables ▪ Make sure all cables are located so that they cannot be stepped on, tripped over, or otherwise subjected to damage or stress. 1012WCC/WGC...
  • Page 18 Rayence-approved chargers [Model: RC120WA/RMC001A] which are specifically designed for your detector. ▪ Use of a non-Rayence-approved battery or charger may present a risk of fire, explosion, leakage, or other hazard. Rayence’s warranty does not cover damage to the detector caused by non-Rayence-approved batteries and/or chargers.
  • Page 19 When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other. ▪ Contact the Rayence Customer Service team to destroy a battery. Recommendations to the end-users ▪ The following represents a typical, but not exhaustive list of good advice to be provided by the equipment manufacturer to the end-user.
  • Page 20 Use only the cell or battery in the application for which it was intended. ▪ When possible, remove the battery from the equipment when not in use. ▪ Dispose of properly. ▪ Contact the Rayence Customer Service team to destroy a battery. 1012WCC/WGC...

  • Page 21: Safety Information

    Be sure to connect the cables to the proper connectors. Otherwise, the detector may malfunction or may be damaged. ▪ The power supply provided by Rayence is designed for the detector from Rayence. Please contact Rayence, if any other type of power supply is needed to be used. ▪...

  • Page 22: Disinfection And Cleaning

    When cleaning the detector, be sure to turn off the power, and unplug the power cable from the AC outlet. ▪ Do not use any flammable chemicals such as thinner, benzene for cleaning. Otherwise, fire or electric shock may result. ▪ Wear waterproof gloves to protect your hands from direct contact with disinfectants or detergents. 1012WCC/WGC...

  • Page 23: Label And Location Of Attachment

    No special training is required to use this device. The intended users of this device are as follows. A professional in good health with specialist knowledge/ qualifications who has fully understood the content of this document. (Such as a doctor or radiological technologist) 1012WCC/WGC...

  • Page 24: Product Introduction And Specification

    Product Introduction and Specification Product Features The 1012WCC/WGC is a wireless digital flat panel detector that has been designed for a faster, more streamlined approach to digital radiography systems. The 1012WCC/WGC detector utilizes a combination of propriety TFT glass and high quality scintillators, which along with a pixel pitch of 127 microns and 3.9 lp/mm of resolution, assures...

  • Page 25: Product Components

    (110V or 220V) Optional Components 2.2.2 Power supply package AC power cord 1EA LAN cable 1EA Link Cable 1EA Power supply1EA (110V or 220V 1.8m) (10m) (7m) package P-interface Cable Trigger Cable 1EA AGI Box 1EA USB Cable 1EA 1012WCC/WGC...
  • Page 26 (110V or 220V 1.8m) (10m) package P-interface Cable Trigger Cable 1EA Battery Charger Package AC power cord 1EA Battery Charger Battery Charger 1EA Battery 2EA adapter 1EA (110V or 220V 1.8m) Sharing Package Micro USB cable IrDA module 1EA 1012WCC/WGC...

  • Page 27: Part Names And Functions

    Mode Select Button& LED indicator Mode Change Press the 1 second Indication the status of detector LED Color Status None Wired mode Green AP mode (wireless) Mode select button Orange Station mode (wireless) Blinking Orange and Sleep mode Green alternatively 1012WCC/WGC...
  • Page 28 Battery Unlock button This is an unlock button to remove battery. Battery & Mobile charger 2.3.2 Battery unlock level This is an unlock-level to remove battery Power connector Connects to the mobile charger adapter LED Indicator Display battery charging status. 1012WCC/WGC...
  • Page 29 Fuse T3.15 AL 250V Power plug connector Connects to the AC power cord Trigger connector This is a connector to synchronize the detector and generator. Connect the RAP001A to the generator by using a P-interface cable or trigger cable. 1012WCC/WGC...

  • Page 30: Power Supply (Optional)

    Connected with detector of port2 DET3 Green Connected with detector of port3 Power Supply (Optional) 2.3.4 Power Plug Connector Connects to the AC power cord LAN Connector Ethernet port for transmitting an image/command between the detector and PC Link Connector 1012WCC/WGC...
  • Page 31 This is a connector to synchronize the detector and generator. Connect the AGI to the generator by using a P-interface cable or trigger cable. USB Connector This is a connector for communication between the AGI and PC. Connect the AGI to the PC by using a USB cable. 1012WCC/WGC...

  • Page 32: Battery & Charger (Optional)

    Connector for communication with IrDA and PC connect the PC through the Micro USB cable. Battery & Charger (Optional) 2.3.7 Battery : Rechargeable Lithium Ion battery(Charging Time-3 hrs) • In the diagram above, the box shows where the remaining battery percentage is displayed. 1012WCC/WGC...
  • Page 33 Battery Level 75~100 % 50~75 % 25~50 % 0~25 % • Battery warranty period: 6 months Battery Charger : Two port cradle type LED Indicator Display battery charging status. LED Color Battery Status Green Fully charged Orange Charging Error 1012WCC/WGC...

  • Page 34: Part Specifications

    Energy range 40 ~ 150 Limiting Resolution lp/mm Min.2.5/ Max. 3.93 1012WCC - Min. 50 / Typ. 59 MTF (@1lp/mm) 1012WGC - Min. 50 / Typ. 57 1012WCC - Min 50 / Typ. 65 DQE (@0.1lp/mm) 1012WGC - Min. 36 / Typ. 45...
  • Page 35 Wireless module: The Compex WPEA-121N 802.11 a/b/g/n/ac half mini PCI-e module is implemented. It supports 3T3R (3 transmit 3 receive) MIMO technology, which delivers throughput up to 1300Mbps.1012WCC/WGC in the RF module does not use DFS band. Battery [Model name: RB37WHA] 2.4.2...
  • Page 36 Typ. 24VDC (Max 5.4A) Wireless communication 802.11 a/g/n/ac Wireless LAN, up to 867Mbps Wired communication Ethernet 1Gbps Detector Port Trigger Port Power Supply (Optional) [Model name: RP003A / Rayence Co., Ltd.] 2.4.6 Parameter Spec. Unit Dimension 188 X 92 X 41.5...
  • Page 37 2.4.12 Cable Parameter Length Unit Link cable (Shielded) LAN cable (Shielded) Power cord (3-Wire No Shielding) USB cable (A to B type) Trigger cable (Rayence I/F Cable) P-interface cable (Rayence I/F Cable) Micro USB cable (A to Micro B type) 1012WCC/WGC...

  • Page 38: Environmental Requirements

    MicrosoftⓇ Windows 7/8/10 32BIT/64BIT No antivirus except for MicrosoftⓇ Security Essentials. Environmental Requirement 2.5.2 Environment Min. Typ. Max. Unit Note Temperature(Storage) ℃ Temperature(Operation) ℃ Humidity(Storage) % H.R. Humidity(Operation) % H.R. Pressure(Operation) Grid Requirement 2.5.3 Item Description 100/130/180 cm Ratio Frequency 230 Line/inch 1012WCC/WGC...

  • Page 39: Dimensions (Unit: Mm)

    PART I. User & Installation Manual Dimensions (Unit: mm) Detector 2.6.1 Battery 2.6.2 1012WCC/WGC...
  • Page 40 PART I. User & Installation Manual Mobile charger 2.6.3 Mobile charger adapter 2.6.4 1012WCC/WGC...
  • Page 41 PART I. User & Installation Manual Interface box (Optional) 2.6.5 Power Supply (Optional) 2.6.6 1012WCC/WGC...
  • Page 42 PART I. User & Installation Manual AGI Box (Optional) 2.6.7 IrDA module (Optional) 2.6.8 1012WCC/WGC...
  • Page 43 PART I. User & Installation Manual Battery Charger (Optional) 2.6.9 2.6.10 Battery Charger Adapter (Optional) 1012WCC/WGC...

  • Page 44: Installation And Calibration

    PART I. User & Installation Manual Installation and Calibration Installation Software Installation 3.1.1 Insert the CD that comes with the Detector. Install "setup.exe" from "\Release Davinci_version" and click "Next". Choose the model from the Detector Type list and click "Next". 1012WCC/WGC...
  • Page 45 PART I. User & Installation Manual Click “Next”. Select “MultiByte-Character Set” and click “Next”. ▪ Choose UNICODE if console SW is supporting UNICODE. ▪ If Character set is not installed correctly, images will not be properly acquired. 1012WCC/WGC...
  • Page 46 PART I. User & Installation Manual Click “Install”. Click “Finish”. 1012WCC/WGC...

  • Page 47: Install Battery

    <Station Mode> Communicates with the wireless AP, and the wireless AP communicates with the PC through the LAN cable. (Wireless AP can select RAP001A provided by Rayence as option.) <AP Mode> Detector communicates with the PC without the wireless AP.
  • Page 48 PART I. User & Installation Manual Auto Trigger & Station Mode Follow instructions from 3.1.4 Product Set Up 1. Auto Trigger & Station Mode. Auto Trigger & AP Mode Follow instructions from 3.1.4 Product Set Up 2. Auto Trigger & AP Mode. 1012WCC/WGC...
  • Page 49 PART I. User & Installation Manual Manual Trigger & Station mode Follow instructions from 3.1.4 Product Set Up 3. Manual Trigger & Station Mode. 1012WCC/WGC...
  • Page 50 PART I. User & Installation Manual Manual Trigger & AP mode Follow instructions from 3.1.4 Product Set Up 4. Manual Trigger & AP Mode. 1012WCC/WGC...
  • Page 51 PART I. User & Installation Manual Auto Trigger & Wired Mode Follow instructions from 3.1.4 Product Set Up 5. Auto Trigger & Wired Mode. 1012WCC/WGC...
  • Page 52 PART I. User & Installation Manual Manual Trigger & Wired Mode Follow instructions from 3.1.4 Product Set Up 6. Manual Trigger & Wired Mode. 1012WCC/WGC...
  • Page 53 PART I. User & Installation Manual Product Set Up 3.1.4 1. Auto Trigger & Station Mode Product Set up Connect the cable 1. Connect the wireless AP (or RAP001A) and PC with the LAN cable. 1012WCC/WGC...
  • Page 54 Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings To use station mode, right click "Local Area Connection" and click Properties. Double click “Internet Protocol Version 4 (TCP/IPv4)”. 1012WCC/WGC...
  • Page 55 Select “Obtain an IP address automatically” and click "OK". Wireless AP (Access Point) Set up ▪ Rayence does provide RAP001A (wireless AP). Please use certified wireless AP and follow each manufacture’s setup manual. (Recommended Model: Minimum ASUS RT-AC66U or RAP001A) Set up wireless AP as below.
  • Page 56 Detector Status will display information of the detector as below. ▪ Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector. Model type Parameter Selected 1012WCC [59]1012WCC.par 1012WCC_127A [67]1012WCC_127A.par 1012WGC [60]1012WGC.par 1012WGC_127A [68]1012WGC_127A.par...
  • Page 57 "Setting". (For change parameter settings, must click “Get Settings” button) ▪ In Auto trigger mode, be sure to set the "Window time" longer than an exposure time. If the "Window time" is shorter than the exposure time, images will not be properly acquired. 1012WCC/WGC...
  • Page 58 2. Auto Trigger & AP Mode Product Set Up PC Set up Set up the Network as below. • Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings 1012WCC/WGC...
  • Page 59 Select “Obtain an IP address automatically” and click "OK". Set up SW Turn on the detector Choose AP Mode by pressing and holding the mode select button. LED Color Mode Orange Station Mode(Wireless) Green AP Mode(Wireless) MODE None Wired Mode Blinking Orange and Green Sleep Mode alternatively 1012WCC/WGC...
  • Page 60 Detector Status will display detector information as below. ▪ Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector. Model type Parameter Selected 1012WCC [59]1012WCC.par 1012WCC_127A [67]1012WCC_127A.par 1012WGC [60]1012WGC.par 1012WGC_127A [68]1012WGC_127A.par...
  • Page 61 Time" from "Setting". (For change parameter settings, must click “Get Settings” button) ▪ In Auto trigger mode, be sure to set the "Window time" longer than an exposure time. If the "Window time" is shorter than the exposure time, images will not be properly acquired. 1012WCC/WGC...
  • Page 62 PART I. User & Installation Manual 3. Manual Trigger & Station Mode Product Set up (with AGI) Connect the cable (with AGI and AP) 1. Connect the wireless AP and PC with the LAN cable. 1012WCC/WGC...
  • Page 63 2. Connect the AGI box and PC with the USB cable. 3. Connect the AGI box and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 64 PART I. User & Installation Manual Product Set up (with RAP001A) Connect the cable (with RAP001A) 1. Connect the RAP001A and PC with the LAN cable. 1012WCC/WGC...
  • Page 65 PART I. User & Installation Manual 2. Connect the RAP001A and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 66 Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings To use station mode, right click "Local Area Connection" and click Properties. Double click “Internet Protocol Version 4 (TCP/IPv4)”. 1012WCC/WGC...
  • Page 67 Select “Obtain an IP address automatically” and click "OK". Wireless AP (Access Point) Set up ▪ Rayence does provide RAP001A (wireless AP). Please use certified wireless AP and follow each manufacture's setup manual. (Recommended Model: Minimum ASUS RT-AC66U or RAP001A) Set up wireless AP as below.
  • Page 68 Detector Status will display detector information as below. ▪ Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector. Model type Parameter Selected 1012WCC [59]1012WCC.par 1012WCC_127A [67]1012WCC_127A.par 1012WGC [60]1012WGC.par 1012WGC_127A [68]1012WGC_127A.par...
  • Page 69 Another window will be opened as below once the “Edit” button is pressed. Select "Manual" from "Trigger Mode". If "Window time" needs to be changed, type the value at "Window Time" from "Setting". (For change parameter settings, must click “Get Settings” button) 1012WCC/WGC...
  • Page 70 PART I. User & Installation Manual 4. Manual Trigger & AP Mode Product Set Up (with AGI) Connect the cable (with AGI) 1. Connect the AGI box and PC with the USB cable. 1012WCC/WGC...
  • Page 71 PART I. User & Installation Manual 2. Connect the AGI box and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 72 PART I. User & Installation Manual Product Set Up (with RAP001A) Connect the cable (with RAP001A) 1. Connect the RAP001A and PC with the LAN cable. 1012WCC/WGC...
  • Page 73 PART I. User & Installation Manual 2. Connect the RAP001A and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 74 Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings To use AP mode, right click "Wireless Network Connection" and click Properties. Double click “Internet Protocol Version 4 (TCP/IPv4)”. 1012WCC/WGC...
  • Page 75 Choose AP Mode by pressing and holding the mode select button. LED Color Mode Orange Station Mode(Wireless) Green AP Mode(Wireless) MODE None Wired Mode Blinking Orange and Green Sleep Mode alternatively Choose the SSID (detector's SN) from the Wireless Network Connection list. (PW: project302) 1012WCC/WGC...
  • Page 76 Detector Status will display panel information as below. ▪ For the 1012WCC, [59]1012WCC.par gets selected and for the 1012WGC, [60]1012WGC.par gets selected. Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector.
  • Page 77 Another window will be opened as below once the “Edit” button is pressed. Select "Manual" from "Trigger Mode". If the "Window time" needs to be changed, type the value at "Window Time" from "Setting". (For change parameter settings, must click “Get Settings” button) 1012WCC/WGC...
  • Page 78 PART I. User & Installation Manual 5. Auto Trigger & Wired Mode Product Set Up Connect the cable 1. Connect the power supply or RAP001A and PC with the LAN cable. 2. Connect the power supply and Detector with the Link cable. 1012WCC/WGC...
  • Page 79 Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings To use Wired mode, right click "Local Area Connection" and click Properties. Double click “Internet Protocol Version 4 (TCP/IPv4)”. 1012WCC/WGC...
  • Page 80 Connect the Detector to the power supply or RAP001A using the Link cable (Wired mode will be selected automatically) LED Color Mode Orange Station Mode(Wireless) Green AP Mode(Wireless) MODE None Wired Mode Blinking Orange and Green Sleep Mode alternatively 1012WCC/WGC...
  • Page 81 Detector Status will display detector information as below. ▪ Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector. Model type Parameter Selected 1012WCC [59]1012WCC.par 1012WCC_127A [67]1012WCC_127A.par 1012WGC [60]1012WGC.par 1012WGC_127A [68]1012WGC_127A.par...
  • Page 82 "Window Time" from "Setting". (For change parameter settings, must click “Get Settings” button) ▪ In Auto trigger mode, be sure to set the "Window time" longer than an exposure time. If the "Window time" is shorter than the exposure time, images will not be properly acquired. 1012WCC/WGC...
  • Page 83 6. Manual Trigger & Wired Mode Product Set up (with Power supply and AGI) Connect the cable (with Power supply and AGI) Connect the power supply and PC with the LAN cable. Connect the power supply and Detector with the Link cable. 1012WCC/WGC...
  • Page 84 Connect the AGI box and PC with the USB cable. Connect the AGI box and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 85 PART I. User & Installation Manual Product Set up (with RAP001A) Connect the cable (with RAP001A) Connect the RAP001A and PC with the LAN cable. 1012WCC/WGC...
  • Page 86 PART I. User & Installation Manual Connect the RAP001A and Detector with the Link cable. Connect the RAP001A and generator with the P-interface or trigger cable. Instruction of P-interface cable Integration <Assembly Diagram> <Timing Chart> Instruction of Trigger cable Integration <Assembly Diagram> <Timing Chart> 1012WCC/WGC...
  • Page 87 Desktop > Network Icon > Right click > Properties > Change Adapter Settings • Control Panel > Network and Sharing Center > Change Adapter Settings Set up SW To use Wired mode, right click "Local Area Connection" and click Properties. 1012WCC/WGC...
  • Page 88 Connect the Detector to the power supply or RAP001A using the Link cable (Wired mode will be selected automatically) LED Color Mode Orange Station Mode(Wireless) Green AP Mode(Wireless) MODE None Wired Mode Blinking Orange and Green Sleep Mode alternatively 1012WCC/WGC...
  • Page 89 Detector Status will display detector information as below. ▪ Once the correct Sensor IP is put into the Davinci, it will automatically pull the parameter of the connected detector. Model type Parameter Selected 1012WCC [59]1012WCC.par 1012WCC_127A [67]1012WCC_127A.par 1012WGC [60]1012WGC.par 1012WGC_127A [68]1012WGC_127A.par...
  • Page 90 Another window will be opened as below once the “Edit” button is pressed. Select "Manual" from "Trigger Mode". If "Window time" needs to be changed, type the value at "Window Time" from "Setting". (For change parameter settings, must click “Get Settings” button) 1012WCC/WGC...

  • Page 91: Calibration

    In order to properly acquire images, calibration must be performed. Without calibration, optimum images cannot be acquired. ▪ Rayence recommends to warm up the detector for 5 minutes after turning on the power. ▪ Calibration should be performed at regular intervals, typically once every six (6) months, or whenever the central beam of the X-ray source has been moved relative to the Detector.
  • Page 92 PART I. User & Installation Manual After checking connection, click “Calibration & Acquisition” tab. Click “Calibration”. 1012WCC/WGC...
  • Page 93 Dark frame is stored in “C:\davinci\cal”. A Calibration Point file will be created automatically. After acquiring the Dark frame, shoot an X-ray when the “Acquiring bright frame” window pops up. ▪ Depending on the dark level of the product, 1~2 additional calibration points may be created. 1012WCC/WGC...
  • Page 94 Adjust technique to get acceptable value and “Acquiring bright frame” is popped up. shoot again. For each Calibration point, four images must successfully be acquired. After successfully doing so for every point, the Calibration process is complete. Click "OK" to move to the next step. 1012WCC/WGC...
  • Page 95 PART I. User & Installation Manual Manual Bad Pixel Map Set Up 3.2.2 Click “Calibration”. Click "View Frames". 1012WCC/WGC...
  • Page 96 After completing step 5 , check if bad pixel has been changed to green as Figure 2 - ❻. Click “Fill” at Figure 3 - ❼. Click "Save" at Figure 3 - ❽. Once setting BPMM is done, “BPMM.raw” file will be saved at C:\Davinci\CAL. 1012WCC/WGC...

  • Page 97: Usage

    Once the detector is connected, detector information is displayed in Detector Status and Link & Ready are checked as below. ▪ If "Detector Status" does not show anything, please refer to 3.1Installation in Part.1 User & Installation Manual to connect the detector properly. 1012WCC/WGC...

  • Page 98: Image Setup

    In order to change the size of an image, use "Crop Rows and Columns" as below. Click "Apply" to save. Multi Detector Set Up 4.1.3 Refer to 3 Multi Detector Set Up in Part.2 Service Manual for Multi-Detector Setting. 1012WCC/WGC...

  • Page 99: Image Acquisition

    Part.1 User & Installation Manual to connect the detector properly. ▪ If Calibration is not checked along with black dots checking off "Link" and "Ready" as above, please refer to ▪ Calibration in Part.1 User & Installation Manual and perform calibration again. 1012WCC/WGC...
  • Page 100 Shoot an X-ray once the "Acquiring bright frame" window pops up. An acquired image will be stored in “C:\davinci\I2264x1752” and the name of the file will be "(typed name from Step 1).raw”. The format of the stored file is 16 bit little-endian order. 1012WCC/WGC...

  • Page 101: View Images

    PART I. User & Installation Manual View Images 1. Click “View Images” 2. Another window will be popped up as below. Histogram Set Up 1012WCC/WGC...
  • Page 102 PART I. User & Installation Manual Pixel value at certain level Choose "S" from marked box. Profile for horizontal line Choose "R" from marked box. 1012WCC/WGC...

  • Page 103: Additional Function

    PART I. User & Installation Manual Profile for vertical line Choose "C" from the marked box. Additional Function Battery Remain 4.4.1 Once you click "Get Image" under the "Calibration & Acquisition” tab, the Status window will show how much battery remains. 1012WCC/WGC...

  • Page 104: Wireless Signal Strength

    Once you click "Get Image" under the "Calibration & Acquisition” tab, the Status window will show the strength of the wireless signal. Before you check the wireless signal in the AP mode, the detector's serial number should be entered at the "SSID". 1012WCC/WGC...

  • Page 105: Sleep Mode

    Power consumption is reduced by 40% when Sleep Mode is used. To turn off Sleep Mode, attempt to acquire an image or press the power button on the detector just once. ▪ A normal image can be acquired after 10 seconds Sleep Mode has been turned off. 1012WCC/WGC...
  • Page 106 After checking the Preview and 4x4 Binning, a 4x4 binned image appears which allows for a quicker image preview. (For change parameter settings, must click “Get Settings” button) ▪ By unchecking 4x4 Binning, a normal image preview appears. ▪ By unchecking Preview, a full frame image appears. 1012WCC/WGC...
  • Page 107 The last acquired image can be opened by clicking "Recent Frame" under the "Calibration & Acquisition” tab. Restore Connection 4.4.6 When the connection between the detector and PC is lost, the connection can be made again by clicking "Restore Connection" under the "Calibration & Acquisition” tab. 1012WCC/WGC...
  • Page 108 When Mobile sevice connects to Detector, can check correctly Image by Storage Viewer Web Server ▪ For Storage Viewer, must running DBMS and Web Server envirnoment ▪ For running Storage Viewer environment, OLED is displayed “Check DB Server” ▪ Stored Image can be opened and deleted by referring SDK 1012WCC/WGC...
  • Page 109 Connect to "http://192.168.1.80:3000". Sign in with password ‘1234’ C. Ater enter to worklist menus, click ‘+’ icon and create worklist info. D. Can see all worklist for will acquire image. Click ‘Capture’ button. In detector ready status, can take X-ray image. 1012WCC/WGC...
  • Page 110 When worklist menu is empty, detector will be created woklist menu and matching ▪ Some guide image is created by web server demo mode Sharing function 4.4.8 Connect the PC and USB IrDA Dongle by using the Micro USB cable. 1012WCC/WGC...
  • Page 111 Put the SSID and PW of AP ❹ Check “Enable check box” ❺ Click “apply” to save ❻ Confirm the connection port in device manager of OS ❼ Baud select 115200 and select confirmed port in device manager ❽ 1012WCC/WGC...
  • Page 112 If the shooting condition setting is completed, completion status appears at the "OLED window" and "Sharing mode" is turn off. IrDA LED Color Status Green Connected PC Blinking Orange Transfer the data End Blinking Transfer success Turn on Green End Blinking Transfer fail Turn off Green 1012WCC/WGC...
  • Page 113 - Will Show the SSID information of detector PSK menu - Will Show the PSK information of detector IP Menu - Will Show the IP information of detector Mask menu - Will Show the Mask information of detector Factory reset menu - Factory reset menu 1012WCC/WGC...
  • Page 114 Set vadav as below ⚫ Overview Click “Calibration & Acquisition” tab ❶ Click “Edit” button ❷ Check “GPR Enable” check box when using an analog grid ❸ Click “Grid Type” combobox ❹ Select a GPR parameter ❺ Click “OK” button ❻ 1012WCC/WGC...
  • Page 115 PART I. User & Installation Manual ⚫ GPR Parameter ✓ Select a parameter in consideration of the used grid specification & detector model. ▪ 1012 & 1417 model use to Automatic parameter recommended ▪ 1717 model use to Horizontal Parameter recommended. 1012WCC/WGC...

  • Page 116: Maintenance

    Inspection In order to ensure that the detector is used safely and normally, please be sure to inspect the product regularly before use. If any problem occurs, please contact Rayence Customer Serviceteam. Please perform inspections based on the check list below.

  • Page 117: Replaceable Parts And Instruction Of Replacement

    Fuse: T3.15 AL 250V Replacing the Fuse Press the fuse as below and pull the fuse box. Pull the fuse and replace with another fuse. ▪ Power Cord: H05VV-F 0.75SQ * 3C ▪ Ethernet Cable: UTP 4PR 24AWG (CAT.7) 1012WCC/WGC...

  • Page 118: Disposal Or Recycling

    By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please refer to local governing ordinances and recycling plans. 1012WCC/WGC...

  • Page 119: Warranty

    RAYENCE, at its option, shall repair, rebuild or adjust the affected parts. RAYENCE shall have no obligation for any defects to the extent that such defect arises out of (i)normal and fair wear and tear or Product which has been modified without RAYENCE's...

  • Page 120: Service Manual

    PART II. Service Manual PART II. Service Manual 1. Overview .............. 121 (IP, SSID Set Up / 2. FPD Manager Instruction Firmware, FPGA Update) ......122 3. Multi Detector Set Up .......... 130 4. Troubleshooting........... 134 1012WCC/WGC...

  • Page 121: Overview

    PART II. Service Manual Overview This service manual gives additional instructions for setting up the detector. 1012WCC/WGC...

  • Page 122: Fpd Manager Instruction (Ip, Ssid Set Up / Firmware, Fpga Update)

    After the power of detector is on, open "FPD_Manager.exe". In case “1012WCC/WGC_127A, 1417WCC/WGC_140A, 1717WCC/WGC_140A” model, select combobox “ADI Wireless Model”. (“1012WCC/WGC_127, 1417WCC/WGC_140, 1717WCC/WGC_140” model select combobox “TLI wireless model”) Type detector's current IP address at "Detector IP Address" from "Current Setting" as below.
  • Page 123 Select "IP change" and type the IP address. Click "Start Setting". Click "OK" once the message below pops up. Click "OK" again once the message below pops up. Turn off the power of the detector and after 5 seconds, turn the power back on. 1012WCC/WGC...

  • Page 124: Ssid, Psk (Pre-Shared Key) Set Up

    After the power of detector is on, open "FPD_Manager.exe". In case “1012WCC/WGC_127A, 1417WCC/WGC_140A, 1717WCC/WGC_140A” model, select combobox “ADI Wireless Model”. (“1012WCC/WGC_127, 1417WCC/WGC_140, 1717WCC/WGC_140” model select combobox “TLI wireless model”) Type the detector's current IP address in "Detector IP Address" from "Current Setting" as below.
  • Page 125 AP Mode connection quality. If the Channel causes conflict, the channel can be changed through this program. Click "OK" once the message below pops up. Turn off the power of detector and after 5 seconds, turn the power back on. 1012WCC/WGC...

  • Page 126: Firmware, Fpga Update

    After the power of detector is on, open "FPD_Manager.exe". In case “1012WCC/WGC_127A, 1417WCC/WGC_140A, 1717WCC/WGC_140A” model, select combobox “ADI Wireless Model”. (“1012WCC/WGC_127, 1417WCC/WGC_140, 1717WCC/WGC_140” model select combobox “TLI wireless model”) Type the detector's current IP address in "Detector IP Address" from "Current Setting" as below.
  • Page 127 FPGA file: File extension is bin. Click "OK" once the message below pops up. Turn off the power of detector and after 5 seconds, turn the power back on. ▪ Detector IP address might be changed to 192.168.1.80 after updating depends on Firmware. 1012WCC/WGC...

  • Page 128: Set Windows Firewall To Use Fpd_Manager (For Win 7)

    ‘Control Panel’ -> ‘Windows Firewall’ -> ‘Allow an app or feature through Windows Firewall’ Check "Name", "Private" and "Public" if FPD_Manager program is already on the list. Click "Allow another app..." when FPD_Manager program is not on the list. 1012WCC/WGC...
  • Page 129 PART II. Service Manual Select the program and add if it is already on the list. Click "Browse" when the program is noon the list. Browse and open FPD_Manager program and repeat step ②. 1012WCC/WGC...

  • Page 130: Multi Detector Set Up

    PART II. Service Manual Multi Detector Set Up Open “_vadav.lnk” from "C:\davinci”. Click "Edit" under the "Settings" tab. Select "Detector #1". Choose the product model and type the IP address. 1012WCC/WGC...
  • Page 131 PART II. Service Manual Click "Edit" from "Detector #1". Set up the "Trigger Mode" and "Setting". (For change parameter settings, must click “Get Settings” button) Select "Detector #2". Choose the product model and type the IP address. 1012WCC/WGC...
  • Page 132 Click "Edit" from "Detector #2". Set up the "Trigger Mode" and "Setting". (For change parameter settings, must click “Get Settings” button) If a third detector is being used, select "Detector #3". Choose the product model and type the IP address. 1012WCC/WGC...
  • Page 133 Choose the detector from the "Number" option and perform the calibration. ▪ The calibration folder is named according to the third and fourth numbers of the IP address. (e.g. C:\Davinci\CAL_01_80) ▪ For further instructions on calibration, please refer to 0 ▪ Calibration in Part.1 User & Installation Manual. 1012WCC/WGC...

  • Page 134: Troubleshooting

    If any problem occurs during the usage of the product, please use this chapter as a trouble shooting guide. Follow the instructions to resolve the problem. If the problem is not resolved, please contact our Rayence Customer Service team (E-mail: marketing@rayence.com). LAN Connection Issue 1. Wireless Mode 1.

  • Page 135: Wired Mode

    Check the link cable and the power cord are connected properly Check that the power of the detector is on. 2. Check PC Set up Make sure that the IP address is set to”2.2.2.20” from "Internet Protocol Version4 (TCP/IPv4)" 1012WCC/WGC...

  • Page 136: Lost Ip Address (Use One Of The Methods Below)

    Press the “Reset” button to reset the IP address. (Default IP : 2.2.2.100) When using a reciprocating bucky If there is image noise casued by the electromagnetic, follow the instructions below. Open “_vadav.lnk” from "C:\davinci”. Click the "Calibration & Acquisition" tab. Click "Edit". 1012WCC/WGC...
  • Page 137 PART II. Service Manual Change "window time" from 2 to 4 sec and click “OK” (For change parameter settings, must click “Get Settings” button) ▪ The Window time default value is 0.5sec 1012WCC/WGC...

  • Page 138: Auto Trigger Mode

    Open “_vadav.lnk” from "C:\davinci”. Click the "Calibration & Acquisition" tab. Click "Edit". Change "Auto Trigger Threshold" from 2 to 100 and click "OK". (For change parameter settings, must click “Get Settings” button) ▪ The Auto Trigger Threshold default value is 15 1012WCC/WGC...
  • Page 139 Enter the ID and password. Click "Ok". [ ID : admin | PW : admin ] IP address for the first access is 192.168.1.1. After changing the IP address to 2.2.2.1, use IP address 2.2.2.1 for accessing. ① ② ③ ② 1012WCC/WGC...
  • Page 140 PART II. Service Manual 3. Click the "Setup" tab, and then click the "Basic Setup" page. Type 2.2.2.1 at "IP Address". Type 255.255.255.0 at "Subnet Mask". Click "Apply". 1012WCC/WGC...
  • Page 141 PART II. Service Manual 4. Click the "Wireless" tab, and then click the "Basic Wireless Settings" page. Set up Wireless Settings as below. (SSID: Griffon, WPA2-Personal, Pre-Shared Key: project302) 1012WCC/WGC...
  • Page 142 12.6 #Table of exposure condition above could be changed depends on the body shape of a patient and spec of generator. #Please follow the expert when shooting and find the table of exposure condition above just as a reference. 1012WCC/WGC...
  • Page 143 Axial #Table of exposure condition above could be changed depends on the body shape of a patient and spec of generator. #Please follow the expert when shooting and find the table of exposure condition above just as a reference. 1012WCC/WGC...
  • Page 144 14, Samsung 1-ro 1-gil, Hwaseong-si, Gyeonggi-do, Korea Tel: +82-31-8015-6245 Fax: +82-31-8015-6300 E-mail: marketing@rayence.com www.rayence.com...

This manual is also suitable for:

1012wgc

Table of Contents
