Rowlinson Garden Products 3x4 Softwood Gate Assembly Instructions

Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide. The
instruction sheet is only a guide to the assembly.
Certain items may not be shown to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people
• Drill all components where indicated
x 2
Drill
Recommended tools for assembly
• Power Drill/Screwdriver
• Cross-head screwdriver bit
• 2mm diameter drill bit
• Tape measure
• Electric mitre saw or hand saw and mitre box
• Hammer
• Set square
• Wood glue
• Pencil
IMPORTANT
Certain timber components require cutting for
correct assembly of this gate. Prior to cutting, it is
recommended to double check all measurements
are accurate. The customer is solely responsible
for avoiding any errors in cutting, as these can not
be rectified.
The components of this gate are supplied in
untreated natural timber. It is recommended to
treat with a good quality exterior timber paint
or stain before installation and annually thereafter,
paying particular attention to the end grain
of timber sections. If left untreated, overtime
the timber will turn grey in colour and will
deteriorate when exposed to weather conditions.
Dimensions:
Height: 915mm
Max. Width: 1205mm
Min. Width:760mm
This gate can be constructed to any width between
the maximum and minimum. Do not reduce the
width to less than the minimum 760mm.

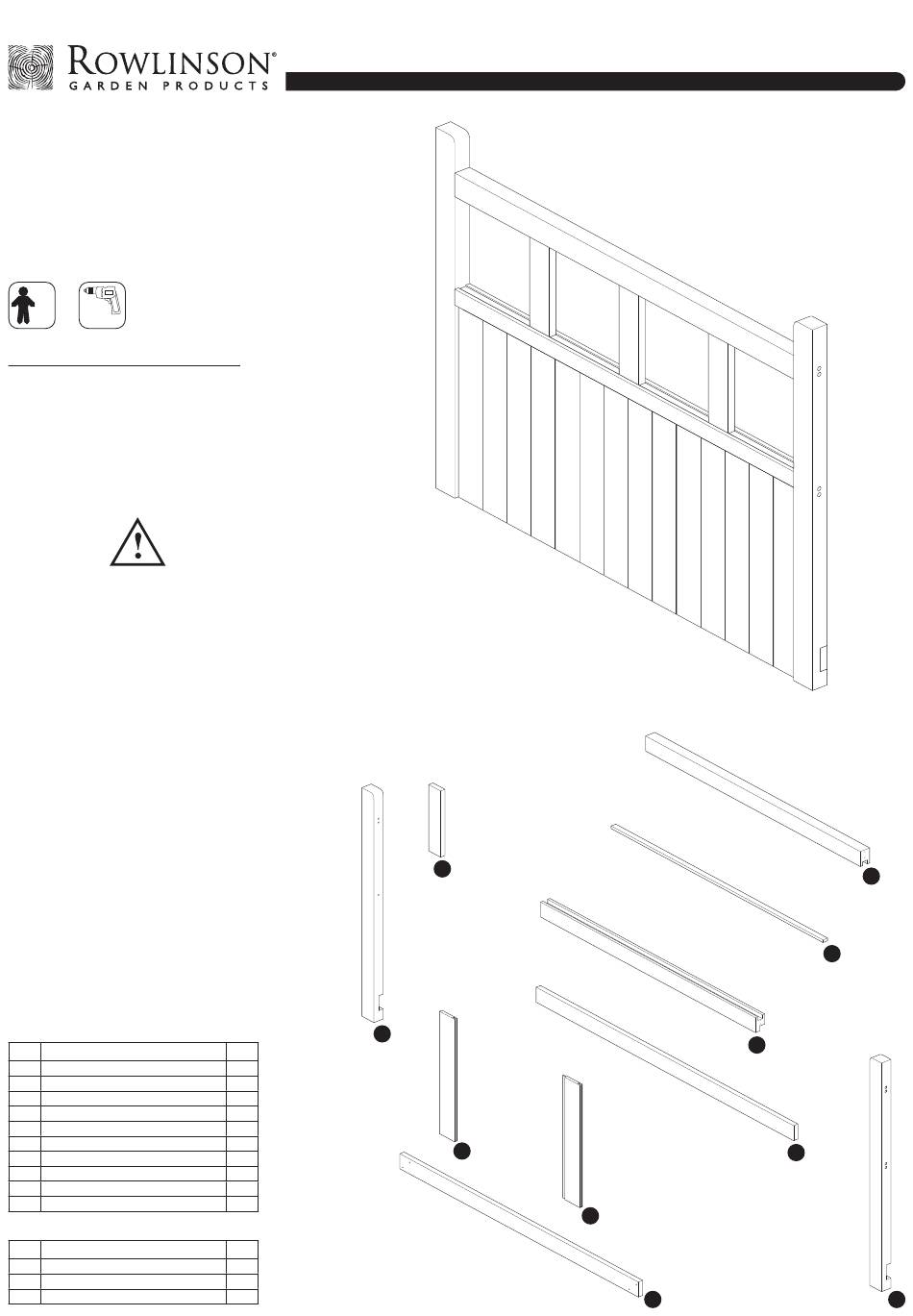

No. Components
1 Base rail
(1205mm)
2 Top rail
(1085mm)
3 Middle rail
(1085mm)
4 Gate post left
5 Top slats
(265mm)
6 Gate post right
7 Diagonal brace
(1300mm)
8 T&G bottom slat
(tongue removed)
9 T&G bottom slats
10 Infill strip
(1070mm)
No. Fixing Kit
11 100mm screw
12 40mm nails
13 25mm nails
3x4 Softwood Gate
Assembly Instructions
4
Qty.
1
1
1
1
3
1
1
1
13
2
Qty.
10
6
45
5
8
9
English SS643
3
7
1
2
10
6
