Rowlinson Garden Products Bali SS262A Assembly Instructions

5. Operating the table extension

Fold the table extension into the middle of the table. Push the two table top sections together until they meet in the
middle. Table position should be secured using the latches on the underside of the table.

Safety information

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Periodically check all fastenings for tightness
For domestic use only
If in doubt of any aspect regarding the assembly, use or safety of your arbour please contact us :
Help Line: (Normal Office Hours) 01829 261 121
Email: support@rowgar.co.uk
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
www.rowgar.co.uk
We constantly improve the quality of our products, occasionally
the components may differ from the components shown and are
only correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2015 © Rowlinson Garden Products Ltd

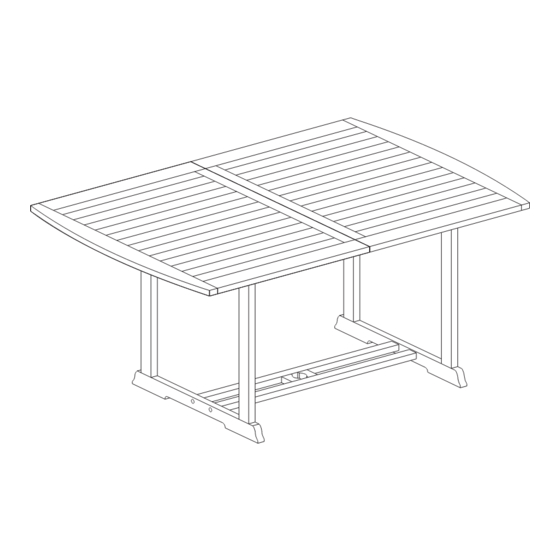

Bali set table assembly
Assembly Instructions

Before assembly

•
We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide. The
instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people
x 2

Recommended tools for assembly

•
Allen Keys (supplied with kit)
•
Cross head screw driver
No.

Components

Qty.
1 Table top 1
2 Table top extension 1
3 Legs 2
4 Leg brace 1
5 Extension support 1
6 Leg corner supports 6
No.

Fixing kit

Qty.
7 90mm screws 4
8 60mm screws 8
9 40mm screws 16
10 Dowels 4
11 Allen key 1
English SS262A
1
3
4
5
2
6
