DGS -LOWBEAMLEG-9 Instruction Manual

Low beam legs

Download this manual

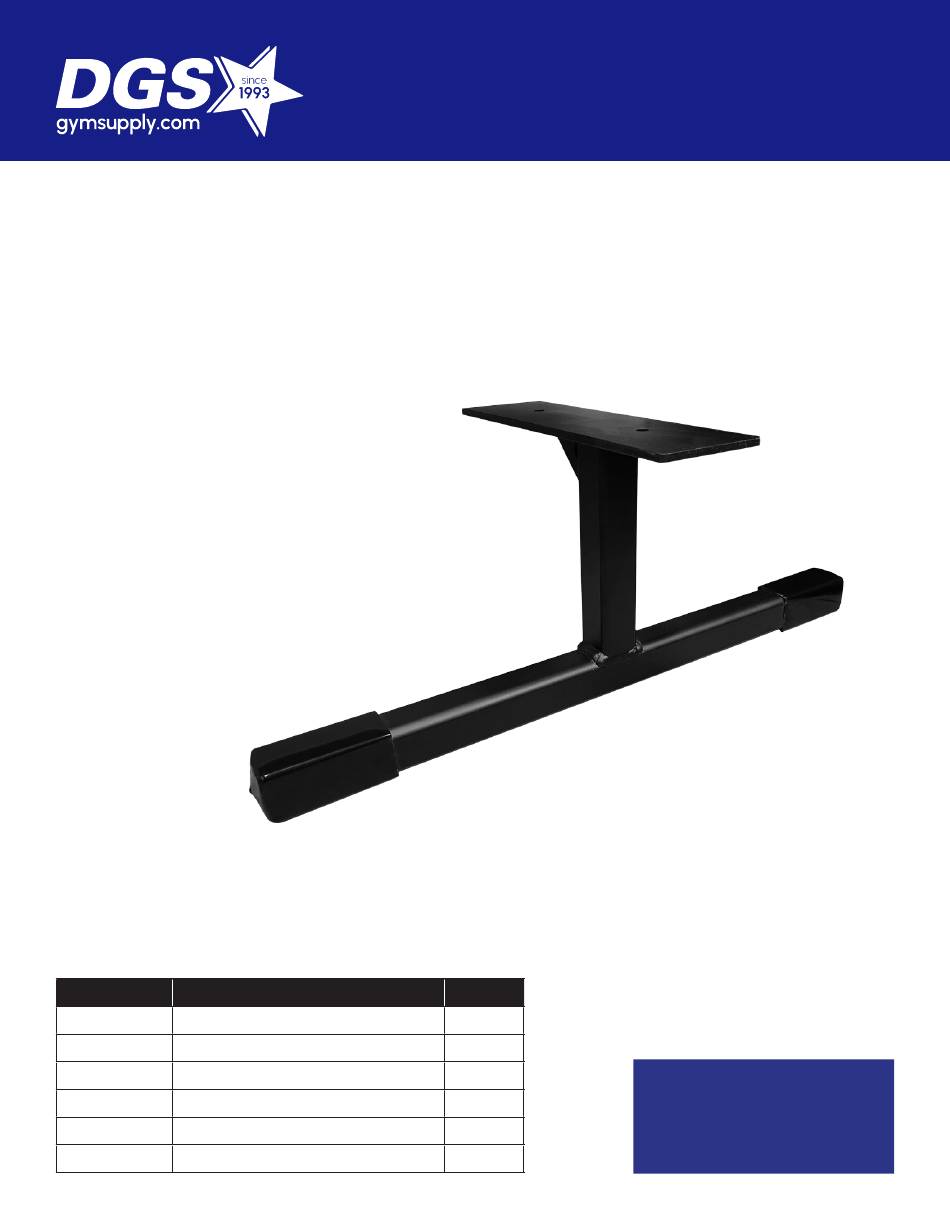

Low Beam Legs

SKU: DGS-LOWBEAMLEG-9

Recommended Tools:

† Flat Screwdriver

† 7/32 Hex Key

Part Number

92865A632

3/8" x 2" Hex Screw

1133008

3/8" Flat Washer

1133622

3/8" Lock Washer

98694A120

3/8" Nut

CUSTOM

Anchor Plate

CUSTOM

Base Assembly

Part Description

Instruction Manual

Low Beam Legs

Quantity

Need help?

Call 1-800-932-3339 or

Email info@gymsupply.com

Need help?

Do you have a question about the DGS-LOWBEAMLEG-9 and is the answer not in the manual?

Page 1 Instruction Manual Low Beam Legs Low Beam Legs SKU: DGS-LOWBEAMLEG-9 Recommended Tools: † Flat Screwdriver † 7/32 Hex Key Part Number Part Description Quantity 92865A632 3/8” x 2” Hex Screw 1133008 3/8” Flat Washer 1133622 3/8” Lock Washer Need help? 98694A120 3/8”...
Page 2 Instruction Manual Low Beam Legs Step 1: Start by affixing the Anchor Plate to a Base Assembly. Insert the Hex Screw, Flat Washer and Lock Washer through the base and into the Anchor Plate, following the diagram on the right. Step 2: Lay out cardboard to protect the beam’s top surface, and position the beam with its top...
Page 3 Instruction Manual Low Beam Legs Step 4: Position the Base Assembly at the end of the beam and secure the Hex Screws with a 3/8” Nut. Step 5: Repeat steps 1-4 for the opposite end of the beam.. IMPORTANT: To prevent twisting the extrusion, it’s crucial to have two people flip the assembled beam over. With one person at each end of the beam, carefully flip it onto the Base Assemblies.
