Quick Start Guide
for the DC Power Supplies of the G5 product family
V03.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the G5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REGATRON G5 Series

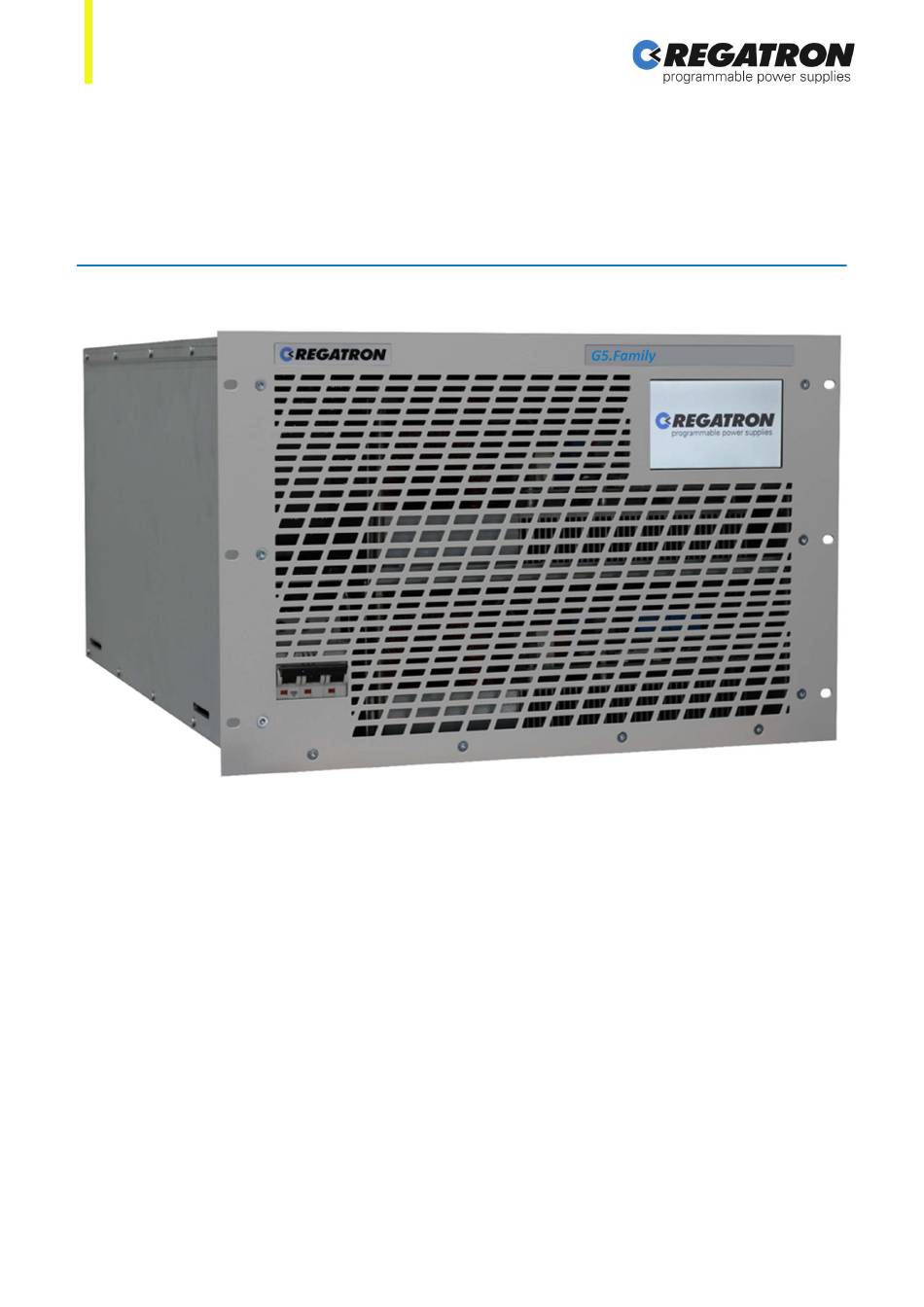

  • Page 1 Quick Start Guide for the DC Power Supplies of the G5 product family V03.00...
  • Page 2: Table Of Contents

    2.12 Warning Symbols Used ................. 13 3 Transport ......................14 4 Site Conditions .....................16 5 Preparing the Installation ................17 5.1 Mechanical Installation ................... 18 5.2 Cable Requirements ..................20 6 Configuration ....................21 REGATRON G5 Device Family - V03.00 2 / 39 Performance. Precision. Quality.
  • Page 3 7.1.3 Line Side Connection ....................34 7.2 Measuring the Insulation Resistance .............. 35 8 Commissioning .....................36 8.1 Starting ......................36 8.2 Stopping ......................37 8.3 Grid Troubles ....................37 9 Disposal ......................38 REGATRON G5 Device Family - V03.00 3 / 39 Performance. Precision. Quality.
  • Page 4: Introduction

    The information in this documentation corresponds to the development situation at the time of going to print and is therefore not of a binding nature. REGATRON AG reserves the right to make changes at any time for the purpose of technical progress or product improvement, without stating the reasons.
  • Page 5: Safety Information

    • train the employees working with the device at regular intervals how to use the devices and which possible dan- gers may appear • ensure that the device is technically proper functioning at any time REGATRON G5 Device Family - V03.00 5 / 39...
  • Page 6: Ordinances And Regulations

    These covers are not included in the scope of delivery. They can be ordered separately, see chapter Spare Part List, page 213 of the Device Manual for further information. If these restrictions are not observed, REGATRON AG cannot be made liable for any consequential harm. Categorization of the Hazard Areas The assessment of the effects of hazards from low-voltage systems with a flow of energy for supply and possibly regeneration is divided into various areas, which are described in the following.
  • Page 7: Electric Shock

    • Use wiring material suitable and stipulated for your application with the related insulation class. • Monitor your system actively or passively using appropriate sensors or by monitoring parameters. REGATRON G5 Device Family - V03.00 7 / 39...
  • Page 8: Arcing And Sparking On Opening Contacts

    The use of normal mains contactors as isolators in DC circuits is not recommended! Use DC contactors instead. If in doubt, contact their manufacturer. Bear in mind that the protective devices of the REGATRON low-voltage system cannot detect an arc as a fault condition, as this may be desired as a function.
  • Page 9: Mains Connection Area

    Here a modern make of residual current circuit breaker is to be used that will tolerate such asymmetries during the switch-on process. REGATRON recommends using an all- current sensitive RCD circuit breaker type B or B+.
  • Page 10: 2.10 Area Related To Interaction With The Device

    • The device is always to be operated within the permissible temperature range. High temperatures will signifi- cantly reduce the service life of various components. REGATRON G5 Device Family - V03.00 10 / 39 Performance. Precision. Quality.
  • Page 11: 2.11 Symbols Description

    Hazard due to a substance or mixture of substances which cause eczema, allergies or poisoning. Avoid contact with skin! Potentially lethal hazard due to a substance or a mixture of substances. Do not touch, do not swallow, do not breathe in! REGATRON G5 Device Family - V03.00 11 / 39 Performance. Precision. Quality.
  • Page 12 Wear a helmet! Wear a light breathing protection for low concentrated short-term steams, fumes or aerosols! Wear protective gloves! Wear safety shoes! Properly dispose waste electrical and electronic equipment! REGATRON G5 Device Family - V03.00 12 / 39 Performance. Precision. Quality.
  • Page 13: 2.12 Warning Symbols Used

    More than 60 V up to 20 sec. WARNING High touch current! Connect protective earth prior to main lines Hazard due to high voltage Hazard due to high voltage Hazard due to hot surface REGATRON G5 Device Family - V03.00 13 / 39 Performance. Precision. Quality.
  • Page 14: Transport

    Usage of the hoisting slings Hoisting slings with rigging bands for hooking the device to a crane or a forklift Hoisting slings with rigging bands for carrying the device by hand REGATRON G5 Device Family - V03.00 14 / 39...
  • Page 15 Lower protective support Cardboard box Transport pallet You can order new shipping packaging from REGATRON Customer Support. Here you can also get additional package protection for the front and the sides, if necessary (e.g. for overseas shipping). REGATRON G5 Device Family - V03.00 15 / 39 Performance.
  • Page 16: Site Conditions

    Vibrations (according to IEC-600068-2-6) Test Fc Pollution degree (according to EN62477-1) also for operation Operating Conditions (according to IEC 60721-3-3) Climate 3K22 Special climatic conditions Mechanically active substances Mechanical 3M11 Biological REGATRON G5 Device Family - V03.00 16 / 39 Performance. Precision. Quality.
  • Page 17: Preparing The Installation

    • Remove foreign objects such as drilling sward or screws from the system before you fit new devices Prior to the electrical installation, REGATRON AG recommends to confirm the following aspects: • The type plate matches the data in the order and delivery documents •...
  • Page 18: Mechanical Installation

    If you want to use a residual current device, please consider the varying requirements for protection against fire and the protection of individuals. REGATRON recommends the usage of a residual current device sensitive to AC and DC leakage currents. If such a device is to be installed, a Type B or Type B+ must be chosen in order to avoid false tripping or lack of appropriate protection.
  • Page 19 Usually M6 screws can be used. Fig. 4: Case installation with the help of a trolley REGATRON G5 Device Family - V03.00 19 / 39 Performance. Precision. Quality.
  • Page 20: Cable Requirements

    16 mm (AWG 5) 16 mm to 35 mm (AWG 5 to 2) 16 mm (AWG 5) half of phase conductors 35 mm and more (>AWG 2) REGATRON G5 Device Family - V03.00 20 / 39 Performance. Precision. Quality.
  • Page 21: Configuration

    A multi-device system with a voltage higher than either the device-specific isolation voltage or NOTICE 1500 VDC is not covered by the “Low Voltage Directive” 2014/35/EU (LVD). In that case, REGATRON cannot be made liable for any consequential harm. REGATRON G5 Device Family - V03.00 21 / 39 Performance.
  • Page 22: Single Configuration

    When using the sense functionality, only the sense measurement of the master device is used according to the following scheme: Fig. 9: Sense and load connections on multiple devices in a parallel configuration REGATRON G5 Device Family - V03.00 22 / 39 Performance. Precision. Quality.
  • Page 23: Series Configuration

    1000 V results in a max. system voltage of 2000 V a device voltage of 500 V or 1500 V results in a max. system voltage of 3000 V REGATRON G5 Device Family - V03.00 23 / 39...
  • Page 24 When using the sense functionality, the sense measurement of every individual device (master and slaves) are used in series. The measuring mid-points have to be connected to the device mid-points according to the following scheme: Fig. 11: Sense and load connections on multiple devices in a series configuration REGATRON G5 Device Family - V03.00 24 / 39...
  • Page 25: Matrix Configuration

    Fig. 12: Example of a matrix configuration of four G5 devices with midpoint connection Fig. 13: Example of a matrix configuration of four G5 devices without midpoint connection REGATRON G5 Device Family - V03.00 25 / 39 Performance. Precision. Quality.
  • Page 26 Here, the measuring mid-points must be connected to the device mid-points according to the following scheme: Fig. 14: Sense and load connections on multiple devices in a matrix configuration REGATRON G5 Device Family - V03.00 26 / 39...
  • Page 27: Installation

    • mounting the protective DC covers G5.PAC.DC. (included per default in the scope of delivery for cabinet integration) • connecting the line side • measuring the insulation resistance REGATRON G5 Device Family - V03.00 27 / 39 Performance. Precision. Quality.
  • Page 28: Connecting

    • Use two wrenches from both sides, when tightening the screws on the copper bars There are two ways to connect the load side of the G5 device, depending on the output current it provides. REGATRON G5 Device Family - V03.00 28 / 39 Performance.
  • Page 29 + and - and the shield to Pin 3.  The load side of the G5 device is electrically connected: Fig. 15: DC load side connection for devices with an output current of up to 1014 A REGATRON G5 Device Family - V03.00 29 / 39...
  • Page 30 The output current per cable is halved Heat generation at the output is reduced: Fig. 16: DC load side connection for devices with an output current of more than 1014 A REGATRON G5 Device Family - V03.00 30 / 39...
  • Page 31: Mounting Protective Dc Covers

    60 V, 80 V, 160 V, 240 V, 320 V @ current level up to 1014 A G5.PAC.DC3 60 V, 80 V @ current level 1014 A and higher REGATRON G5 Device Family - V03.00 31 / 39 Performance. Precision. Quality.
  • Page 32 5. Fix the DC contact protection by half-turning each of the two locking pins (1)  The DC cover G5.PAC.DC1 is mounted as visualized: Fig. 17: Mounting DC protective covers for devices with output voltages higher than 500 V REGATRON G5 Device Family - V03.00 32 / 39...
  • Page 33 3. Fix the protection cover on the mounting frame with the four fixing screws (2)  The DC cover G5.PAC.DC2 or G5.PAC.DC3 is mounted as visualized: Fig. 18: Mounting DC protective covers for devices with output voltages lower than 500 V REGATRON G5 Device Family - V03.00 33 / 39...
  • Page 34: Line Side Connection

    4. Connect the AC wires to the AC line side connection (cable clamp) X10 (3) 5. Close the strain relief clamp (1) so that there is no strain on the cable  The line side is connected electrically with a strain relief clamp. REGATRON G5 Device Family - V03.00 34 / 39...
  • Page 35: Measuring The Insulation Resistance

    • 18 kW: 1.5 MΩ • 36 kW: 0.75 MΩ • 54 kW: 0.5 MΩ The exact measuring result is to be found in the test report. REGATRON G5 Device Family - V03.00 35 / 39 Performance. Precision. Quality.
  • Page 36: Commissioning

     The G5 device is in state Voltage On. Energy flows between line side and load side. The G5 device can be used for the application cases intended according to the G5.Control Application Software Manual. REGATRON G5 Device Family - V03.00 36 / 39 Performance. Precision. Quality.
  • Page 37: Stopping

    After a grid failure or loss, the device does not restart automatically. After the limit violation is finished, the error state can be cleared and the device can be restarted manually. REGATRON G5 Device Family - V03.00 37 / 39...
  • Page 38: Disposal

    • Electrical equipment is too valuable for household waste • Dispose the waste with due care for the environment • Concerning the disposal of electrical equipment, comply with national laws REGATRON G5 Device Family - V03.00 38 / 39 Performance. Precision. Quality.
  • Page 39 This product is developed, produced, and tested according to ISO 9001 by REGATRON. For detailed technical information, contact REGATRON or your local sales partner REGATRON AG REGATRON INC. Feldmuehlestrasse 50 100 Overlook Center, 2nd Floor 9400 Rorschach Princeton, NJ 08540...
