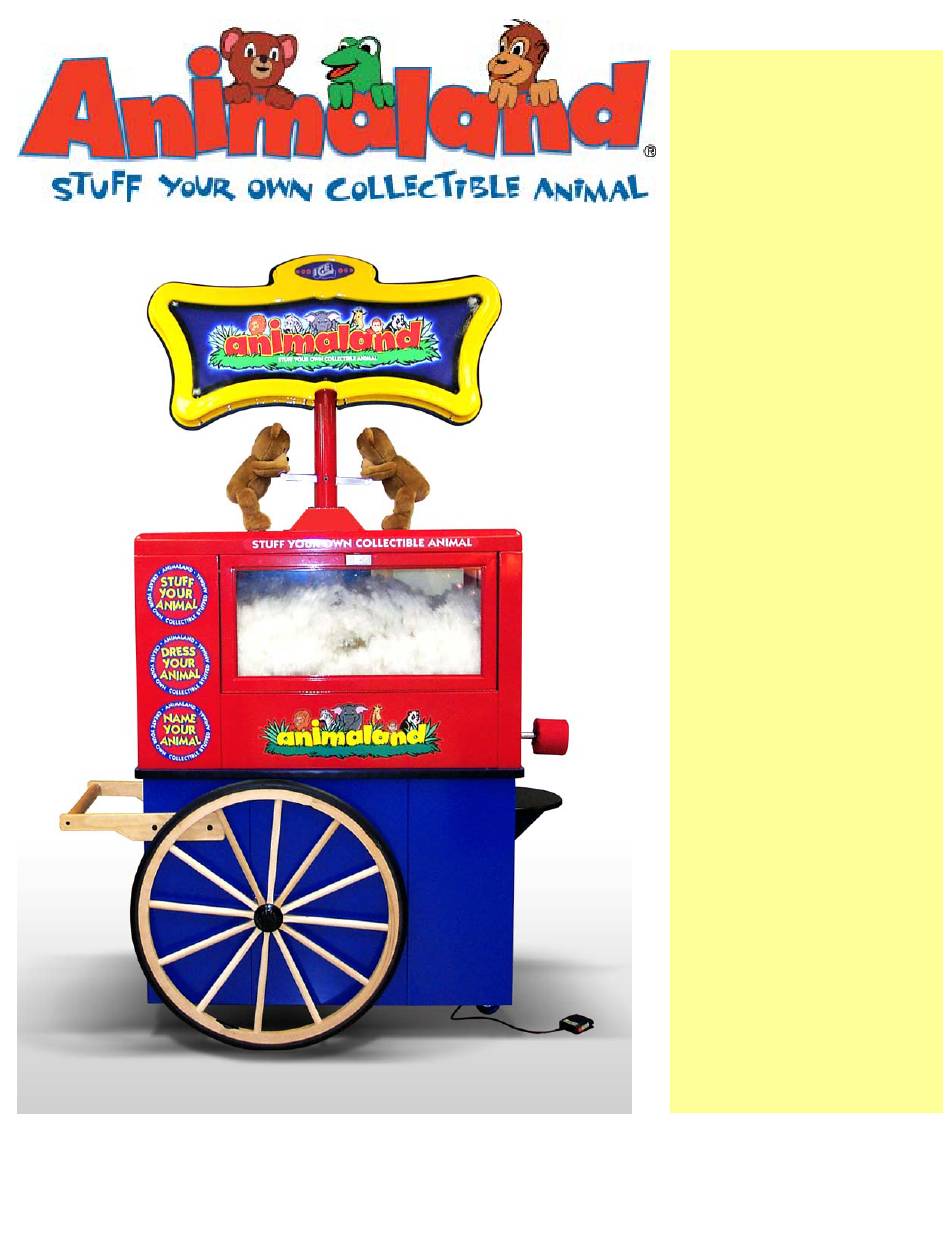

ANIMALAND PORTABLE STUFFING MACHINE MANUFACTURED BY
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
E-MAIL: service@icegame.com WEBSITE: www.icegame.com
1
FOR
INDOOR
USE
ONLY
20 AMP
DEDICATED
LINE
REQUIRED
OWNERS
AND
SERVICE
MANUAL
SERVICE
1-716-759-0360
FAX
1-716-759-0884
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for I.C.E ANIMALAND
Summary of Contents for I.C.E ANIMALAND
- Page 1 INDOOR ONLY 20 AMP DEDICATED LINE REQUIRED OWNERS SERVICE MANUAL SERVICE 1-716-759-0360 1-716-759-0884 ANIMALAND PORTABLE STUFFING MACHINE MANUFACTURED BY INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FOREWORD ..............PAGE 3 INTRODUCTION ...............PAGE 4 MACHINE FEATURES MACHINE OPERATION INSTALLATION..............PAGE 6 BEFORE YOU BEGIN INSTALLATION MAINTENANCE ..............PAGE 7 GENERAL MAINTENANCE MONTHLY MAINTENANCE MOTOR REPLACEMENT COMPRESSOR MAINTENANCE QUICK TROUBLESHOOTING ........PAGE 10 MACHINE REPAIR............PAGE 11 OPERATIONAL BACKGROUND TROUBLESHOOTING PHILOSOPHY RESTARTING COMPRESSOR AFTER POWER LOSS AIR COMPPRESSOR REPLACEMNT PARTS LISTINGS............PAGE 13... -
Page 3: Foreword
This Manual has been compiled to assist those whose task it is to operate and maintain the ANIMALAND® Portable Stuffing Machine. It is essential that all operating and maintenance staff responsible for the safe operation of the unit completely understand and comply with information herein. -
Page 4: Introduction
Inform the customer that they will be assisting you as you bring their new friend to life. Hold the animal skin securely and turn the foot pedal Thank you for purchasing the new ANIMALAND® key switch to the on position. Portable Stuffing Machine from I.C.E. - Page 5 Wishing Star children. First, these items are NOT meant for children and are strictly for use on Animaland Animal Skins. Second, if people choose to purchase these Once the machine is secure, hand the customer a items for any use other than an Animaland Animal wishing star and ask them to “make a wish and kiss...
-
Page 6: Installation
DISCHARGE STATIC ELECTRICITY THROUGH THE UNIT CIRCUITRY, WHICH COULD CAUSE DAMAGE. INSTALLATION The ANIMALAND® Portable Stuffing Machine comes ready to play with just a few simple things to keep in mind: Fig.2 1. When installing the unit, be sure you use a 20 amp grounded A.C. -
Page 7: Installation
INSTALLATION Your game has been supplied with a length of self adhesive hook and loop material that is used to at- tach and animate the stuffed animals on the top of the game. Attach them as follows: Use scissors to cut 4 lengths of hook and loop and attach them to the handles as shown Attach 4 strips to the game top near the base of the marquee as shown below... -
Page 8: Monthly Maintenance
MAINTENANCE MONTHLY MAINTENANCE MOTOR REPLACEMENT ® Portable In order to keep your ANIMALAND Follow steps one and two of the grease Animation Stuffing Machine Linkage procedures to access the motor. To replace running smoothly for many the motor simply cut the “zip-tie” and remove the 4 years, you will have to perform maintenance in the Phillips screws. -
Page 9: Compressor Maintenance
MAINTENANCE COMPRESSOR MAINTENANCE Draining Moisture from Air Tank As the game is used, water will accumulate in the air compressor. This is normal for all air compressors and the water needs to be drained out monthly. Failure to do so can cause the inside of the com- pressor tank to corrode over time and shorten it’s life Once a month the compressor should be drained as follows:... -
Page 10: Quick Troubleshooting
QUICK TROUBLESHOOTING Auger will not turn: • Faulty door switch. • Bad Harnessing or connector. Check w/ohm meter and repair as necessary. • Bad motor • Bad motor coupler • Bad coupler spider AIR COMPRESSOR WILL NOT TURN ON: • Check to be sure the compressor has power •... -
Page 11: Machine Repair
If doing continuity checks, it is important to disconnect the harnessing at both ends, as attached they may yield erroneous results. I.C.E. SERVICE DEPARTMENT 716-759-0360 SWITCH IN NORMAL BUSINESS HOURS: VERTICAL POSITION MONDAY – FRIDAY, 9:00AM TO 6:00PM EST... -
Page 12: Air Comppressor Replacemnt
MACHINE REPAIR AIR COMPPRESSOR REPLACEMENT The air compressor is located in the lower cabinet. In the event that the compressor would need to be replaced the following steps should be followed. 1. The first step in compressor replacement is to be sure that all power is disconnected from the compressor. -
Page 13: Mechanical Parts
PARTS LISTING MECHANICAL PARTS DECALS AND GRAPHICS AL1036 Nozzle AL7001 STUFF YOUR ANIMAL AL1038 Pivot arm handle (male) AL7002 DRESS YOUR ANIMAL AL1039 Pivot arm handle (female) AL7003 NAME YOUR ANIMAL AL1040 Pivot arm AL7004 LARGE LOGO AL1043 Connecting rod AL7005 COLLECTIBLE DECAL AL3005... -
Page 14: Warranty Information
Defective parts are returned to I.C.E., shipping pre-paid, in a timely fashion, if requested by I.C.E. · A copy of the sales receipt from Animaland, Inc. is available as proof of purchase upon request of I.C.E. I.C.E. distributors are independent, privately owned and operated. In their judgment, they may sell parts or accessories other than those manufactured by I.C.E. -
Page 15: Contact List
MONDAY – FRIDAY, 9:00AM TO 5:00PM PST EMERGENCY SERVICE......702-314-1854 Ext. 16 NORMAL BUSINESS HOURS: MONDAY – FRIDAY, 9:00AM TO 5:00PM PST LEAVE A MESSAGE AFTER HOURS AND YOU WILL RECEIVE A CALL BACK VISIT US 24 HRS A DAY AT WWW.ANIMALAND.COM...
