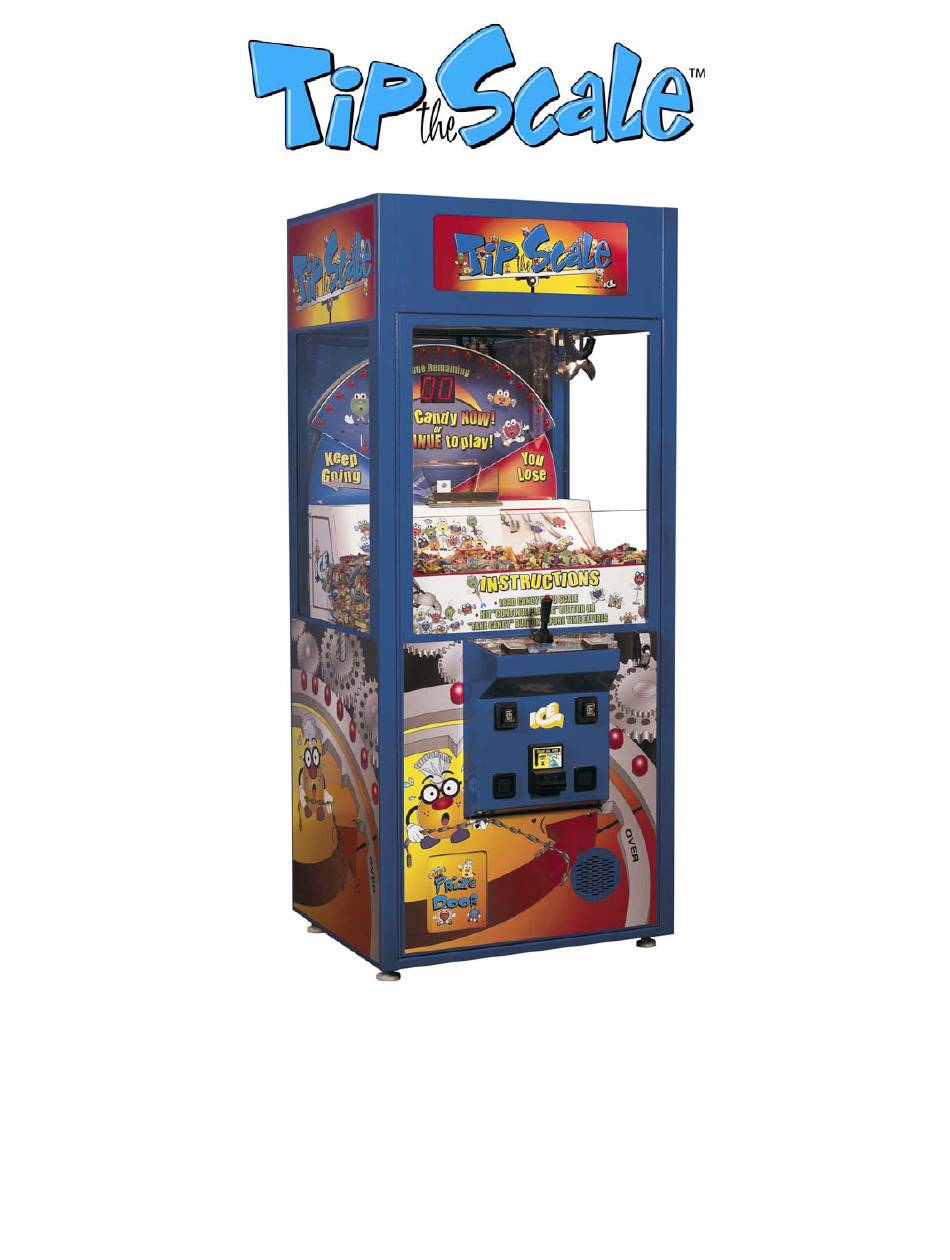

- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION…………………………….………..PAGE 3 GAME FEATURES • GAME PLAY • SET-UP / TESTING / MAINTENANCE…………..…..PAGE 4 & 5 SAFETY PRECAUTIONS • GAME SET-UP • ASSEMBLY • ADDING CANDY • TESTING • CLEANING • QUICK PROGRAMMING……………………..…..…...PAGE 6 PROGRAMMING……………………………………….PAGE 7 - 11 INTRODUCTION •... -
Page 3: Introduction
SCALE™ game from I.C.E. onto the scale as possible without overloading the scale. TIP THE SCALE™ is a unique twist on the standard Candy Crane game. Instead of just playing to win a The game is begun by inserting money. -
Page 4: Set-Up / Testing / Maintenance
SET-UP / TESTING / MAINTENANCE SAFETY PRECAUTIONS ADDING CANDY TO THE GAME NOTE: IT IS VERY IMPORTANT TO USE ONLY IMPORTANT: FAILURE TO FOLLOW THESE SMALL CANDY THAT WON'T GET CAUGHT IN THE DIRECTIONS CLOSELY COULD CAUSE SERIOUS ASSEMBLY. Try to avoid candy that is very flat or long DAMAGE TO YOUR GAME. - Page 5 Regular cleaning of this game will keep it looking new, and greatly enhance its appeal. Clean the windows of your TIP THE SCALE™ with a standard window cleaner such as Windex® Clean the cabinet sides with a good cleaner such as “Fantastic”...
-
Page 6: Quick Programming
QUICK PROGRAMMING PRESS THE PROGRAMMING BUTTON LOCATED INSIDE THE GAME TO ENTER THE PROGRAMMING MODE. MOVE THE JOYSTICK UP AND DOWN TO SCROLL THROUGH THE OPTIONS. THE GAME OPTION NUMBERS ARE SHOWN ON THE PODIUM CONTROL PANEL. MOVE THE JOYSTICK LEFT AND RIGHT TO RAISE OR LOWER THE VALUE OF THE PARTICULAR OPTION. THE OPTION VALUES ARE DISPLAYED ON THE SCALE DISPLAY. -
Page 7: Programming
GAME PROGRAMMING INTRODUCTION As an example, we will assume that coin 1 is set up to accept quarters. We also know that the dollar bill The game is easily programmed by the operator. To validator is set up for 1 pulse (or a dollar coin would change programming, please follow the instructions give you 1 pulse when the switch is activated). - Page 8 GAME PROGRAMMING OPTION #4 OPTION #7 CONSECUTIVE CREDITS FOR FREE ATTRACT MODE INTERVAL GAME This option determines how many minutes pass BE- TWEEN the display of the attract mode. The range This option is used to give CREDIT DISCOUNTING. for this option is 1-30. The default value for this op- In other words, you can set the game up to give out tion is "3"...
- Page 9 GAME PROGRAMMING TO SET THE MAXIMUM AMOUNT OF CANDY OPTION #12 POSSIBLE TO WIN… LEFT / RIGHT MOTOR TEST 1. Enter option 8, be sure scale is empty and press Move the joystick left and right to move the the "CONTINUE PLAYING" button until the two left / right motor in either direction.
-
Page 10: Error Codes
ERROR CODES These error codes are available to aid in diagnosing game problems. An error will be indicated by red dots that show up on the seven segment displays on the control panel. To find out what the errors are, HIT THE ACCOUNTING BUTTON when there are no credits in the game. The game will then automatically display all of the errors on the control panel. - Page 11 ERROR CODES 8. FRONT / BACK ERROR - This error indicates that the game cannot find the front back sensor switch. This could be due to the following: A) Bad front / back sensor B) Bad sensor wiring C) Broken drive rings D) Loose motor pulley E) Bad motor F) Bad motor wiring...
-
Page 12: Quick Troubleshooting
QUICK TROUBLESHOOTING A self-test will be performed each time the game is powered up. 2. If the Wagon does not move smoothly through a full travel from left to right, check to see that the wheel spac- ing is correct. If the spacing is correct then check the 2 cabinet rails for burrs that may cause the wheels to bind. - Page 13 QUICK TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION THE DECIMALS ON THE 4 DISPLAYS THIS IS IN FACT NOT A PROBLEM BUT A WAY OF OPEN THE FRONT DOOR AND THE ERROR ARE LIT UP LETTING THE OPERATOR KNOW THAT THERE WAS CODES ARE SHOWN ON THE DISPLAYS.
-
Page 14: Game Repair
GAME REPAIR WARNING: ALWAYS REMOVE POWER TO THE GLASS GAME BEFORE ATTEMPTING ANY SERVICE, REPLACEMENT UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION 1. Remove all A.C power from the game. COULD RESULT IN SERIOUS INJURY TO YOUR- SELF OR OTHERS. - Page 15 6. NOTE: STRING PURCHASED FROM I.C.E. of its intended direction. WILL HAVE GLUE ON THE LAST 2 INCHES TO MAKE IT EASIER TO FEED UP INTO 6.
- Page 16 GAME REPAIR 4. Unsnap the bulb from the bulb holder. This SCALE ASSEMBLY SERVICE can be done by pushing on the release but- ton while pulling on the bulb. BIN MOTOR 5. Replace in reverse order. 6. Be sure the bulb is snapped securely in 1.
- Page 17 GAME REPAIR SCALE DIAL SERVICE The scale dial incorporates on a P.C. Board, the L.E.D. 7 segment displays, the Jumbo L.E.D.'s, the needle positioning optical sensors, and the connec- tor for the servo motor. The scale dial also incorporates the needle and the servo motor.
-
Page 18: Parts Listings
PARTS LISTING MECHANICAL PARTS DECALS & GRAPHICS CS1003-P500 SIDE WINDOW BRACKET TS7001 PRIZE DOOR DECAL FP1004 LEG LEVELER MOUNTING BRACKET TS7003 LOWER DOOR DECAL CG1009 CASH BOX LID TS7007 SCALE DECAL, LEFT SIDE CG1015 LOCK (BARREL) TS7008 SCALE DECAL, RIGHT SIDE HR1019 LEVELER FOOT, SHORT TS7009... - Page 23 Warranty I.C.E warrants all components in the TIP THE SCALE™ game to be free of defects in materials and workmanship for a period of 90 days from the date of purchase. Furthermore, all MAIN P.C. BOARDS are warranted for 180 days.
- Page 24 ICE Inc. We cannot be responsible for the quality, suitability or safety of any non-ICE part, modification (including labor) that is performed by such a distributor. I.C.E. Parts/Service Dept. Innovative Concepts in Entertainment 10123 Main St.
