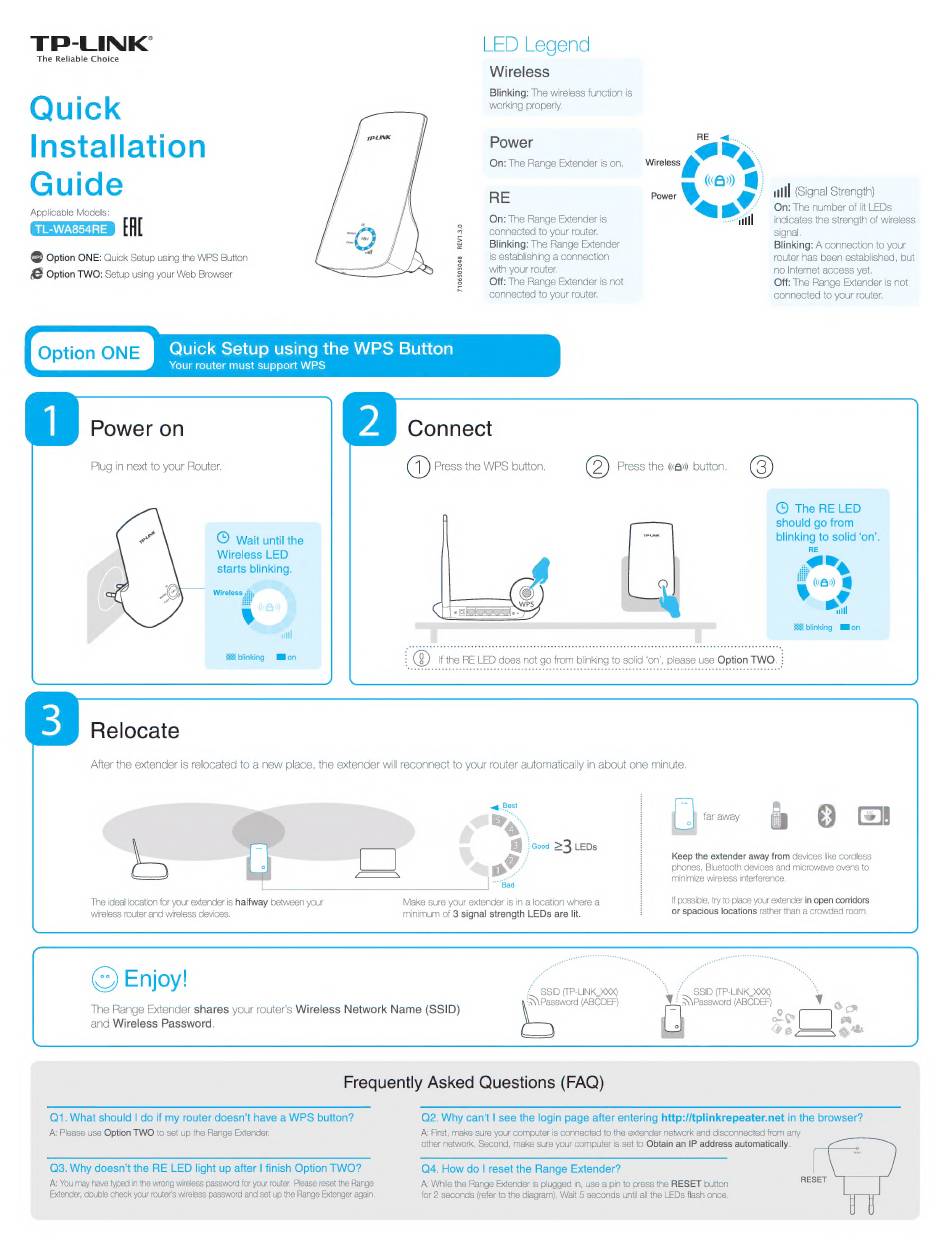

TP-Link TL-WA854RE Quick Installation Manual

TP-LINK
The Reliable Choice
Quick
Installation
Guide
Applicable Models:
EAL
(ves) Option ONE: Quick Setup using the WPS Button
eG Option TWO: Setup using your Web Browser
LED Legend
Wireless
Blinking: The wireless function is
working properly.
Power
On: The Range Extender is on.
On: The Range Extender is
connected to your router.
Blinking: The Range Extender
is establishing a connection
with your router.
Off: The Range Extender is not
connected to your router.
7106505048 REV1.3.0
g ull] (Signal Strength)
y- On: The number of lit LEDs
at "ll indicates the strength of wireless
signal.
Blinking: A connection to your
router has been established, but
no Internet access yet.
Off: The Range Extender is not
connected to your router.
Option ONE Quick Setup using the WPS Button
Your router must support WPS
Power on
Plug in next to your Router,
© Wait until the
Wireless LED
starts blinking.
Wireless
¥
H blinking Mon
Relocate
PS button. (2) Press the «6» button.
© The RE LED
should go from
blinking to solid 'on'.
Pr
CDE @
¥
of
EH blinking Mon
After the extender is relocated to a new place, the extender will reconnect to your router automatically in about one minute.
B |]
V
Keep the extender away from devices like cordless
phones, Bluetooth devices and microwave ovens to
minimize wireless interference,
<4. Best
Ey IN 7
l
far away a
g feood 23 LEDs
g:
The ideal location for your extender is halfway between your
wireless router and wireless devices.
Enjoy!
The Range Extender shares your router's Wireless Network Name (SSID)
and Wireless Password.
Make sure your extender is in a location where a
minimum of 3 signal strength LEDs are lit.
If possible, try to place your extender in open corridors
or spacious locations rather than a crowded room,
SSID (TP-LINK_XXx)
"SSID (TP-LINK XX% :
ue (ABCDEF)
| D Password (ABCDEF)
Frequently Asked Questions (FAQ)
Q1. What should | do if my router doesn't have a WPS button?
A: Please use Option TWO to set up the Range Extender.
Q3. Why doesn't the RE LED light up after I finish Option TWO?
A: You may have typed in the wrong wireless password for your router. Please reset the Range
Extender, double check your router's wireless password and set up the Range Extenger again.
Q2. Why can't | see the login page after entering http://tplinkrepeater.net in the browser?
A; First, make sure your computer is connected to the extender network and disconnected from any
other network. Second, make sure your computer is set to Obtain an IP address automatically.
Q4. How do | reset the Range Extender?
A: While the Range Extender is plugged in, use a pin to press the RESET button
for 2 seconds (refer to the diagram), Wait 5 seconds until all the LEDs flash once.
RESET
