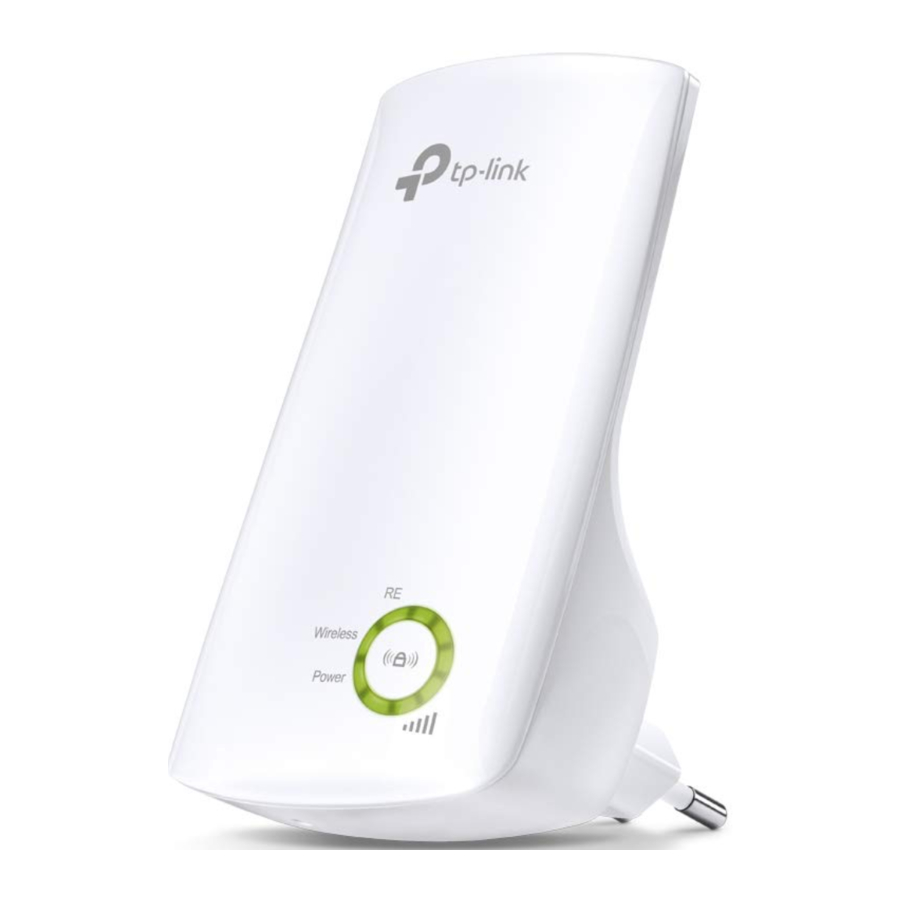

TP-Link TL-WA854RE Manual

Setup with videos
Scan the QR code, or visit
https://www.tp-link.com/support/setup-video/#range-extenders and search for the setup video of your model.

* Images may differ from your actual product.

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.

Note: For safety, only plug the extender in the direction as shown below.

Set Up

Method 1: Via the WPS Button

1. Activate the WPS function on your router by pressing the WPS button.
   Note: If you don't know how to do, refer to your router's user manual, or you can use other methods to set it up.


2. Within 2 minutes, press the WPS button on the extender for 1 second. The RE LED should change from blinking to solid on, indicating a successful connection.


3. Done. You can connect to the extender's Wi-Fi.
   Extended Network Name: Router's network name with _EXT at the end
   Password: Same as your router

Method 2: Via the Tether App

1. Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.


   or


2. Launch the Tether app and log in with your TP-Link ID. If you don't have an account, create one first.
3. Tap the button and select Range Extender.

Notes:

1. If you cannot find your device, please refer to FAQ > Q1.
2. Due to Tether app updates, your actual user interface and pathway may differ from those depicted here.


4. Follow app instructions to complete the setup. The RE LED should turn solid on, indicating successful connection to your router.
   Note: If the LED does not turn solid on, please refer to FAQ > Q2.

Method 3: Via a Web Browser

1. Connect your computer or smartphone to the extender's network TP-Link_Extender.


2. Visit http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser. Create a password to log in.


3. Follow web instructions to complete the setup.


Relocate

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until 3 or more LEDs light up. If not, relocate the extender closer to the router to achieve better signal quality.

Tip: To place the extender for optimal Wi-Fi performance, access extender settings via the Tether app and go to find Location Assistant, or simply scan the QR code to visit https://www.tp-link.com/support/faq/3103/.

Enjoy the internet!

Access Extender Settings

After setup, you can access extender settings via any of the methods below. You can reselect main network, change extended network settings and more.

Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender's or router's network.
2. Launch the Tether app, select your extender, and log in.
3. View or change extender settings as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender's network. If you are using a computer, unplug the Ethernet cable if any.
2. Launch a web browser, enter http://www.tplinkrepeater.net in the address bar, and log in.
3. View or change extender settings as needed.

LED Explanation

LED	Status	Indication (For Range Extender Mode)
RE	On/Off Blinking	The extender is connected or not connected to your router's wireless network. WPS connection is in progress.
Wireless	On/Off	The extender's wireless function is enabled or disabled.
Power	On/Off Blinking	The extender is on or off. The system is starting up or firmware upgrade is in progress.
(Signal Strength)	On/Off	Indicates the Wi-Fi connection between the extender and the router. More lit LEDs indicates a better signal strength.
