Continue to hold the battery release latch as you slide the battery out of the system.
4.
A – Connector in Battery Bay
B – Battery Release Latch
Installing the 15-Cell Maximum-Life Battery
Insert your new battery as follows:
Locate the connector in the battery bay.
1.
Turn the battery over so its connector is on the underside of the battery.
2.
Line up the connector in the battery bay with the connector on the battery and place the
3.
battery on the system.
Slide the battery along the system until it covers the memory module bay cover (B in the
4.
following figure) and the slots (A) on the far edge of the system.
Inserting the battery
A – Slots on the Far Edge of the System
B – Memory Module Bay Cover

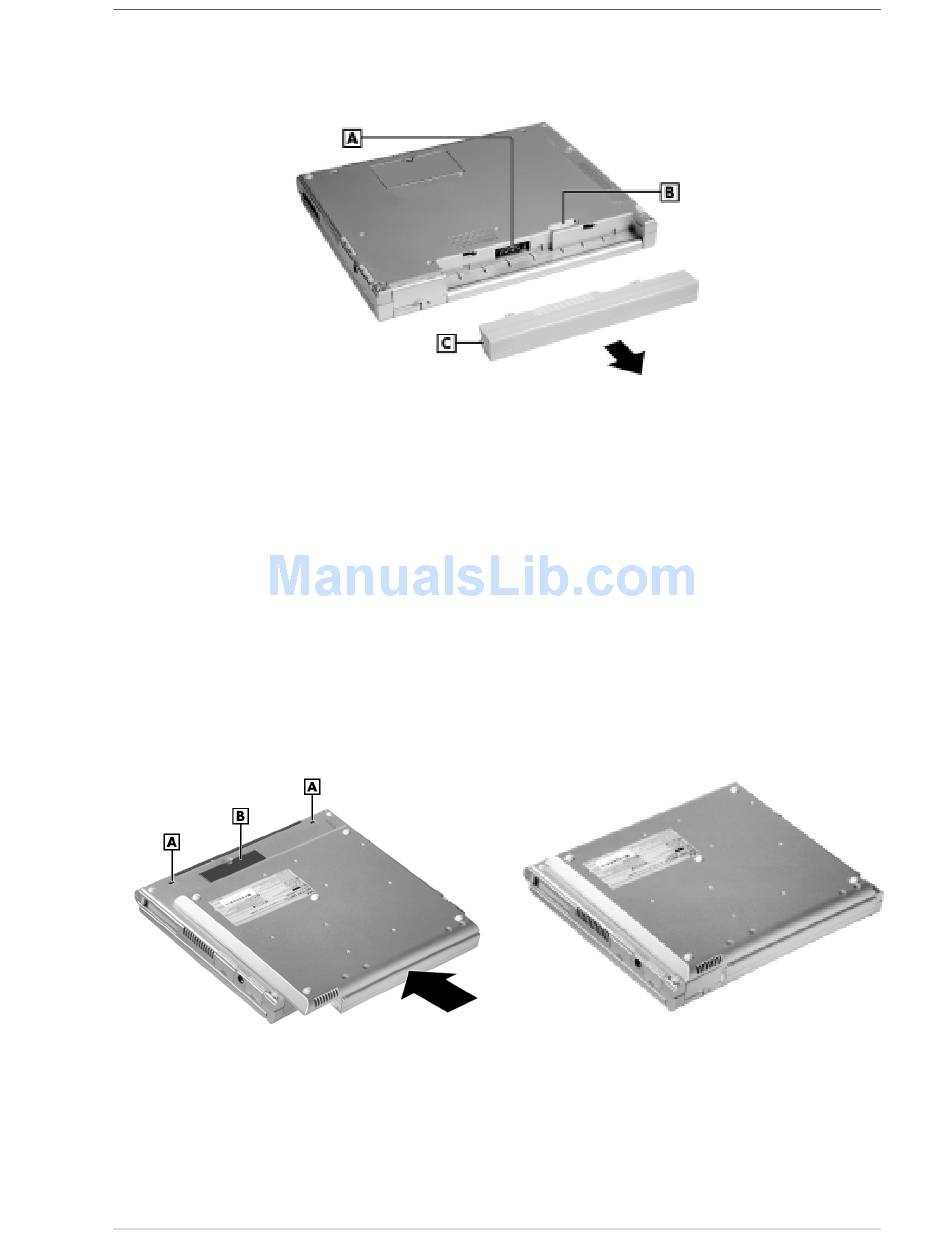

Removing the existing battery
NEC Versa TXi 15-Cell Maximum-Life Battery 3
C – Existing Primary Battery
The battery in position
