MaxiiNet Vi30105U Installation Manual

Vi30105U 5-Port 1G PoE Powered PoE Switch Installation Manual
The Vigitron MaxiiNet™ Vi30105U is a high-performance, fixed L2 managed
6-port 1000Mbps PoE switch, designed to meet the increasing demand for
seamless, high-speed Ethernet transmission. The Vi30105U supports both
input PoE and local DC power sources, delivering up to 90W of PoE per port
on 4 ports to power PoE devices.
The Vi30105U integrates a MSA SFP-compliant flexible fiber uplink port for
distances up to 80 km as well as a 1G copper port uplink.
With its ability to operate in temperatures ranging from -40°C to 70°C, the
Vi30105U performs reliably in extreme conditions. It includes fixed managed
Layer 2 functions such as 802.1p QoS, support for 2K MAC addressing,
learning and aging capabilities, and a non-blocking switch fabric to maintain
efficient and reliable data transmission.
The Vi30105U is MegaPixel Certified (MPC™) and has been rigorously
tested for compatibility with major camera manufacturers and network
packet performance standards, ensuring high-quality, error-free operations.
It is housed in a compact and robust design with flexible DIN Rail, Desktop,
and wall mount capability.
Important Safety Warning
- Read and keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should conform to all local
codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products to rain, moisture,
dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.
- DO NOT install the unit in a place where the operating ambient temperature exceeds 75°C or
is below - 40°C.
- Make sure that the external power supply output voltage is in the recommended range.
- Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when a power supply cord or plug is damaged, liquid
has been spilled, objects have fallen inside the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
- The main plug is used as the disconnect device and shall remain readily operable.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING! - To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. This apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases shall be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must be connected to a
mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and shall remain readily
operable.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The Smart Choice for Transmission Solutions

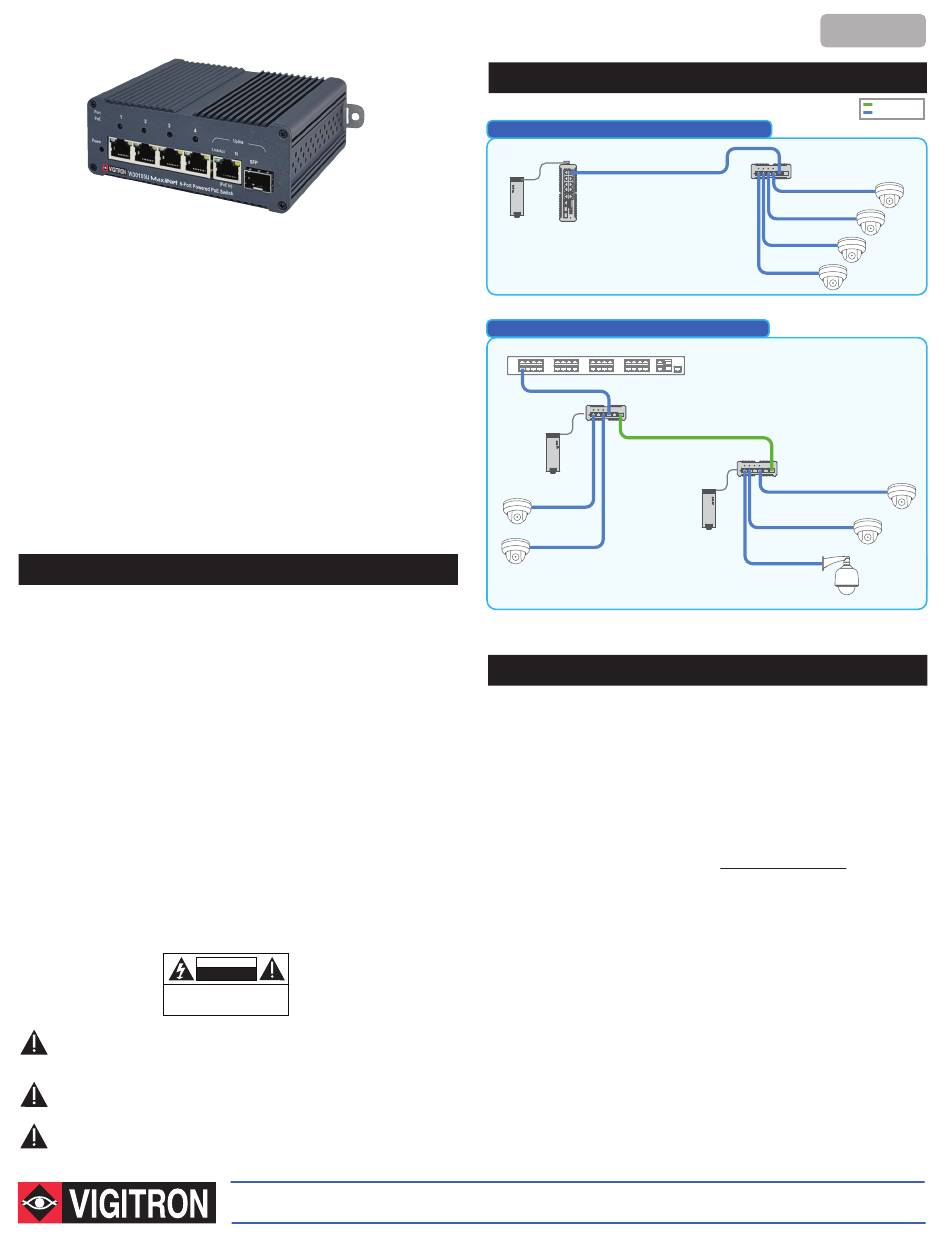

Application Drawing
Powering the Vi30105U and 4 remote cameras using PoE
Vi30210U
Data + 90W PoE
Vi10240
328 ft. (100m)
56VDC
The Vi30105U is a PoE powered switch that can be used to power up to four cameras using PoE.
Connecting several Vi30105Us to make a large network
SFP
Non-PoE Network Switch
Data
328 ft. (100m)
Vi30105U
Vi10480
PoE Camera
Data + 90W PoE
328 ft. (100m)
PoE Camera
Data + 90W PoE
328 ft. (100m)
IP Camera-end Installation
The Vi30105U can be used to connect to another Vi30105U or any IP device at distances up to 80Km over fiber optics.
Installation
You can use either PoE or an external power supply to power the Vi30105U.
Powering with PoE:
Connect the network cable coming from the PoE switch or PoE Midspan
●
to the UTP uplink port of Vi30105U.
Powering with External Power Supply:
Select a 52-57VDC approved power supply with enogh power for your application.
●
Connect the power supply to the input power terminal block by following marked
●
polarity.
You can use either the UTP or Fiber uplinks but not at the same time.
Fiber Uplink:
Plugin the SFP to the SFP socket of Vi30105U.
●
Connect the fiber cable to the SFP.
●
Note: The SFP must be the same types at both ends of the fiber cable and must
match the fiber cable requirements.
UTP Uplink:
Connect IP/PoE devices to the uplink port on the Vi30105U's front panel using
●
RJ45/6 Category cables.
Data Ports:
Connect IP/PoE devices to the four ports on the Vi30105U's front panel using
●
RJ45/6 Category cables. Each ports will be able to provide up to 90W PoE.
PoE Power is allocated based on the required port power up to 90W starting with
Port 1 having the highest priority. Once the total sum of the PoE power is allocated
no more power will be available to remaining ports.
Maxii
Vi30105U
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data
up to 80km
Vi30105U
Vi10480
Data + 90W PoE
328 ft. (100m)
PoE Camera
Data + 90W PoE
328 ft. (100m)
60W PTZ Dome
Data + 90W PoE
328 ft. (100m)
