Summary of Contents for Response QV3874

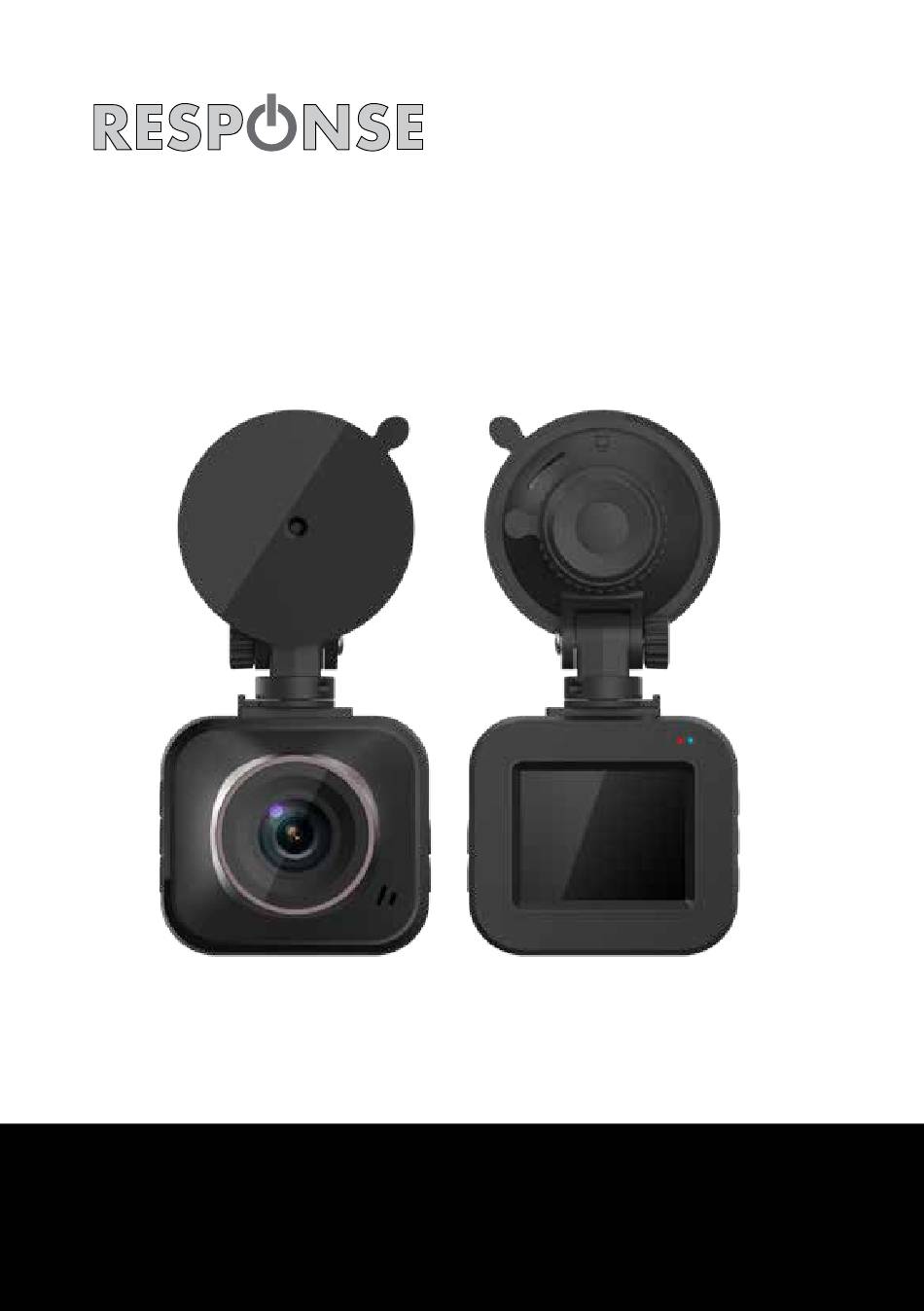

- Page 1 1080p Dash Camera with G-Sensor and 2” Display QV3874 Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Before First Use .................. 3 Safety ....................3 Box Contents ..................4 Product Diagram ................. 5 In Vehicle Installation ................6 Special Function Description ............... 8 Standard Operations ................9 Setup Menu ..................10 Camera Settings Menu ..............11 System Settings Menu .............. -
Page 3: Before First Use
BEFORE FIRST USE • Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. -
Page 4: Box Contents
BOX CONTENTS 1080p Dash Camera with G-Sensor and 2” Display QV3874 Instruction Manual 1 x dash camera 1 x User Manual 1x Suction Mount 1x 12v Power Adapter... -
Page 5: Product Diagram
PRODUCT DIAGRAM Feature Description Display Screen 2.0 inch display for displaying/previewing images LED indicator light The charging indicator light is displayed red, and the startup work indicator light is displayed in blue; Micro SD Slot For Micro SD card insertion, it is recommended to use Class 10 or higher high-speed Micro SD cards for Micro SD cards Reset When the machine is stuck, you can click this button to reset and restart;... -
Page 6: In Vehicle Installation
IN VEHICLE INSTALLATION 1. Insert MicroSD Card Insert a suitable MicroSD card (Class 10) in to the dash camera, taking care that the gold contacts are facing towards the LCD screen side. Push the memory card until it clicks into place. NOTE: Use the edge of a small object to push the memory card in place if required.Take care that card has ‘clicked’... - Page 7 5. Attach mount to windscreen Attach the mount to the windscreen 6. Straighten the dash camera Ensure that the dash camera is horizontal and faces straight out of the windscreen. Ensure that objects on the dash camera display appear level, and adjust as required.
-
Page 8: Special Function Description
SPECIAL FUNCTION DESCRIPTION 1. Automatic on/off After connecting to the power supply, the camera will automatically start recording, and automatically save and shut down the recording when turned off; 2. Loop Recording Automatic loop recordings set to 1, 3 or 5 minute files 3. -
Page 9: Standard Operations
STANDARD OPERATIONS Start-up And Shutdown Long press the power button to start once, long press the power button is to shut down; The dash camera will automatically shut down when the battery voltage NOTE: is low. Video Mode Short press the MENU key, switch to the video mode, and display the video icon in the upper left corner of the screen;... -
Page 10: Setup Menu
SETUP MENU Video resolution: Video recording resolution FHD 1920 * 1080 HD, 720P 1280 * 720 Loop recording: Each video recording can be set from 1 minute, 3 minutes, or 5 minutes, when turned off, the recorded video will be automatically overwritten; Exposure compensation: Used to adjust the brightness of the image. -
Page 11: Camera Settings Menu
CAMERA SETTINGS MENU Photo: Allows you to set single or continuous photo settings with 2, 5 or 10 second timings. Photo resolution: The camera resolution can be selected as 1M or 2M. Continuous shooting function: When selected to open, 3 consecutive shots can be set. Image quality: Can choose high quality, standard, economy. -
Page 12: System Settings Menu
SYSTEM SETTINGS MENU Time Date: Changing the time and date. This will reset if the battery is fully depleted. Screen saver: If this is turned on the screen will switch off after the time set. The dash camera will still record as normal. Automatic shutdown: When the dash camera stops recording, it will automatically shut down at the selected time. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Solution Storage Unable to take photos or videos Check if the Micro SD card has sufficient space and is locked. When recording, it will Due to the huge amount of high-definition video data, please automatically stop use a high-speed Micro SD card compatible with SDHC. It is recommended to use a Class10 or higher high-speed card;... - Page 14 Problem Solution Playback Video Files cannot be The video files from the dash camera are in .MP4 format and may not played on my computer be compatible with your PC if suitable playback software is not installed Video File playback is Remove the SD card and format to remove non-contiguous files.
-
Page 15: Specifications
SPECIFICATIONS Display Screen 2” HD Display Lens High resolution 140 degree wide-angle lens Language Korean, Deutsh, English, Simplified Chinese, and Japanese File Format Recording Resolution Maximum 1080P Loop Recording Seamless loop recording without missing seconds On-board Switch Supported on car ignition and shutdown Motion Detection Supported DD/MM/YYYY... -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
