Summary of Contents for Response QV3876

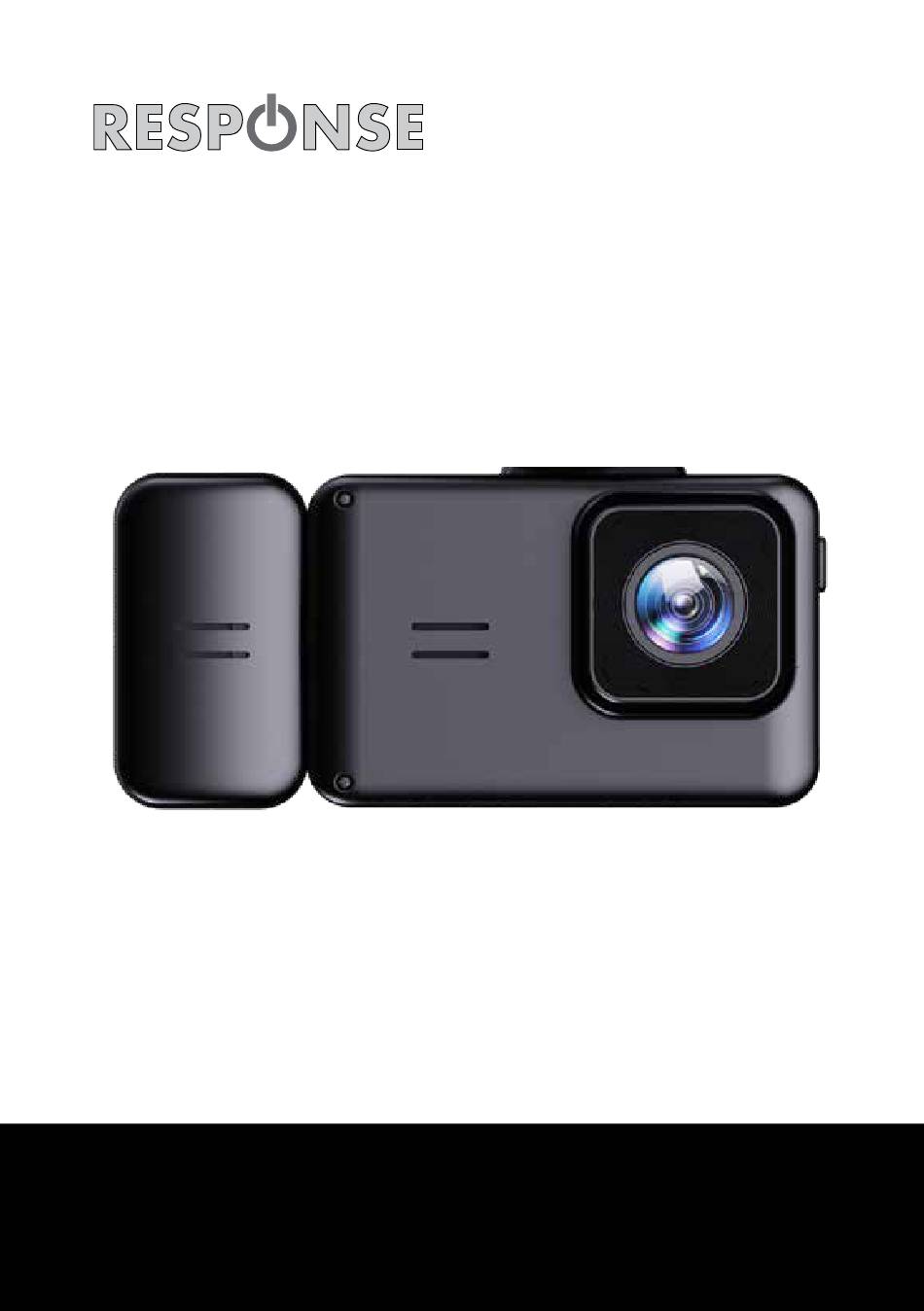

- Page 1 FHD 3 Channel Dash Camera QV3876 Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Before First Use .................. 2 Safety ....................3 Box Contents ..................3 Product Diagram ................. 4 In Vehicle Installation ................5 Rear Camera Installation ..............7 Special Function Description ............... 8 Standard Operations ................9 Setup Menu ..................10 Camera Settings Menu .............. -
Page 3: Safety
Do not dispose of in fire. Check with local authorities on the disposal of lithium battery products BOX CONTENTS 1 x Dash Camera 1 x Rear View Camera FHD 3 Channel Dash Camera QV3876 Instruction Manual 1x Suction Mount 1x 12v Power Adapter 1 x User Manual... -
Page 4: Product Diagram
PRODUCT DIAGRAM Feature Description Power button Long press to turn on, long press to turn off, and short press to turn off the screen in standby mode. Micro SD Slot Supports Micro SD Cards up to 128GB Max. Due to multiple channels it is recommended to use a Class 10 High Speed Micro SD Card Reset If the Dash camera crashes/freezes this can manually reset the camera... -
Page 5: In Vehicle Installation
IN VEHICLE INSTALLATION 1. Insert MicroSD Card Insert a suitable MicroSD card (Class 10) in to the dash camera, taking care that the gold contacts are facing towards the LCD screen side. Push the memory card until it clicks into place. NOTE: Use the edge of a small object to push the memory card in place if required.Take care that card has ‘clicked’... - Page 6 5. Attach mount to windscreen Attach the mount to the windscreen 6. Straighten the dash camera Ensure that the dash camera is horizontal and faces straight out of the windscreen. Ensure that objects on the dash camera display appear level, and adjust as required.
-
Page 7: Rear Camera Installation
REAR CAMERA INSTALLATION The rear camera can be installed above the rear window or above the license plate as shown in the diagram below. NOTE: Please note in running and concealing the cable you will need to be confident in adjusting or modifying areas of your car including internal roof linings, as well as any panels internal and external. -
Page 8: Special Function Description
SPECIAL FUNCTION DESCRIPTION 1. Automatic on/off After connecting to the power supply, the camera will automatically start recording, and automatically save and shut down the recording when turned off; 2. Loop Recording Automatic loop recordings set to 1, 3 or 5 minute files 3. -
Page 9: Standard Operations
STANDARD OPERATIONS Start-up And Shutdown Long press the power button to start once, long press the power button is to shut down; The dash camera will automatically shut down when the battery voltage NOTE: is low. Video Mode Short press the MENU key, switch to the video mode, and display the video icon in the upper left corner of the screen;... -
Page 10: Setup Menu
SETUP MENU Video resolution: Video recording resolution FHD 1920 * 1080 HD, 720P 1280 * 720 Loop recording: Each video recording can be set from 1 minute, 3 minutes, or 5 minutes, when turned off, the recorded video will be automatically overwritten; Exposure compensation: Used to adjust the brightness of the image. -
Page 11: Camera Settings Menu
CAMERA SETTINGS MENU Photo: Allows you to set single or continuous photo settings with 2, 5 or 10 second timings. Photo resolution: The camera resolution can be selected as 1M or 2M. Continuous shooting function: When selected to open, 3 consecutive shots can be set. Image quality: Can choose high quality, standard, economy. -
Page 12: Operation Instructions
OPERATION INSTRUCTIONS 1. Power on and off Long press the power button to turn on the device, and the power indicator light will light up when the device is turned on; Press and hold the power button to turn off the device after turning it on, and this light will turn off;... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Solution Storage Unable to take photos or videos Check if the Micro SD card has sufficient space and is locked. When recording, it will Due to the huge amount of high-definition video data, please automatically stop use a high-speed Micro SD card compatible with SDHC. It is recommended to use a Class10 or higher high-speed card;... - Page 14 Problem Solution Playback Video Files cannot be The video files from the dash camera are in .MP4 format and may not played on my computer be compatible with your PC if suitable playback software is not installed Video File playback is Remove the SD card and format to remove non-contiguous files.
-
Page 15: Specifications
SPECIFICATIONS 170° (Front), 60° (Internal and Rear) Video Resolution 1920 x 1080 @ 30FPS (Front Only) 1280 x 720 @ 30FPS (Front Only) 1280 x 720 @ 25FPS (Internal + Rear) Channels 3 – Front, Internal and Rear G-Sensor True Storage Micro SD 128GB Max Screen... -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
