O P E R A T I N G I N S T R U C T I O N S
SID71 / SID121
Sensor Integration Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SID71 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SICK SID71

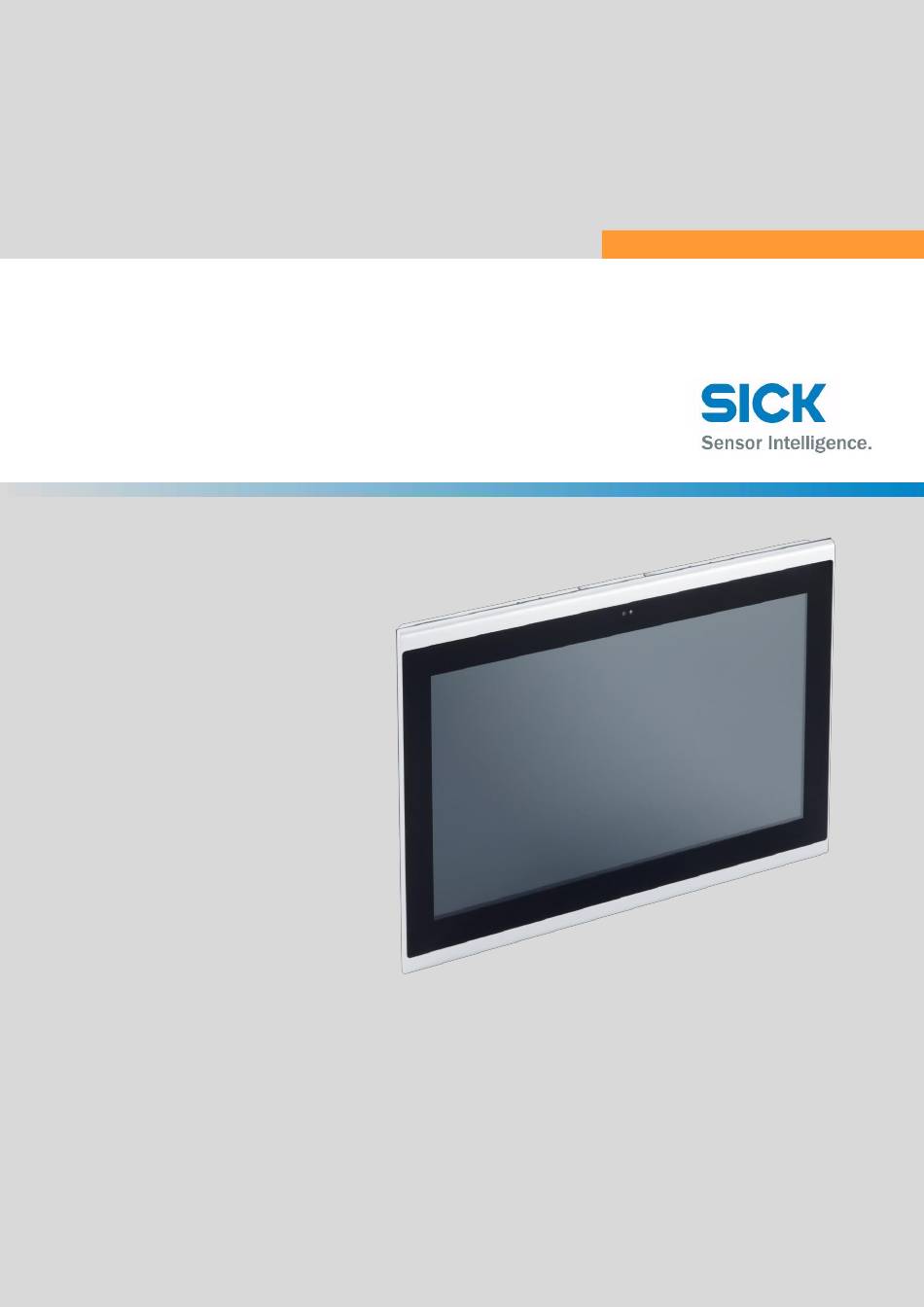

  • Page 1 O P E R A T I N G I N S T R U C T I O N S SID71 / SID121 Sensor Integration Display...
  • Page 2 User manual Sensor integration display UM EN SID xxxx, Revision D 2024-09-05 This user manual is valid for: Designation Order No. SID71 6084141 SID121 6082639 SICK AG • Erwin-Sick-Str. 1 • 79183 Waldkirch • Germany SICK.com...
  • Page 3: Table Of Contents

    Operation..........................15 Touchscreen ....................... 15 Power LED ......................15 Display......................... 15 Maintenance ..........................17 Fuse ........................17 Battery replacement .................... 17 Technical appendix........................19 Appendixes..........................23 List of figures ...................... 23 List of tables ....................... 25 Index........................27 1/28 SICK AG 8029544 / 4193_en_D...
  • Page 4 2/28 SICK AG 8029544 / 4193_en_D...
  • Page 5: For Your Safety

    – Qualified application programmers and software engineers. The users must be familiar with the relevant safety concepts of automation technology as well as applicable stan- dards and other regulations. 3/28 SICK AG 8029544 / 4193_en_D...
  • Page 6: Field Of Application Of The Product

    Changes or modifications to hardware and software of the device are not permitted. Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact SICK AG. Licensing information on open-source software The operating device works with a Linux operating system.
  • Page 7: Security In The Network

    (VPN) for remote maintenance access, firewalls, etc., for protection against unau- thorized network access. – On first request, you shall release SICK AG and the companies associated with SICK AG, Erwin-Sick-Str. 1, 79183 Waldkirch, Germany in accordance with §§ 15 ff AktG (German Stock Corporation Act), hereinafter collectively referred to as “SICK AG”, from all third-party claims made due to improper use.
  • Page 8 6/28 SICK AG 8029544 / 4193_en_D...
  • Page 9: Overview And Ordering Data

    Single 1 Gbps LAN port Ordering data Products Description Type Order No. Pcs./Pkt. Touch panel, 7-inch display SID71 6084141 Touch panel, 12-inch display SID121 6082639 Accessories Description Type Order No. Pcs./Pkt. Refer to www.Sick.com 7/28 SICK AG 8029544 / 4193_en_D...
  • Page 10 8/28 SICK AG 8029544 / 4193_en_D...
  • Page 11: Installation

    – The mounting surface and the operating device may not become deformed due to the effects of the mounting clamps or through the operation of the device. – The threaded pins of the mounting brackets are tightened uniformly to a maximum torque of 0.78 Nm. 9/28 SICK AG 8029544 / 4193_en_D...
  • Page 12 Overall and cutout dimensions with number of mounting clamps Display size Overall dimensions Cutout dimensions Number of mounting A (mm) B (mm) X (mm) Y (mm) clamps 7 in. 12.1 in. Cutout dimensions are ±0.5 mm 10/28 SICK AG 8029544 / 4193_en_D...
  • Page 13 Loosen and remove the clamps securing the SID in the panel. Using an assistant, press the retention clips along the top, and tilt the SID forward. Lift the SID so the bottom retention clips clear the panel, and remove. 11/28 SICK AG 8029544 / 4193_en_D...
  • Page 14: Vesa Mount

    The SID includes a VESA MIS-D, 100, C hole pattern for attachment to an appropriate mount. Note that this standard is for devices up to 14 kg (30 lb.). Figure 3-3 VESA mount drawing NOTE: Use of a VESA mount invalidates UL listings. 12/28 SICK AG 8029544 / 4193_en_D...
  • Page 15: Interfaces

    MicroSD: The microSD slot accepts use of a microSD card to transfer data to and from the SID. Typical use is for transferring a common configuration between similar devic- 3.2.1 Power connection Figure 3-5 Power connection : P W : U S : U S 13/28 SICK AG 8029544 / 4193_en_D...
  • Page 16: Grounding

    D-SUB 9 pinout D-SUB 9 pin Function RS-485 transmitted data plus RS-232 transmitted data RS-232 received data RS-485 received data plus Ground – Not used – Not used RS-485 transmitted data minus RS-485 received data minus 14/28 SICK AG 8029544 / 4193_en_D...
  • Page 17: Operation

    Pixel failures, which can occur with TFT displays, are due to production and are not covered under warranty. The operating device is equipped with different displays (see technical data) depending on variant. 15/28 SICK AG 8029544 / 4193_en_D...
  • Page 18 16/28 SICK AG 8029544 / 4193_en_D...
  • Page 19: Maintenance

    Remove the unit from it’s mounting, either VESA or panel mount, and place it on a flat surface. Place the SID on a towel to protect the display from damage. Figure 5-1 Battery replacement 17/28 SICK AG 8029544 / 4193_en_D...
  • Page 20 Secure the new battery in place using new double-stick tape (obtained locally). Plug the battery into the circuit board. Place the back cover on the unit and secure with the previously removed hardware. Torque screws to 0.5 Nm. Remount the SID and apply power. 18/28 SICK AG 8029544 / 4193_en_D...
  • Page 21: A Technical Appendix

    Technical appendix A Technical appendix General data Overall, dimensions (width x height x depth) SID71 202 x 146 x 51 mm SID121 302 x 229 x 51 mm Ambient temperature (operation) -20 … 50°C Ambient temperature (storage/transport) -25 … 60°C Permissible humidity (relative) 5% …...
  • Page 22 1x Type C USB 3.0 MicroSD Serial connection 1x D-SUB 9 (male) Number of Ethernet connectors Ethernet connection 10/100/1000 Mbps Display (SID71) Display size, inch (cm) 7 (17.8) Type Resolution, W x H (pixels) 800 x 480 Number of colors 16.7 million...
  • Page 23 Technical appendix Approvals CE compliant IEC 61131-2 UL 50E Type 4 21/28 SICK AG 8029544 / 4193_en_D...
  • Page 24 22/28 SICK AG 8029544 / 4193_en_D...
  • Page 25: Appendixes

    Figure 3-2: Panel mounting clamps ..............11 Figure 3-3: VESA mount drawing ................. 12 Figure 3-4: Connectors and ports ................ 13 Figure 3-5: Power connection ................13 Section 5 Figure 5-1: Battery replacement ................17 23/28 SICK AG 8029544 / 4193_en_D...
  • Page 26 24/28 SICK AG 8029544 / 4193_en_D...
  • Page 27: B 2 List Of Tables

    List of tables List of tables Section 3 Table 3-1: Overall and cutout dimensions with number of mounting clamps ..10 Table 3-2: D-SUB 9 pinout..................14 Section 4 Table 4-1: Power LED meaning ................15 25/28 SICK AG 8029544 / 4193_en_D...
  • Page 28 26/28 SICK AG 8029544 / 4193_en_D...
  • Page 29: Index

    Grounding ..............14 VESA mount ..............12 Installation..............9 Warning notes..............3 Interfaces ..............13 Licensing................4 Maintenance ..............17 MicroSD ...............13 Mounting ................9 Operation ..............15 Ordering data ..............7 Panel mount ..............9 Power connection ............13 Power LED ..............15 Qualifications ..............3 27/28 SICK AG 8029544 / 4193_en_D...
  • Page 30 28/28 SICK AG 8029544 / 4193_en_D...
