Mitcorp X2000 Manual

Hd videoscope system
Hide thumbs Also See for X2000:

Advertisement

Quick Links

Download this manual
X2000 HD
VIDEOSCOPE SYSTEM

Advertisement

loading
Need help?

Need help?

Do you have a question about the X2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Mitcorp X2000

Summary of Contents for Mitcorp X2000

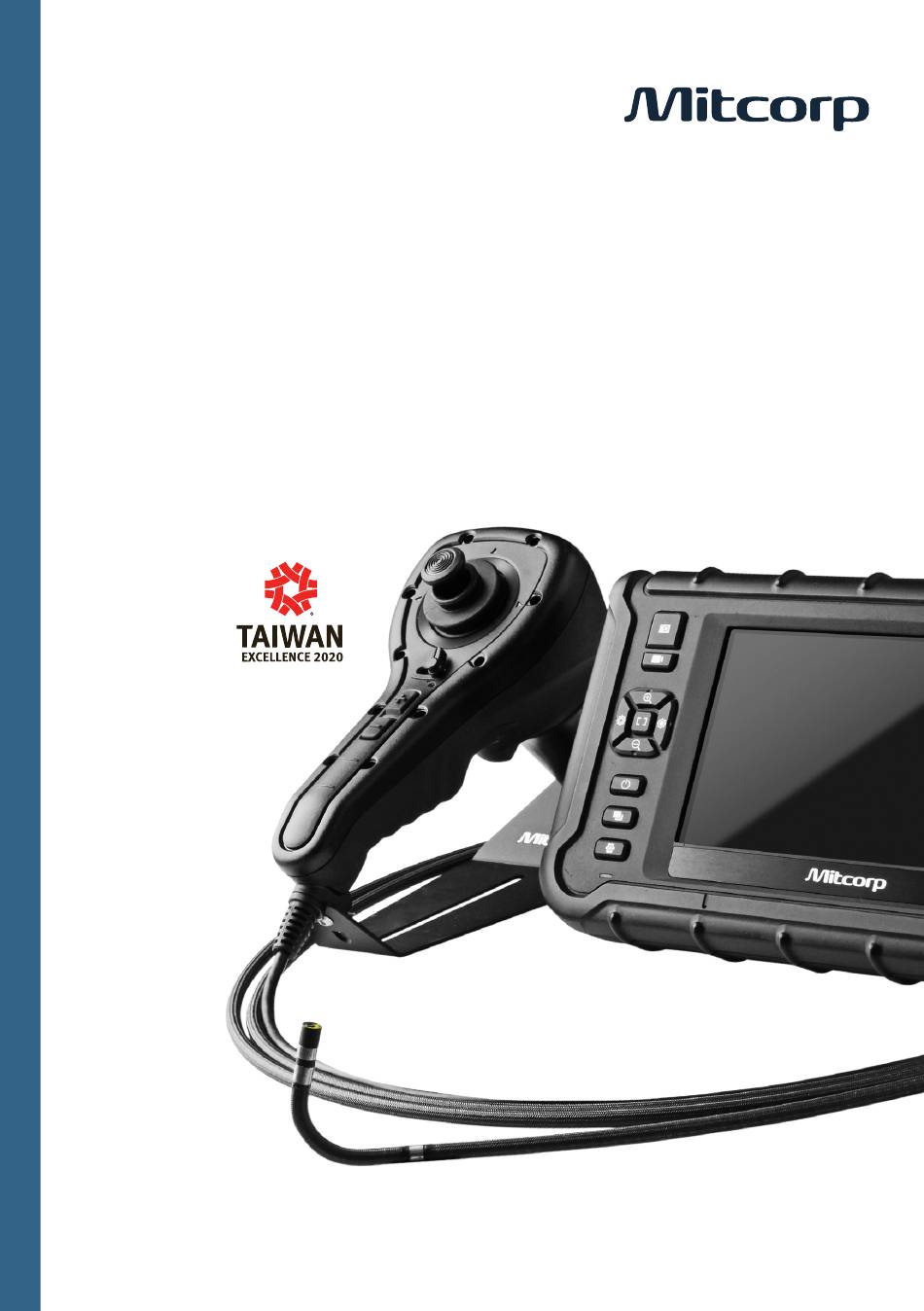

  • Page 1 X2000 HD VIDEOSCOPE SYSTEM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety & Cautions Part I Product Overview 1.1 X2000 Base Unit Part II Main Button Function 2.1 Main UI 2.2 Live view Screen Overlays Full Screen 2 .3 Zoom In/Out 2.4 Brightness Control 2.5 Snapshot 2.6 Video Recording 2.7 Album...
  • Page 3 APPENDIX USB videoscope OPERATION Instant mode Browse Mode Specifications Accessories...

  • Page 4: Safety & Cautions

    2014/30/EU Electromagnetic Compatibility Directive RoHS NOTICE The X2000 Videoscope System is in conformance with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the manufacturing process or in the final product.

  • Page 5: Safety Guide

    SAFETY GUIDE USER MUST PAY ATTENTION TO THE INFORMATION PROVIDED HERE TO ENSURE SAFETY. We suggest you read the following statements carefully before using the system. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. CAUTION BATTERY • Risk of explosion if battery is replaced by an incorrect type. •...
  • Page 6 CAUTION Camera High Temperature warning • Prevent using the camera head in over 100°C environment. • The base unit shows 3 levels of camera temperature warning signals. Remove the probe when the 100°C warning signal pops up. • 2.8 mm probe do not support the temperature function. CAUTION Changing probes •...

  • Page 7: Part I Product Overview

    Part I Product Outlook X2000 Base Unit • RECORD SNAP RIGHT LEFT HOME DOWN POWER ALBUM SETUP POWER INDICATION SUN VISOR STAND - 7 -...
  • Page 8 RESET SD CARD SLOT HDMI TYPE D TYPE-C DC IN INSERT TUBE CONNECTOR ！ THREADED HOLE FOR RECHARGEABLE TRIPOD MOUNT LI BATTERY INSIDE - 8 -...

  • Page 9: Part Ii Main Button Function

    Part II Main Button Function 2.1 Main UI • SNAP Take pictures RECORD Record videos Zoom in RIGHT Increase brightness HOME Switch to full screen / back to live view DOWN Zoom out LEFT Decrease brightness POWER Turn on / off the system ALBUM Quick access albums SETTING...

  • Page 10: Live View Screen Overlays

    • Press the button. 10 levels adjustment. The X2000 system provides a live view manual exposure function to mitigate glare and reflections (such as on metal surfaces.., etc.). Tap a glare spot on the screen, the system will automatically tune to optimize the brightness of the image. Tapping a dark spot will increase the brightness (higher exposure gain value).

  • Page 11: Video Recording

    2.6 Video Recording • Press the button to start / stop recording video. During the recording, press button to take and save a real time screenshot. Because of system constraints, videos are separated into 5 minute long clips. NOTE: The total recordable amount depends on the SD cards memory. 2.7 Album •...
  • Page 12 2.7.2 Single Photo View: • Press icon to switch to the video gallery. The instruction is in the next section. File name Press [ ] to switch to full screen view. - 12 -...
  • Page 13 2.7.3 Single Photo View: • Press icon to switch to photo gallery. Overlay information as below: Play/pause File name Drag bar 2.7.4 Single Video View: • Press to a single photo file. Touch any position of the screen to play / pause. - 13 -...

  • Page 14: Album-Photo Annotation Function

    2.8 Album - Photo Annotation Function • The X2000 system allows users to add a maximum of 10 notes to a photo. Each note can be maximum 24 signs long. The editing steps are as follows: 2.8.1 Add One Note: •...

  • Page 15: Album-Compare Function

    • 2.8.2 Erase Notes Tap on any note on the screen, it will show a green frame. Touch the to delete the notee. When keying in any note, use the function to erase all characters. 2.8.3 Save • Please make sure to save the photo to keep the notes you made. The system will create a new file in the album. The original file will not be overwritten.

  • Page 16: Part Iii Touch-Screen Key Functions

    Part III Touch-Screen Key Functions 3.1 Function List • Function Button Description Light Boost Maximizes the EV to enhance the view in dark spaces. Light Off Front LED on/off. Mirror Mirrors the image. Attach the contact pin and enable the function to get a Grid reference point for a 2 dimensional measurement (inch/ cm) on screen.
  • Page 17 - Dual View (*1) (While using a 6.0mm dual view mirror) When working with 3.9mm dual camera probe, this function turns to switch between front and side view (the LED simultaneously). There won’t be any separate line on the live view picture. - 17 -...
  • Page 18 Image (*2) To get better image results in various inspection circumstances, the system provides 3 adjustable image configurations: Brightness, Contrast, Sharpness. Note: Pressing the "Default" button resets the image settings to default. - 18 -...

  • Page 19: Wifi

    3.2.2 Wi-Fi Connection With Mobile Devices • Open your mobiles Wi-Fi settings and search for the X2000 system SSID. The SSID and the password can be found in the Connect the system with your mobile device.
  • Page 20 Note: MITCORP provides the "VideoscopeNow" APP for using the X2000 remotely. ‘VideoscopeNow' is a tool specifically designed for industrial videoscopes that can share the live view from the main portable console system through a Wi-Fi connection. It can also act as a remote controller to take photos and record videos.

  • Page 21: Part Iv Main Menu Settings

    Part IV Main Menu Settings 4.1 Menu • - 21 -...

  • Page 22: Info

    4.2 Info. • Current firmware information. - Version: (Firmware version) - HW Version: (Hardware version) - Wi-Fi SSID: X2000_(identification code) - Wi-Fi password: 1234567890 Firmware upgrade: When there is a new firmware version available, save the file (.BRN file format) in the SD card root directory. 1. Tap the “>” on the upper-right of the screen. 2. Follow the instructions. - 22 -...

  • Page 23: Sd Card Status

    4.3 SD Card Status • Storage information. The X2000 system supports user defined/built file storage folders. The default storage folders: JPG (for still images) / VIDEO(for recorded videos) will be built when a new SD card has been inserted. - 23 -...

  • Page 24: White Balance

    4.4 White Balance • White Balance: 3 modes: Default / Calibration / Custom - Default: Factory default setting. - Calibration: Subject to various inspection environments, it is suggested to calibrate the white balance before each use to get the best image hues. The steps are as follows: 1.
  • Page 25 3. Press the button on the upper-left of the screen, then tap confirm; The calibration process is completed. - Custom: Users can customize own settings with the R/G/B parameter bar. - 25 -...

  • Page 26: Session

    4.5 Session • The X2000 system provides custom built photo/video storage folders under the SESSION setting. When a new SD card is installed, the default folder MEDIA will be created. The editing steps are as below: 2. Tap the session folder to be 1.

  • Page 27: Tag

    4.6 Tag • For each session folder, the system provides 3 editable tags to put overlay texts on every single image (Tag text usually refers to inspection parts or environment information). The editing steps are as below: Session been used 1.modify/delete TAG on/off switch TAG overlay position...
  • Page 28 Application example 1: In an air jet landing inspection project, the project manager assigns "Person A" from the engine department 2 jobs: 1. Inspection of ENGINE1-HP Turbine. 2. Inspection of ENGINE2- Combustor. He also assigns "Person B" of the airplane body department to: 3.

  • Page 29: Language

    4.7 Language • 4.8 Time setting • - 29 -...

  • Page 30: Snapshot

    4.9 Snapshot • Snap shot photo resolution options: (1) FINE: (1) 2560*1440; (2) STANDARD: 1280*720. (* 60 HD or 60 HDLF probe is connected) - 30 -...

  • Page 31: Watermark

    On/off switch for both timestamps and logo watermarks on snapshots. The timestamps and watermarks can be placed in any of the 4 corners of the photos. Tap the position icons as needed. The standard Mitcorp watermark can be replaced: Save the logo file in the SD card in the root directory. Insert the SD card and the system will show the existing file list. First, tap the custom logo file and then the "Save" Icon to load the logo into the system's memory.

  • Page 32: Microphone

    4.11 Microphone • Users can turn on/off the built-in microphone. 4.12 OSD • AUTO HIDE on/off switches on the OSD (On-Screen Display) function bars on the sides of the display. They won't be hidden anymore during inactivity. The transparency of the function bars is adjustable in 4 levels. - 32 -...

  • Page 33: Auto Power Off

    Users need to install the PC software "USB VIDEO SCOPE" before connecting a PC and using the CAMERA mode. Refer to operation guide of the <APPENDIX> section. The "USB VIDEO SCOPE" software can be downloaded at www.mitcorp.com.tw. - 33 -...

  • Page 34: Appendix

    APPENDIX When connecting 3.9mm series probes, different functions and interfaces can be found as below: When changing from 6.0mm probes, the booting screen will show the following message and then shut down: 2. The picture output at resolution 400*400 on screen, as below: - 34 -...
  • Page 35 3. The image setting -> Photo Resolution (refer to chapter 4.8) provides 2 options: 4. When connecting a 39HD probe the system provides 1600*1600/800*800 resolution options: - 35 -...

  • Page 36: Usb Videoscope

    USB videoscope The software enables Mitcorp videoscope to work on PC. Connect your PC to the video scope base unit USB port, select the "CAMERA" mode, then launch this software. Download the software to PC. Operating system: Win10 and higher version.

  • Page 37: Browse Mode

    Browse Mode Press 2nd TAB on the screen or press any picture/video on the preview window. The Browse mode will not function if no pictures/videos in the folder. Mirror Click key to flip the image horizontally. Ctrl Rotate Click key to rotate image counter-clockwise 90°. Screenshot on video You can click space bar...
  • Page 38 Setting Mode Destination folder set up Select the destination folder to save images and videos, click to change setting or to skip and keep the default setting. (C:\Users\Documents\USB VideoScope) Time stamp set up Select the time stamp display format, all photos and videos will be saved with selected format on left buttom.

  • Page 39: Specifications

    Specifications X2000 Display 7" LCD, Resolution 1024x600 AC adapter: 100V~240V, 12V 2.5A. 50~60Hz Power supply Rechargeable Li Battery 3.6V 9800mAH, approximate LI battery operation time: 5hrs, charging time: 4 hrs TYPE D, HDMI 1.4a transmitter with 3D format and CEC...
  • Page 40 Software Features Image features Digital zoom 3X, 10 steps brightness contrast Image effect Brightness, Contrast, sharpness adjustment Annotation 10 text annotation (24 characters) Timestamp / watermark For snapshot / video recording (on/off) Image management User define pic / video folder available Light boost, light off, mirror, grid, compare, wireless, particle Image display functions free, dual view, light direction, negative, auto whie balance White balance...
  • Page 41 Accessories HDMI cable (AV-out) 1.8m. TYPE D, HDMI 1.4a USB cable (data transfer) 1m. TYPE C to standard TYPE A 1m, USB-DC jack (for power bank) It is recommended to use a USB charging cable 5V~12V, 2A mobile power bank. An output under 2A will not charge the battery and only provide operation power supply SD card DC power adapter...

  • Page 42: Accessories

    Accessories Power adaptor USB charging cable HDMI TYPE D TYPE-C (For power bank) Insulation cap Shoulder strap Hand strap Sun visor Trolly case Rigid sleeve * Also included: Cleaning set, SD card, User manual. • Working with Rigid Sleeve Note: Do not buckle the ring when out of using. The inside rubber will be deformed when the lock ring is buckled, and thereby affects the insertion of the probe tube.

  • Page 43: Shoulder Strap

    Shoulder strap • - 43 -...
  • Page 44 3. The environmental Please place the system in a normal temperature is too low or temperature environment too high Please contact Mitcorp or your local 4. The Base Unit is broken distributor for repair 1. Abnormal power on Please reset the system 2.
  • Page 45 4. The probe head is articulate fully interfered by another Please reserve the room for articulation force Please contact Mitcorp or your local 5. The Probe head is broken distributor for repair The image is 1. The lens is dirty...
  • Page 48 2F., No.75, Wenhua 1st Rd., Guishan, Taoyuan 333, Taiwan T +886-3-328-7177 F +886-3-328-7176 e-mail: sal@mitcorp.com.tw website: www.mitcorp.com.tw 2024 Medical Intubation technology Corporation (Mitcorp). All rights reserved. Design and specifications are subject to change without prior notice. Actual product and accessories may differ form illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of Mitcorp is strictly forbldden.

This manual is also suitable for:

Mitc-x2000-60d4w-fs-3m-tu-m
