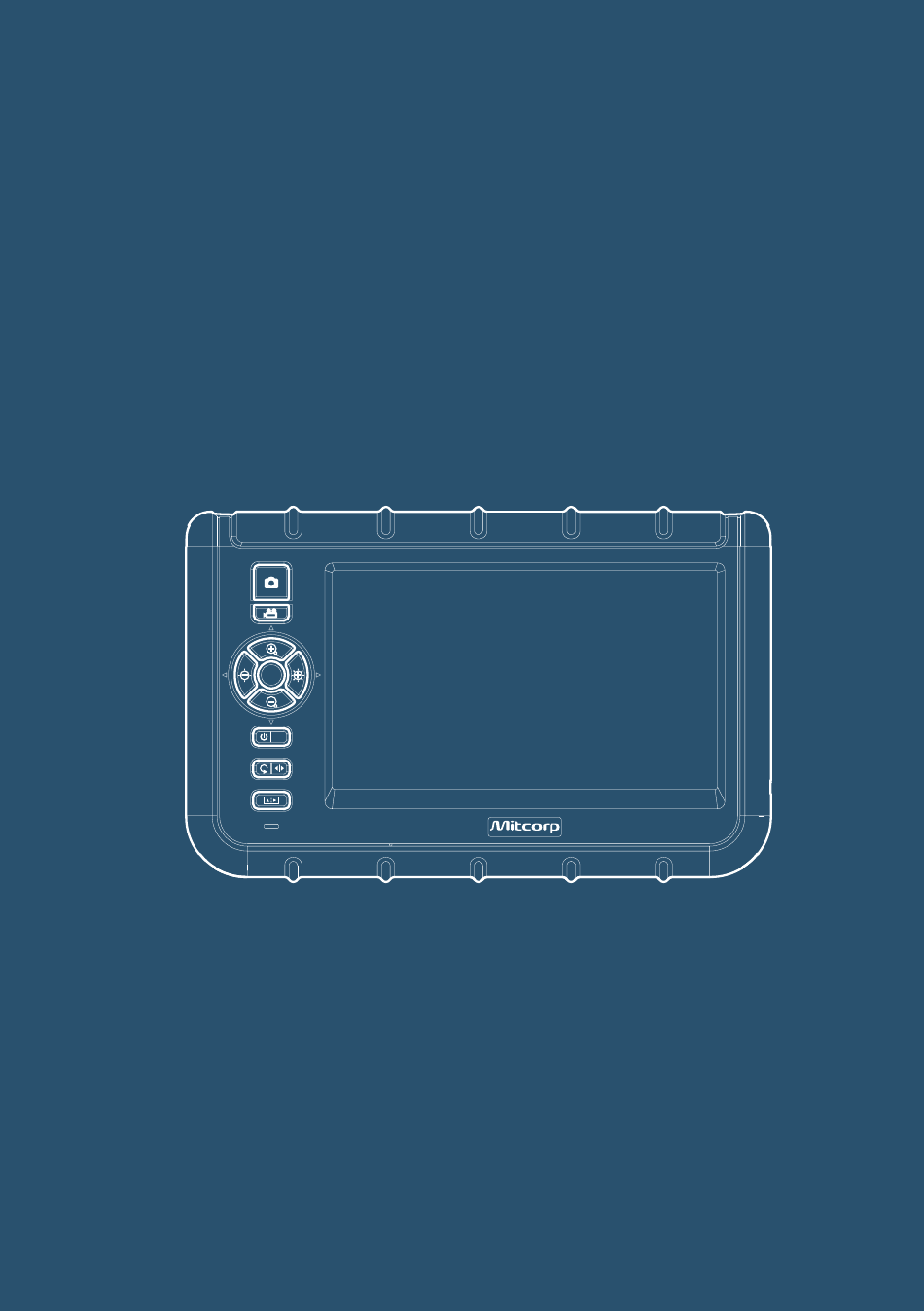

X1000
VIDEOSCOPE SYSTEM
User Manual
OK
ESC
©Medical Intubation Technology Corporation (Mitcorp).
All rights reserved. Design and specifications are subject to change without prior notice. Actual product and accessories
may differ from illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of
Mitcorp is strictly forbidden.
Advertisement
Table of Contents
Related Manuals for Mitcorp X1000
Summary of Contents for Mitcorp X1000
- Page 1 VIDEOSCOPE SYSTEM User Manual ©Medical Intubation Technology Corporation (Mitcorp). All rights reserved. Design and specifications are subject to change without prior notice. Actual product and accessories may differ from illustrations. Errors and omissions excepted. Reproduction in any manner without written permission of...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction System Overview.........................5 Legal and Other Notices.......................9 WEEE Noteice............................9 CE Notice............................9 FCC Notice...........................10 RoHS Notice....................10 Contact information......................10 Chemical Compatibility.........................11 Safety Guide..........................11 Inspection and Capturing Functions Steering the Probe......................12 Adjusting the Brightness....................12 Zooming ..........................12 Rotating and Inverting......................12 Enhancing Image Edge (Clarity+).................13 Boost Image Brightness (Boost+)................13 Enhancing Image Contrast (Negative+)..............14 Anti Reflection....................14... - Page 4 Accessories Insertion Tube Accessories...................26 System Unit Accessories......................28 Specifications System Unit..........................29 2way Articulation Tube....................29...
-
Page 5: Introduction
INTRODUCTION SYSTEM OVERVIEW System Unit RECORD SNAP RIGHT/BRIGHTER UP / ZOOM IN LEFT / DIMMER OK / MENU DOWN / ZOOM OUT POWER / ESC ROTATE / MIRROR POWER INDICATION LIGHT DIRECTION SUN VISOR STAND... - Page 6 RESET SD CARD SLOT AV OUT DC IN INSERT TUBE CONNECTOR THREADED HOLE FOR TRIPOD MOUNT...
- Page 7 Insert Tube CONNECTOR SEALING NUT ARTICULATION CONTROL WHEEL WHEEL LOCK SNAP PROBE HEAD INCREASE /DECREASE BRIGHTNESS BUTTON PROTECTION CAP LOCK PROTECTIVE RING FITTING RING PROBE NECK Screen Display DATE TIME REPEAT RECORDING INDICATOR LIGHT DIRECTION BRIGHTNESS INDICATOR SD CARD STATUS BATTERY INDICATOR...
- Page 8 Frequent operations Setting Up the System 1. Remove the Insert Tube and the system unit from the case. 2. Attach the to the system unit • Connect the tail cord connector of the Insert Tube to the input connector of the system unit, screw tight the sealing nut. 3.
-
Page 9: Legal And Other Notices
This Mitcorp product is warranted to be free from defects in material and workman shop for 1 year from the date of purchase. Mitcorp agrees to repair or replace the product, at its own option and at no charge. This warranty shall not apply to any... -
Page 10: Fcc Notice
RoHS NOTICE The X1000 Videoscope System is in conformance with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the... -
Page 11: Chemical Compatibility
CHEMICAL COMPATIBILITY All insertion tubes made by Mitcorp passed following liquid immersion test: • Water • Engine oil • Brake fluid oil (DOT4) • Unleaded Gasoline • Diesel • Transmission oil SAFETY GUIDE USER MUST PAY ATTENTION TO THE INFORMATION PROVIDED HERE TO ENSURE SAFETY. -
Page 12: Inspection And Capturing Functions
INSPECTION AND CAPTURING FUNCTIONS STEERING THE PROBE Put the insert tube into the opening hole of the target, hold and steer in the inspection area. To articulate the probe neck, rotate the control wheel on the handset. Push aside the stay latch to lock the deflection angle. -
Page 13: Enhancing Image Edge(Clarity+)
To Rotate • Press To Flip Horizontally • Press and hold ENHANCING IMAGE EDGE(CLARITY+) You can enhance the image edge by turning on the Clarity+ option (default is ON). Slight noise might occur while this function is activated. Main Menu → Function Menu → Clarity+ <On/Off> [MediaInfo] 2013/07/12 19:36:43 05/11... -
Page 14: Enhancing Image Contrast (Negative+)
ENHANCING IMAGE CONTRAST (NEGATIVE+) When subtle details are not very obvious in low light environment, you can turn on the Negative+ option. The Negative+ option inverts the live image luminance and enhances the contrast, which will make the small details stand out for inspection. Main Menu →... -
Page 15: Capturing An Image / Freezing Live Image
CAPTURING AN IMAGE / FREEZING LIVE IMAGE When the current live image is the one interest you, you can capture the image by pressing . The captured image file name will be shown on the information box on the left sidebar. If is kept being held, the live image freeze until is released. -
Page 16: Recording A Video
RECORDING A VIDEO Recording Operation You can start recording a video anytime during inspection. Press once will start the recording session while press again to stop it. The recorded video file name will be shown on the information box. You can also record voice comment via built-in microphone. -
Page 17: Playback Functions
PLAYBACK FUNCTIONS BROWSE / ALBUM MODES There are two types of multiple files presentation : browse mode and album mode. In browse mode, 4 file thumbnails are shown in a filmstrip like sidebar, while the current selection is displayed on the right. The album mode on the other hand, displays thumbnails in 3 x 3 grids. -
Page 18: Add Note
ADD NOTE Annotation is useful if you want to put comparison information or some comments on the image. The X1000 videoscope system supports text annotation. The annotated image will be automatically duplicated and saved. To annotate: • Move the selection box on top of the intended image, press to pop-up the operation dialog, select <Annotate>. -
Page 19: Video Playback
Video Playback The X1000 videoscope system supports various operation during video playback. To playback a video: • In browse mode or album mode, move selection box over a video. • Press enters video playback mode • Press pauses playback, press again to resume. -
Page 20: Menu And Settings
MENU AND SETTINGS GENERAL MENU OPERATION • Press in live view mode to enter main menu. • to navigate between menu items. • Press to enter submenu. • Press to back to upper tier. IMAGE FUNCTIONS <Clarity+> <MAIN MENU> <FUNCTION> <CLARITY+> •... -
Page 21: Language Selection
LANGUAGE SELECTION To change UI language: <MAIN MENU> <SETTINGS> <LANGUAGE> • to select desired language, press to confirm. ADJUST DATE AND TIME To adjust system time: <MAIN MENU> <SETTINGS> <DATE / TIME> <SYSTEM TIME> • to navigate between fields. • to adjust. -
Page 22: Sd Card Operation
SD CARD OPERATION To check the SD Card status: <MAIN MENU> <SD CARD STATUS> To format the SD card: <MAIN MENU> <SD CARD STATUS> • Select <Format SD Card>, use select <YES> To delete all files on the SD card: <MAIN MENU>... -
Page 23: Usb Functions And Av Output
USB FUNCTIONS AND AV OUTPUT USB FUNCTIONS The USB interface is the de facto standard of PC connection. The X1000 videoscope supports two USB modes: Reader Mode and Camera Mode. USB Reader Mode To use the USB reader function: <MAIN MENU> <USB> <READER>... -
Page 24: Maintenance
MAINTENANCE CHANGING PROBE AND CALIBRATION In case of probe is malfunctioned and need to be replaced with a new one, follow below procedure to calibrate the probe to reach it’s fully performance. To change the probe: • Turn off the system. •... -
Page 25: Upgrading Firmware
Copy the firmware file to a SD card, then put inside the system. • Press and hold both simultaneously to power on and the system will start updating procedure automatically. • When firmware update is done, the X1000 videoscope system will power off automatically. -
Page 26: Insertion Tube Accessories
ACCESSORIES INSERT TUBE ACCESSORIES Working with Side View Mirror Adaptor When there is no enough space for the probe neck to bend, the side view mirror comes into play To attach the side view mirror adaptor: • Remove the protective ring from probe tip •... - Page 27 Working with Holding Tube extender The extender is a rigid thin pipe which helps the insertion tube to reach the area above below eye level. To attach the extender:...
-
Page 28: System Unit Accessories
SYSTEM UNIT ASSCESSORIES 6.0 mm DUAL VIEW SUN VISOR 5.5 mm 110° MIRROR REMOTE CONTROL 6.0 mm 70° MIRROR HAND STRAP PIN PROBE NECK STRAP HOLDING TUBE... -
Page 29: Specifications
SPECIFICATIONS SYSTEM UNIT Features Description 7” LCD ( 800 x 480 ) Snapshot 640 * 480,jpeg Recording 640 * 480 , MPEG4 (with audio) Dimension 240 * 154 * 47mm Weight 1.3kg (2.86 lb) Dust & Water proof IP57 resistant Drop height Battery Li-polymer (Non-Interchangeable) - Page 30 NOTE...
- Page 32 VER.1...
