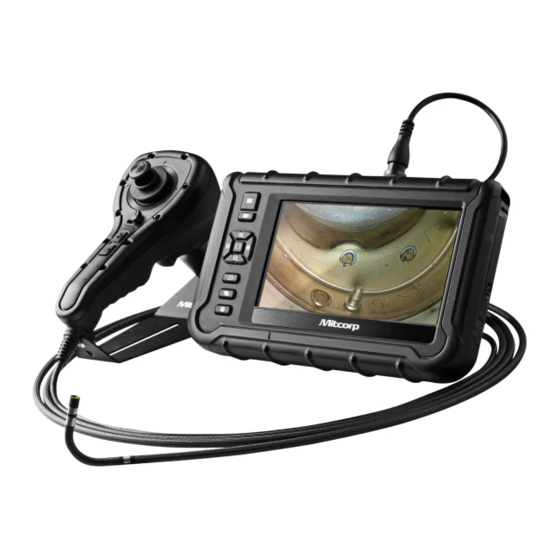

Mitcorp X2000 Manual

Videoscope system
Hide thumbs Also See for X2000:
Table of Contents

Advertisement

Quick Links

X2000
VIDEOSCOPE SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitcorp X2000

Summary of Contents for Mitcorp X2000

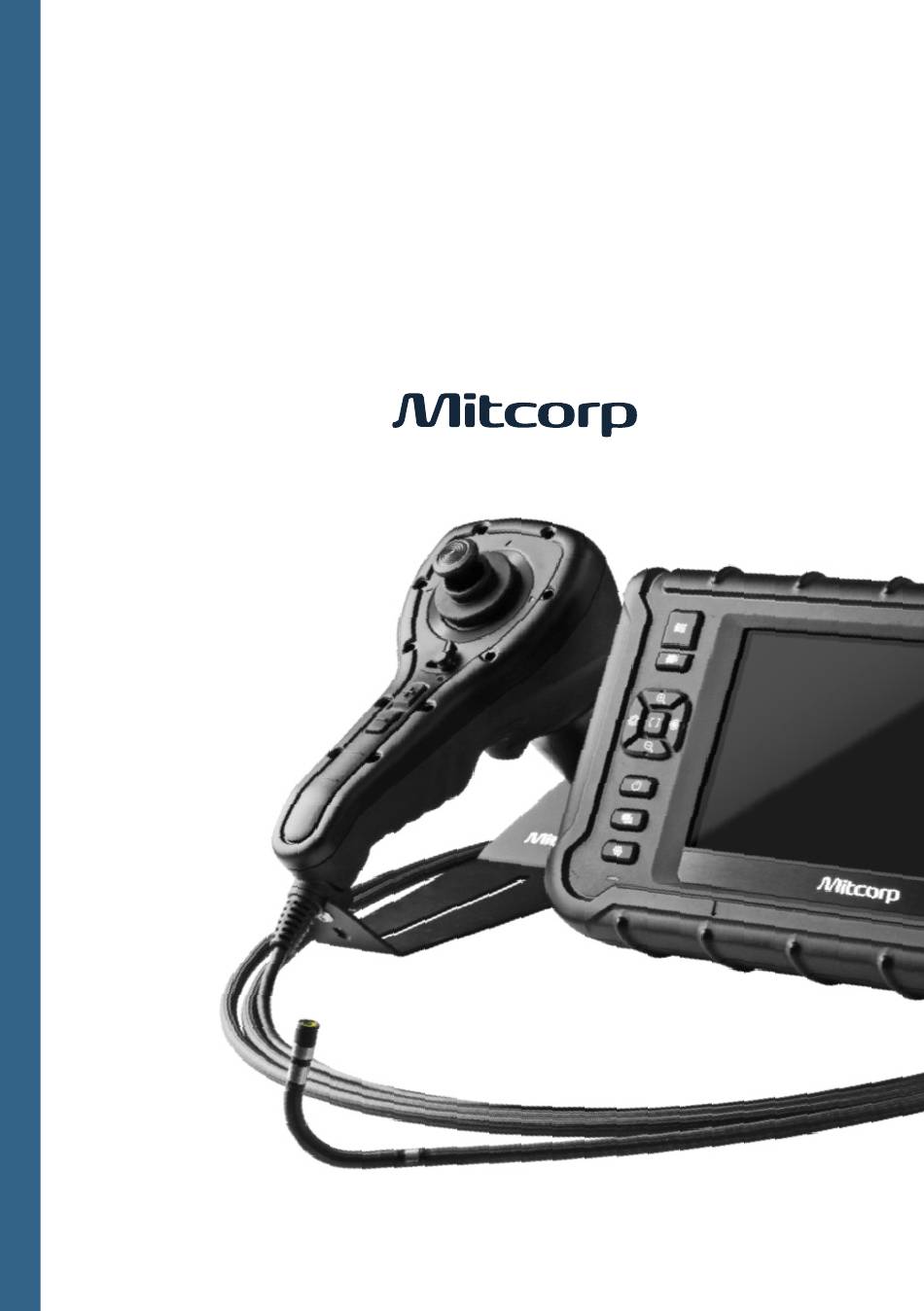

  • Page 1 X2000 VIDEOSCOPE SYSTEM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety & Cautions [Part I] Product Outlook 1.1 X2000 1.2 Joystick Console [Part II] Main key function 2.1 Main UI 2.2 Live view Screen Overlays Full Screen 2.3 Zoom in / Out 2.4 Brightness Control 2.5 Snapshot 2.6 Video Recording...
  • Page 3 [Part IV] Main MENU settings 4.1 Main UI 4.2 Info 4.3 SD card status 4.4 Language 4.5 Time setting 4.6 Auto power off 4.7 Watermark 4.8 OSD 4.9 Resolution 4.10 USB Specifications...

  • Page 4: Safety & Cautions

    2014/30/EU Electromagnetic Compatibility Directive RoHS NOTICE The X2000 Videoscope System is in conformance with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive. This means that our product is both lead-free and without the hazardous substances either in the...
  • Page 5 SAFETY CAUTIONS SAFETY GUIDE USER MUST PAY ATTENTION TO THE INFORMATION PROVIDED HERE TO ENSURE SAFETY. We suggest you read the following statements carefully before using the system. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. CAUTION BATTERY • Risk of explosion if battery is replaced by an incorrect type. •...
  • Page 6 CAUTION- Camera High Temperature warning - Prevent using the camera head in over 100oC environment. - The base unit shows 3 levels (60oC/80oC/100oC) camera temperature warning signals. Take out the tube when the 100oC warnings signal pop up. - 6 -...

  • Page 7: [Part I] Product Outlook

    [Part I] Product Outlook X2000 Base unit • RECORD SNAP RIGHT LEFT HOME DOWN POWER ALBUM SETUP POWER INDICATION SUN VISOR STAND - 7 -...
  • Page 8 RESET SD CARD SLOT AV OUT DC IN INSERT TUBE CONNECTOR ！ THREADED HOLE FOR RECHARGEABLE TRIPOD MOUNT LI BATTERY INSIDE - 8 -...

  • Page 9: Joystick Console

    Joystick Console • ARTICULATION SHAFT LOCK 2 ROTATE 3 PARTICLE FREE SNAP / FREEZE - 9 -...
  • Page 10 Frequent operations Generally, use your thumb to control the joystick, and use other fingers to grip the handle. The joystick operations Lock mode: The articulation angle can be fixed by every joystick movement. Capture images • Press to capture desired image. • Hold to keep freezing the frame. Adjust brightness • Press increase brightness. • Press decrease brightness. - 10 -...

  • Page 11: [Part Ii] Main Key Function

    [Part II] Main key function 2.1 Main UI • SNAP Take pictures RECORD Video record Zoom in RIGHT Increase brightness HOME Switch to full screen / back to live view LEFT Decrease brightness DOWN Zoom out POWER Turn on / off the system ALBUM Quick enter album mode SETUP...

  • Page 12: Live View Screen Overlays

    Live View screen UI 2.2 Live view Screen Overlays • 2.2 Full Screen • Press the <Home> button. 2.3 Zoom in/Out • Press the <up> / <down> button. Digital zoom 3x adjustment. 2.4 Brightness Control • Press the <right> / <left> button. 10 levels adjustment. 2.5 Snapshot •...

  • Page 13: Video Recording

    2.6 Video Recording • Press the <Record> button to start/stop recording video. During recording, press the <Snap> button can take and save the real time screenshot image photo. 2.7 Album • 2.7.1 Photo Gallery: touch [video] button to view video gallery. •...
  • Page 14 2.7.3 Single photo view: • touch [video] button to view single video file. The [Add Note] and [compare] instruction is in next section. 2.7.4 Single video view: • touch [photo] button to view single photo file. Touch any position of the screen to play / pause. - 14 -...

  • Page 15: Album-Photo Annotation Function

    2.8 Album --Photo annotation function • The X2000 system allows user add maximum 10 notes on a photo. Each note can key in maximum 24 characters. The edit steps as follow: 2.8.1 Add one note: • [Add Note] -> [key in]-> [Done]. Then a note can be done.

  • Page 16: Album-Compare Function

    • 2.8.3 Move note position. Touch any note been made on screen then it shows a green frame. The note frame can be dragged to any position you want to mark on the photo. • 2.8.4 Erase note Touch any note been made on screen then it shows a green frame. Touch the [Erase] to delete the note frame.

  • Page 17: [Part Iii] Touch-Screen Key Functions

    [Part III ] Touch-screen key functions 3.1 Function list • Function Button Description Boost Light enhanced Mode Light Off LED off Mirror Mirror image The screen will display both front view and side view Dual View ( when using dual view mirror ) Compare Compare stored image with live view Compare Move...

  • Page 18: Wireless Function

    3.2 Wireless function • 3.2.1 Enable wireless • Touch → In a few seconds, the indicator shows up, then the system is ready to be searched and connected by mobile devices. 3.2.2 Wi-Fi connection with mobile devices • Open your mobile Wi-Fi setting and search the system SSID. The SSID and password can be found in the <MENU>...
  • Page 19 Note: MITCOPR provide the “VideoscopeNow” APP for X2000 wireless usages. ‘VideoscopeNOW’ is a tool specifically designed industrial videoscopes that can share the live view from the main portable console system through Wi-Fi connection. It can also act as a remote controller to make the console taking photos or recording clips. In the APP, user can link to the system to access the album and download the photos/clips on the local mobile devices.

  • Page 20: [Part Iv] Main Menu Settings

    [Part IV ] Main MENU settings 4.1 Menu • - 20 -...

  • Page 21: Info

    4.2 Info. • Include firmware information. - Current version - Wi-Fi SSID - Wi-Fi password - Insert tube type 4.3 SD card status • - 21 -...

  • Page 22: Language

    4.4 Language • 4.5 Time setting • - 22 -...

  • Page 23: Auto Power Off

    4.6 Auto power off • 4.7 Watermark • On/off switch for timestamp and watermark on snap shot photos. Timestamp and Watermark position are adjustable to 4 corners of the photos. The Watermark logo can be replaced. (*Put the logo file in SD card. *File format: 160*160, .JPG) - 23 -...

  • Page 24: Osd

    4.8 OSD • - AUTO HIDE of the OSD (On-Screen Display) function bars on 2 sides. - The transparency of the function bars are 4 levels adjustable. 4.9 Resolution • - Snap shot photo resolution options: (1)FINE mode: 2560*1440 ; (2)STANDARD mode:1280*720 - 24 -...
  • Page 25 4.10 Auto power off • - When the USB port is connected to PCs, choose output to be: (1)SD card reader ; (2) Camera. - 25 -...

  • Page 26: Usb

    Specifications X2000 Display 7" LCD, Resolution 1024x600 AC adapter: 100V~240V, 12V 2.5A. 50~60Hz Rechargeable Li Battery 3.6V 9800mAH, approximately Power Supply BATTERY operation time: 4hrs, charging time: 2.5hrs. Quick charge: 12V, 2A approximately 2hrs (80% capacity) TYPE D; HDMI 1.4 transmitter with 3D format and CEC...
  • Page 27 Software Features Image features Digital zoom 3X, 10 steps brightness control Sharpness control Clarity - on/off Annotation 10 text annotation (24 characters) Timestamp / watermark For snapshot / video recording (on/off) Image management User define pic / video folder available Light boost, light off, mirror, grid, compare, wireless, particle Image display functions free, dual view, light direction, negative, auto whie balance - Manual adjustable (default, warm, cold, custom)
  • Page 28 6.0mm 360 Articulation Probe Joystick console Dimensions (WxDxH) 139.4x193x84.2mm (w/o SR and insert tubes) Net weight 2m:770g/ 3m:866g (approximately) Joystick console buttons Brightness +, Brightness -, snapshot / record Lock and move Lock / unlock switch on console Probe head diameter 6.0mm Probe length 2m / 3m...
  • Page 29 Specifications Accessories HDMI cable (AV-out) 1.8m, HDMI 1.4a, D TYPE USB cable (data transfer) 1m, type C to standard type A trolley case HDPE EVA with storage reel SD card DC power adapter 100V~2401V, 12V 2.5A 50~60 Hz DC-in cable 1m, USB-DC jack Grip material: Rubber/ Aluminum/ Plastic Tube material: Stainless steel...
  • Page 30 NOTE...
  • Page 32 2F., No.75, Wenhua 1st Rd., Guishan, Taoyuan 333, Taiwan T +886-3-328-7177 F +886-3-328-7176 e-mail: sal@mitcorp.com.tw website: www.mitcorp.com.tw...
