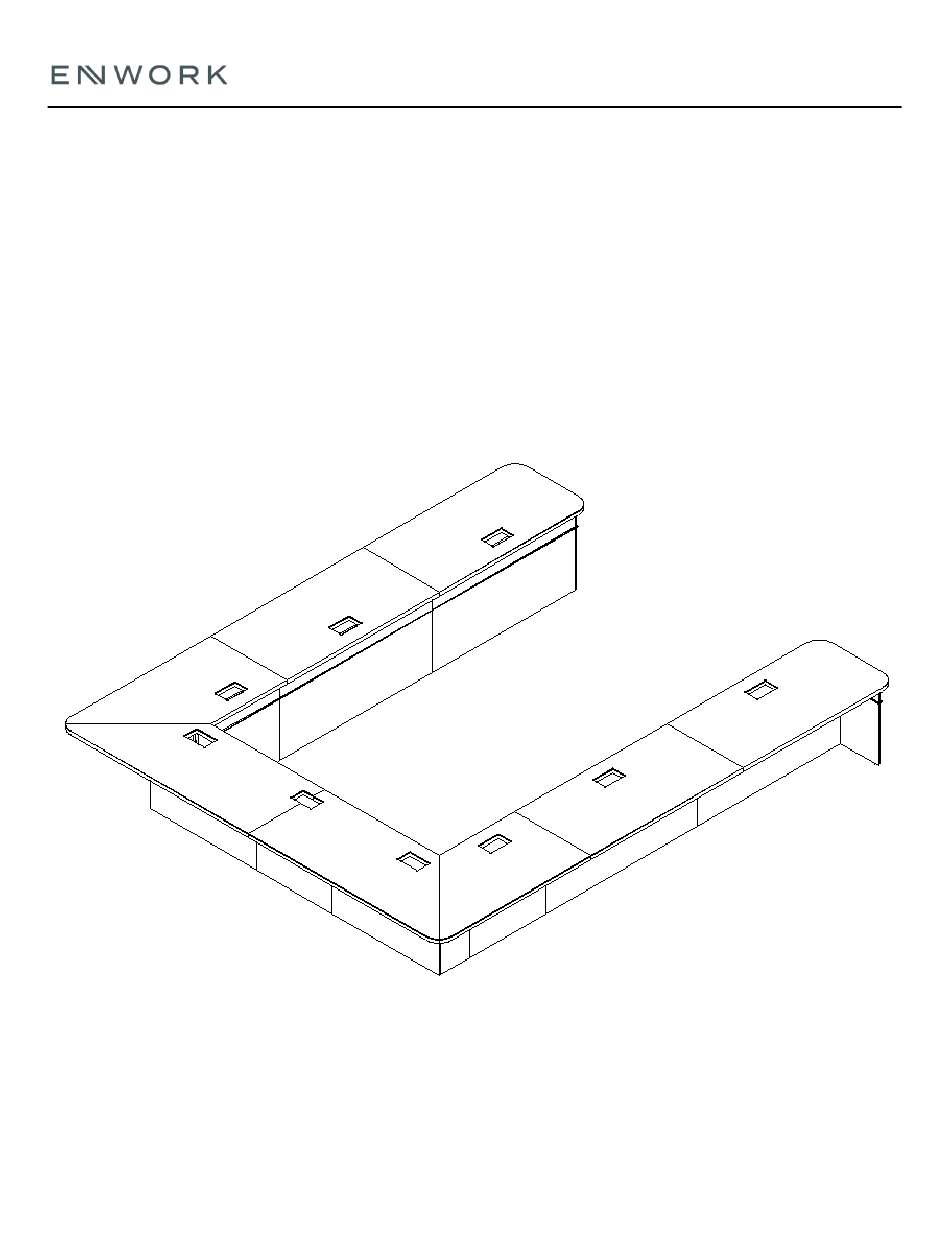

- Page 1 VOU U-Shaped Table Installation Guide VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 2 1) Tools and Supplies Required Drill Tape Measure Combination Wrench Phillips Head Driver Square Head Driver Hex Head Driver Allen Wrench 9/16 Socket Ratchet Level VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 3 .375-16 x 2-1/4 Hex Flange Bolt Zipbolt Surface Connector Screw Wood Biscuit Top Plate CABRACE LH/RH End Panel LH Corner Base (multiple RH Corner Base (multiple Standard Base (multiple sizes) sizes/options) sizes/options) VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 4 Connector Duplex Receptacle Wire Jumper Duplex Mounting Plate Infeed Lighting Parts (Optional) Power Supply Power Cord Power Supply Splitter (2-way, 4-way, or 8-way) Dimmer Switch Switch Mounting Bracket LED Light VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 5 Note: Do not tighten bolts yet! Wait until Fig 3.5. End of multi-base run will always have a 57” base Smallest base always here Middle bases will always be 60” VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 6 Note: Use the angle brackets and top plates on each base to attach the top. ≈3.00” ≈2.75” ≈18.00” If lights are present in the assembly, skip to Fig 5.1-5.8 & Appendix A before completing the next steps. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 7 3) Assembly Fig. 3.9 Fig. 3.10 Ensure the assembly is properly leveled and adjust as needed. Assembly complete. The removable front panels can be replaced on each base. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 8 Plug the (C) Infeed into the floor core, then attach the (E) Connector to the closest (A) Duplex Receptacle from Fig. 4.1. Note: Multiple Jumpers (B) can connect into the H-Block (B) if required. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 9 Note: Once the Duplex Mounting Plate is fastened, the Duplex Note: Layout all power components and/or lighting to ensure Receptacle snaps into place. proper fitment before moving to the next step. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 10 Connect the (A) Power Supply Power Cord to the (B) Power Connect the (C) Dimmer Switch (female) to the (B) Power Supply Supply. (male). Note: Cable lengths in images do not represent actual lengths. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 11 All lights will be operated by the 1 (C) Dimmer Switch. Note: 300”D tables get 2 Switches and 2 Power Supplies. In that case, half of the LED Light Strips should be on each Power Supply/Switch. VUUBx VOU U-Shaped Table Installation Guide REV A DATE: 09/25/24...
-
