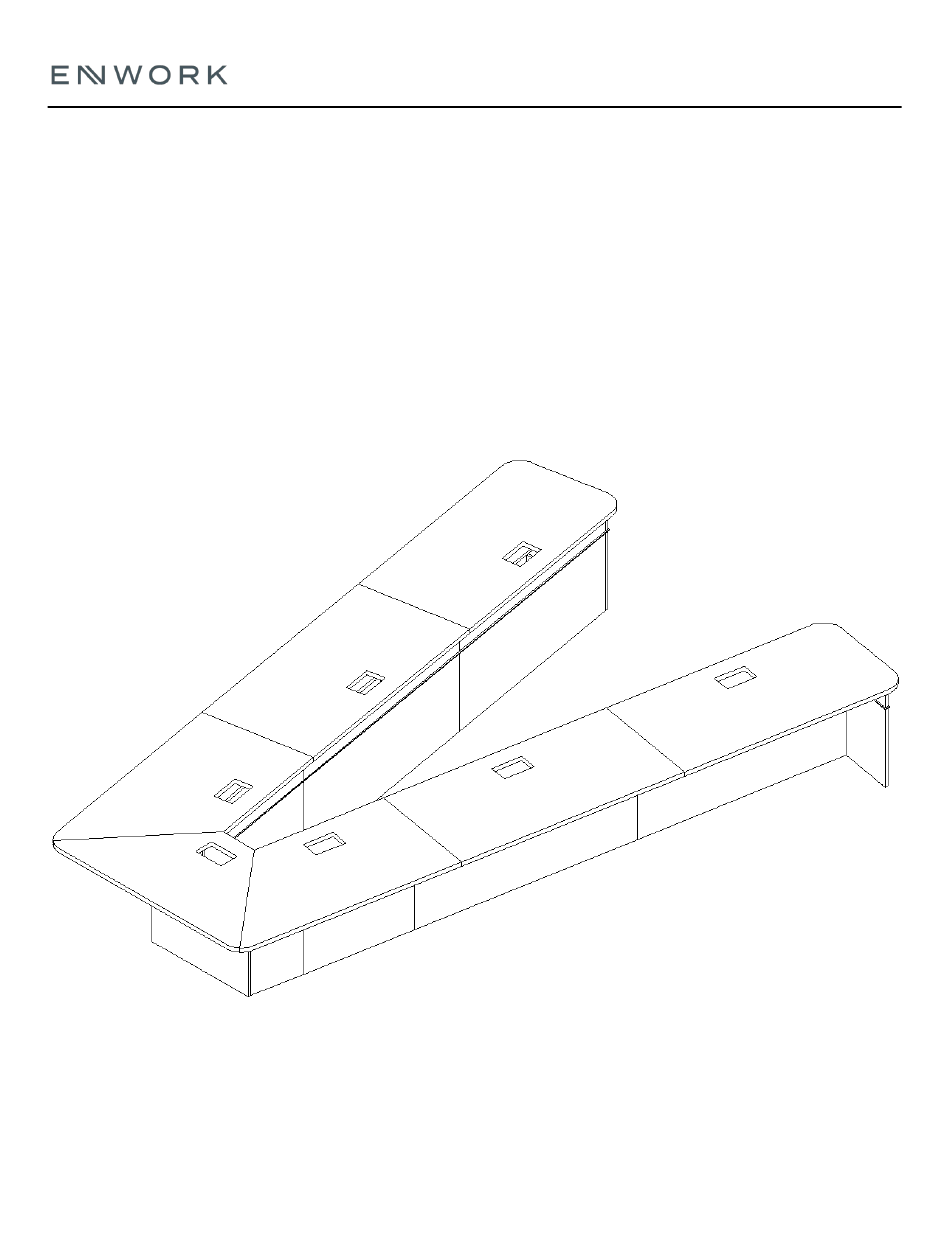

- Page 1 VOU V-Shaped Table Installation Guide VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 2 1) Tools and Supplies Required Drill Tape Measure Combination Wrench Phillips Head Driver Square Head Driver Hex Head Driver Allen Wrench 9/16 Socket Ratchet Level VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 3 3/8-16 Hex Flange Nut .375-16 x 2-1/4 Hex Flange Bolt Zipbolt Surface Connector Screw Wood Biscuit Top Plate V-Base Top Plate LH/RH End Panel Standard Base (multiple sizes) V-Base (multiple sizes) VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 4 Connector Duplex Receptacle Wire Jumper Duplex Mounting Plate Infeed Lighting Parts (Optional) Power Supply Power Cord Power Supply Splitter (2-way, 4-way, or 8-way) Dimmer Switch Switch Mounting Bracket LED Light VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 5 End of multi-base run will Note: Do not tighten bolts yet! Wait until Fig 3.5. always have a 57” base Smallest base always here Middle bases will always be 60” VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 6 Note: Use the angle brackets and top plates on each base to attach the top. ≈3.00” ≈18.00” ≈2.75” If lights are present in the assembly, skip to Fig 5.1-5.8 & Appendix A before completing the next steps. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 7 3) Assembly Fig. 3.9 Fig. 3.10 Ensure the assembly is properly leveled and adjust as needed. Assembly complete. The removable front panels can be replaced on each base. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 8 Plug the (C) Infeed into the floor core, then attach the (E) Connector to the closest (A) Duplex Receptacle from Fig. 4.1. Note: Multiple Jumpers (B) can connect into the H-Block (B) if required. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 9 Note: Once the Duplex Mounting Plate is fastened, the Duplex Note: Layout all power components and/or lighting to ensure Receptacle snaps into place. proper fitment before moving to the next step. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 10 Connect the (A) Power Supply Power Cord to the (B) Power Connect the (C) Dimmer Switch (female) to the (B) Power Supply Supply. (male). Note: Cable lengths in images do not represent actual lengths. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 11 All lights will be operated by the 1 (C) Dimmer Switch. Note: 300”D tables get 2 Switches and 2 Power Supplies. In that case, half of the LED Light Strips should be on each Power Supply/Switch. VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
-
Page 12: Appendix A: Led Layout - V-Shape Table
59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 59.5 29.5 29.5 29.5 29.5 240” 270” 300” 95°/100° 95°/100° 95°/100° VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24... - Page 13 44.5 44.5 60” 44.5 150° 44.5 44.5 90” 29.5 29.5 150° 44.5 59.5 59.5 120” 150° 44.5 44.5 44.5 59.5 59.5 150” 44.5 44.5 150° 29.5 29.5 44.5 VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 14 150° 44.5 44.5 44.5 59.5 59.5 59.5 59.5 270” 59.5 59.5 150° 44.5 44.5 29.5 29.5 44.5 59.5 59.5 59.5 59.5 300” 59.5 59.5 150° 59.5 59.5 44.5 44.5 44.5 VUVBx VOU V-Shaped Table Installation Guide REV A DATE: 09/25/24...
- Page 15 800.815.7251 www.enwork.com 12900 Christopher Drive Lowell, MI 49331 Specifications subject to change without notice.
