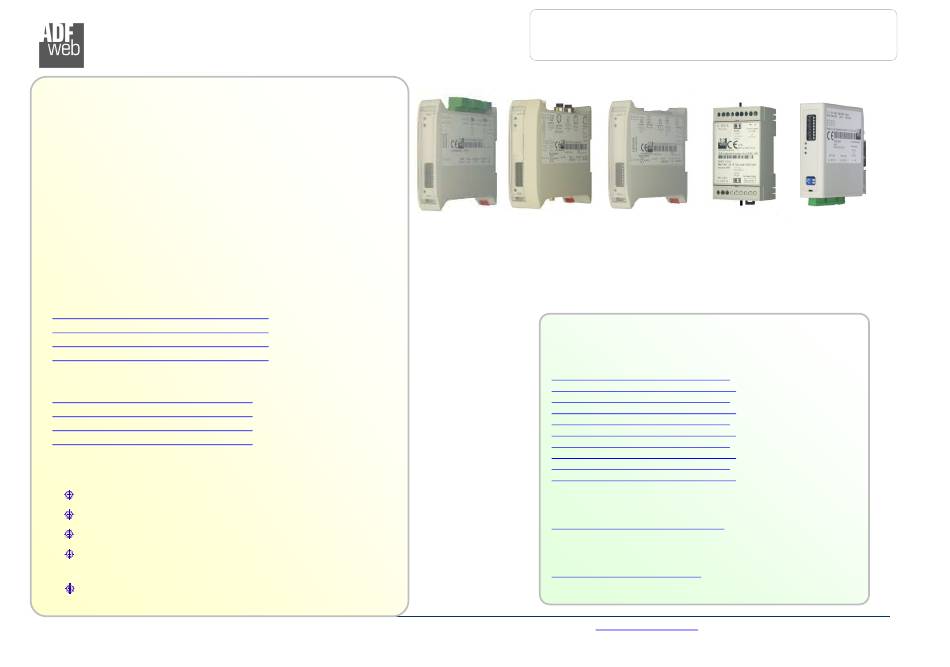

Industrial Electronic Devices
User Manual
Revision 2.302
English
CAN - Repeater - Extender bus line
(Order Codes: HD67117 – HD67117M – HD67117R –
HD67117-A3 – HD67117-A4)
(Order Codes: HD67180 – HD67180M – HD67180R –
HD67180-A3 – HD67180-A4)
(Order Codes: HD67181 – HD67181M – HD67181R –
HD67181-A3 – HD67181-A4)
(Order Codes: HD67182 – HD67182M – HD67182R –
HD67182-A3 – HD67182-A4)
For Website information:
www.adfweb.com?Product=HD67117
www.adfweb.com?Product=HD67180
www.adfweb.com?Product=HD67181
www.adfweb.com?Product=HD67182
For Price information:
www.adfweb.com?Price=HD67117
www.adfweb.com?Price=HD67180
www.adfweb.com?Price=HD67181
www.adfweb.com?Price=HD67182
Benefits and Main Features:
Electrical isolation of CAN branches
Extension of nodes number
Different baud rate of branches CAN
Allows extension of a line segment
(without lowering the Baud Rate)
Temperature range: -40°C/+85°C (-40°F/+185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual CAN - Repeater – Extender bus line
Document code: MN67180_ENG
HD67117
HD67117-A3
HD67117-A4
HD67180
HD67180-A3
HD67180-A4
HD67181
HD67181-A3
HD67181-A4
HD67182
HD67182-A3
HD67182-A4
For others Repeaters:
Optic Fibres Repeaters
See also the following links:
www.adfweb.com?Product=HD67117F
www.adfweb.com?Product=HD67117FS
www.adfweb.com?Product=HD67180F
www.adfweb.com?Product=HD67180FS
www.adfweb.com?Product=HD67181F
www.adfweb.com?Product=HD67181FS
www.adfweb.com?Product=HD67182F
www.adfweb.com?Product=HD67182FS
www.adfweb.com?Product=HD67221F
www.adfweb.com?Product=HD67221FS
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 2.302
Page 1 of 26
HD67117R
HD67117M
HD67180R
HD67180M
HD67181R
HD67181M
HD67182R
HD67182M
(For CANopen)
(For CANopen)
(For DeviceNet)
(For DeviceNet)
(For CAN 2.0A & 2.0B)
(For CAN 2.0A & 2.0B)
(For J1939)
(For J1939)
(Copper Bridge)
(Copper Bridge)
Phone +39.0438.30.91.31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADF Web HD67117

  • Page 1 Page 1 of 26 Industrial Electronic Devices User Manual Revision 2.302 English CAN - Repeater - Extender bus line (Order Codes: HD67117 – HD67117M – HD67117R – HD67117-A3 – HD67117-A4) (Order Codes: HD67180 – HD67180M – HD67180R – HD67117R HD67180-A3 – HD67180-A4) HD67117...
  • Page 2: Updated Documentation

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 2 of 26 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Pagina 2 di 26 Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Updated Page...
  • Page 3: Security Alert

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 3 of 26 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.
  • Page 4 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 4 of 26 Industrial Electronic Devices EXAMPLES: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 5 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 5 of 26 Industrial Electronic Devices ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 6: Connection Schemes

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 6 of 26 Industrial Electronic Devices CONNECTION SCHEMES: Figure 1a: Connection scheme for HD671xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 7 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 7 of 26 Industrial Electronic Devices Figure 1b: Connection scheme for HD671xxM ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 8 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 8 of 26 Industrial Electronic Devices Figure 1c: Connection scheme for HD671xxR ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 9 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 9 of 26 Industrial Electronic Devices Figure 1d: Connection scheme for HD671xx-A3 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 10 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 10 of 26 Industrial Electronic Devices Figure 1e: Connection scheme for HD671xx-A4 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 11 Adapted as repeaters for the following lines: CANopen, DeviceNet, J1939, CAN bus 2.0A, CAN bus 2.0B and generic ISO 11898 standard. The CAN Repeater has 4 order code: HD67117, HD67180, HD67181, HD67182. So they are more proper to a protocol rather than to another.
  • Page 12: Power Supply

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 12 of 26 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin...
  • Page 13 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 13 of 26 Industrial Electronic Devices Caution: Not reverse the polarity power HD67xxxM HD67xxx-A4 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 14 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 14 of 26 Industrial Electronic Devices SET SWITCH BAUDRATE: The switches for setting the CAN0 BaudRate and CAN1 on the front panel of the device: Dip n°...
  • Page 15 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 15 of 26 Industrial Electronic Devices LEDS: The device has got three LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
  • Page 16 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 16 of 26 Industrial Electronic Devices CAN: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ and ‘Dip-Switch C’ is at ON position. ADFweb.com Srl –...
  • Page 17 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 17 of 26 Industrial Electronic Devices Cable characteristics: DC parameter: Impedance Ohm/m AC parameters: Impedance Ohm/m Delay 5 ns/m Length Baud Rate [bps] Length MAX [m] 10 K 5000 20 K...
  • Page 18 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 18 of 26 Industrial Electronic Devices CONNECTORS TYPE M12 AND MINIFIT : MORE INFO ABOUT M12 CONNECTORS: www.adfweb.com/download/filefold/M12_femmina_pcb.pdf www.adfweb.com/download/filefold/M12_maschio_pcb.pdf MORE INFO ABOUT MiniFit CONNECTORS www.adfweb.com/download/filefold/mini-fit_4poli_maschio_pcb.pdf www.adfweb.com/download/filefold/mini-fit_4poli_femmina_volante.pdf ADFweb.com Srl –...
  • Page 19: Mechanical Dimensions

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 19 of 26 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 2a: Mechanical dimensions scheme for HD671xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 20 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 20 of 26 Industrial Electronic Devices Figure 2b: Mechanical dimensions scheme for HD671xxM ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 21 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 21 of 26 Industrial Electronic Devices Figure 2c: Mechanical dimensions scheme for HD671xxR ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 22 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 22 of 26 Industrial Electronic Devices Figure 2d: Mechanical dimensions scheme for HD671xx-A3 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 23 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 23 of 26 Industrial Electronic Devices Figure 2e: Mechanical dimensions scheme for HD671xx-A4 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 24: Order Codes

    - CANopen – Repeater – Extender bus line ( Housing type: R, Terminal Blocks Connectors, Galvanic Isolation: 3KV ) HD67117-A3 - CANopen – Repeater – Extender bus line ( Housing type: A, M12 Connectors, Galvanic Isolation: 3KV ) HD67117-A4 - CANopen – Repeater – Extender bus line ( Housing type: A, Mini-Fit Connectors, Galvanic Isolation: 3KV ) HD67180 - DeviceNet –...
  • Page 25 User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 25 of 26 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
  • Page 26: Warranties And Technical Support

    User Manual CAN - Repeater – Extender bus line Document code: MN67180_ENG Revision 2.302 Page 26 of 26 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
