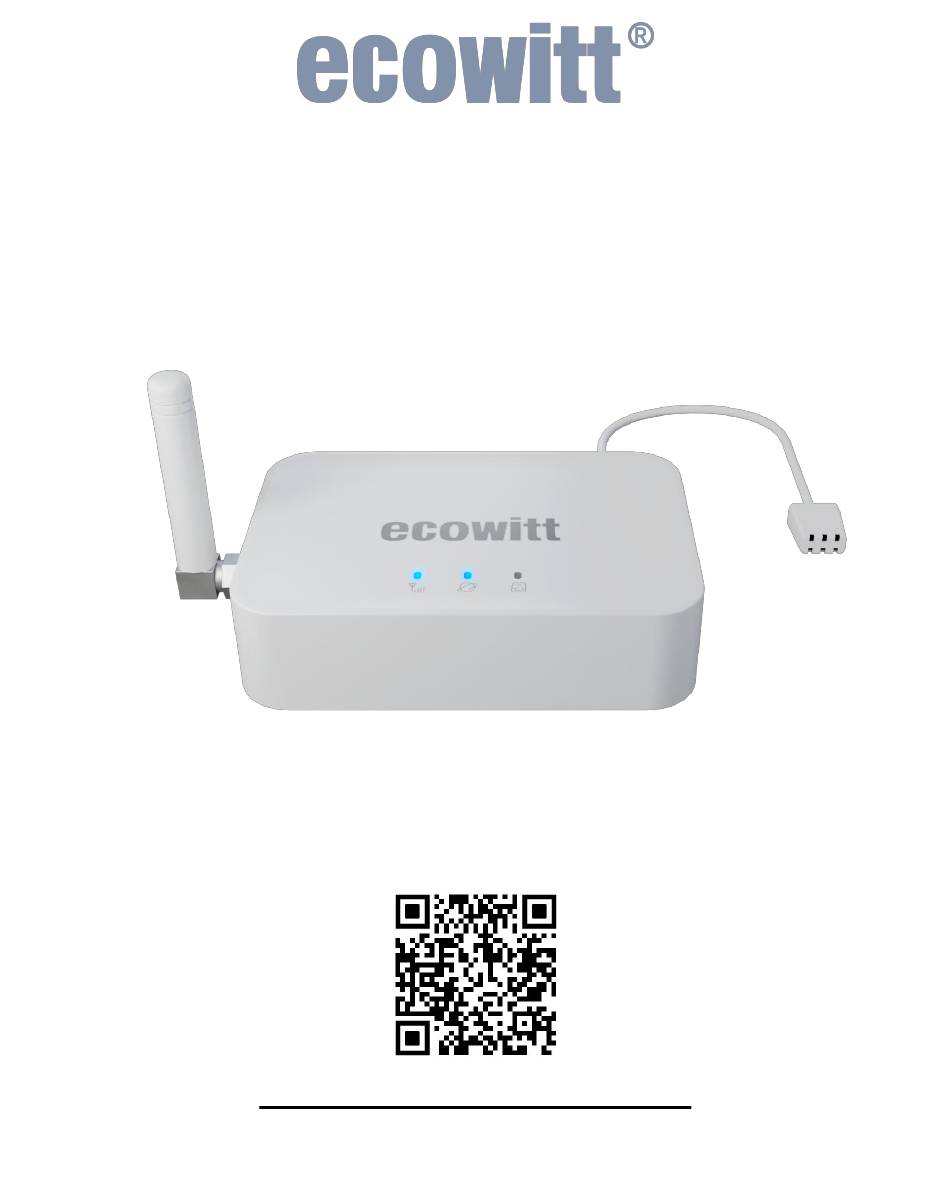

Wi-Fi & Ethernet Weather Station Gateway
built-in Temperature, Humidity and Barometric Sensors
with SD Card Port, and Antennae
Model: GW3000
https://s.ecowitt.com/GT8JYK

Advertisement

loading
Need help?

Need help?

Do you have a question about the GW3000 and is the answer not in the manual?

Questions and answers

Related Manuals for ECOWITT GW3000

Summary of Contents for ECOWITT GW3000

  • Page 1 Wi-Fi & Ethernet Weather Station Gateway built-in Temperature, Humidity and Barometric Sensors with SD Card Port, and Antennae Model: GW3000 https://s.ecowitt.com/GT8JYK...

  • Page 2: Table Of Contents

    1.5 P ........... 6 ORT AND UTTON 1.6 M ) ......9 OUNTING 2 INTERNET AND LOCAL SYSTEM INTRODUCTION ...........10 3 ECOWITT NETWORK PROVISIONING ..12 3.1 H ......12 ARDWARE REPARATION 3.2 I APP ......12 NSTALL THE COWITT 3.3 N ........14...
  • Page 3 ELETE YOUR FROM THE ....27 COWITT ASHBOARD DEVICE LIST 5.2 M .......... 28 ANAGE ENSORS 6 MANAGING SETTINGS WITH THE ECOWITT APP ............35 6.1 C ......35 ALIBRATION OF SENSORS 6.2 A ......36 RESSURE ALIBRATION 6.3 UVI C ..........37 ALIBRATION 6.4 R...
  • Page 4 8.2 C ........66 LEAR ISTORY 9 OPTIONAL WEATHER SERVERS ....67 9.1 W .....67 EATHER ERVERS UPPORTED 9.2 U PLOAD TO EATHER ERVERS ON COWITT ................ 68 9.3 W UI ....69 EATHER ERVICES ON 10 FEATURES ............70 11 SPECIFICATIONS ..........71 12 TROUBLESHOOTING GUIDE .......73 13 OPTIONAL SENSORS ........

  • Page 5: Getting Started

    Getting Started Package List One Ethernet / Wi-Fi Gateway GW3000 One Antenna One USB to Type-C Cord One User Manual One Quick Start Guide Note: The gateway is designed with a Type-C port for power supply, using the USB-A cable to connect to a 5V 1A power adapter (not included).
  • Page 6 Figure 2 Unlock Figure 3 Lock and Adjust the Angle...

  • Page 7: Size (Unit : Mm )

    Multiple Views and Size (Unit:mm) Figure 4...

  • Page 8: Led Indicators Function

    LED Indicators Function Figure 5 LED Indicators After powered on, the RF light is on for 3 seconds (RF long emission lasts for 3 seconds) and then goes out, the internet server light and the SD card light are lit in sequence and then go out again, Then the gateway enters into normal operation.
  • Page 9 Always Off: No network connection Fast Flash: Provisioning is on-going Slow Flash: Provisioning is completed, but no upload of the data to the Ecowitt server Server Blinking light: Keeps on flashing every 5 seconds when connected to the local network...

  • Page 10: Port And Button

    Port and Button Figure 6 Back View...
  • Page 11 Item description Insert SD card (Optional) DC 5.0V Power Type-C Ethernet (Optional) Alternative connectivity via Ethernet...
  • Page 12 10 seconds will reset the gateway to the factory default state. All lights will flash 3 times about twice a second and then the Reset GW3000 will restart. History data like (Optional) maximum daily wind speed or rain event, Wi-Fi settings, calibration settings, rain totals and sensor labeling, etc will be lost and need to be set again.

  • Page 13: Mounting Hole (Unit:mm)

    Mounting Hole (Unit:mm) 1. The gateway can be placed flat in an indoor place where it can receive the sensor RF signals, and it should not be placed in a place with signal insulation or electromagnetic field interference (e.g. near a computer). 2.

  • Page 14: Internet And Local System Introduction

    Internet and Local System Introduction Figure 8 How the Ecowitt ecosystem works Thank you for purchasing the GW3000 , a Weather Station Gateway which comes with both a WLAN(“WiFi”)/LAN interface and built-in indoor temperature, humidity, and barometric sensors. It can also handle all other Ecowitt sensors that have been developed so far.
  • Page 15 Local gateway configuration We at Ecowitt are very conscientious about your possible concerns regarding sending your data into a cloud. Not only do we not share your data with any third party, we also offer you a possibility to manage your data locally by the help of a special tool-the WS View Plus app.

  • Page 16: Ecowitt Network Provisioning

    Prepare a power adapter with a USB-A port (not included) in advance. Use the USB cable coming with the the GW3000 to power it up (insert the USB-C plug into its USB Type-C port). Prepare a network cable(not included) if you need provisioning using the QR code method (No router password).
  • Page 17 Scan the QR code on the bottom of GW3000 to down load the app. Make sure you have the location and Wi-Fi service of your smartphone or tablet enabled for the Ecowitt APP...

  • Page 18: Network Provisioning

    Scan QR Code This method can be used when using the LAN port to connect to your local network (router). 1. Open Ecowitt App, click "My Devices", and click “Add New Devices”, choose the model of GW3000 from the product listing.
  • Page 19 Figure 10 2. Tap on the button marked with “Scan QR Code” Connect the GW3000 beforehand to your router through a network cable (not included).
  • Page 20 Figure 11 3. Scan the QR code on the device - this will transfer the GW3000 device data to the Ecowitt app. Don’t forget to save. Figure 12 4. Reboot the GW3000, then wait approximately 1~2 minutes for the data to upload to the Ecowitt Weather...
  • Page 21 Figure 13...

  • Page 22: Wifi Provisioning

    ① Open Ecowitt App, click "My Devices", and click “Add New Devices”, choose the GW3000’s icon to configure the WiFi Provisioning： ② Powering up the GW3000, its inbuilt WLAN access point (the GW3000's hotspot) will be activated within 5 seconds and the blue Wi-Fi LED will flash rapidly.
  • Page 23 ③ Use your mobile phone to connect to the hotspot (SSID) "GW3000x-WIFIxxxx". (Allow location access, recommended selection is "While Using the App". Fill in the WLAN/WiFi SSID of your local WLAN and the router password. Figure 15...
  • Page 24 ④ After the gateway setup is successful, switch back to your usual wireless network. The GW3000 has been successfully added to the App, and you can view the weather data after a few minutes on the App. Figure 16...

  • Page 25: Manually Adding

    For this method the MAC address of the GW3000 is needed. It is printed on the sticker on the bottom of the GW3000, or you can find it on the embedded web page and copy it. Add the GW3000 to your Ecowitt Account...
  • Page 26 1. Open Ecowitt App, click "My Devices", and click “Add New Devices”, choose the GW3000’s icon to configure the Manually Adding： Figure 18 2. Edit the Device Name and paste the MAC address copied into the box. Then click "Save," and you can view the data on the App.
  • Page 27 Figure 19...

  • Page 28: Setup Your New Device In The Ecowitt App

    Setup your new device in the Ecowitt APP Firmware Upgrade, Device Location, Timezone, DST, and Data Public After you have completed the WiFi connection, please follow these steps for the firmware upgrade, device's location, timezone, DST (Daylight Saving Time), and data view (public/private) settings.
  • Page 29 1. Click on "My Devices". 2. Click on the "…" icon in the upper right corner of the gateway. 3. You can edit your device name here if the default name needs to be changed. 4. Click version button to check latest firmware version. 5.
  • Page 30 Note: The current firmware version is displayed here. If an update is available, a “yellow arrow” will appear next to the version number. Tap on the version button to start the firmware upgrade. Figure 21...

  • Page 31: Devices Management With The Ecowitt App

    Devices Management with the Ecowitt How to Delete your GW3000 from the Ecowitt.net Dashboard device list Pressing the GW3000 entry till the delete icon appears, press it, then choose Delete or Reset. Figure 22...

  • Page 32: Manage Sensors

    2. Power the sensor on by inserting batteries and wait for 1-2 minutes. 3. Check whether the GW3000 has picked up the sensor data automatically and displays it on the app. 4. If data is not received, try the following: Make sure...
  • Page 33 them in a special sequence, do step 5 repeatedly for each sensor entry, Figure 23 Sensor ID Page...
  • Page 34 Figure 24 Re-register Sensor Disable (Stop) a Sensor Suppose you have more than one gateway and want to assign your sensors to different gateways/consoles, completely separate or in groups (the same sensor can be...
  • Page 35 If you have 2 or more sensors of the same model, and GW3000 receives data from one of them and you want to receive data from another one instead: 1. Tap the icon of editing.
  • Page 36 Figure 25 Disable a Sensor...
  • Page 37 Add a Sub-device The GW3000 is the latest generation gateway that supports smart control devices also called house- automation or IoT devices (IoT: internet of things). It can operate one or more WFC01 and AC1100 devices and other in future released smart equipment. Below, we will...
  • Page 38 Figure 26 Connecting a WFC01/AC1100...

  • Page 39: Managing Settings With The Ecowitt App

    Managing Settings with the Ecowitt APP Calibration of sensors Sensors are usually already factory calibrated, but in certain cases their readings need location dependent correction (e.g. local and sea level normalized air pressure, UVI etc.) or you may choose to correct their readings based on your own discretion.

  • Page 40: Air Pressure Calibration

    3. For a certain parameter(Use Indoor temperature as an illustration in the Figure 27). Calculate the offset of data from the accurate weather station and ecowitt sensor. 4. Fill in the offset from step 3, and click Save. Air Pressure Calibration...

  • Page 41: Uvi Calibration

    So, you have to enter the offset before the proper relative pressure is shown. what so far has been used with Ecowitt consoles is to calculate the difference between local pressure and sea level pressure (offset) and enter this as a positive value into the Rel.

  • Page 42: Rain Settings On The Ecowitt App

    This would often be something between 0.65 and 0.75, but the value also depends on your geographical latitude. Rain Settings on the Ecowitt APP Rainfall Data Priority Setting If you have multiple rainfall sensors with different measurement technologies, you can set the priority to display the data from one of them on a console.
  • Page 43 The default values are 1.0. The piezoelectric rain gauge has five different factors for different rain rate ranges. Figure 28 Rainfall Data Priority Setting...
  • Page 44 Rain Totals Initial Value Users can set the Rain for the current year, month, or week starting values. This is useful when you start using this system instead of another one that has accumulated data, or simply if you know the values to be incorrect. 1.

  • Page 45: Units And Other Settings

    Units and Other Settings Click “Settings” and select the units for the different parameters you want. You can see some more settings on this interface. Figure 30 App Setting...

  • Page 46: Network Provisioning With The Web Ui

    SD card files, and more. How to Access the Web UI Holding the “Reset” button of the GW3000 for 5 seconds will turn on its WiFi Access Point (hotspot) for 5 minutes. Connect, either with the web browser of your smartphone/tablet or with your PC to the GW3000's AP.
  • Page 47 However, changes made via the web interface are saved immediately and retained even if power is lost. WiFi configuration 1. Ensure that your mobile phone or laptop is connected to the GW3000’s hotspot emitted by the device. Figure 31...
  • Page 48 2. Open your web browser and enter the following URL: 192.168.4.1. By default, no password is set. Click Login. Figure 32...
  • Page 49 3. Click Local Network. Input the name and password of the router to which you want to connect. Click Apply. Figure 33...

  • Page 50: Local Network On Web Ui

    Local Network on Web UI This page supports viewing or settings for the LAN and WLAN interface: (1) MAC address (2) WLAN: the WLAN interface of the gateway to connect to the router, can be switched off (3) IP Address Mode: Receive Automatically (DHCP) or Static Figure 34...

  • Page 51: Device Settings With The Web Ui

    This option works with sensor arrays like WS69, WS80, WS90 and WS85. 4. Auto Time zone: Your time zone setting on ecowitt.net will be applied here. 5. Automatic firmware upgrade 6. Check firmware button performs a check for new firmware, usually indicated by a red dot at the “Device Setting”...
  • Page 52 If new firmware is available, the option to download will be offered along with a list of changes made to the firmware. If no new firmware is available, the list of changes for the current firmware will be shown. 7. Automatically switch of AP with this option tagged the inbuilt hotspot will be switched off five minutes after a wireless connection with the router was established via the hotspot (this is different from switching off the...
  • Page 53 Figure 35...

  • Page 54: Firmware Upgrade Via Web Ui

    Firmware Upgrade Via Web UI If you choose "Automatically upgrade firmware" on the web page 192.168.4.1, the GW3000 will download the new firmware whenever there is new firmware available and reboot automatically after installation (Automatic upgrade check interval is 24 hours).

  • Page 55: Unit Settings On Web Ui

    Unit Settings on Web UI Supports the following unit settings: (1) Temperature: ℃,℉ (2) Pressure: hPa, inHg, mmHg (3) Wind: m/s, km/h, mph, knots Note: Lightning distance units are the same as wind speed units: Wind Speed Unit Lightning Distance Unit m/s, km/h, BFT(BFT can only be set in App/ website)
  • Page 56 Figure 37...

  • Page 57: Calibration On Web Ui

    Calibration on Web UI This page supports the following data calibration: (1) Solar Irradiance (2) UV (3) Wind Speed (4) Indoor Temperature (5) Indoor Humidity (6) Absolute Pressure (7) Relative Pressure (8) Outdoor Temperature (9) Outdoor Humidity (10) Wind Direction (11) Soil Moisture (12) Multi-Channel Temperature &...
  • Page 58 Figure 38...

  • Page 59: Rain Totals On Web Ui

    Rain Totals on Web UI This page supports settings such as: (1) Choose traditional or piezoelectric rain gauge data to be uploaded to the WU server, as only one rain gauge data can be accepted when you have both our haptic rain gauge and tipping bucket type rain gauge.
  • Page 60 necessary to calibrate the piezoelectric sensors for different rainfall intensities depending on the environment in which they are located. As a sanity check the sensor also verifies if there is water present along with the vibration to exclude effects produced by other vibrations. Figure 39 WS90 and WS85 are weather sensor arrays equipped with piezoelectric rain gauges.
  • Page 61 confirm it consistently produces the same result, and then you can adjust this. 3. Please ensure that you record rain data as follows: set rain4 gain to 6/7.5, which equals 0.8. For easier management, set rain2, rain3, and rain5 all to 0.8 for now. Only when different rain rates are recorded, divide the ws90 rain by 0.8 to get 1.0 rain, and then recalculate (reference/ws90/0.8) to precisely adjust the corresponding...
  • Page 62 Figure 40...

  • Page 63: Sensor Id Configuration With The Web Ui59

    Sensor ID configuration with the Web UI (1) Supports viewing and registering sensor ID. (2) Viewing battery status and signal quality. (3) By entering the “Edit” sub-page of a particular sensor, you may register the sensor by entering the sensor ID so that this sensor can be mandatory assigned.
  • Page 64 Here with its sensor ID updated: Figure 41...
  • Page 65 Figure 42...

  • Page 66: Live Data On Web Ui

    2. Shows the battery status of some of the connected sensors/sensor arrays. 3. You can edit the sensor name by clicking the pencil icon. This name is only reflected on this device, it will not update your dashboard tile name at ecowitt.net. Figure 43...

  • Page 67: Sd Card Management On Web Ui

    SD Card Management on Web UI 7.10 SD card management can only be done in the WebUI, not on the other apps. 1. SD card file system format: Only FAT32 is supported. For cards larger than 32GB, use the Rufus tool to format the SD card to FAT32.
  • Page 68 Figure 44...

  • Page 69: Historical Data Export And Clear

    Export History Data from ecowitt.net When the Wi-Fi configuration (refer to 3.5 for Wi-Fi Configuration) is completed, you can log in to Ecowitt.net to export the data in CSV file format. 1. Choose the period of data. 2. Click "Export".

  • Page 70: Clear History Data

    Note: Data with a query period of days/24 hours is retained for 3 months. Data with a weekly query period is retained for 1 year. Data with a monthly query period is retained for 2 years. Data with a yearly query period is retained for 4 years. Clear History Data Under "menu"...

  • Page 71: Optional Weather Servers

    For the export of historical data from the SD card, see chapter 7.10 Optional Weather Servers Weather Servers Supported After the Wi-Fi configuration is successful, data can be uploaded to the following weather station servers: A. ecowitt.net (Default upload to this server) B. wunderground.com...

  • Page 72: App

    D. wow.metoffice.gov.uk E. Customized servers Upload weather data to Weather Servers on Ecowitt app Ensure that the mobile phone and GW3000 are using the same Wi-Fi. Ecowitt App - "…" at the top right corner - "Others" - "DIY Upload Servers"...

  • Page 73: Weather Services On Web Ui

    Figure 47 Upload Data to Server Weather Services on Web UI After the Network configuration is successful, data can be uploaded to the following weather station servers: A. ecowitt.net (Default upload to this server) B. wunderground.com C. weathercloud.net D. wow.metoffice.gov.uk...

  • Page 74: Features

    Figure 48 Features  The gateway has built-in indoor temperature and humidity sensors and a barometric sensor to monitor indoor conditions in real-time.  The gateway has a Type-C power supply port, a functional indicator light, and a reset button for easy use and management.

  • Page 75: Specifications

     The gateway supports RF signal reception from Ecowitt transmitters and RF communication with Ecowitt IoT products, enabling a wide range of functionality.(Refer to the section optional sensors.)  The gateway supports an SD card for data storage, allowing for local storage and backup.
  • Page 76 Model GW3000 Ethernet and Wi-Fi Gateway Name with Data Storage Dimensions 35×24.9×62(mm) T&H Probe Dimensions 10.5×12×5.5(mm) T&H Cable length 850(mm) Weight 25(g) Material of Plastic Casing SD card Micro SD Supported Reset Indicator light “RF”, "Network", ”SD Card” Temperature Metering -9.9°C to 60°C (14°F to 140°F)

  • Page 77: Troubleshooting Guide

    -10°C to 60°C (14°F to 140°F) Temperature Power Supply 5V 1A USB to Type-C Table 4 GW3000 Specification Troubleshooting Guide Look through the following an issue or problem you are experiencing at the serial number and read possible solutions after that.
  • Page 78  Relative pressure refers to sea-level equivalent temperature and should generally agree closely with the official station. If there is a disagreement, make sure you are not looking at absolute pressure, in particular, if your station is not near sea level. Also, check at different times due to occasional delays in updates to the official station.
  • Page 79  Confirm your password is correct. It is the password you registered on Wunderground.com. Your Wunderground.com password cannot begin with a non- alphanumeric character (a limitation of Wundeground.com, not the station). Example,$oewkrf is not a valid password, but oewkrf$ is valid. ...
  • Page 80 Power on the gateway.  Open the Wi-Fi network on your phone or computer, and connect to the hotspot of GW3000 -WIFIXXXX.  Open your browser, type 192.168.4.1 in the browser address search bar and enter - login - Local Network - enter your Router SSID and Password - Live Data.
  • Page 81  Reset your router or reset the gateway to factory mode and then try the configuration again.  Method 3:  Try to set your router password to none and then do the configuration again. If successfully, you may set your router password back and configure the gateway again.
  • Page 82 (temperature/humidity) is showing as "--°" ,while other data is displaying normally.  It's possible that the temperature and humidity sensor module is malfunctioning. Please confirm the issue by following these steps to operate the outdoor sensor array:  Unscrew the screws at the bottom of the radiation shield and open it, then remove the module, check if there are any other data.
  • Page 83 inserting the end of an opened paper-clip into the reset hole (see manual for WS68 and WS69 array) or pressing the reset button (WS80, WS85 and WS90 array) for about five seconds will restart the array firmware and the LED will start blinking again (WS68/69 every 16 seconds, WS80 every 5 seconds, WS85/90 every 9 seconds).
  • Page 84 Wireless remote (thermo-hygrometer) not reporting in to gateway.  There are dashes on the gateway. The maximum line of sight communication range is about 300’/100m. Move the sensor assembly closer to the gateway.  Re-synchronize the remote sensor(s). Install a fresh set of batteries in the remote sensor(s).

  • Page 85: Optional Sensors

    Optional Sensors The product supports receiving data from various sensors, which can be used with the Ecowitt server for enhanced data services. The RF reception function will always be turned on to receive data from all registered sensors anytime.

  • Page 86: Optional Sensors

    13.2 The following sensors can be purchased separately. For more information, please visit our website: http://www.ecowitt.com. Select the model of the units with the same RF frequency as your gateway or display console (the frequency is different for various countries because of regulations).
  • Page 87 Quantity of Sensor available per Picture Functions Model gateway Outdoor temperature & humidity, light, UV, wind WS90 speed/direction, rainfall Wind speed/direction, WS85 rainfall Outdoor temperature & WS80 humidity, light, UV, wind speed/direction Outdoor temperature & WS69 humidity, light, UV, wind speed/direction, rainfall Light, UV, wind speed/ WS68...
  • Page 88 Indoor temperature, WN32P humidity, and pressure WN32/W Outdoor temperature and N32S humidity WN31/W Temperature and humidity N31S WN30 Temperature WN36 Pool temperature WN34 Temperature L/S/D WN35 Leaf wetness WH41 PM2.5(Particulate Matter) WH43 PM2.5(Particulate Matter)
  • Page 89 CO₂(Carbon Dioxide), WH45/W PM(Particulate Matter), temperature and humidity CO₂(Carbon Dioxide), WH46D PM(Particulate Matter), temperature and humidity WH51 Soil moisture WH51L Soil moisture WH55 Water leak detection WH57 Lightning detection LDS01 Laser Distance Sensor Table 5 Optional Sensors...
  • Page 90 Quantity of Device available per Picture Functions Model gateway WFC01 Smart water timer AC1100 Smart plug Table 6 IoT Device *) Combined fields mean that the maximum number is composed of the 2-3 options together.

  • Page 91: Warranty & Caution

    Warranty & Caution Warranty 14.1 We disclaim any responsibility for any technical error or printing error or the consequences thereof. All trademarks and patents are recognized. We provide a 2-year limited warranty on this product against manufacturing defects or defects in materials and workmanship.

  • Page 92: Fcc

    14.2 This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device should not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 93 to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Page 94 2. This device must accept any interference, including interference that may cause undesired operation of the device. French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.

  • Page 95: Contact Us

    After-sales Service 15.1 Order Issues: If you encounter any missing or incorrect shipments of Ecowitt products purchased, please reach out to the respective platform's customer service from the store where you bought the product for assistance. Usage Inquiries: Our product is continuously changing and improving, particularly online services and associated applications.

  • Page 96: Stay In Touch

    Stay in Touch 15.2 Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow Ecowitt on Discord, YouTube, Facebook and Twitter. Copyright©2024 ecowitt All Rights Reserved. DC120424...
