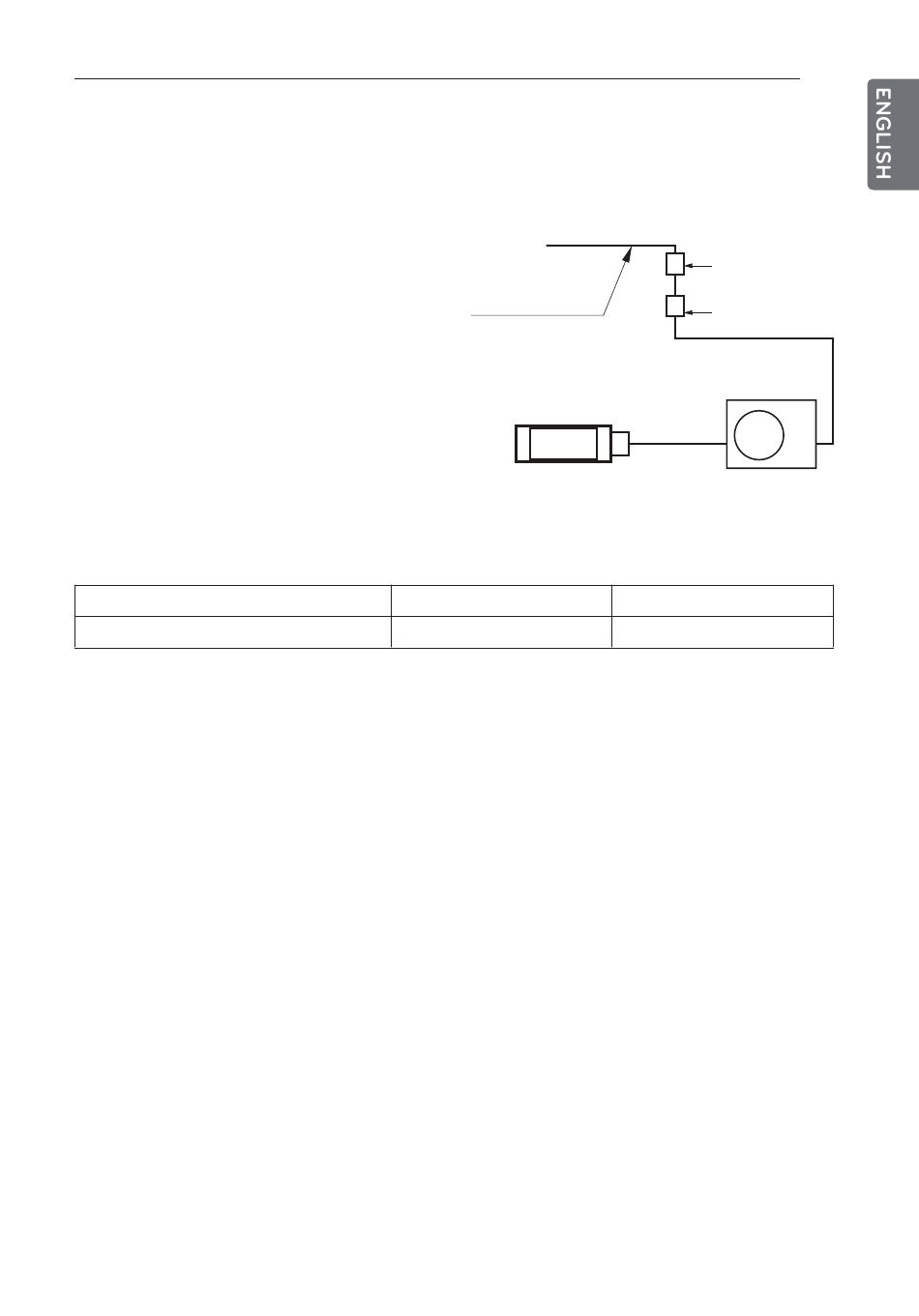

WIRING CONNECTION
Electrical Wiring
Perform the electrical wiring work according
to the electrical wiring connection.
- All wiring must comply with local require-
ments.
- Select a power source that is capable of sup-
plying the current required by the air condi-
tioner.
- Use a recognized ELCB(Electric Leakage
Circuit Breaker) between the power source
and the unit. A disconnection device to ade-
quately disconnect all supply lines must be
fitted.
- Model of circuit breaker recommended by
authorized personnel only
Model
UU37WISL
WIRING CONNECTION
Main
power source
Indoor
Phase(ø)
3
9
ELCB
Switch box
Outdoor
ELCB
20
