Cobra LTX66HRL Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

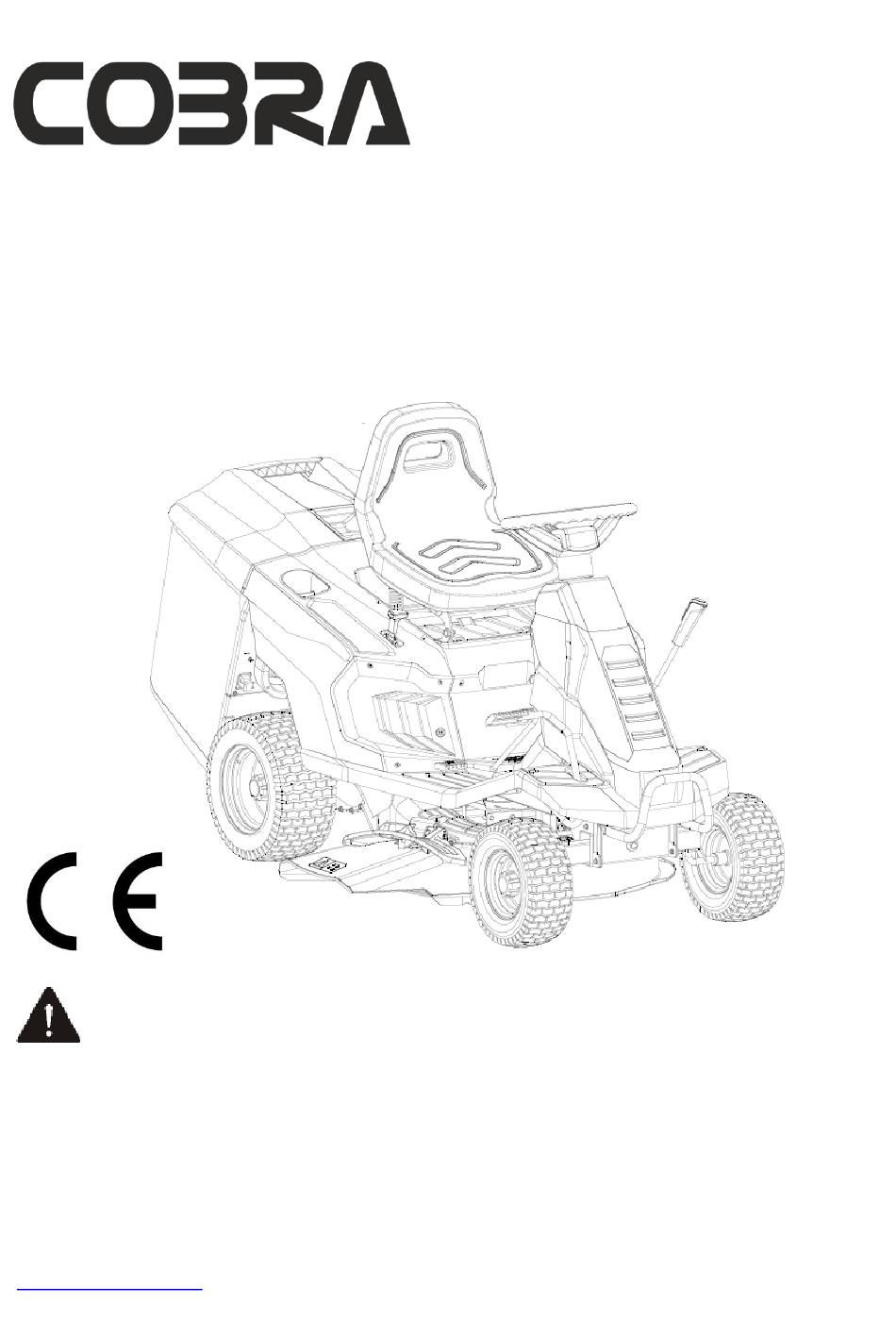

COBRA GARDEN TRACTOR
OWNER'S MANUAL
MODEL:
LTX66HRL (T66)
WARNING!
When using the machine the safety rules must be followed. For your own safety and bystanders please read
these instructions before operating the machine. Please keep the instructions safe for later use.
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the LTX66HRL and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra LTX66HRL

Summary of Contents for Cobra LTX66HRL

  • Page 1 COBRA GARDEN TRACTOR OWNER’S MANUAL MODEL: LTX66HRL (T66) WARNING! When using the machine the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the machine. Please keep the instructions safe for later use.

  • Page 2: After Sales Service

    Modifications can be made to the machine without notice and without the obligation to update the manual, although the essential safety and function characteristics will remain unaltered. If in doubt, do not hesitate to contact your dealer. And now enjoy your Cobra garden tractor. AFTERSALES SERVICE This manual gives all the necessary instructions for using the machine and carrying out basic maintenance.

  • Page 3: Warning Labels

    WARNING LABELS ATTENTION Read the instructions before use. ATTENTION Remove read instructions before performing any maintenance or repair work. HAZARD OF EJECTING OBJECTS Keep everyone away from the work area while the machine is in use. CRUSHING HAZARD Make sure children are a safe distance away from the machine while the engine is running.

  • Page 4: How To Read The Manual

    1. SAFETY 1.1 HOW TO READ THE MANUAL Some paragraphs in the manual containing important information regarding safety and operation are emphasised in the following ways. NOTE IMPORTANT These give details or further information on what has already been said, in the aim to prevent damage to the machine. 1.

  • Page 5: Operation

    – unawareness of the effect of ground conditions, especially slopes; – incorrect hitching and load distribution PREPARATION While mowing, always wear sturdy footwear and long trousers. Do not operate the equipment barefoot or wearing open sandals. Thoroughly inspect the area where the equipment is to be used and remove all objects which can be ejected from the machine, such as twigs, branches, stones, and other debris.

  • Page 6: Maintenance And Storage

    9) Before leaving the driving seat: -disengage the blades and lower the attachments; – go into neutral and apply the parking brake; – stop the engine and remove the ignition key. 10) Disengage the blades, stop the engine and remove the ignition key: –...

  • Page 7: Identification Of The Machine And Components

    IDENTIFICATION OF THE MACHINE AND COMPONENTS IMPORTANT The lawnmower must always be used with utmost caution. So that safety precautions and operating instructions are always readily on hand, labels have been affixed to the machine showing pictographs illustrating the main operating precautions.

  • Page 8: Rear Plate

    Grass bag installation Seat installation Steering wheel installation REAR PLATE installation Blade clutch handle installation Bumper installation (optional) Other sparepars...

  • Page 9: Specifications

    3. SPECIFICATIONS Trex Model Name LTX66HRL (T66) Power output, hp Engine type Engine manufacturer Loncin Cylinder displacement, cm3 Engine model LC1P75F Engine speed, rpm 2800 Spark plug TORCH F7RTC Fuel tank volume, l Oil volume, l Cutting width, сm Cutting height min, mm...
  • Page 10 ASSEMBLY IMPORTANT Unpacking and assembly operations should be carried out on a flat, stable surface with sufficient space for handling the machine and its packaging, using appropriate tools. 4.1 UNPACKING 1. Open the package carefully and do not lose components. 2.
  • Page 11 ASSEMBLY OF THE REAR PLATE Align the plate holes with the holes on the back of the machine and tighten them with the nut(M6) and bolt (M6x12 & M8x25). For the hydraulic model, fix the Gear paddles with nut(M6) as below pic.

  • Page 12: Steering Wheel Installation

    STEERING WHEEL INSTALLATION First Insert the sleeve into the steering wheel shaft, as shown in Figure 1, then Insert the outer cover as shown in Figure 2, insert the steering wheel and fix by bolt(M8x160) and washer, install the decorative cover as shown in Figure 3. BUMPER INSTALLATION (OPTIONAL BUMPER) Align the plate holes with the holes on the front of the machine and tighten them with the nut(M8) and bolt (M8x20).

  • Page 13: Seat Installation

    SEAT INSTALLATION Align the holes on the seat with the holes on the fixing plate, secure the seat with bolt(M8x20) washers, as shown in below Figure. Fix the seat on the machine with bolt(M8x18) and nut(M8).
  • Page 14 GRASS CATCHER BAG ASSEMBLY Combine the part 3 and part 4 by plate, use the bolt(M6x30) and nut(M6) to fix. Step 1...
  • Page 15 Combine the part 7 with bolt(M6x12) and nut(M6). Step 2 Lock the bolt and nut as shown on the below pic. Step 3 Combine the grass bag with the metal frame as shown in the below figure.
  • Page 16 Combine the grass catcher and top cover by screw (ST5.0x30 and ST4.8x19) ASSEMBLY OF THE HANDLE INSTALLATION Fix the handle by bolt(M6x35)

  • Page 17: Preliminary Operations

    OPERATING THE RIDE-ON TRACTOR PRELIMINARY OPERATIONS 5.1.1 Filling with oil and fuel Check for fuel and oil level before using the machine. The correct oil and amount of oil must be used before starting the engine. Permanent damage to the engine will be caused by the incorrect oil being used or the incorrect amount of oil.
  • Page 18 PREPARING THE MACHINE BEFORE STARTING WORK The machine can be used to mow lawns in many different ways; Before you begin, prepare your machine according to how your lawn will be mowed. 5.2.1 Preparation for grass mulching function Install the mulching plug as shown on the below 5.2.2 Preparation for side-discharge Lift the side discharge buttons as shown in the figure below, then fit the side discharge piece.
  • Page 19 START-UP Sit on the ride-on seat. Then, move the blade clutch at the “A”position. engage the brake pedal...
  • Page 20 Set the throttle speed to the ”START” position. Insert the ignition key and turn it to “ON” for electrical contact, then turn it to “START”, to start the engine. Release the ignition key after the engine starts. Once the engine is started, switch throttle control to the minimum speed position. 5.3 DRIVE WITHOUT CUTTING Adjust the cutting height to the highest position.
  • Page 21 Switch throttle control to the “MAX” speed position. Move the blade clutch at the OPEN “B” position. The grass bag must be installed in the right place.
  • Page 22 REVERSE CUT Press the brake pedal until the machine stops; Engage the blade clutch, moving the handle to the OPEN “B” position. Press the “REVERSE CUT” button when reverse cutting and press the back pedal. BRAKE Press the brake pedal to reduce the speed until it stops the tractor. Select the blade clutch lever CLOSE “B”...

  • Page 23: Stop The Engine

    5.7 GRASS CATCHER EMPTYING The grass catcher can only be emptied with the cutting blade disengaged; lifting the collector will stop the engine. Reduce engine speed; Engage the parking brake if on slopes Take hold of the rear lever and tip the grass collector to empty it.

  • Page 24: After Use

    AFTER USE Allow the engine to cool before storing in an enclosed space. Clean. Connect the water pipe with the water nozzle to clean the blade and deck. 5.10 STORAGE OF THE BATTERY The battery must always be stored dry and warm during the winter. Never expose it to low temperatures. Charge the battery completely before storing and then place the lawn rider in a place where it is not exposed to frost.
  • Page 25 Disengage the blades before tipping to avoid the engine cutting out. The safety switch features must be tested before operating the mower. Do not use the ride-on tractor if any safety feature does not operate correctly. Contact your Cobra service centre for additional assistance.

  • Page 26: Troubleshooting Guide

    7. TROUBLESHOOTING GUIDE Difficult to start Problem Cause Solution Generally difficult to start Incorrect starting procedure Following the starting instruction in the manual step by step. The machine will not start • The safety switches are not • Activate safety switches when the electric start key is being activated under the seat and collector...
  • Page 27 The rider starts, but runs unevenly Problem Cause Solution Insufficient engine • Lever is in the "Choke" • Set the lever in the "Run" revolutions or speed. position. position. • The throttle lever is set for • Set the throttle lever for "Turtle "...

  • Page 28: Warranty

    If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk...

  • Page 29: Ec Declaration Of Conformity

    9. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
