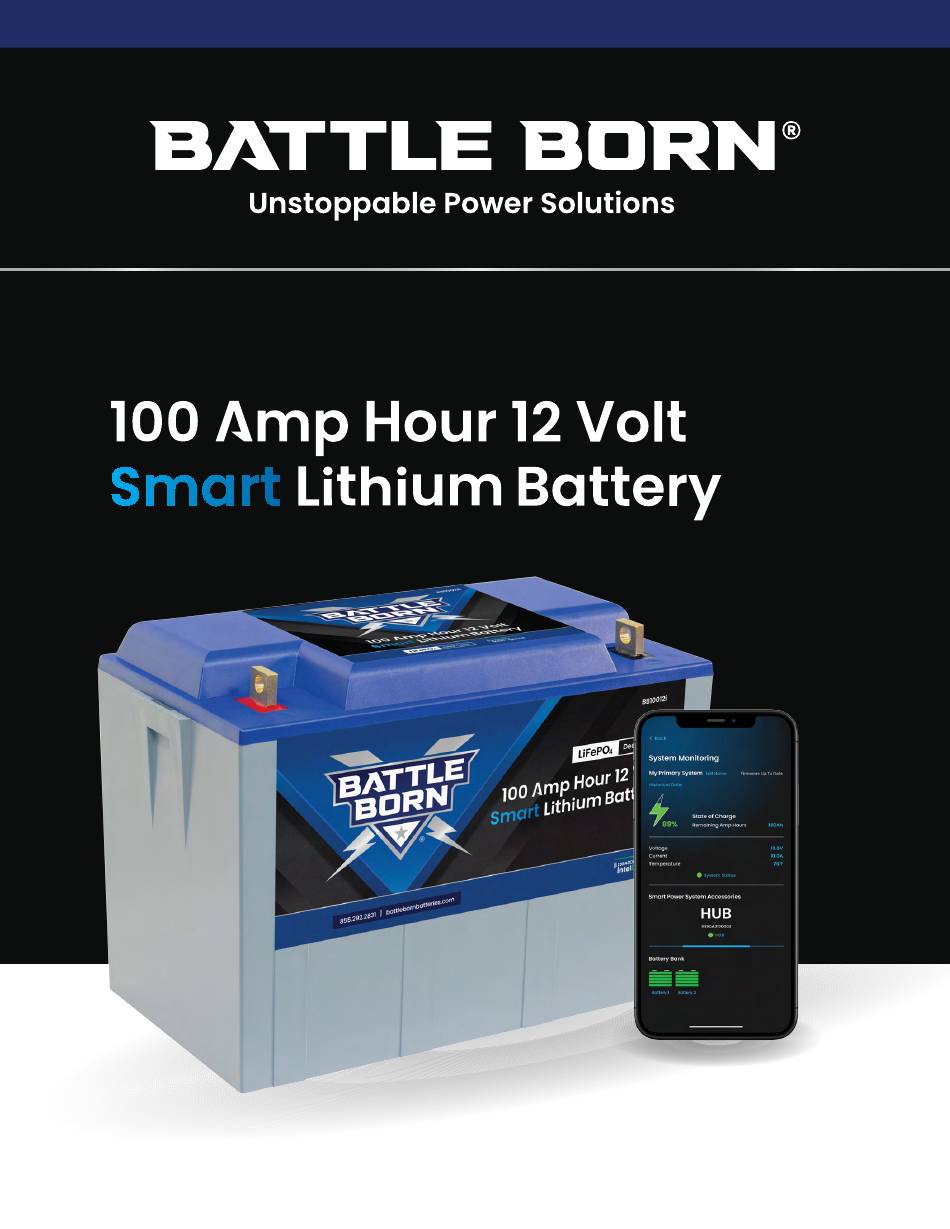

- Page 1 Product Manual and Installation Guide Models: BB10012i / BB10012iH For Technical Support, please contact: 855.292.2831 | info@battlebornbatteries.com...
-
Page 2: Product Name And Model
Revision: 002 Date: 11/25/2024 Product Name and Model # • Battle Born 100 Amp Hour 12 Volt Smart Lithium Battery (BB10012i) • Battle Born 100 Amp Hour 12 Volt Smart Heated Lithium Battery (BB10012iH) Certifications Caution: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 150°F, or Incinerate. -
Page 3: Table Of Contents
Welcome to the Battle Born Family! Thank you for selecting Battle Born Batteries® for your lithium power needs. We appreciate your confidence in our products and are committed to delivering advanced battery systems that meet your energy needs with reliability and performance. -
Page 4: Product Overview
Product Overview... - Page 5 Features Performance & Versatility • UL-Listed Cylindrical Cells • Series and/or Parallel Connection • Safe & Non-Toxic LiFePO Chemistry • Wire in Series up to 48V • Smart Battery Communication Technology • No Limit When Wiring in Parallel • Optional Integrated Heating •...
- Page 6 Optional Integrated Heating Technology All Smart LiFePO Batteries are available in models with optional Integrated Heating technology, which warms the battery pack’s internal cells in cold temperatures. Heat Enable Allows for Cold Weather Charging Screw Low Continuous Power Draw When Enabled Integrated Heating Technology Activated at Internal Temperature of ~35°F (*When Heat Function is Enabled)
- Page 7 BB10012i Technical Specifications Electrical Specifications Charging Specifications Voltage Recommended Charge Current Capacity Max Charge Current 100Ah Operating Temperature Absorption Voltage -4˚F to 135˚F 14.2V to 14.6V (-20˚C to 57.2˚C) Efficiency Float Voltage 13.4V to 13.8V Self Discharge Equalization Voltage 2-3% per Month 14.4V...
-
Page 8: What Is In The Box
What is in the Box? - Page 9 Included with Your Purchase: • (1) 100 Amp Hour 12 Volt Smart LiFePO Deep Cycle Battery Model: BB10012i/BB10012iH • (1) Finishing Hardware Kit ▪ (2) ‘18-8 Stainless Steel’ 5/16-18 x 1” bolts ▪ (2) ‘18-8 Stainless Steel’ 5/16-18 x 1 1/4” bolts ▪...
-
Page 10: Battery Safety
Battery Safety... - Page 11 BATTERY SAFETY LiFePO batteries are inherently safe; however, like all batteries, energy storage devices, and electrical equipment, they pose potential safety and electrical hazards. Failure to follow these safety instructions could result in electrical shock, injury, or death, as well as damage to the battery, equipment, or property.
-
Page 12: Installation
DISCLAIMERS • The buyer assumes responsibility for any damages resulting from the misuse of our products. • Mishandling or misuse of our products will void the warranty. INSTALLATION • The battery should be installed as per national and local codes •... -
Page 13: Installation Guide
Installation Guide... - Page 14 What Do I Need for Installation? If your system is already set up and ready for the batteries, you will need a torque wrench capable of properly torquing the 5/16” finishing hardware. • Important: Properly torque the hardware to 9 to 11 ft-lbs. Failure to meet this specification may result in system damage or failure.
-
Page 15: Properly Charging The Batteries
Properly Charging the Batteries... - Page 16 How to Properly Charge Your Battle Born Batteries To ensure optimal performance and longevity, it's crucial to charge your Battle Born batteries correctly. Please verify that any charging component in your system (such as converters, inverter chargers, solar charge controllers, or DC-to-DC...
-
Page 17: Parallel Batteries Connection
Parallel Batteries Connection... - Page 18 Why Connect in Parallel? Multiple BB10012i batteries may be connected in parallel to increase the capacity and current of the system. When batteries are connected in parallel, the voltage of the system does not change, but the capacity and current limits are additive.
-
Page 19: Series Batteries Connection
Series Batteries Connection... - Page 20 Why Connect in Series? When batteries are connected in series, current capacities remain the same, but the system voltage is additive. For example, two BB10012i batteries connected in series form a 24V 100Ah bank (shown in the diagrams below) should be charged using a bulk and absorption voltage of 28.8V, and a float voltage of 27.2V.
-
Page 21: Battery Management System (Bms)
Battery Management System (BMS) -
Page 22: Low-Voltage Disconnect
-4°F (0°C) (-20°C) Note: The BB10012i | BB10012iH has an operating temperature range of -4°F (-20°C) to 131°F (55°C). High Current Discharge Surges The BMS will not allow a current that exceeds 100 Amps for more than 30s, or anything larger for 0.5s. -
Page 23: Dragonfly Intelligence: Smart Battery Technology
Dragonfly IntelLigence: Smart Battery Technology... -
Page 24: Communication Range
Overview of Dragonfly IntelLigence Technology Dragonfly IntelLigence® is the proprietary communication system that enables seamless integration and advanced features in Battle Born® Smart LiFePO4 Batteries and accessories. Communication Range Bluetooth | Hub 15 meters (~50ft) User Mobile Device The Battle Born Mobile App, when paired with the Battle Born Hub, offers seamless communication with your Battle Born Smart Batteries via Bluetooth. -
Page 25: Configuring Your System
Battle Born HUB The Battle Born HUB is equipped with Dragonfly IntelLigence technology and allows users to wirelessly receive signals from smart batteries, providing increased accessibility to new features and comprehensive system monitoring. HUB Installation Guide • A HUB is a necessary component for any Battle Born Smart Battery system that includes two or more batteries. - Page 26 Identifying Your Smart Battery To connect your Battle Born Smart Battery to the app, you’ll need to commission it through the HUB. There are a couple ways you can identify the batteries before adding them into your system. Search Discoverable Devices: Use the app to search for discoverable devices by serial number.
- Page 27 Smart Battery Setup Guide (Single Battery System) Note: HUB is compatible with but not required for a Single Battery System. When first configuring your system, a step by step video tutorial will prompt within the app. Account Setup Go to "My Account" to create a new account or log in to an existing one.
- Page 28 Smart Battery Setup Guide (Multi-Battery System) Note: HUB is required for all Multi Battery Systems. When first configuring your system, a step by step video tutorial will prompt within the app. Account Setup Go to "My Account" to create a new account or log in to an existing one.
- Page 29 Configuration On the next page, drag and drop batteries into the system configuration, following the systems wiring order (especially important for series configurations) Columns represent series groups, and each column is in parallel with all other columns. Select "Complete System Setup". This may take a few minutes. Upon System Setup completion, you can then name your system.
- Page 30 Battle Born Mobile App Overview Status Legends No error or warning detected No Errors or Warnings Present Warning detected for this status item Warnings Present in System Error detected for this status item Errors Present in System Battery status unknown due to a monitoring error Systems Monitoring State of Charge Percentage of remaining capacity for entire system...
- Page 31 Battle Born Mobile App Overview System Status Green - The entire system connected Monitoring Status Red - Component(s) in the system are not being monitored Green - There are no warnings or errors in the battery Orange - Warning in the battery Battery Status Red - Errors or warning in the system or the battery is not being monitored because it is not connected to hub...
- Page 32 Setting Custom Alerts in the Mobile App Within the app, you can set up custom alerts to receive notifications in the event of any issues with your battery system. These alerts help you stay informed about the health and performance of your system, ensuring you can take action promptly if something goes wrong. To configure this feature, follow the steps outlined below: Open the App •...
-
Page 33: Firmware Updates
Firmware Updates Firmware updates are crucial for maintaining your battery system's performance, security, and functionality. They introduce new features, improve system performance, fix bugs, and ensure compatibility with other components. Keeping your firmware up to date ensures you benefit from the latest enhancements and configuration options. Follow these steps to update your system's firmware: Check for Available Updates •... -
Page 34: Troubleshooting
Best Practices: What to Avoid • Do NOT walk away from your smart batteries or components with the mobile device performing or configuring the updates while they are in progress. • Do NOT attempt to configure the same system across multiple accounts or use the same components in multiple configurations. -
Page 35: Additional System Considerations
Additional System Considerations... -
Page 36: Important Considerations
Cable Sizing for System Installation Proper cable sizing is crucial for optimal system performance and safety. Several factors influence cable selection. Use this chart (the diagram shown below) as a general reference for selecting appropriate cable gauges based on the current and distance in your system. Load Size: Determine the power consumption of the devices you intend to power with the battery bank. - Page 37 These fuses are essential components for protecting against a catastrophic event and should be placed between your Battle Born Battle Born Batteries and the inverter/load. Voltage vs. Capacity (Single Battery) Battle Born LiFePO4 batteries, exhibit a characteristic voltage drop during discharge.
-
Page 38: Storage, Maintenance, Recycling & Disposal
Storage, Maintenance, Recycling & Disposal... -
Page 39: Battery Maintenance
Note: A Current Surge Limiter (CSL) is required for use with inverters rated at 3500W or higher. How to Properly Recycle and Dispose of Batteries Dragonfly Energy, maker of Battle Born Batteries, is committed to providing long-lasting green energy solutions that support your adventures for years. In addition to building durable, reliable batteries, we offer industry-leading customer support to help you maximize their lifespan. -
Page 40: Warranty, Returns & Shipping
Warranty, Returns & Shipping... -
Page 41: Limited Warranty
Limited Warranty Please find Limited Warranty information online at www.battlebornbatteries.com/limited-warranty/ or via phone at (855) 292-2831. Return Policy You have 30 calendar days to return an item from the invoice date. To be eligible for a return, your item must be in the same condition that you received it in. You must have the receipt or proof of purchase. - Page 42 Dragonfly Energy Corp. Copyright © 2024, Dragonfly Energy Corp., all rights reserved. Battle Born Batteries® and Battle Born® are registered trademarks of Dragonfly Energy Corp. All other trademarks, trade names, service marks, and...
