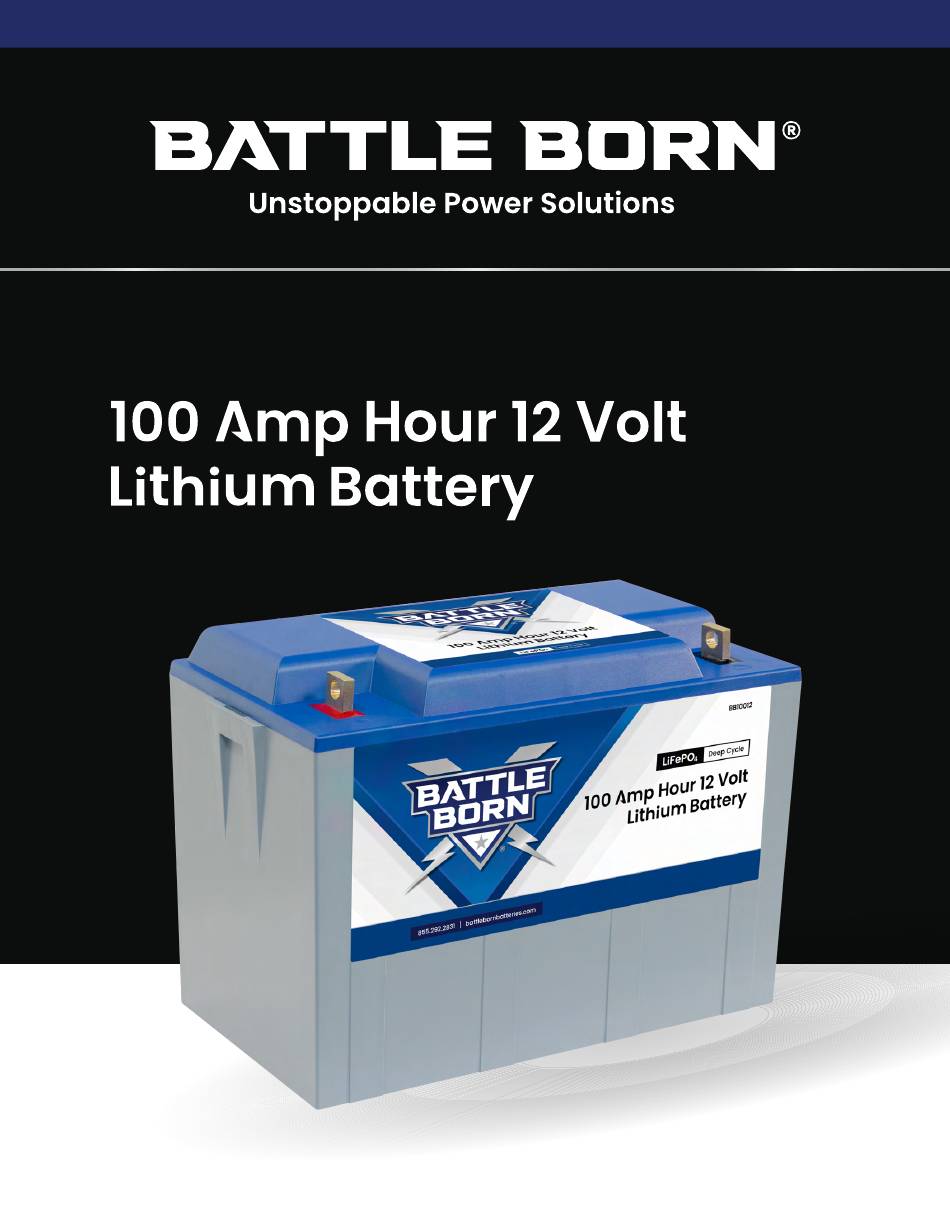

- Page 1 Product Manual and Installation Guide Models: BB10012 / BB10012H For Technical Support, please contact: 855.292.2831 | info@battlebornbatteries.com...
- Page 2 Lithium Battery (BB10012) • Battle Born 100 Amp Hour 12 Volt Heated Lithium Battery (BB10012H) Certifications Caution: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 150°F, or Incinerate. Follow Manufacturer’s Instructions. ATTENTION, Risque d’incendie et de brulures.
- Page 3 Welcome to the Battle Born Family! Thank you for selecting Battle Born Batteries® for your lithium power needs. We appreciate your confidence in our products and are committed to delivering advanced battery systems that meet your energy needs with reliability and performance.
- Page 4 Product Overview...
- Page 5 Series and/or Parallel Connection • Safe & Non-Toxic LiFePO Chemistry • Wire in Series up to 48V • Optional Integrated Heating (Model: BB10012H) • No Limit When Wiring in Parallel • Mount in Any Orientation • 100% Depth of Discharge •...
- Page 6 Optional Integrated Heating Technology All Smart LiFePO Batteries are available in models with optional Integrated Heating technology, which warms the battery pack’s internal cells in cold temperatures. Heat Enable Allows for Cold Weather Charging Screw Low Continuous Power Draw When Enabled Integrated Heating Technology Activated at Internal Temperature of ~35°F (*When Heat Function is Enabled)
- Page 7 LiFePO 4 (Lithium Iron-Phosphate) Sealed and Water Resistant Case Non-Submersible Battery Cell UL 1642 Certifications Integrated Heating Specifications UN38.3 (Model BB10012H Only) UL/CSA-62133-2 Battery Pack UL-2054 Heat Integrated Heating Technology Certifications IP65 - ANSI/IEC 60529-2020, CSA 60529:16 (R2021) Class 1, Division 2, Group A, B, C & D...
- Page 8 What is in the Box?
- Page 9 Included with Your Purchase: • (1) 100 Amp Hour 12 Volt LiFePO Deep Cycle Battery Model: BB10012/BB10012H • (1) Finishing Hardware Kit (2) ‘18-8 Stainless Steel’ 5/16-18 x 1” bolts ▪ (2) ‘18-8 Stainless Steel’ 5/16-18 x 1 1/4” bolts ▪...
- Page 10 Battery Safety...
- Page 11 BATTERY SAFETY LiFePO batteries are inherently safe; however, like all batteries, energy storage devices, and electrical equipment, they pose potential safety and electrical hazards. Failure to follow these safety instructions could result in electrical shock, injury, or death, as well as damage to the battery, equipment, or property.
- Page 12 DISCLAIMERS • The buyer assumes responsibility for any damages resulting from the misuse of our products. • Mishandling or misuse of our products will void the warranty. INSTALLATION • The battery should be installed as per national and local codes •...
- Page 13 Installation Guide...
- Page 14 What Do I Need for Installation? If your system is already set up and ready for the batteries, you will need a torque wrench capable of properly torquing the 5/16” finishing hardware. • Important: Properly torque the hardware to 9 to 11 ft-lbs. Failure to meet this specification may result in system damage or failure.
- Page 15 Properly Charging the Batteries...
- Page 16 How to Properly Charge Your Battle Born Batteries To ensure optimal performance and longevity, it's crucial to charge your Battle Born batteries correctly. Please verify that any charging component in your system (such as converters, inverter chargers, solar charge controllers, or DC-to-DC...
- Page 17 Parallel Batteries Connection...
- Page 18 Why Connect in Parallel? Multiple BB10012 batteries may be connected in parallel to increase the capacity and current of the system. When batteries are connected in parallel, the voltage of the system does not change, but the capacity and current limits are additive.
- Page 19 Series Batteries Connection...
- Page 20 Why Connect in Series? When batteries are connected in series, current capacities remain the same, but the system voltage is additive. For example, two BB10012 batteries connected in series form a 24V 100Ah bank (shown in the diagrams below) should be charged using a bulk and absorption voltage of 28.8V, and a float voltage of 27.2V.
- Page 21 Battery Management System (BMS)
- Page 22 -4°F (0°C) (-20°C) Note: The BB10012 | BB10012H has an operating temperature range of -4°F (-20°C) to 131°F (55°C). High Current Discharge Surges The BMS will not allow a current that exceeds 100 Amps for more than 30s, or anything larger for 0.5s.
- Page 23 Additional System Considerations...
- Page 24 Cable Sizing for System Installation Proper cable sizing is crucial for optimal system performance and safety. Several factors influence cable selection. Use this chart (the diagram shown below) as a general reference for selecting appropriate cable gauges based on the current and distance in your system.
- Page 25 ANL fuses are designed to protect your system by melting and separating in case of excessive current. These fuses are essential components for protecting against a catastrophic event and should be placed between your Battle Born Battle Born Batteries and the inverter/load. Voltage vs. Capacity (Single Battery) Battle Born LiFePO batteries, exhibit a characteristic voltage drop during discharge.
- Page 26 Storage, Maintenance, Recycling & Disposal...
- Page 27 Note: A Current Surge Limiter (CSL) is required for use with inverters rated at 3500W or higher. How to Properly Recycle and Dispose of Batteries Dragonfly Energy, maker of Battle Born Batteries, is committed to providing long-lasting green energy solutions that support your adventures for years. In addition to building durable, reliable batteries, we offer industry-leading customer support to help you maximize their lifespan.
- Page 28 Warranty, Returns & Shipping...
- Page 29 Limited Warranty Please find Limited Warranty information online at www.battlebornbatteries.com/limited-warranty/ or via phone at (855) 292-2831. Return Policy You have 30 calendar days to return an item from the invoice date. To be eligible for a return, your item must be in the same condition that you received it in. You must have the receipt or proof of purchase.
- Page 30 Dragonfly Energy Corp. Copyright © 2024, Dragonfly Energy Corp., all rights reserved. Battle Born Batteries® and Battle Born® are registered trademarks of Dragonfly Energy Corp. All other trademarks, trade names, service marks, and...
