COMBA MT-ND-TG Quick Start Manual

T-Grid Antenna Mounting Kit
MT-ND-TG
Universal Antenna bracket for T-Grid Ceiling installation
•
24-inch T-Grid Antenna Bracket designed for
universal indoor ceiling mounting antennas
•
Compatible for following antennas
1. Low-profile IXL-MJN-H4U, IXL-YJN-H4PU, IXL-SQx-H6U
2. Regular cone shape IX-MJx-V3U, IX-MJN-V3P, IX-YUN-V5P, IX-YQx-V4U
•
Heavy-Duty bracket
1. Max bearing load; 26.5 lb. /12 kg
2. Max bending load; 30.9 lb./14 kg
Installation Instruction
1. Parts for installation
No Part Name
1 Antenna
2 Antenna mounting plastic nut. M18
3 Antenna mounting frame
4 Antenna bracket for height adjustment
5 Screws for the frame mounting
6 Screws for antenna mounting height adjustment
7 T-Grid heavy duty clips
DS-Control
Comba Telecom
1-0-0/ 0624
Information contained in this document is subject to confirmation at time of ordering. Specifications may differ depending on region and customers' requirements.

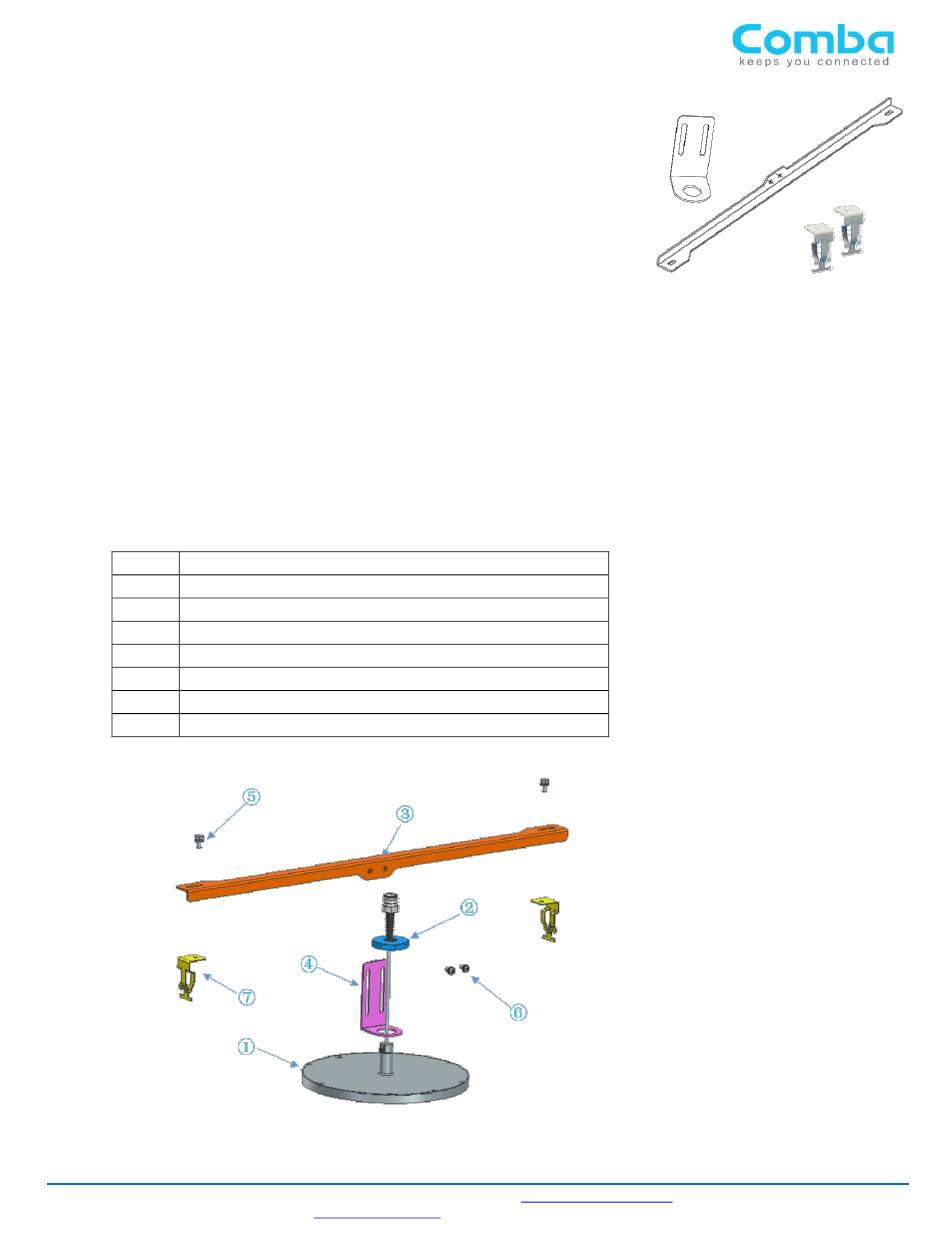

Fig 1. Parts for installation
