COMBA MT-ND-AR Quick Start Manual

Articulating Antenna Mounting bracket
MT-ND-AR
Articulating Bracket Mount for IWH-080V08NZ/IWH-080V08Z-Q

Installation Instruction

1. Bracket- A is preinstalled on the backside of the antenna.
Please take the bracket-A out from the backside of the antenna.
2. Assembly the bracket-B to same location of the backside of
the antenna with 4xM3 screws as shown in the picture
3. Install the articulating mounting kit on the backside of the antenna
with 4 sets of M5 nut, the plain washer and the spring washer as shown in
the picture
4. Drill holes (¼" or 6mm diameter) in the wall at least deeper than the length
of the expansion bolt
5. Put the expansion bolt into the hole on the wall and then tighten the nuts of
The expansion bolt with wrench. The bolt goes outside while the metal sheath
does not move
6. Adjust the antenna direction and then tighten the nut after completion of installation

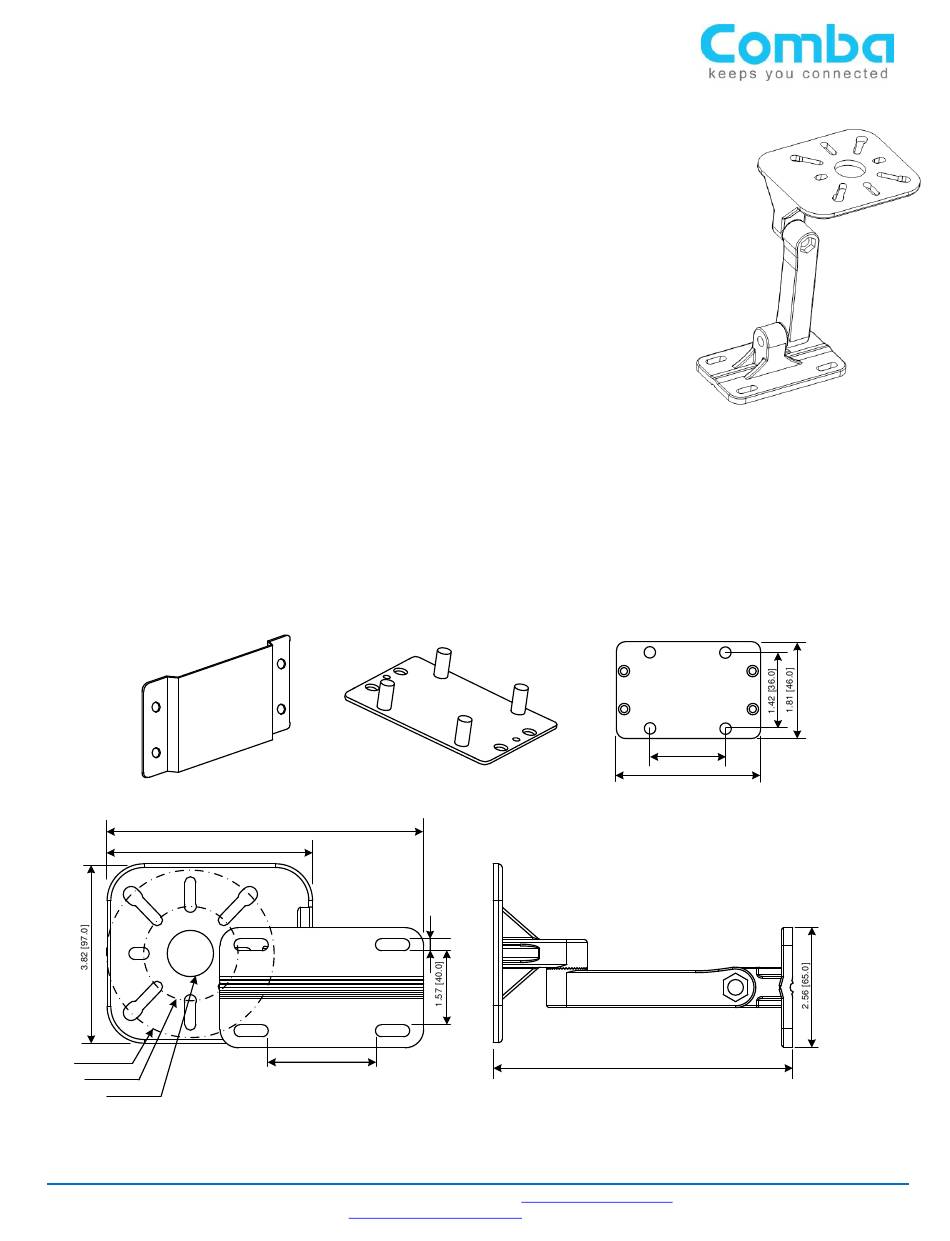

Unit: inches [mm]
Bracket A
4.37 [111.0]
Ø 3.56 [90.5]
Ø 2.0 [51.0]
Ø 0.98 [25.0]
DS-Control
Comba Telecom
1-0-0/ 1221
Information contained in this document is subject to confirmation at time of ordering. Specifications may differ depending on region and customers' requirements
6.73 [171.0]
2.28 [58.0]
Inc. 568 Gibraltar Drive, Milpitas, CA 95035.
Tel: +1 866 802 7961, combausa@comba-telecom.com,
Bracket B
0.26 [6.5]
http://www.combausa.com/
Fax: +1 408 526 0181
1.42 [36.0]
2.69 [68.3]
6.40 [162.5]
