COMBA MT-ND-EY Quick Start Manual

Antenna Mounting Kit
MT-ND-EY
UL-94-V0 rated, Hard Ceiling Mount for IXL-EYN-H2P

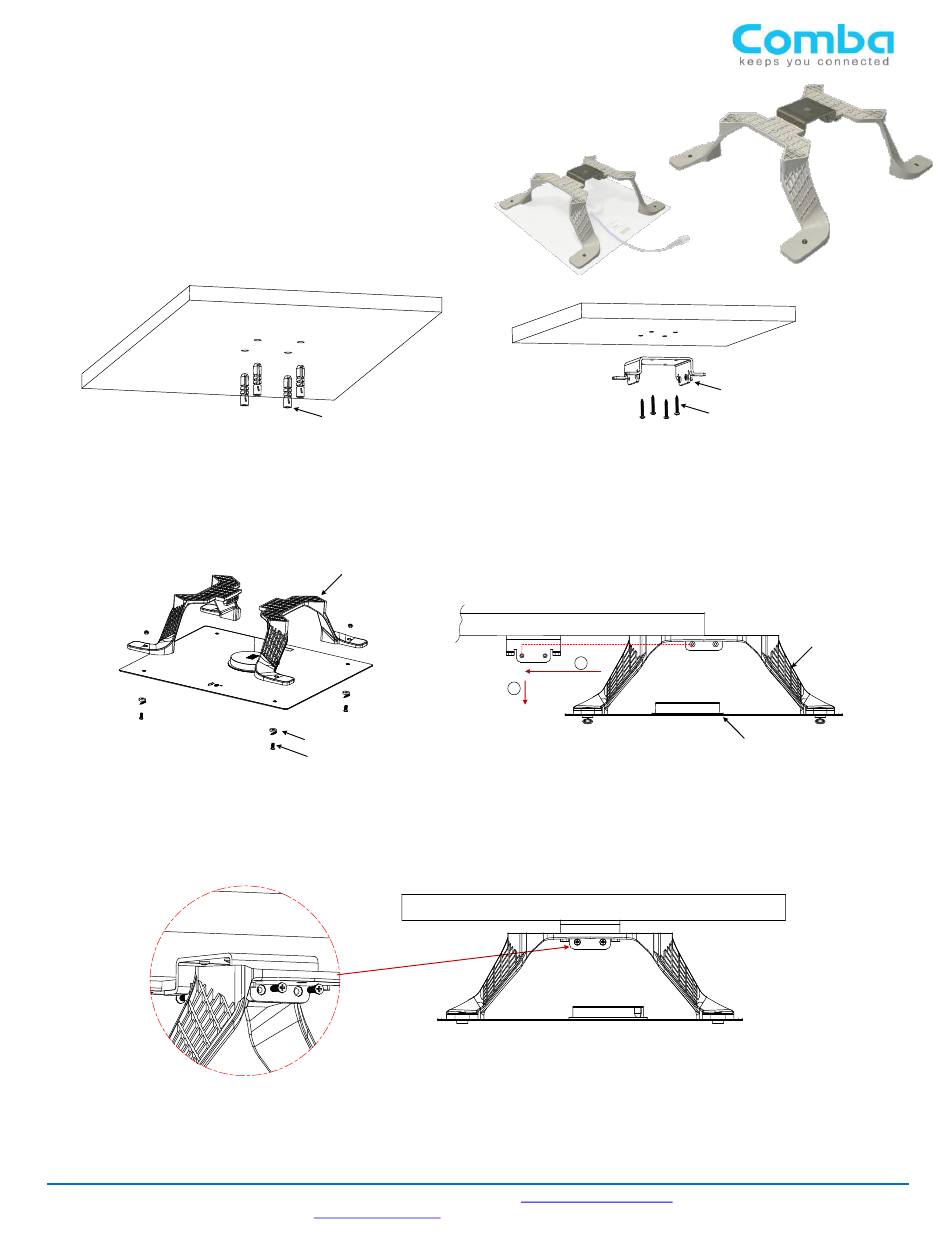

Installation Instruction
Step 1:
Drill four mounting holes on the ceiling according to the
plastic anchor installation requirements, and determine
where to put plastic anchor(for M4) on the ceiling.
Step 3:
Assemble the plastic bracket to the back of
the antenna.
Side view
DS-Control
Comba Telecom
1-0-1/ 0124
Information contained in this document is subject to confirmation at time of ordering. Specifications may differ depending on region and customers' requirements
Plastic anchor for
M4 screws
plastic bracket
plastic cap
mounting screw M4
Step 4:
Slide the antenna assembly into the aluminum bracket as
shown in the drawing and push it down to align the mounting
holes
Step 5:
Fasten the screws on both sides to complete the
installation.
Inc. 568 Gibraltar Drive, Milpitas, CA 95035.
comba@combausa.com, Fax: +1 408 526 0181
Step 2:
M4x25 screws are used to attach the aluminum
bracket on the ceiling.
1
2
http://www.combausa.com/
aluminum bracket
mounting screw M4
plastic bracket
antenna
Page 1 of 2
