Summary of Contents for Redline Triumph NSS-10C-G

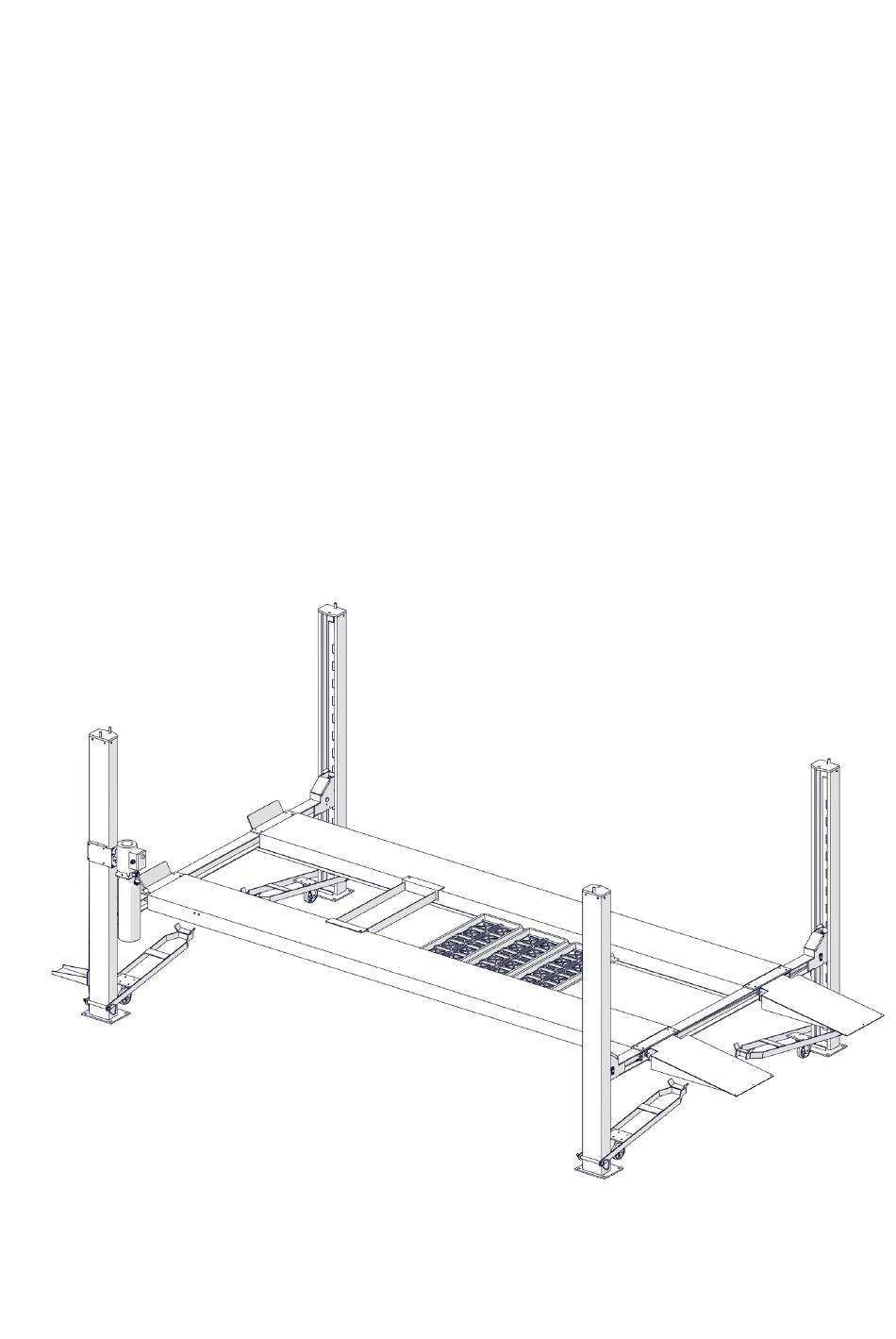

  • Page 1 NSS-10C-G Manual...

  • Page 2: Special Note

    Triumph Auto Lifts Special Note ▲ Shipping process caused damage to the equipment by the purchaser claims to the carrier unit. ▲ Design and manufacturing, taking into account the safety performance. However, proper training and careful operation can also increase security. Not reading the manual, shall not operator repair the device.
  • Page 3 Triumph Auto Lifts Table of Contents Equipment performance The basic parameters Equipment Dimensions The installation of equipment Equipment debugging Equipment maintenance and inspection Parts of the device exploded view and schedule Hydraulic system equipment and electrical component Common troubleshooting method Packing list NS-10C-G manual...

  • Page 4: Equipment Performance

    Triumph Auto Lifts Equipment performance ● Set inspection, maintenance, parking as a whole, and beautiful appearance. ● Hydraulic cylinders drive, rope drive, quiet working environment. ● Mechanical safety lock, can any of the top job at the desired height, safe and reliable.
  • Page 5 Triumph Auto Lifts Dimensions of machine NS-10C-G manual...

  • Page 6: Equipment Installation

    Triumph Auto Lifts Equipment installation Step 1. Before installing the new lift, pay attention to the following matters: (1) The location of the lift, according to the design and planning of the entire plan requirements, as far as possible, place the dimension there is sufficient space. (2) According overall size , determine the installation location and carry out the dash.
  • Page 7 Triumph Auto Lifts Step 3. To install four lock bar Step 4. To install top cap. (1) Pay attention to distinguishing the direction of top caps. (2) The installation height of the lock bars on the 4 pillars is consistent. NS-10C-G manual...
  • Page 8 Triumph Auto Lifts Step 5. Rise the posts and crossbeams. Step 6. Rise the crossbeams (1) Using a forklift or crane to at least five feet off the ground. (2) Make sure all 4 safety locks on both sides of each crossbeam are locked inside the lock bars at the same height.
  • Page 9 Triumph Auto Lifts Step 7. To install the runways (1) Main runway with cylinder: Using a forklift or crane install the runway to near the main post side . (2) Sub runway without cylinder: Using a forklift or crane install the runway to near the sub post side .
  • Page 10 Triumph Auto Lifts Step 8. To Install the cable NS-10C-G manual...
  • Page 11 Triumph Auto Lifts Step 9. To install the lock release rod (1) Control side crossbeam NS-10C-G manual...
  • Page 12 Triumph Auto Lifts (2) Slave side crossbeam NS-10C-G manual...
  • Page 13 Triumph Auto Lifts (3) Attention: Make sure all 4 safety locks on both sides of each crossbeam are locked inside the lock bars at the same height. After using self-locking nut M8 and bolt M8*30 to fix the lock release rod, Adjust by rotating the threads of the long and short rods to ensure the lock release rod is vertically.
  • Page 14 Triumph Auto Lifts Step 10. To install the power unit and pipe line joints. NS-10C-G manual...
  • Page 15 Triumph Auto Lifts Step 11. The power supply according to the requirements on the motor nameplate, add hydraulic oil. Step 12. Press up button on power unit, observe the correct cable position. press the down handle on the power unit to decreased to the lowest point, adjusting the tension of the cable, the four unanimously.

  • Page 16: Special Attention

    Triumph Auto Lifts Special attention Vehicles parked on the runway braking and tire wedge. Lifting and lowering vehicles, pay attention to people and things around to keep their distance and not close to the lift. Maintenance man to enter the work area, check the runway should be properly locked in the column lift.
  • Page 17 Triumph Auto Lifts Maintenance and inspection notes Routine maintenance and inspection 1. Work location of an operation to check the safety lock 2. Check safety lock and unlock the lift bar and padlock 3. Check hydraulic fittings, hose leaks 4. Check the wire rope connections - is bent, broken, loose. 5.

  • Page 18: Troubleshooting

    Triumph Auto Lifts Trouble shooting Symptom Eliminating methods A motor does not turn ● check the power supply has power ● Check the motor connection box wiring is loose motor rotation position ● One-phase electric rotating in the wrong of pressure oil direction, swap in which two into line.

  • Page 19: Parts List

    Triumph Auto Lifts Parts list NS-10C-G manual...
  • Page 20 Triumph Auto Lifts Name Code QTY. Nut M18 GB/T 6170 Column top plate ON-7440PB-010-00 2 each Bolt M12 × 30 GB/T 5781 Nut M12 GB/T 6170 Flat pad 12 GB/T 95 Spring pad 12 GB/T 93 Auxiliary pillar ON-7440PB-200-00 Self-locking plate ON-7440PB-020-00 rack truck ON-7440PB-600-00...
  • Page 21 Triumph Auto Lifts Blocking wheel gasket ON-7440PB-000-02 Main platform ON-7445PB-500-00 Bolt M8 × 25 GB/T 5781 Nut M8 GB/T 6170 Flat cushion 8 GB/T 95 Spring pad 8 GB/T 93 pumping station ON-7440PB-000-00II Bolt M10 × 25 GB/T 5781 Flat pad 10 GB/T 95 Spring pad 10 GB/T 93...
  • Page 22 Triumph Auto Lifts Name QTY. Code Composite gasket G1/4 Pump connector High pressure oil pipe 2000 ON-7436P-000-08 Thin Nut G1/4 Adjacent right angle pipe joint ON-7224E-A4-B15 High pressure oil pipe 1780 ON-7440PB-000-14 Oil cylinder joint ON-7436P-000-30 NS-10C-G manual...
  • Page 23 Triumph Auto Lifts Name QTY. Code Thin nut M20 GB/T 6172 Nut M20 GB/T 6170 Shim 20 GB/T 95 Wire Rope III L=8415 mm ON-7445PB-000-12 Wire Rope IV L=9925 mm ON-7445PB-000-13 Wire rope I L=3500 mm ON-7445PB-000-10 Wire Rope II L=5505 mm ON-7445PB-000-11 NS-10C-G manual...
  • Page 24 Triumph Auto Lifts Name Code QTY. Handle ball M10 × 30 ON-7224T-A2-B3-C6 Handle rod ON-7445PB-061-00 Short pull rod ON-7445PB-000-03 Bolt M8 × 30 GB/T 5781 Self locking nut M8 GB/T 889.1 Connecting screw sleeve ON-7436P-060-02 Nut M12 GB/T 6170 Double headed screw ON-7440PB-000-05 connecting rod ON-7440PB-091-00...
  • Page 25 Triumph Auto Lifts Name QTY. Code Bolt M8 × 30 GB/T 5781 Flat cushion 8 GB/T 95 Slider ON-7445PB-400-01 Crossbeam body ON-7445PB-410-00 Bolt M8 × 50 GB/T 5781 Safety shaft ON-7440PB-400-02 Rope breakage insurance ON-7436PB-430-00 Manual insurance ON-7440PB-420-00 2 each Wire rope pulley ON-7445PB-000-01 Composite liner 3520...
  • Page 26 Triumph Auto Lifts Spring pad 8 GB/T 93 Cross slot screw M6 × 12 GB/T 818 Shield ON-7440PB-400-03 Shoulder screw ON-7440PB-430-00 Nylon wheels ON-7436PB-400-04 Self locking nut M8 GB/T 889.1 Flat cushion 20 GB/T 95 Torsion spring 2 each ON-7436PB-400-02 Tension spring ON-7436PB-400-08 Name...
  • Page 27 Triumph Auto Lifts Spring pad 8 GB/T 93 Steel wire rope wheel axle ON-7440PB-040-00 Wire rope pulley ON-7445PB-000-01 Composite liner 3520 Pipe sleeve 45 ON-7440PB-000-07 Bolt M10 × 120 GB/T 5780 Main platform ON-7445PB-500-00 Oil cylinder 70/25/2050 ON-7440PB-700-00 Split pin 4x50 GB/T 91 Cylinder shaft ON-7436P-000-13...
  • Page 28 Triumph Auto Lifts Name QTY. Code Wheel fork ON-7440PB-610-00 Bolt M10 × 25 GB/T 5781 Nut M10 GB/T 6170 Flat pad 10 GB/T 95 Spring pad 10 GB/T 93 Universal wheel Pin shaft 245 ON-7440PB-620-01 R-shaped pin 3.5 × 70 NS-10C-G manual...
