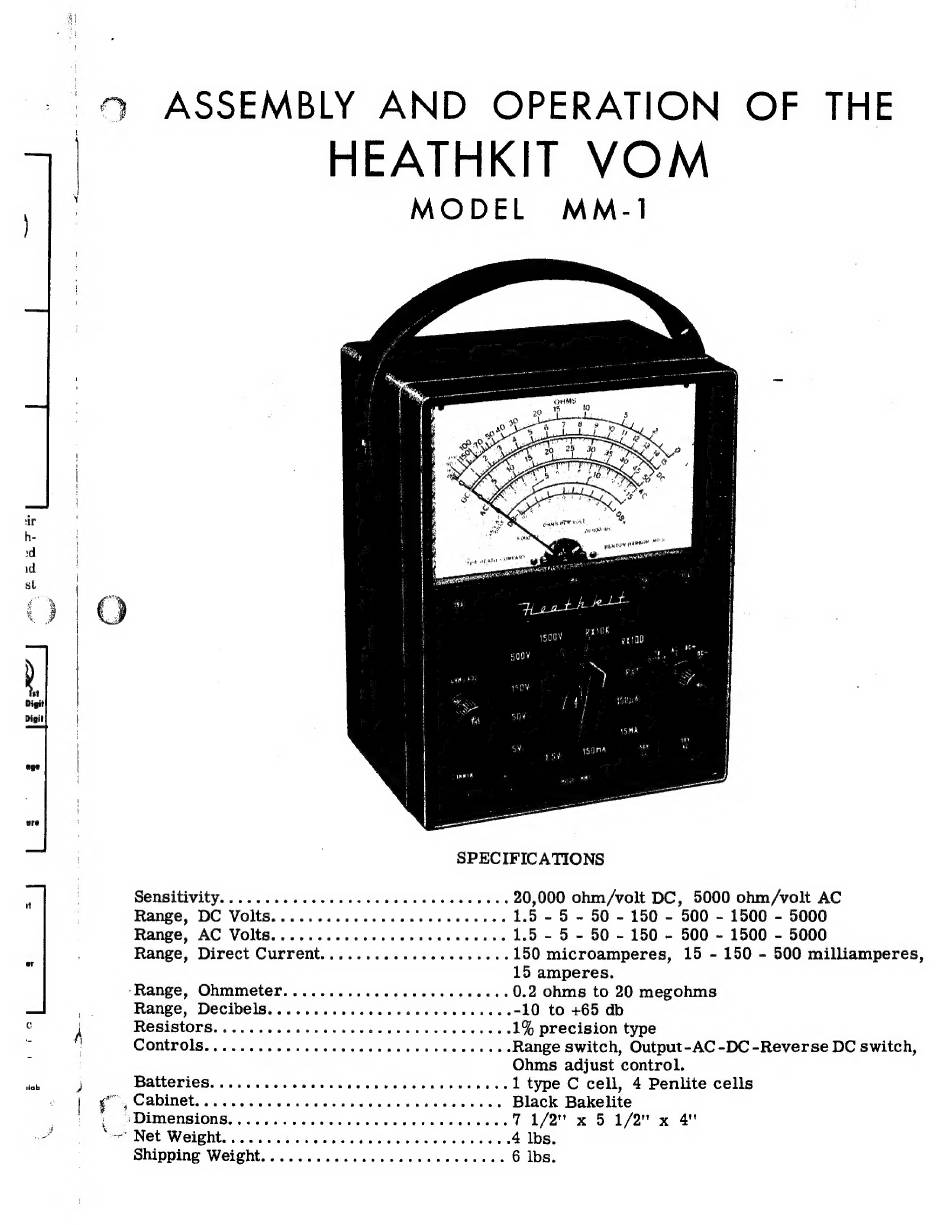

Heathkit VOM MM-1 Assembly And Operation Manual

MODEL MM-1
ee
ir :
be |
id
id ;
st
SPECIFICATIONS
DONSIOVICY 6 soc ae 0b aed oid pe ae Wee He 20,000 ohm/volt DC, 5000 ohm/volt AC
Range; DC VOUS ian eiw ieee aes ae ese 1.5 - 5 - 50 - 150 - 500 - 1500 - 5000
Range, AC Volts... ...s.cceser see neavervaa' 1.5 - 5 - 50 - 150 - 500 - 1500 - 5000
Range, Direct Current...........ceceeeeees 150 microamperes, 15 - 150 - 500 milliamperes,
' 15 amperes.
"Range, Ohmmeter......... ccc cece eeenecans 0.2 ohms to 20 megohms
ae Range, Decibels... ...... cece cece ere essneee -10 to +65 db
¢ A Resistors...... Less ea le aie thee ees 1% precision type
' * CONIOIS eco atgraeed toes Said ose saa ware Range switch, Output-AC -DC -Reverse DC switch,
: Ohms adjust control.
sat j Batteries ei avid na. oe sn sexes Oe ei ead Saved wa 1 type C cell, 4 Penlite cells
a a CADING Ba iast-c ery Ses -sow Su asia pratee Sere a dea bares a Black Bakelite
. SDUDCNSIONS, f2sacualea ein eee ewes 71/2" x 5 1/2" x 4"
ge ee NGL WIPE 4.255 655: b.9o% hk Sad ab alee ceae ee 4 lbs.
Shipping Weight..........ccc ccc e eee eeeeees 6 lbs.
