Heathkit TC-2 Assembly And Operation Manual

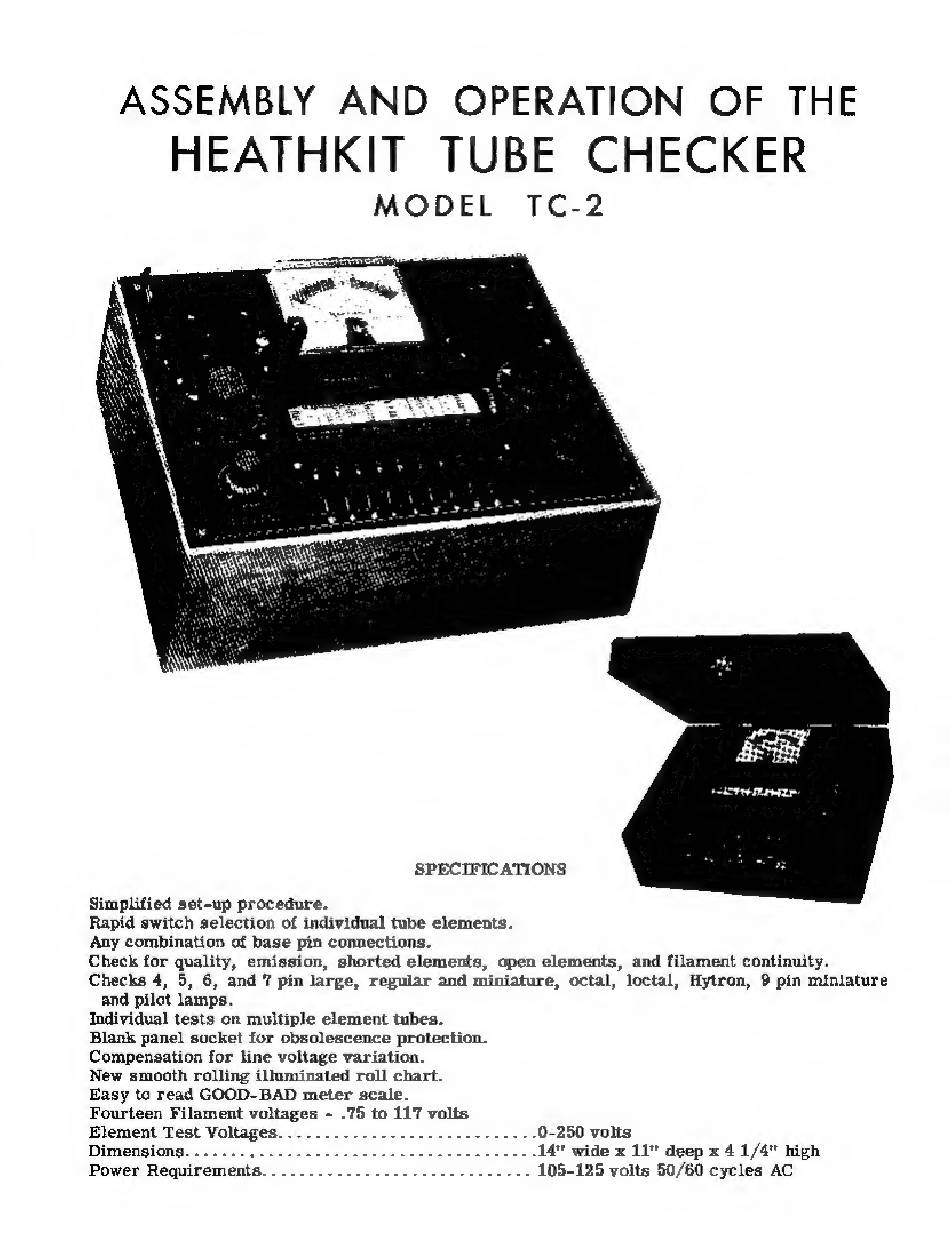

ASSEMBLY AND OPERATION OF THE

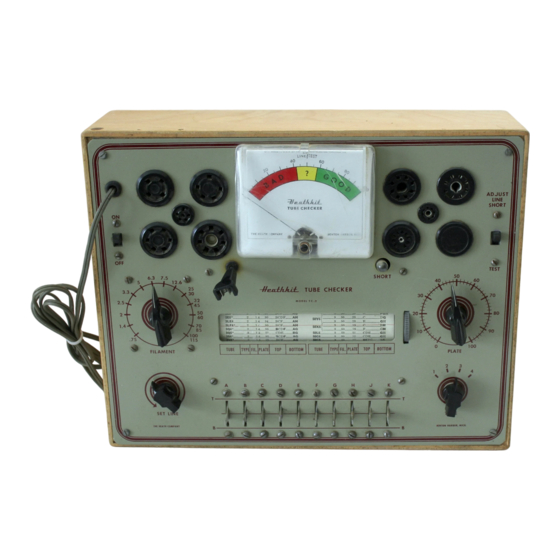

HEATHKIT TUBE CHECKER
MODEL TC-2
SPECIFICATIONS
Simplified set-up procedure.
Rapid switch selection of individual tube elements.
Any combination of base pin connections.
Check for quality, emission, shorted elements, open elements, and filament continuity.
Checks 4, 5, 6, and 7 pin large, regular and miniature, octal, loctal, Hytron, 9 pin miniature
and pilot lamps.
Individual tests on multiple element tubes.
Blank panel socket for obsolescence protection.
Compensation for line voltage variation.
New smooth rolling illuminated roll chart.
Easy to read GOOD-BAD meter scale.
Fourteen Filament voltages - .75 to 117 volts
Element Test Voltages. .
Dimensions. F
Power Requirements. .
0-250 volts
14" wide x 11" deep x 41/4" high
105-125 yolts 50/60 cycles AC
