Heathkit VF-1 Assembly And Operation Manual

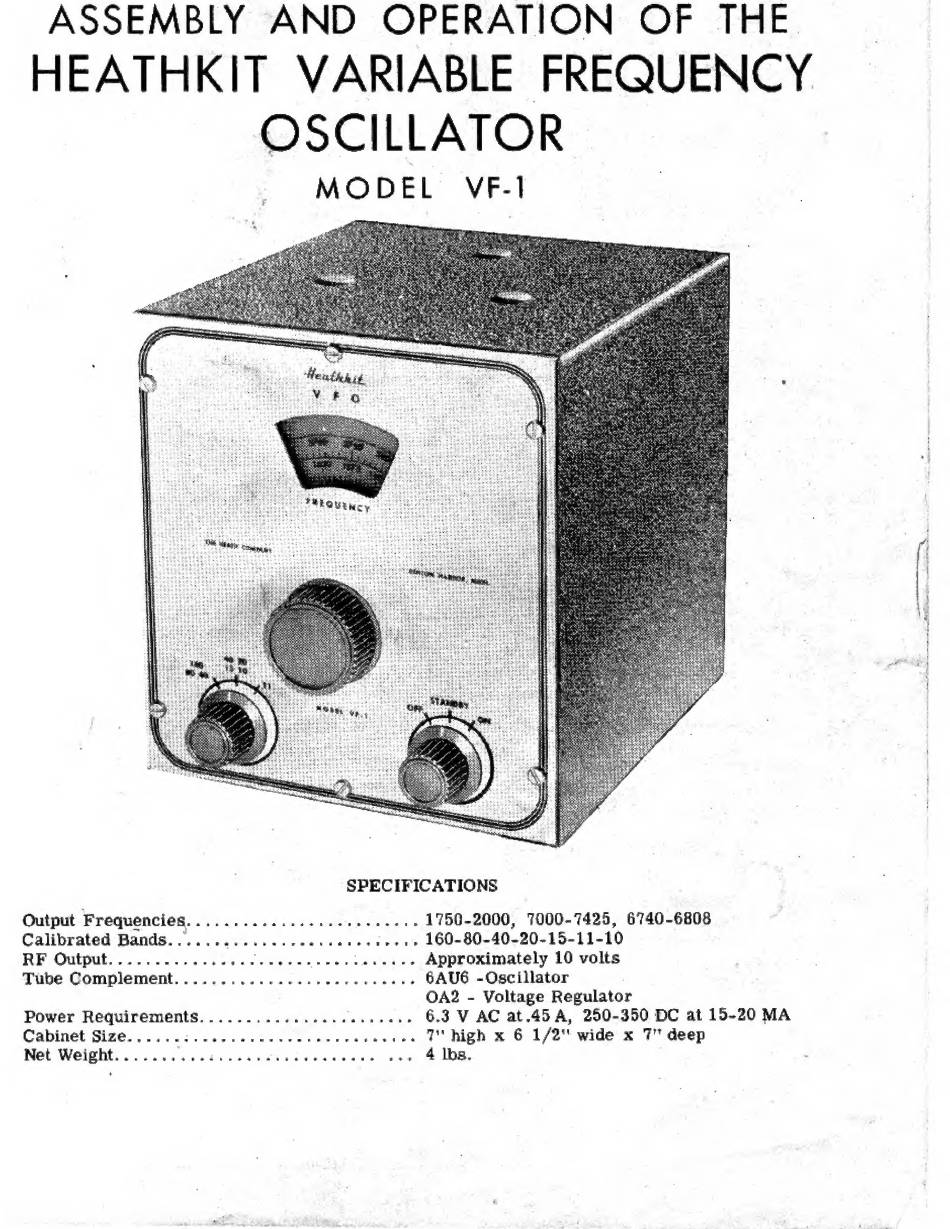

ASSEMBLY AND OPERATION OF THE
HEATHKIT VARIABLE FREQUENCY
OSCILLATOR
MODEL VF-1
SPECIFICATIONS
Output Frequencies, ..........00eeeeuee eee 1750-2000, 7000-7425, 6740-6808
Calibrated Bands............... eceaeeeeeese 160-80-40-20-15-11-10
RF Output............. acc s t r p a d i e aa yeu ee ...... Approximately 10 volts
Tube Complement............--..00. 20 eeeue 6AU6 -Oscillator
OA2Z - Voltage Regulator
Power Requirements.......... seeeveesecess 6.3 VAC at.45.A, 250-350 DC at 15-20 MA
Cabinet Size... 0.05... eee eee ... 7 high x 6 1/2" wide x 7" deep
Net Weight....... 0.04... c cece cece eens cee 4 Ibs,
