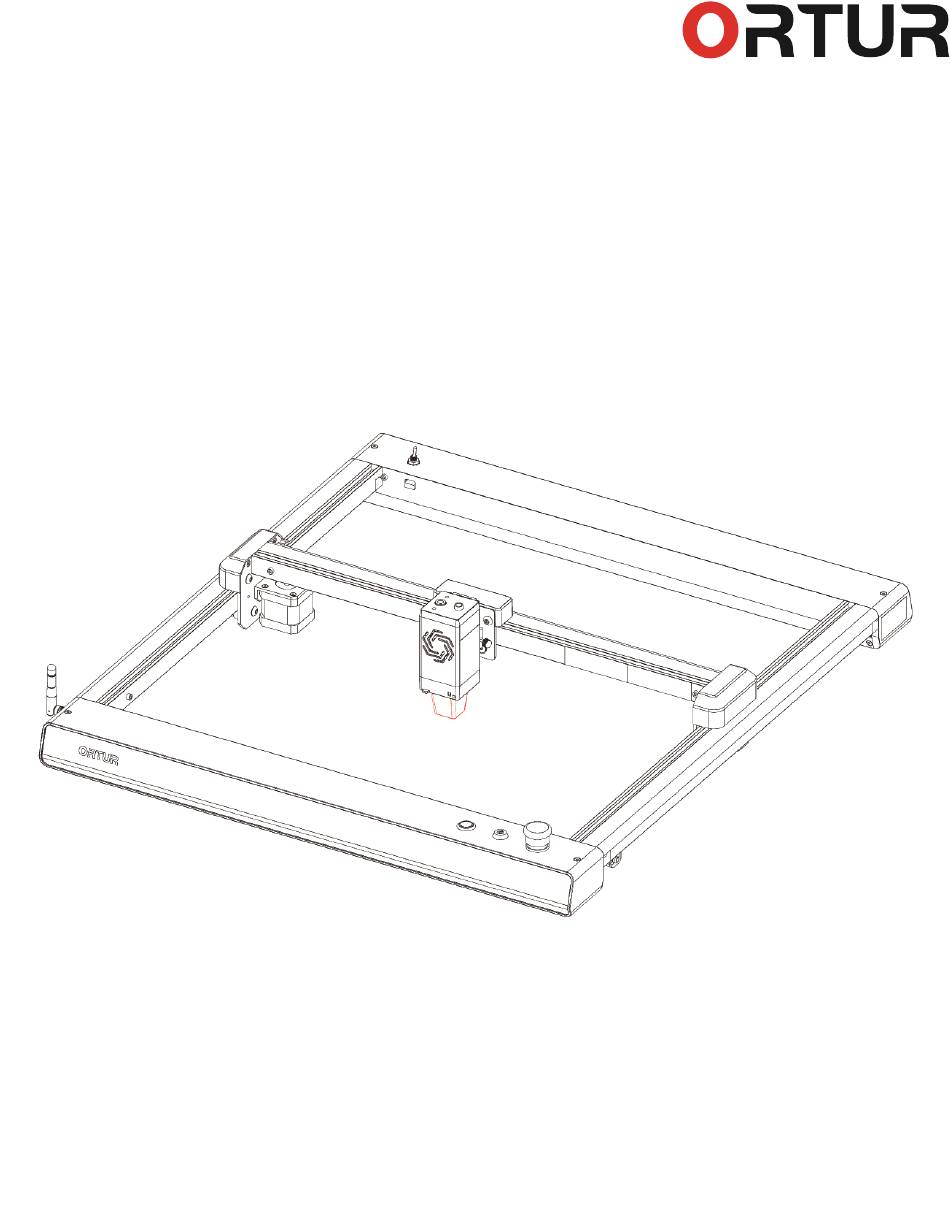

  • Page 1 Laser Master Assembly Manual...
  • Page 2 Navigation English Manual Deutsches Handbuch Manuel français Manuali in altre lingue Manuales en otros idiomas Instrukcje w innych językach Инструкции на других языках Manuais em outros idiomas ‫ىرخأ تاغلب تابيتك‬ 其他语言手册 © 2022 ORTUR...

  • Page 3: Dear Customer

    Dear Customer： Thank you for purchasing Ortur product and hope you have a good experi- ence. If you are having technical issues with our machine, we have a 24 hours team of customer support that would quickly address the problem.
  • Page 4 13. There would be a high risk of fire, when the laser irradiates the engraved object. If the laser engraver is working, it must be taken care of at all times by the skilled operator, who know how to use a fire extinguisher, so that any unexpected situations could be dealt with in time. © 2022 ORTUR...
  • Page 5 Testing Acrylic *1 Testing Woods *4 2.5mm Allen Key*1 Laser Goggle *1 Brush *1 Cable Ties *10 Testing Aluminium Flake *1 Card Reader + YRR Motor Wire *1 Power Adapter *1 TF Card *1 Machine Key *1 © 2022 ORTUR...

  • Page 6: Laser Module

    Laser Module Air Flow Regulator *1 Air Pipe *1 LU2-10A Laser Shield *1 (OD:6mm Laser Module *1 ID:4mm) Pipe Connector *1 Thumb Screw *1 Air Assist *1 © 2022 ORTUR...

  • Page 7: Assemble The Machine

    Rear Assembly *1 M4*8mm Screws *2 Slideway of Left Y-axis *1 Slideway of Right Y-axis *1 Rear Assembly *1 Slideway of Left Y-axis *1 Thread the Y-axis motor cable inside the Slideway of Left Y-axis M4*8mm Screw *1 © 2022 ORTUR...
  • Page 8 Thread the Y-axis motor cable inside the Slideway of Left Y-axis Slideway of Right Y-axis *1 M4*8mm Screw *1 © 2022 ORTUR...
  • Page 9 2.0 You need the following parts ready Front Assembly *1 Assembly of X-axis *1 M4*8mm Screws *2 Assembly of X-axis *1 Pay attention to the installation direction of the X-axis assembly © 2022 ORTUR...
  • Page 10 Front Assembly *1 M4*8mm Screw *1 The Y-axis motor wire goes out from here © 2022 ORTUR...
  • Page 11 3.0 You need the following parts ready Synchronized Idler Assembly *2 M4 Set Screws *2 Belt *2 Idler Assembly *2 After sliding in, secure with an Allen key © 2022 ORTUR...
  • Page 12 Synchronized Belt *1 The installation steps of the synchronous belt on the left and right sides are the same © 2022 ORTUR...
  • Page 13 M4 Set Screw *1 Here is the best position for tension After the timing belt is tightened, use a 3mm Allen key to lock the idler pulley assembly The installation steps are the same for the left and right sides © 2022 ORTUR...
  • Page 14 Push the X-axis assembly to the rear limit point The installation steps are the same for the left and right sides © 2022 ORTUR...
  • Page 15 4.0 You need the following parts ready M3*6mm Screws *2 2.5mm Allen Key *1 WIFI Aerial *1 WIFI Aerial *1 M3*6mm Screw *1 M3*6mm Screw *1 © 2022 ORTUR...
  • Page 16 5.0 You need the following parts ready LU2-10A Laser Module *1 Laser Shield *1 Thumbscrew *1 LU2-10A Laser Module *1 Laser Shield *1 Thumbscrew *1 © 2022 ORTUR...
  • Page 17 6.0 Connect Wire Y-axis Motor Cable / Circuit Group *1 Laser Wire *1 Laser Wire connected to L line X connected to X-axis motor © 2022 ORTUR...
  • Page 18 6Pin Laser Wire connection Laser Module Cable Ties *2 Cable Ties *2 © 2022 ORTUR...

  • Page 19: Port Description

    3. USB Port 10. Input and Output Ports 4. Main Power Button (Status Light) 11. Harness Interface 5. Key Switch 12. Y-axis Motor Interface 6. Emergency Stop Button 13. YRR Transfer Switch 7. TF-card 14. YRR Motor Wire Port © 2022 ORTUR...
  • Page 20 fix it Remove the screws, then remove the cover Use a wrench to adjust the eccentric nut to adjust the gap between the wheel and the profile (same on the other side) © 2022 ORTUR...
  • Page 21 Loosen the screw Remove the cover Use a wrench to adjust the eccentric nut to adjust the gap between the wheel and the profile © 2022 ORTUR...
