Summary of Contents for FUJIDENZO BROWNOUT BUSTER FCG-70PDF SL

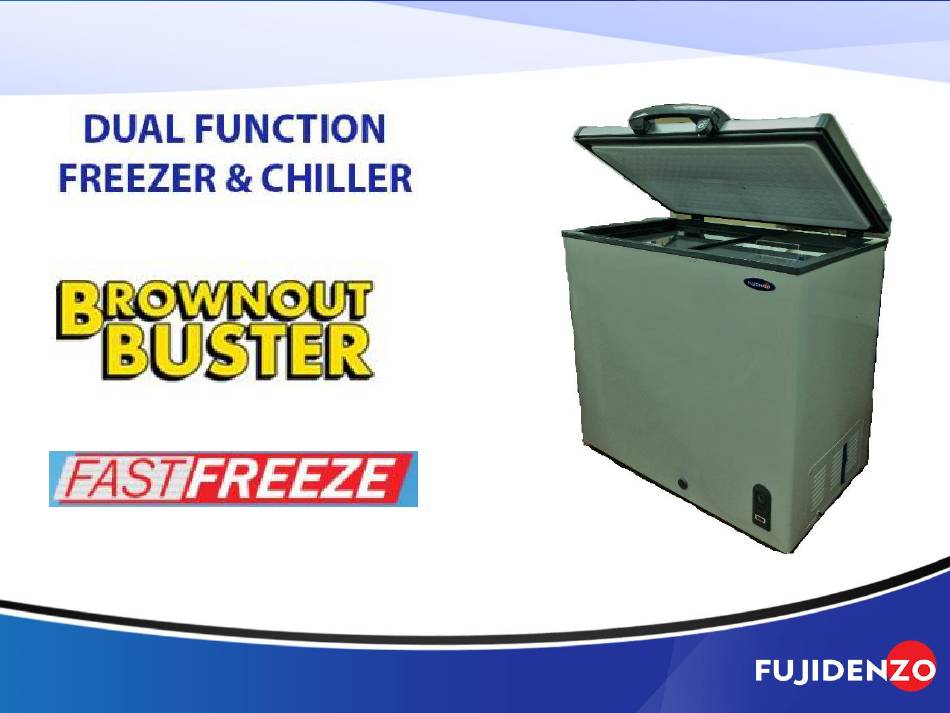

- Page 2 FCG-70PDF SL2 Solid Top Dual Function Chest Freezer Features: - 7 cu. ft. - Dual Function (Freezer / Chiller) - Fast Freeze Function - 2 big detachable cooling pads - With Lock and Key - LED-Lighted Interior - Adjustable Wire Basket - Capacity: 200L - HWD in cm: 85.25 x 86.5 x 61...
- Page 3 A special feature that allows you to use the freezer as a chiller. For quick preservation of your goods.
- Page 4 The Two cooling pads will freeze and store cold temperature Cooling pads helps maintain coldness of Freezer/Chiller even after no electricity for up to 10 hours These Cooling pads also helps save electricity cost and improve freezing performance...
- Page 5 Accessories 1. User’s Manual 2. Warranty Card...
-
Page 6: Technical Specifications
Technical Specifications Model Number FCG-70PDF SL FCG-70PDF SL2 Rated Voltage / Frequency 220-240V/60Hz 220-240V/60Hz 0.95A 1.2A Current Wattage 115W 140W+1.5W 1.28KWh/24h 0.99KWh/24h Energy Consumption Refrigerant/Amount R134a/125g R134a/150g 41kg 44kg Net Weight in kg Compressor Brand HUAGUANG ASD43K GVY57AG Compressor Model... -
Page 7: Model And Serial Number Location
Model and Serial Number Location Back Side of the box. Right Side of the box. - Page 8 At the back side of the unit.
-
Page 9: Installation Procedure
Installation Procedure 1. After delivery, allow the unit to stand for 12 hours before operation, in order to let the compressor oil settle. 2. Before using the unit for the first time clean the shelves and freezer cavity with soapy water. ONLY USE DISH WASHING SOAP. 3. -
Page 10: Control Panel
Control Panel The Function of Control Panel 1. The figure on the temperature control indicates the temperature level from high to low. It does not indicate any specific temperature. Turn the knob clockwise if you want the temperature to be colder. Turn the knob counter-clockwise to make the temperature warmer. - Page 11 Turn the dial to FREEZE if you want your items to be frozen. The temperature will be in the -30 to -9°C range. If you are trying to freez many items, you can set the dial to FAST FREEZE position so that the compressor will run continuously.
-
Page 12: Care And Maintenance
Care and Maintenance 1. Do not open the door frequently and for too long , to save energy. 2. Never leave heavy or hot stuff on the top of the freezer to avoid deforming. 3. Cut off the power before cleaning. 4. - Page 13 Initial Issues Encountered Problem Possible Cause Solution Unfreezing Temperature control is on the Adjust the temperature highest point Compressor does not Yellow light on( if there is one) Turn off the “Fast stop Freeze” switch Not Freezing Properly Temperature control is on the Adjust temperature lowes t point control...
-
Page 14: Warranty Information
Warranty Information 5 Year Warranty on Compressor...
