Summary of Contents for FUJIDENZO ISUP-260I

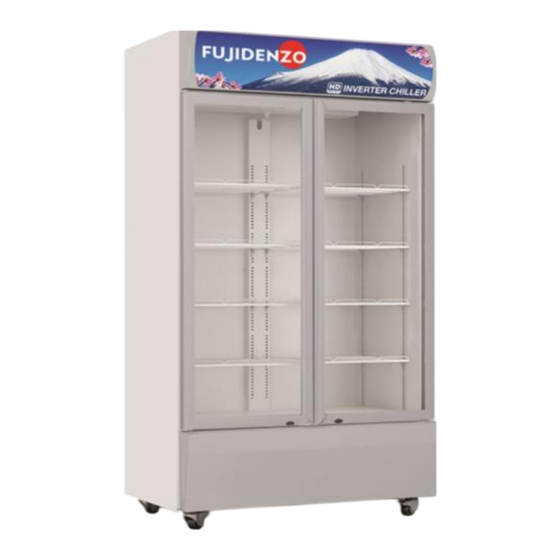

- Page 1 COMMERCIAL SHOWCASE CHILLER 64,950 ₱...
- Page 2 F e a t u r e s : Energy Efficient Inverter Compressor gives you up to Energy Consumption...
- Page 3 F e a t u r e s : 26 cu.ft No- Frost Digital Temperature Control with LCD Display Blower Fan 8 Adjustable Wire Shelves with Price Tag Shelves LED Lights Recessed Handle ...
- Page 4 A c c e s s o r i e s : USER’S OPERATING 2 Keys AND INSTRUCTION MANUAL...
- Page 5 Technical S p e c i f i c a t i o n s : MODEL NAME: ISUP-260I Capacity : 730 L Formal dimension (mm) : 1995 x 1150 x 665 m Mfd/ Assembled and Climate: PRC - Color & Inner lining: White Net weight (kg) &...
-
Page 6: Model And Serial Number Location
Model and Serial Number Location : Serial Number LOCATED INSIDE THE UNIT... -
Page 7: Installation Procedure
I n s t a l l a t i o n Procedure :... -
Page 8: Operation
USAGE and OPERATION... -
Page 9: Before Use
Usage and Operations : BEFORE USE • Remove shipping package, tape, etc and leave doors open for a while for ventilation. • The unit is cleaned before shipment. However, clean the compartment interior once after delivery. • Please insert power supply plug into the wall outlet, single-phase 230V~ •... - Page 10 “ DIGITAL TEMPERATURE CONTROLLER ” Mini-sized and integrated intelligent control, can control 1HP compressor directly. (Include 1HP) Temperature Display/ Temperature Control/ Manual, automatic defrost/Evap. Fan Control/Electric heat, hot gas defrost/Time, temp. setting to end defrost/High, low temperature alarm/Value Storing/Self Testing...
- Page 11 “ FRONT PANEL OPERATION” 1 . Set temperature (compressor stop temperature) adjustment • Press button, the set temperature is displayed. • Press button to modify and store the displayed value. Press button to exit the and display the cold room temperature. If no more button is pressed within 10 seconds, the cold room temperature will be displayed.
- Page 12 “ FRONT PANEL OPERATION” 4. Parameter setup • Press button and hold for 6 seconds to enter the parameter setup mode while E1 flashes. • Press to select parameters sequentially from E2~E6, F0~F4, P1, E1. • Press button, the value of parameter will be displayed and can be modified and stored.
- Page 13 Usage and Operation...
- Page 14 Parts and Components Access...
- Page 15 P a r t s & C o m p o n e n ts Access : Only for Upright Showcase of ISUP-260I Top lamp- chimney Temperature controller Foot wheel Glass Door Upper hinge Shelf Handle Door Support Lower hinge...
- Page 16 IUSP- 260I...
-
Page 17: Troubleshooting
T R O U B L E S H O O T I N G :... - Page 18 W A R R A N T Y I N F O R M A T I O N : 5 years Warranty on Compressor...
