FUJIDENZO SUP-142A Manual

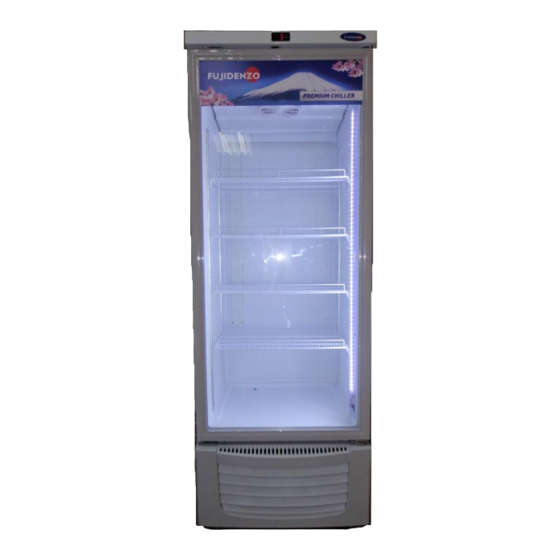

Showcase chiller
Hide thumbs Also See for SUP-142A:

Advertisement

Table of Contents

Showcase Chiller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUP-142A and is the answer not in the manual?

Questions and answers

Related Manuals for FUJIDENZO SUP-142A

Summary of Contents for FUJIDENZO SUP-142A

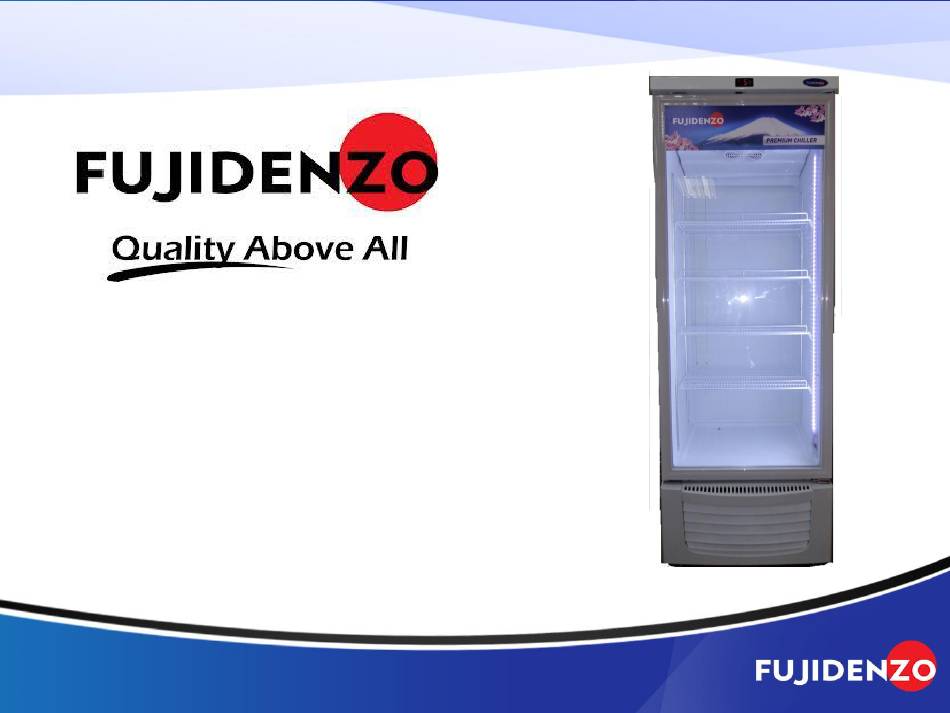

  • Page 1 Showcase Chiller...
  • Page 2 SUP-142A Showcase Chiller Features: •14 cu.ft Upright Chiller •400L Capacity •Digital Temperature Control for more accurate settings •4 sturdy wire shelves •LED lights for the best illumination •Energy Efficient Compressor Dimensions (H:W:D) – 74.5 x 28.5 x 29.7 inches...
  • Page 3 ACCESSORIES 1. User’s Manual 2. Warranty Certificate...

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS Model Number SUP-142A Rated Voltage / 220-240V/60Hz Frequency 3.6A Current Wattage 450W+18W 1.61 KWh/24h Energy Consumption Refrigerant/Amount R134a/165g 86 kg Net Weight in kg Gross Weight in kg 97 kg Compressor Brand GVY75AG Compressor Model...

  • Page 5: Model And Serial Number Location

    MODEL AND SERIAL NUMBER LOCATION On the box of the unit. Left Side...
  • Page 6 MODEL AND SERIAL NUMBER LOCATION On the box of the unit. Back Side...
  • Page 7 MODEL AND SERIAL NUMBER LOCATION On the back side of the unit.

  • Page 8: Installation Procedure

    INSTALLATION PROCEDURE Remove the bracket at the lower left part of the chiller door.
  • Page 9 INSTALLATION PROCEDURE Adjust the levelling feet for stability.

  • Page 10: Basic Parts

    BASIC PARTS 1. Upper hinge 2. Control Panel 3. Glass Door 4. Shelf 5. Lower Hinge 6. Lower Cover 7. Castor 8. Castor Screw 9. Upper Lock Pad 10.Lower Lock Pad 11.Liner 12.Evaporating Fan 13.Lamp Switch 14.Electronic Control Panel...
  • Page 11 BASIC PARTS Led switch and control panel...
  • Page 12 BASIC PARTS LED lights and Shelves...
  • Page 13 CONTROL PANEL LEGENDS AND COMMANDS 1. Press “SET” and the temperature cycle between 2°C and 6°C. 2. The user can press “SET” to select different temperature at will. NOTE: Temperature setting tolerance is ±3°C...

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE  Do not open the door frequenlty and too long to save energy.  Never eave heavy or hot objects on top panel of the showcase to avoid deforming.  Cut off the power befor cleaning.  To clean the showcase, please use soft cloth dampened in some mild detergent.
  • Page 15 INITIAL ISSUES ENCOUNTERED Problem Possible Cause Possible Solution 1. Moisture on - The environment humidity - Place the unit where there is the glass door is too high. ventilation . - Do not place it outside the store or in direct sunlight. 2.

  • Page 16: Warranty Information

    WARRANTY INFORMATION Commercial Stainless Steel Freezer 2 Years Warranty on Parts 1 Year Warranty on Service 5 Years Warranty on Compressor...
