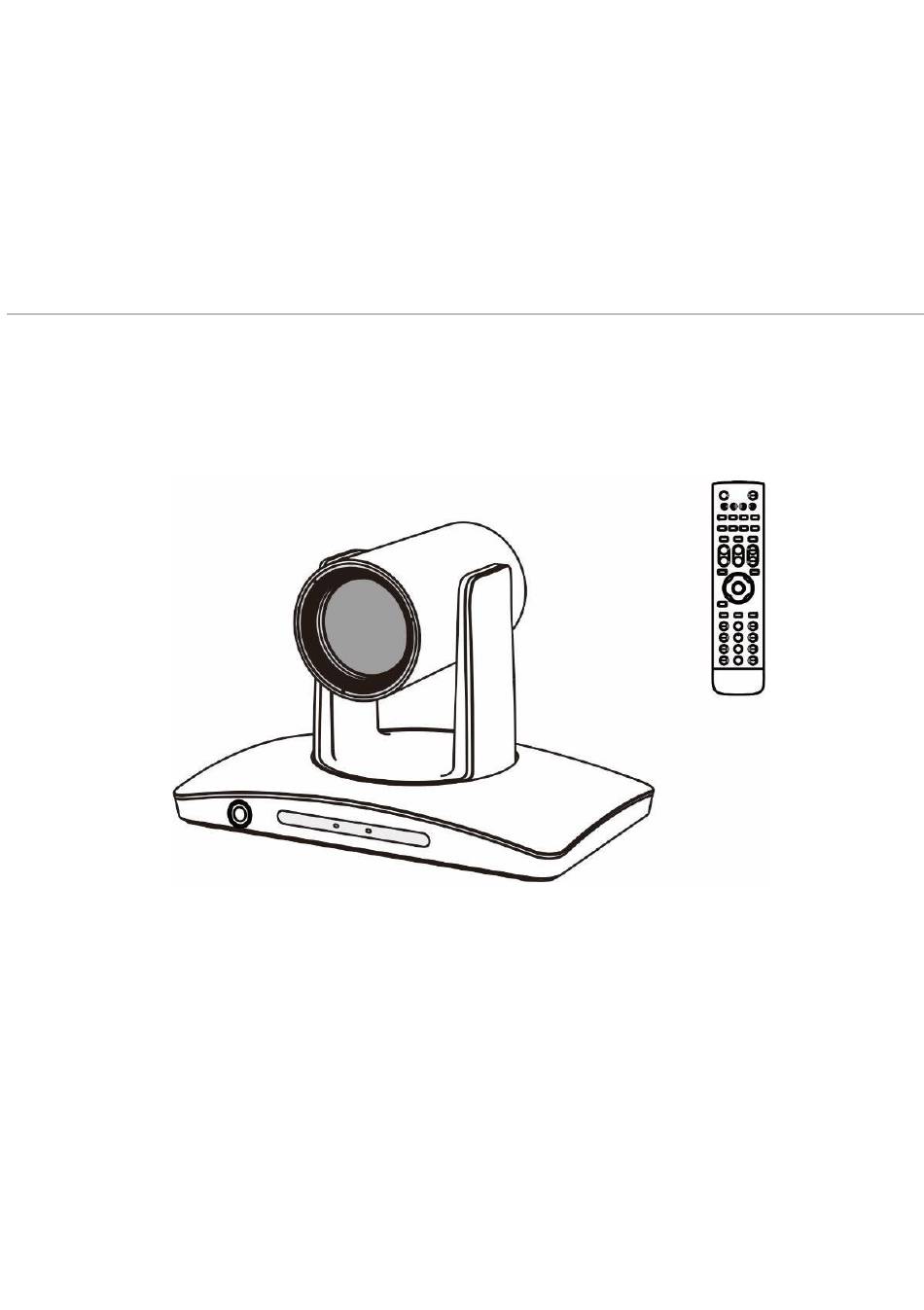

Quick Start Guide Student Tracking Camera Product Manual Edition Release 112022 PPL-PVC-PCS-FHD-ST-20X Student Tracking Camera Quick Start Guide (English Version) Please read this Manual before setting up Student Track Camera and stick to its requirements strictly for Safety reason. Suggest you save this manual for further inquiries reference.
Page 2
PeopleLink Under the law, reproducing includes translating into another language or format. As between the parties, PeopleLink, retains title to and ownership of all proprietary rights with respect to the software contained within its products. Therefore, you must treat the software like any other copyrighted material (e.g., a book or sound recording).
Page 3
SAFETY NOTICE-IMPORTANT!!! ◼ The following important notes must be followed carefully to run the camera and respective accessories in total safety. The camera and relative accessories are called video system in this section. ◼ Before installing the camera, please read this manual carefully. Please follow installation instructions indicated in this manual during installation.
Page 4
Attention If you need to extend the power cable, please extend the power cable from the part 1 on below picture (220V/110V), do not extend from part 2 on below picture (DC12V), otherwise it will cause unexpected damage to the device.
CONTENTS ABOUT THE PRODUCT .................... 1 FEATURES ........................ 2 CHARACTERSTICS & FUNCTIONS ............... 2 LIST OF PARTS& ACCESSORIES ..............3 MAIN PARTS & INTERFACES ................ 3 REMOTE CONTROLLER................. 4 INSTALLATION INSTRUCTIONS ................6 DESKTOP MOUNT INSTALLATION ............... 6 WALL MOUNT INSTALLATION ............... 6 SOFTWARE CONNECTION ..................
Page 6
MENU CONFIGURATION ................27 MENU EXPLANATION ................... 29 VIDEO ......................30 EXPOSURE ....................31 WHITE BALANCE ..................32 PAN/TILT/ZOOM .................... 32 SYSTEM ......................33 STATUS ......................33 RESTORE DEFAULTS .................. 33 ANNEX 1 TECHNICAL SPECIFICATIONS ............. 35 ANNEX 2 SIZE AND DIMENSION ................37 TROUBLE SHOOTING ....................
as EST0, and input rtmp server IP (default port is1935); ABOUT THE PRODUCT Open VLC and input the following: rtmp://IP/live/TEST0. Quick Guide Internet Explorer LTC can be accessed and controlled via the Make sure PC and LTC in the same LAN; following ways: Open Internet Explorer and Enter Internet Options for Security Setting;...
Precisely and stably track a specific target, ◼ FEATURES free from any light & moving interference; Smart AE: keeps the same exposure with ◼ The lecturer tracking camera adopts the considerable lighting variability; most advanced face and motion detection technology, it can lock and track moving Intelligent Tracking target;...
Main Parts & Interfaces Camera Front View 1 Camera Module 2 Remote Controller Indicator 3 Power Indicator 4 Communication Indicator 5 Full-view camera Rear View 6 Audio 7 TF Card Slot 8 RJ45 (Network) 9 9 DVI Video Output 10 3G-SDI 11 RS-232 / RS-485 12USB 13Power(DC12V)...
2 Camera Selection Button List Of Parts & Accessories Used to switch among 4 cameras, press 1-4 When you open the box, check all accessories number buttons to control cameras with 1-4 According to the packing list addresses respectively. For example, press button 1 to control the camera with address Camera (1) 3 Focus...
Page 11
MENU DATA button to set on / off the button to enter / exit menu. display of pan tilt angel, zoom times and 1 HOME other prompt message. Press HOME button, camera moves to initial position where both pan and tilt angle 7 Number Keys is zero.
Page 12
In None-menu status, press these four 8 Cancel buttons to pan left/right and tilt up/down. To cancel numbers input In Menu status: button to select 9 Power among menu options, to change After the camera has been connected to option / value. power source, in none-menu status, press 17 Preset Setting this button to turn on / off the camera.
Note INSTALLATION Take effective measures to avoid camera from dropping. Do not grab the camera head when carrying. INSTRUCTIONS Do not rotate the camera head with hand. cause malfunction to the camera. The camera has 2 installation types: desktop, wall (optional) installations.
SETTINGS camera is tightly fixed onto the bracket before your hands leave the camera. Software Connection Take out Disc from the camera package, install “Camera CMS” from the disc on your PC, turn on “Camera CMS” , connect and add camera to the management device list, and enter into the main interface.
PARAMETERS SETTING Parameter Setting Setting Process Preset 0 and Preset 1 are set as presets of full view image, or as presets of any zoom or position. When there is no target, camera will return to preset 0 or preset 1. Please refer to Basic Setting.
Basic Parameters Setting Track Area: The area that meeting attendees will move within. The factory default setting of the camera is 1 Blocking zones: There are 8 blocking (address), 9600bps, VISCA protocol, zones shown in green rectangle, they can be 1080p30 resolution for tracking camera and configured independently.
Page 18
Target Lost Action: Used to define the action to be performed if the camera loses the tracked object for a period of time. Power On State: The action to be performed when the camera is powered on. (Code Send) Mode: Choose to send codes via network or serial port;...
Camera CMS Application Software Guide Network Connection Connect the camera to network with an Ethernet cable, power on the camera. LAN Connection Please refer to the above diagram, user1 and user 2 are in the same router, they are considered as in the same LAN, connect the camera to the same LAN as where the PC is, and refer to below instructions as how to use the application software, then the camera can be found and connected from the online device list.
Page 20
Please refer to the above diagram, user and the camera are in different routers, they are considered as in a WAN; in this condition, application software CameraCMS can not search and find the camera automatically. User can still connect after below conditions are satisfied: (1) Set camera’s IP address as static IP address (2) Router of the LAN where camera is connected supports Port Mapping.
Page 21
Access from external network: Router 1's public IP address is 115.200.31.100, for example, go through the above steps one and two, WAN users under router 2 can access camera 1 through IP address 115.200.31.100 + port 10200. Then, in WAN, the mapping of camera 1 and (IP 115.200.31.100 + port 10200) is established.
Client Software Instruction Search And List The Camera Install and open the client software in PC, enter the main interface: If the camera and PC are in the same LAN, click “Start Search”, then searching starts and all online devices will be listed, as the picture shown below: To modify the device IP address, input the IP address, mask, gateway in the...
“Modify Network” column. To control and preview a camera, first choose the device, modify its IP address as the IP address of the same LAN, then click “Add to Client” as the picture shown below. Please check that all IP addresses are in the same LAN. Remote Configuration...
Choose the camera in the device list, click “Remote Configuration” in the column to upgrade or configure the camera. Streaming ⚫ Stream type: Set the parameters of main stream, sub stream, third stream, fourth stream. ⚫ Resolution: Set among 1080P (1920*1080), HD720P (1280*720), D1 &...
⚫ Connect with: Please choose from Static IP or dynamic IP address. ⚫ IP address: Input IP address for the camera. ⚫ Mask: Input mask address for the camera. ⚫ Gateway: Input gateway IP address. ⚫ DNS 1: Server-prior, input DNS address for the device. ⚫...
● Enable / Disable: Enable / disable transparent transmission. ● Protocol: Choose TCP or UDP protocols. ● Camera as: Choose Client or Server. ● IP: When the camera is set as client, the IP address of the transmitted camera is needed. When the camera is set as server, the IP address can be left as black.
After selecting the same model of the device to be synchronized that is currently managed and unchecked, tick any or more of the video parameters, audio parameters, and trace parameters, and when you click the sync parameters, the device that you are currently synchronizing will synchronize with the source device parameters.
Click “Upgrade” menu to enter the main interface, as the picture shown above. Click … to search and load the updating firmware, then click “Upgrade” to start upgrading. Do not power off the camera during upgrading. After upgrading is completed, camera will reboot. UP/PW ●...
⚫ Reboot: Reboot the camera. Preview Click “Main View” to get into camera control and preview part as below.
Page 31
This interface includes three main parts: Device List, Device Control, Video Preview ●Device: It displays all online cameras added to “Device Management”.
Page 32
⚫ Device Control: Get control of the selected camera (camera name in blue). ⚫ Video Preview: Double click the camera in the list, main camera stream will be displayed in the preview window; or right click the selected camera from the left column to get its main or substream video.
“ SELECT” indicates it is Menu Explanation possible to press or button to select menu options. “[OK]NEXT” indicates it is Main Menu possible to press button to Press button to enter / exit MENU enter next level menu. menu. “[OK] EXIT” indicates it is ❶...
indicates the menu has been BRIGHTNESS: 1, 2, 3, 4, 5, 6, 7, elected, press button to 8, 9, 10, 11, 12, 13, 14. get into this menu. CONTRAST: 1, 2, 3, 4, 5, 6, 7, ❸ Manual Exposure 8, 9, 10, 11, 12, 13, 14. Press button to GAMMA MODE: 0, 1, 2, 3, 4.
Page 38
Speed and Iris value are automatically according to adjusted automatically working environment; Iris value accordingly to working is adjustable manually. environment. IRIS: F14, F11, F9.6, F8, F6.8, F5.6, F4.8, F4, F3.4, F2.8, MANUAL: Manually adjust Gain, F2.4, F2, F1.6, CLOSE. Shutter Speed and Iris.
COLOR menu is used to adjust chosen from 0~255. color related values. Available SATURATION: 1, 2, 3, 4, 5, 6, 7, options: 8, 9, 10, 11, 12, 13, 14. HUE: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, <...
List Of Special Preset Commands Preset Function Turn on tracking Turn off tracking Turn on/off OSD Clear all presets(0-64) Reboot system SDI or HDMI output tracking view 1 SDI or HDMI output tracking view 2 SDI or HDMI output tracking dual screen Camera calibration...
ANNEX 1 TECHNICAL SPECIFICATIONS LENS Tracking Camera 1/2.8” CMOS, 2.14MP Image Sensor Lens f=3.9mm-46.8mm Iris F1.6-F2.8 Optical Zoom Digital Zoom Angle of view 72.5°-6.3° Focus Auto, Manual, PTZ Trigger, One Push Trigger Min. Illumination 0.5lux(color), 0.1lux(B/W) Shutter 1/1 ~ 1/10,000 sec Gain Auto/Manual Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking...
Page 43
Video Compression H.264 Audio Compresssion Network Protocol ONVIF,RTSP,HTTP, TCP,UDP,RTMP Dual Stream Pan Range -170°~+170° Tilt Range -30°~+90° Pan Speed 0.1°~120°/s Tilt Speed 0.1°~90°/s Preset Number Comm. Port RS-232/RS-485/USB3.0 Debug Interface RJ45/100M, Protocol PELCO-D,VISCA,UVC1.1 SDI Video Video Output 3G-SDI, DVI-D, USB3.0 1080P60, 1080I60, 1080P30, 1080P25, Video Format 1080P50, 1080I50, 720P60, 720P50...
TROUBLESHOOTING Problem Possible Cause Solution Power supply failure Check power supply No action or image Power adapter damaged Replace power adapter after powered on Power cable connection got loosen Check & reconnect Check & reconnect power cable Not enough power supply No self-testing after connection powered on, or with...
