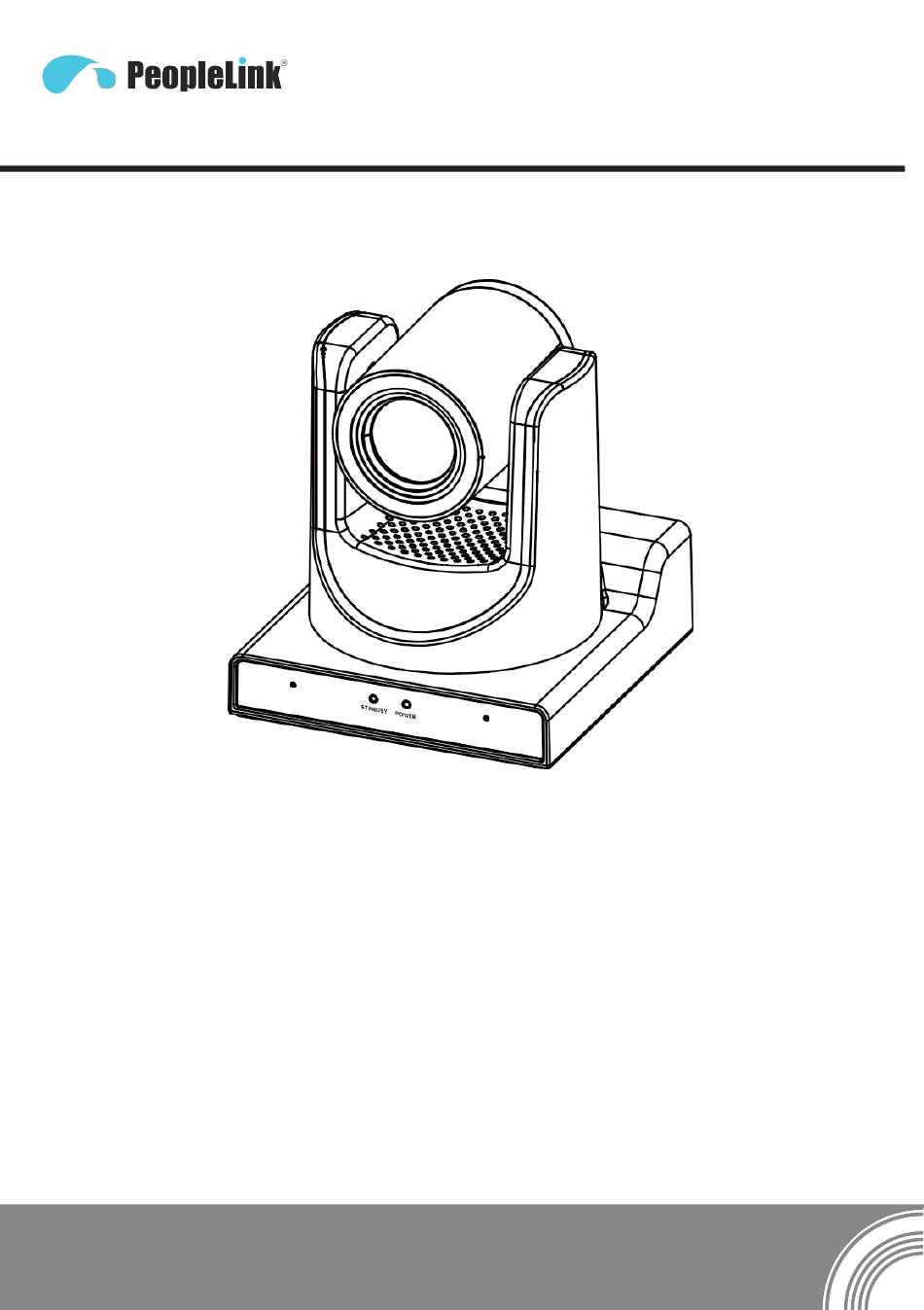

User Manual

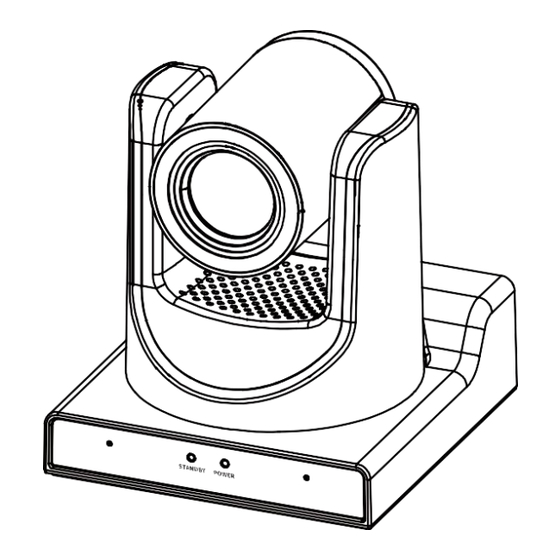

PeopleLink Elite XL Series 20x Camera
1O8OP HD Smart PTZ Camera
Product Manual | Edition V 1.0 | Release 032023 | PPU-PVC-EPS-20X-16DX
User Manual
English (V1.O)
Please read this Manual before setting up Elite XL Series 20X and stick to its
requirements strictly for Safety reason. Suggest you save this manual for further
inquiries reference.
Advertisement
Table of Contents
Related Manuals for PeopleLink Elite XL Series
Summary of Contents for PeopleLink Elite XL Series
- Page 1 Product Manual | Edition V 1.0 | Release 032023 | PPU-PVC-EPS-20X-16DX User Manual English (V1.O) Please read this Manual before setting up Elite XL Series 20X and stick to its requirements strictly for Safety reason. Suggest you save this manual for further inquiries reference.
- Page 2 Therefore, you must treat the software like any other copyrighted material (e.g., a book or sound recording). Every effort has been made to ensure that the information in this manual is accurate. PeopleLink, is not responsible for printing or clerical errors. Information in this document is subjectto change without notice...
- Page 3 Copyright PPU-PVC-EPS-20X-16DX User Manual All contents of this manual, whose copyright belongs to our corporation, cannot be cloned, copied or translated without the permission of our corporation. Copyright Notice All contents of this manual, whose copyright belongs to our corporation, cannot be cloned, copied or translated without the permission of our corporation.
-
Page 4: Table Of Contents
1080P HD Smart PTZ Camera User Manual PPU-PVC-EPS-20X-16DX User Manual Catalogue Safety Precautions........................1 Packing List..........................1 Quick Start..........................1 Video Format..........................2 About Product.......................... 2 Features................................. 2 Specifications..............................2 Interface and Switch............................ 4 Dimension..............................4 Installation..............................5 Remote Control............................6 GUI Settings..........................7 Menu................................ -
Page 5: Safety Precautions
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual If the device emits smoke, smells, or makes Safety Precautions noises, please turn off the power immediately and unplug the power cord, and contact the During the installation and use of the dealer in time. -
Page 6: Video Format
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual Connect the power adapter to the power video conferencing, live broadcasting, connector on the rear panel of the camera. broadcasting and other industries. The power indicator on the front panel of the ... - Page 7 1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual Scanning Mode Progressive Network Features 20x, f = 4.42mm ~ 88.5mm, Video Lens H.264/H.265 F1.8 ~ F2.8 Compression First Stream, Digital Zoom Video Stream Second Stream Minimum 0.5 Lux @ (F1.8, AGC ON) 1920x1080, 1280x720, Illumination First Stream...
-
Page 8: Interface And Switch
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual 5.4 Dimension General Specifications Ø70.7 Input Voltage DC 12V Input Current Max. 1.2A Operating 0°C ~ 40°C Temperature Storage -40°C ~ 60°C Temperature Power Max. 15W Consumption Dimension 146mm x 169mm x 168mm Net Weight About 1.5Kg Product specifications and parameters... -
Page 9: Installation
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual 5.5 Installation Wall-Mount Ceiling-Mount The installation diagram is for reference only. The brackets and screws are not standard. Note For packing accessories, please refer to the actual product. -
Page 10: Remote Control
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual 6. Return Key 5.6 Remote Control Press to return to the previous menu 7. ZOOM Key SLOW: Zoom In [+] or Zoom Out [-] slowly FAST: Zoom In [+] or Zoom Out [-] fast ... -
Page 11: Gui Settings
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual AE: Auto, Manual, Iris Priority, Shutter Priority, GUI Settings Bright Priority. Flicker: Off, 50Hz, 60Hz (Effective only in Auto, 6.1 Menu Iris Priority, Bright Priority mode). Press [MENU] key to display the main menu on Expcomp Mode: On, Off (Effective only in Auto, the normal screen, using arrow key to move the Iris Priority mode). -
Page 12: Image
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual R-Gain: 0~1023 (Effective only in Manual, 6.5 Display One Push mode). Move the main menu cursor to [Display], and B-Gain: 0~1023 (Effective only in Manual, press [HOME] key enter the display page, as One Push mode). -
Page 13: Setting
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual Far Focus Limit: 15M, 20M, Infinity (Effective only AF: Display the camera autofocus versionnumber. in Focus Limit to On). Date: Display the burning date of the main LR Mode: STD, REV. program version of the camera. - Page 14 1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual 2) Zoom A. Video Viewing Window Zoom In and Zoom Out buttons allow for wide or Video viewing window must be same as video narrow view of the space. resolution, the bigger the resolution is, the bigger 3) Focus the playing area is.
-
Page 15: Video Settings
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual the image. However, the configuration of the bit .3 Video Settings rate needs to be combined with the network bandwidth. When the network bandwidth is Video Settings Frac Rate narrow and the bit rate is configured larger, the video stream cannot be transmitted normally, First stream mainprofile... -
Page 16: Audio Settings
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual 1) Brightness .6 System Settings Brightness of image: 0~99 (Default value is 50). 2) Saturation Initialize Saturation of image: 0~200 (Default value is 100). Reboot Reboot 3) Contrast User Contrast of image: 0~99 (Default value is 50). UserName 4) Sharpness admin... -
Page 17: Port Settings
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual D. UDP Port RTMP(S) Settings Support UDP protocol, default port: 1259. First Stream Sony Visca rtmp://192.168.100.138/live/stream0 Support Sony Visca, default value: 52381. Second Stream 4) RTMP(S) Settings rtmp://192.168.100.138/live/stream1 Turn On/Off first stream or second stream, SRT Settings setting the MRL of RTMP. -
Page 18: Device Information
1080P HD Smart PTZ Camera PPU-PVC-EPS-20X-16DX User Manual User Manual Unable to access camera through Browser 7.9 Device Information 1) Using PC to access the network to test Information whether the network access can work Device ID properly, first of all, the network fault caused HD Camera Device Type V.F1...
