READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When using electrical equipment, basic safety precautions should always be followed including the following:
DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel
• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations if applicable.
• Do not mount near gas or electrical heaters.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel.
• For 2CI operation - ensure that both AC power and auxiliary power are not simultaneously live.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Any modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.

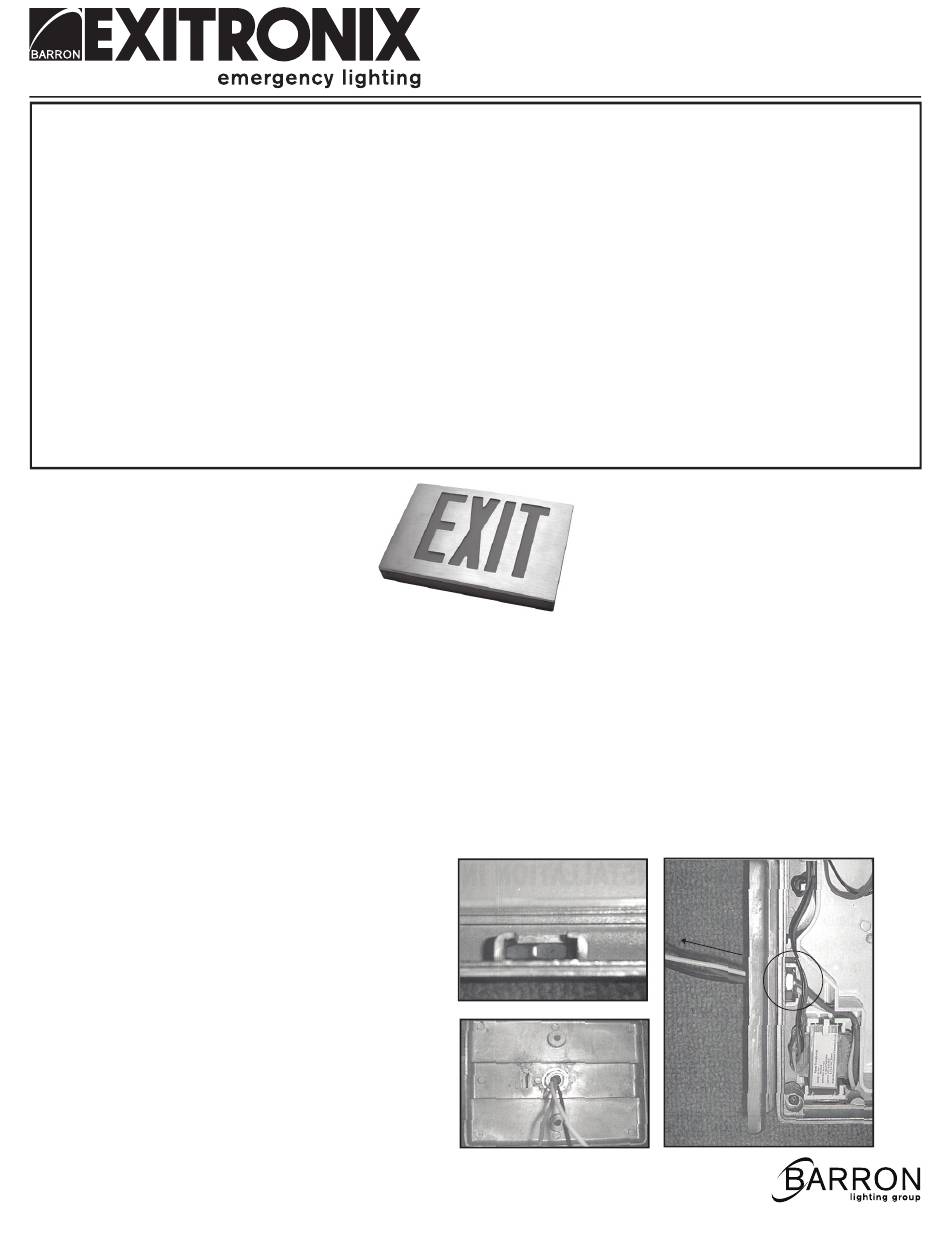

Canopy Mount (Ceiling or End)
1. Remove faceplate cover by pulling equally at the outer rim of the faceplate on two opposite sides. Then remove
the ground wire from the faceplate (Fig. F).
2. Remove the wire access hole cover on the top or the side of the sign. Place one of the nuts from the threaded
stem rod in the slot inside the housing just inside of the unit (Fig. A).
3. Secure the canopy over the wire access hole.
4. Feed the AC supply and ground wire out of the
housing through the nut & wire access hole (Fig. B).
5. Feed AC supply wires and ground wire through
the threaded stem rod and screw the stem rod
into the nut inside the unit. Screw the remaining nut
for the threaded stem onto the stem and tighten
securely to complete the mounting of the canopy to
the EXIT sign (Fig. C).
6. Make electrical connections: see Electrical
Connection sections.
10070143 REV 2 - 11/18
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Fig. A
Fig. C
1
400U SERIES
Fig. B
800.533.3948 • www.barronltg.com
Advertisement
Related Manuals for BARRON Exitronix 400U Series
Summary of Contents for BARRON Exitronix 400U Series
- Page 1 400U SERIES INSTALLATION INSTRUCTIONS IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS. When using electrical equipment, basic safety precautions should always be followed including the following: DISCONNECT AC POWER SUPPLY BEFORE SERVICING. • Installation and servicing of this equipment should be performed by qualified service personnel •...
- Page 2 400U SERIES INSTALLATION INSTRUCTIONS 7. Determine the position and orientation to mount the EXIT sign. Use the semi-round junction box mounting plate and the small #8-32 screws (supplied) and tighten securely (Fig. D and E). 8. Remove the desired chevron(s) from the EXIT face if necessary and reattach the ground wire to the faceplate (Fig.
- Page 3 400U SERIES INSTALLATION INSTRUCTIONS Wiring Diagrams Battery Backup AC Only Dual Circuit Unit Red 277VAC Red 277VAC Black 120VAC Red 277VAC Red 277VAC Black 120VAC White Common Black 120VAC Black 120VAC White Common White Common White Common 1. Introduction: After unit has been correctly installed with AC power supplied, the EXIT sign will be illuminated, and the dual color indicator will display the current unit status.
