FASTMOUNT METAL MC Series Installation Manual

METAL MC RANGE
MC-SM5 INSTALLATION GUIDE
MC-SM5
Metal Male Clip – Surface Mount
MC-SM5

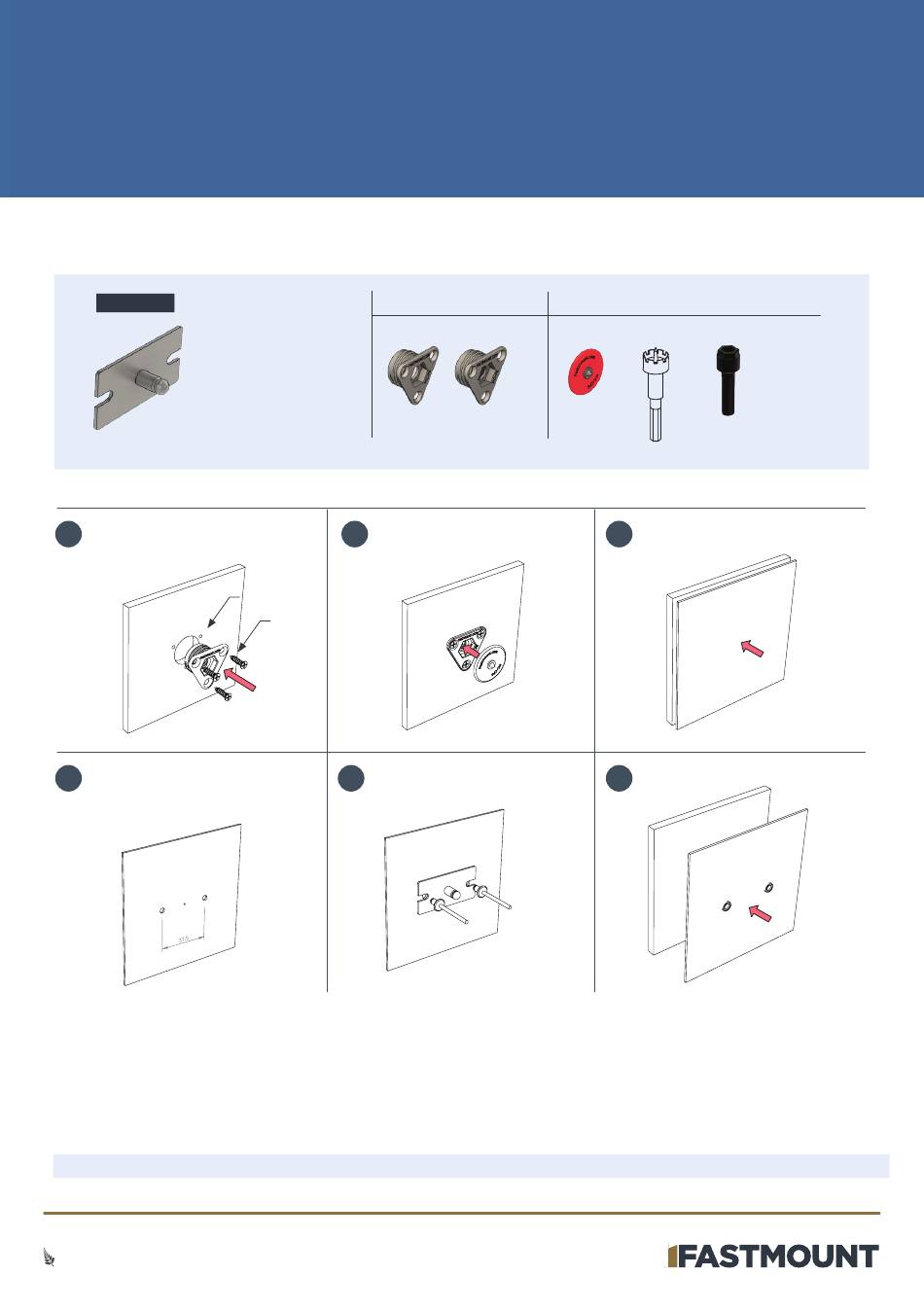

INSTALLATION STEPS
Drill hole into support frame, fit
1
MC-F5 or MC-F10 with MC-IT5 tool.
Option: screw fix with #4 CSK screws
Note: min. 0.5" deep for self-tapping into plywood or similar
Drill holes for screw or rivet fixing.
4
Holes should be a minimum
19mm away from mark
Drill hole into support frame, fit
1
MC-F5 or MC-F10 with MC-IT5 tool.
Option: screw fix with #4 CSK screws
MORE INFO: SETOUT GUIDE TD-02, 09, 12. PRODUCT SHEET MC-05
PROUDLY DESIGNED IN NEW ZEALAND
77 | FASTMOUNT TECHNICAL GUIDE 2024
USE WITH:
MC-F5
Note: Installation of wall
panels only.
MC-SM5 to MC-F5
Insert MC-CP5 into female clip
2
to mark panel location
.8ø
#4 csk
screws
Position MC-SM5 and screw
5
or rivet fix to panel
Clip MC-SM5-VHB into female
2
clip, and remove protective
backing from adhesive
ø.9
#4 csk
screws
Subject to change without notice.
Version: MC-SM5 - 07/24. Copyright © Fastmount Ltd.
INSTALL WITH:
MC-CP5
MC-F10 .8Ø drill
3
6
3
fastmount.com
MC-IT5 #4 CSK
screw
Press panel firmly in position
to mark correct MC-SM5 location
Press panel against substrate
to engage
Align panel into correct position and
press firmly against substrate to fix.
