MC-05
Maxi Metal Clip Set

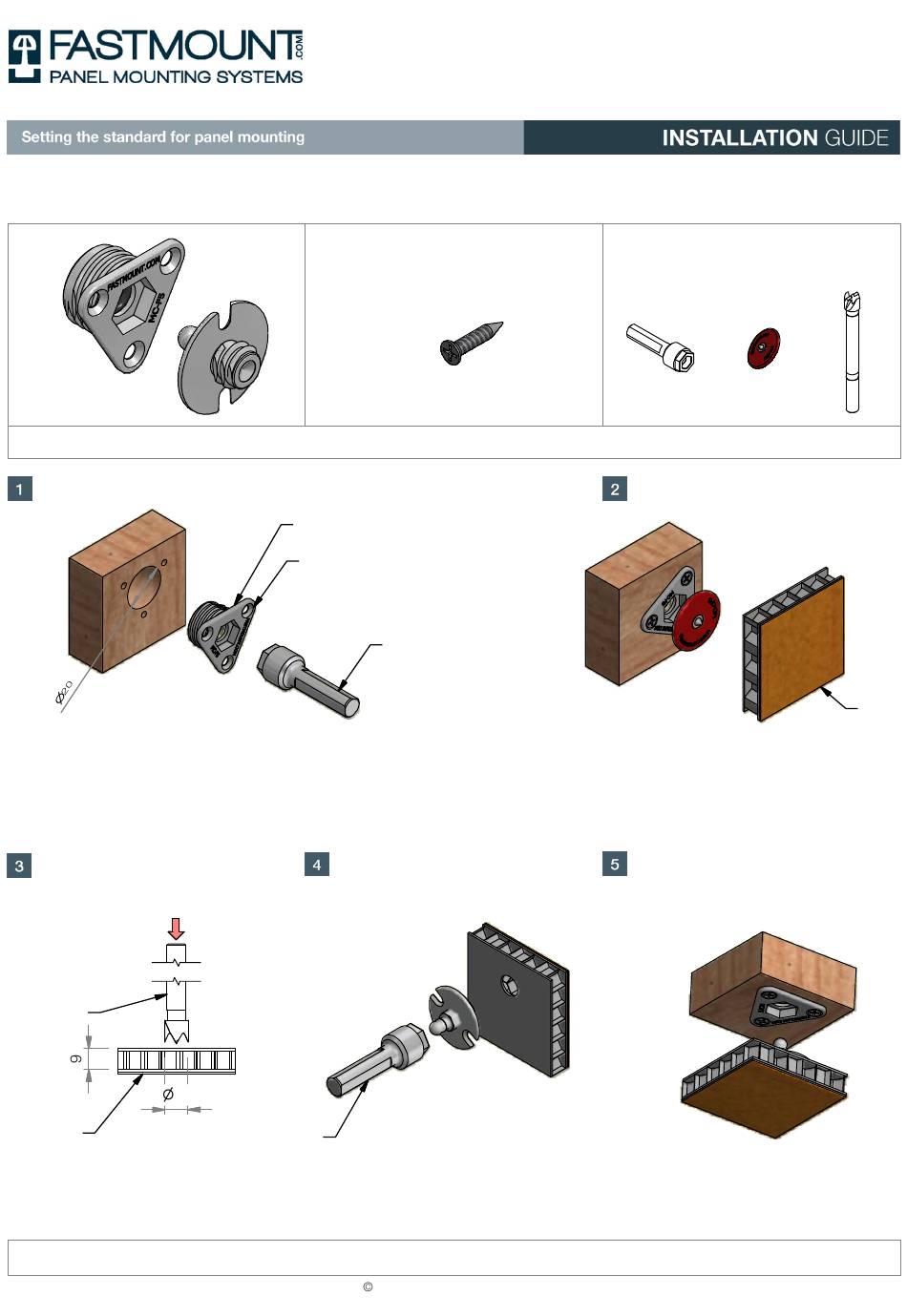

INSTALLATION STEPS
Drill hole through support frame & fit MC-F5
Min. 13mm deep for self tapping
into plywood or similiar
Drill panel on centre mark
CT-09
10
Panel
MORE INFO:
Setout Guide TD-02 Product sheet MC-05
P. +64 21 725 418 / F. +64 9 909 6034 / E. info@fastmount.com / Designed & Manufactured in New Zealand
*Specification subject to change without notice, see website for updates. Copyright
(page 1 of 2)
USE WITH:
MC-F5
optional screw fix
see page 2
MC-IT5
in battery drill
Self tapping screw fit MC-M5 into panel
MC-IT5
in battery drill
Fastmount Ltd.
#5 gauge ss csk screw
INSTALL WITH:
MC-IT5
MC-CP5
Mark panel with MC-CP5
Exploded cutaway view of installed clip set
www.fastmount.com
INSTALLATION GUIDE MC-05 / DATE 1113
CT-09
Panel
