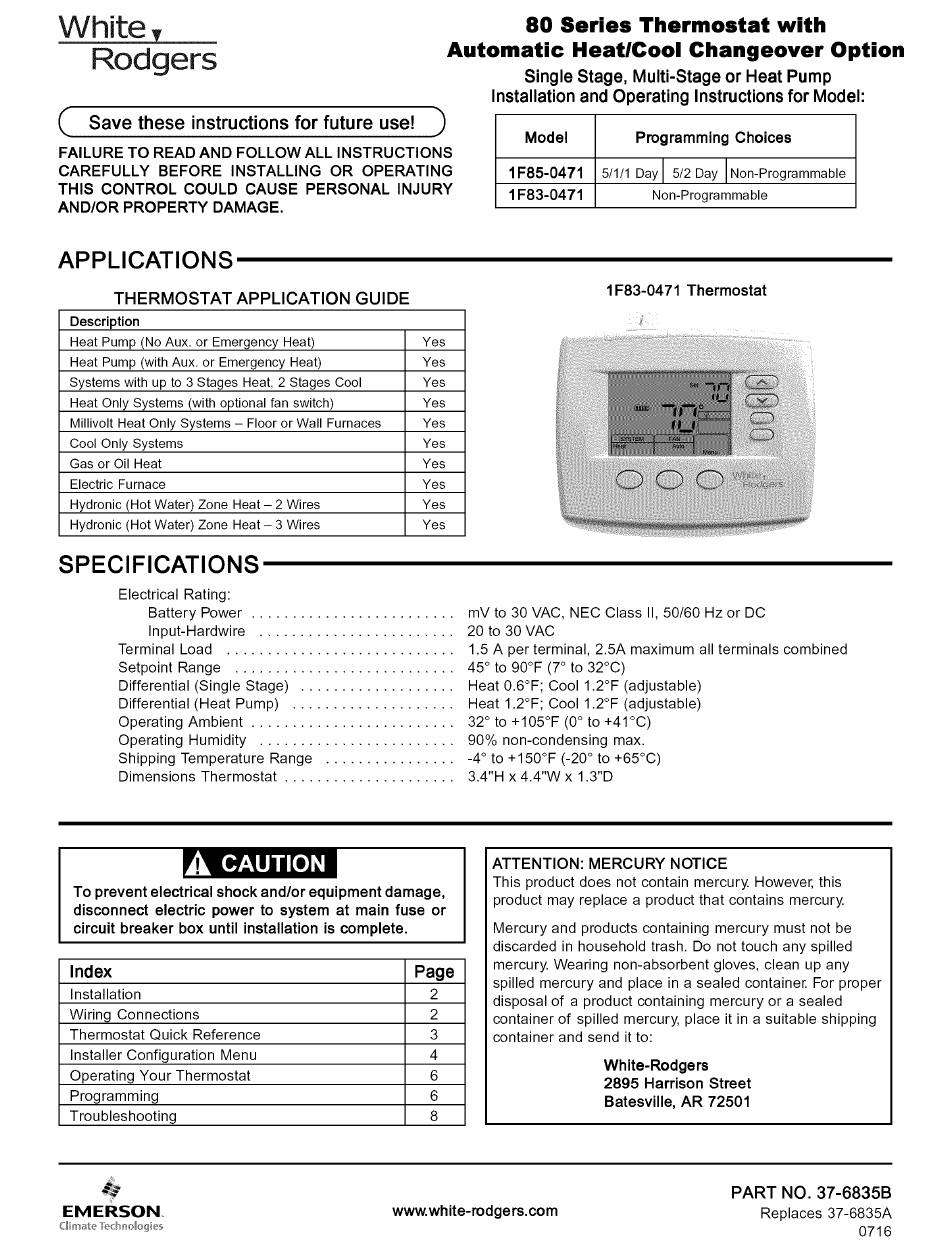

Thermostat with automatic heatlcool changeover option

Advertisement

White
Rodgers
80 Series
Thermostat
with
Automatic
HeatlCool
Changeover
Option
Single Stage, Multi-Stage or Heat Pump
Installation and Operating Instructions for Model:
Save these instructions for future use!
9
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY
BEFORE
INSTALLING
OR OPERATING
THIS CONTROL
COULD
CAUSE
PERSONAL
INJURY
AND/OR
PROPERTY
DAMAGE.
Model
1F85-0471
1F83-0471
Programming Choices
5/1/1 Day 5/2 Day Non-Programmable
Non-Programmable
APPLICATIONS
THERMOSTAT
APPLICATION
GUIDE
Description
Heat Pump (No Aux. or Emergency Heat)
Yes
Heat Pump (with Aux. or Emergency Heat)
Yes
Systems with up to 3 Stages Heat, 2 Stages Cool
Yes
Heat Only Systems (with optional fan switch)
Yes
Millivolt Heat Only Systems - Floor or Wall Furnaces
Yes
Cool Only Systems
Yes
Gas or Oil Heat
Yes
Electric Furnace
Yes
Hydronic (Hot Water) Zone Heat - 2 Wires
Yes
Hydronic (Hot Water) Zone Heat - 3 Wires
Yes
1F83-0471
Thermostat
SPECIFICATIONS
Electrical Rating:
Battery Power .........................
Input-Hardwire
........................
Terminal Load
............................
Setpoint Range
...........................
Differential (Single Stage)
...................
Differential (Heat Pump)
....................
Operating Ambient
.........................
Operating Humidity
........................
Shipping Temperature Range
................
Dimensions Thermostat
.....................
mV to 30 VAC, NEC Class II, 50/60 Hz or DC
20 to 30 VAC
1.5 A per terminal, 2.5A maximum all terminals combined
45 ° to 90°F (7 ° to 32°C)
Heat 0.6°F; Cool 1.2°F (adjustable)
Heat 1.2°F; Cool 1.2°F (adjustable)
32 ° to +105°F (0 ° to +41°C)
90% non-condensing
max.
-4 ° to +150°F (-20 ° to +65°C)
3.4"H x 4.4"W x 1.3"D
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installationis complete.
Index
Page
Installation
2
Wiring Connections
2
Thermostat
Quick Reference
3
Installer Configuration
Menu
4
Operating Your Thermostat
6
Programming
6
Troubleshooting
8
ATTENTION:
MERCURY
NOTICE
This product does not contain mercury. However, this
product may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
mercury. Wearing non-absorbent
gloves, clean up any
spilled mercury and place in a sealed container. For proper
disposal of a product containing mercury or a sealed
container of spilled mercury, place it in a suitable shipping
container and send it to:
White-Rodgers
2895 Harrison Street
Batesville, AR 72501
EMERSON,
CIh _ate _%chHolo@e_
www.white-rodgers.com
PART
NO. 37-6835B
Replaces 37-6835A
0716
