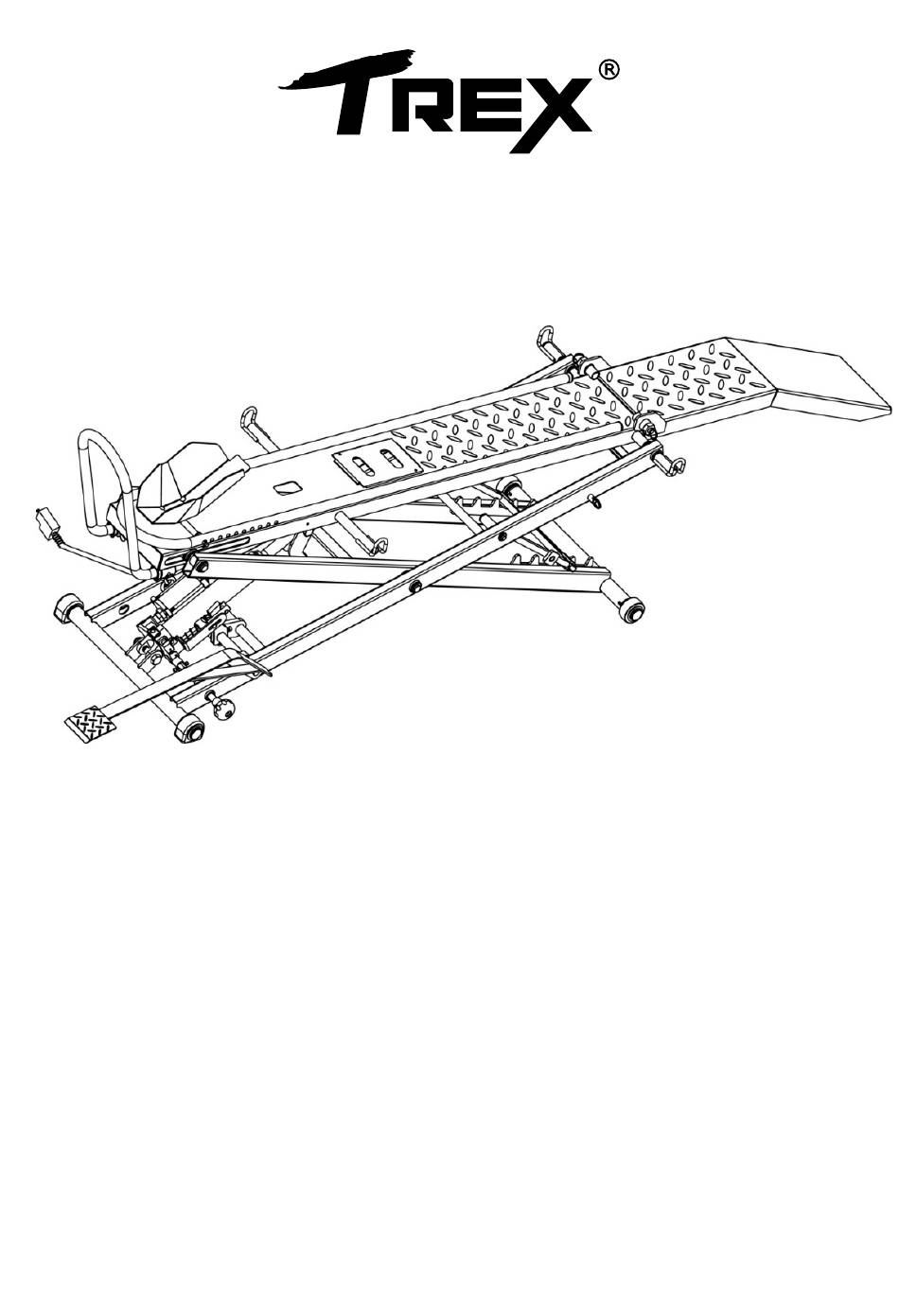

- Page 1 Compact Air/Hydraulic Motorcycle Lift User Manual [Revision 1.0 November 2015] RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Compact Air/Hydraulic Motorcycle Lift Table of Contents Safety ......................1 Controls and Features Identification............2 Assembly Instructions .................. 4 Maintenance and Storage ................5 Troubleshooting..................... 6... -
Page 3: Safety
Compact Air/Hydraulic Motorcycle Lift Safety READ and UNDERSTAND this manual completely before using the 453kg motorcycle lift. Warnings • Keep work area clean. Cluttered areas invite injuries. • Observe work area conditions. Do not work in damp or wet locations. Don't expose to rain. -
Page 4: Safety Precautions
Compact Air/Hydraulic Motorcycle Lift Safety Precautions • NEVER ride bike up onto lift. • DO NOT raise lift with bike untied. • DO NOT hold onto lift while raising and lowering. • DO NOT raise or lower lift using your own strength. •... - Page 5 Compact Air/Hydraulic Motorcycle Lift Package Contents Expanded Drawing...
-
Page 6: Assembly Instructions
Compact Air/Hydraulic Motorcycle Lift Assembly Instructions Step 1: Attach Front Wheel Loop and Front Wheel Chock Insert front wheel loop (#36) into the hole of platform (#47) using hitch pin (#34) and spring pin (#35). Then tighten with lock washer Ø8 (#45) and wing nut M8x10 (#46). -
Page 7: Maintenance And Storage
Compact Air/Hydraulic Motorcycle Lift Step 3: Remove Rectangular Plate Remove rectangular plate (#44) from platform (#47) in order to collect oil. Maintenance and Storage Maintenance Important: Use only a good grade hydraulic jack oil. Avoid mixing different types of fluid and never use brake fluid, transmission fluid or motor oil. -
Page 8: Troubleshooting
Compact Air/Hydraulic Motorcycle Lift In the horizontal position, the lift stands on four feet. Two have rollers and two do not. The lift is designed to stand up on the roller feet at the bottom of the scissor assembly. Rotate the lift into a standing position by lifting the non-roller feet (DO NOT use the tie-down rings for lifting). - Page 9 ©2018 Trex. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission...
