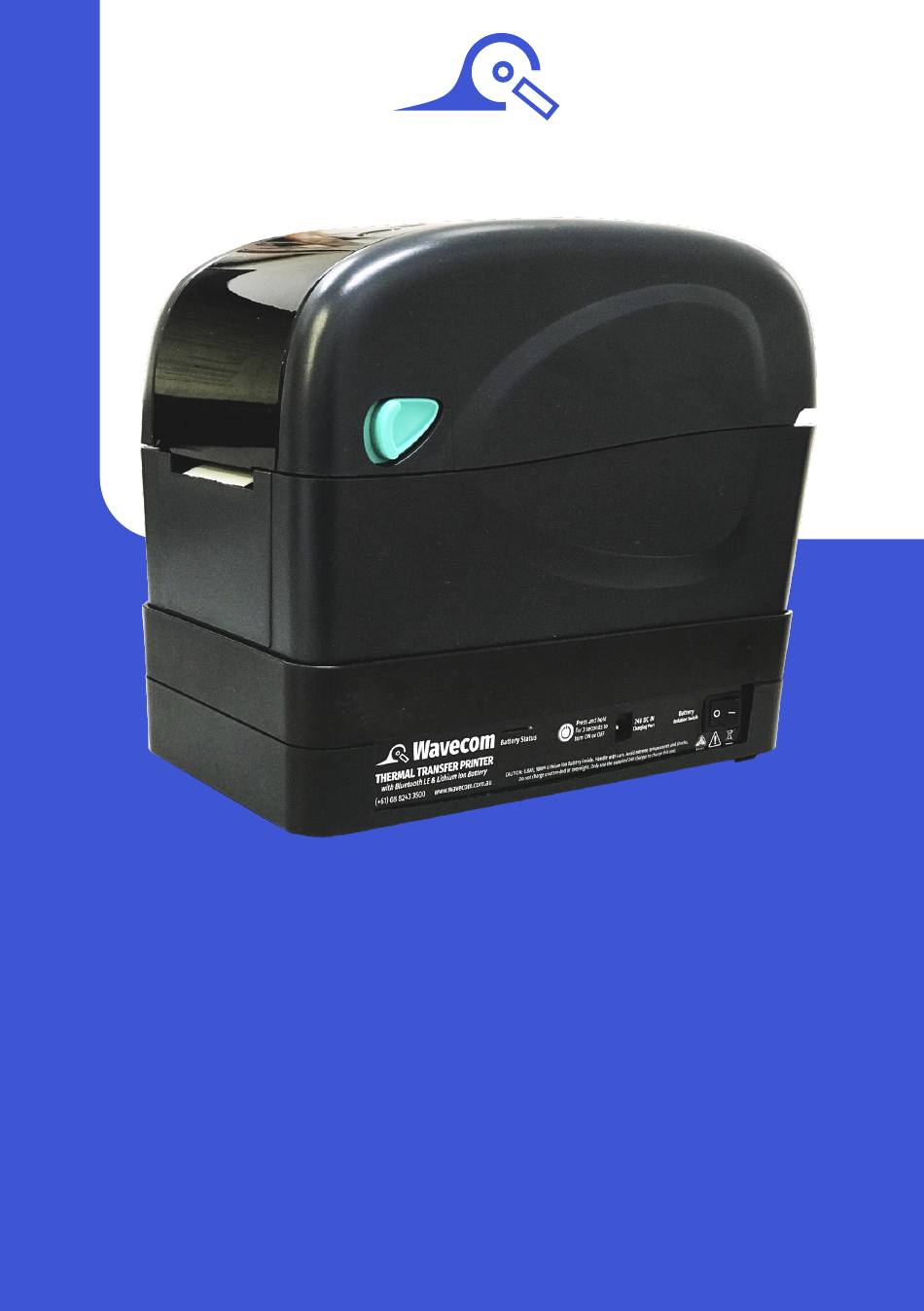

- Page 1 Wavecom Wavecom TT040-50BB Bluetooth Ready Battery Powered Printer User Manual...
-
Page 2: Operating The Printer
TT040-50BB Printer User Manual Wavecom Wavecom Thermal Transfer Printer The TT040-50-BB printer is powered by a Lithium Ion Battery and features Bluetooth connectivity. Important: Do not turn off the rear power switch on the TT040-50-BB. Always use the Power Button on the side of the printer. - Page 3 TT040-50BB Printer User Manual Wavecom Printer Diagrams 1. LED Indicator 2. Media view window 3. Feed Button 4. Label Exit Chute 5. Top Cover Release Lever 6. SD Card Slot 7. RS-232C Interface 8. USB Interface 9. Power Socket 10. Power Switch 11.
-
Page 4: Charging The Printer
Ensure the isolation switch is turned on once the charging cable is plugged in, otherwise the battery will not charge. The TT040-50BB battery will take approximately seven hours to fully charge. Do not leave the TT040-50BB unattended while charging. Turn the battery isolation switch... - Page 5 TT040-50BB Printer User Manual Wavecom Loading Tags Loading media into the TT-040-50 Printer is quick and easy. To begin, open the printer top cover by pulling the tabs located on each side towards the front of the printer, and then lift the top cover to the maximum open angle.
-
Page 6: Loading Ribbons
TT040-50BB Printer User Manual Wavecom Loading Ribbons To begin, open the printer top cover by pulling the tabs located on each side towards the front of the printer, and then lift the top cover to the maximum open angle. You will also need to remove the old ribbon (which will be spooled under the top cover shown in step 1) before loading a new ribbon. - Page 7 TT040-50BB Printer User Manual Wavecom 5. Gently pull the ribbon out, up and over the print head, around to the empty core. 6. Attach the ribbon to the empty roll using a 7. Use the ribbon rewind gear to tighten the...
-
Page 8: Printer Functions
TT040-50BB Printer User Manual Wavecom Printer Functions LED and Button Functions This printer has one button and one three-colour LED indicator. By indicating the LED with different colour and pressing the button, printer can feed labels, pause the printing job, select and calibrate the media sensor, print printer self-test report, reset printer to defaults (initialization). - Page 9 TT040-50BB Printer User Manual Wavecom Default Printer Parameters Parameter Default setting Parameter Default setting 76.2 mm/sec (3 ips) Speed Tear Mode (300DPI) Density Peel off Mode Sensor Type Cutter Mode Gap sensor 2” (50.8 mm) x 2” (50.8 9600 bps, none parity, 8...
-
Page 10: Power On Utilities
TT040-50BB Printer User Manual Wavecom Power on Utilities There are six power-on utilities to set up and test printer hardware. To access the power on utilities: Turn off the power switch. Hold the Feed button then turn on the power switch. -
Page 11: Troubleshooting
TT040-50BB Printer User Manual Wavecom Troubleshooting The following guide lists the most common problems that may be encountered when operating this bar code printer. If the printer still does not function after all suggested solutions have been invoked, please contact the Customer Service Department of your purchased reseller or distributor for assistance. - Page 12 TT040-50BB Printer User Manual Wavecom Print Problems Problem Possible Cause Troubleshoot Procedure Check if interface cable is connected to Reconnect cable to interface. the interface connector. The serial port cable pin configuration is Please replace the cable with pin to pin not pin to pin connected.
-
Page 13: Maintenance
TT040-50BB Printer User Manual Wavecom Maintenance This section explains the methods to clean and maintain your printer. Do not touch printer head by hand. If you touch it accidentally, please use 100% Ethanol to clean it. DO NOT use medical alcohol, which may damage the printer head. - Page 14 WCM-UV-TAG-W Wavecom Printing Ribbon In support of the Wavecom Tags we offer two grades of ribbons for printing electrical test tags. Our standard ribbon (WCM-Ribbon) is recommended for locations where the printed tag is not exposed to harsh outdoor conditions, such as offices and factories.
- Page 15 Clear Laminated Overlays (1000 per Roll) Part no: WCM-TAG-ALL-Clear-LAM Disclaimer – E&OE All specifications may be subject to be change by Wavecom Pty. Ltd. without prior notice. Updated Specifications & Model changes may be found on the Wavecom website: - www.wavecom.com.au...
- Page 16 TT040-50BB Printer User Manual Wavecom Purchase Information Date of Purchase Sold By Wavecom Instruments Pty. Ltd. www.wavecom.com.au 257 Grange Road, Findon, South Australia, Australia 5023 service@wavecom.com.au (+61) 08 8243 3500 www.winpats.app (+64) 0800 164 888...
