Summary of Contents for Premier PRO-07S

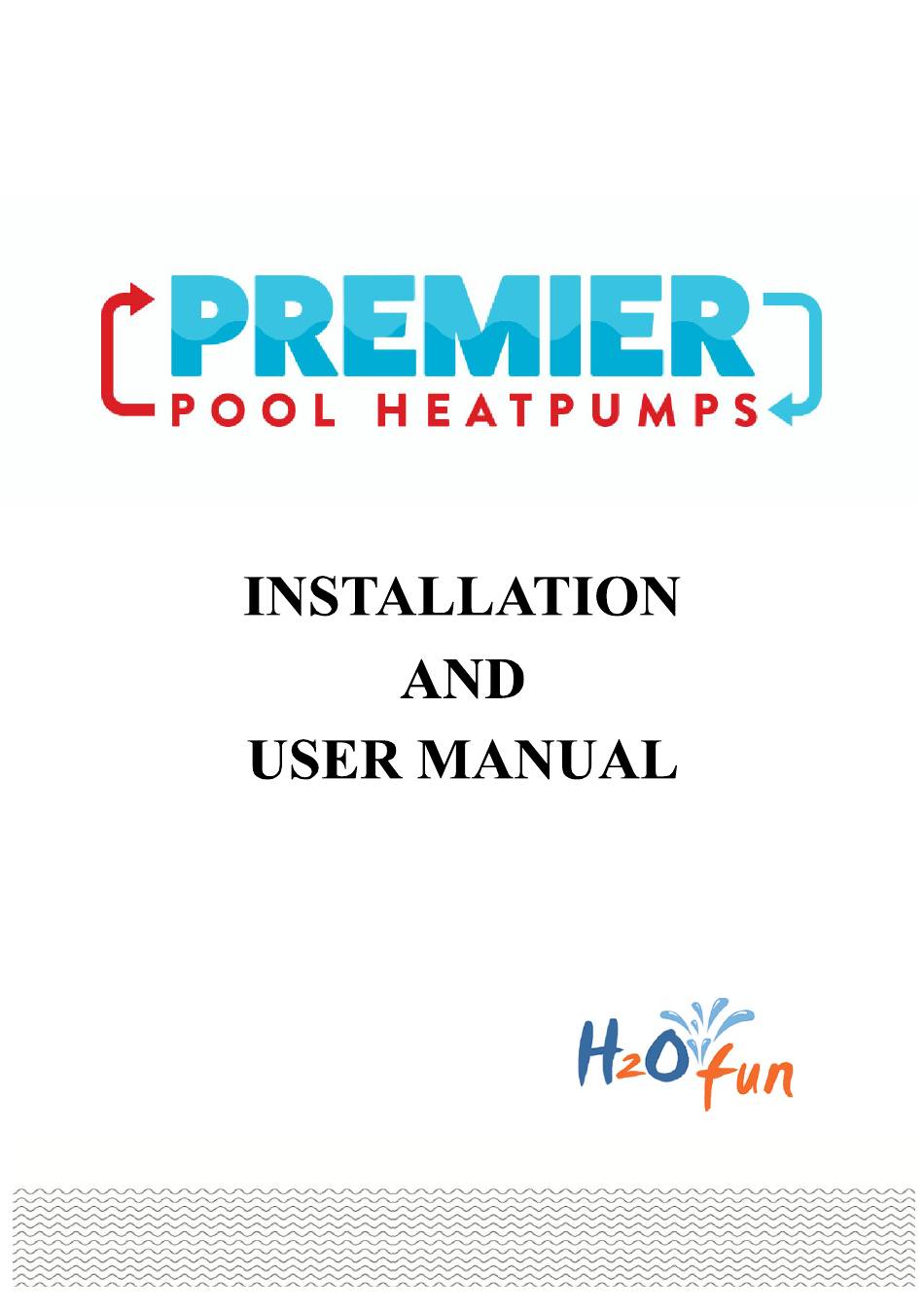

  • Page 1 INVERTER SWIMMING POOL HEAT PUMP...
  • Page 2: Table Of Contents

    Contents Application ....................3 Features ....................3 III. General information ................4 Technical Parameters ................5 Dimensions ..................... 6 Installation instructions ................. 7 VII. Operation instructions ................. 11 VIII. Testing ....................14 Precautions ................... 14 Maintenance ..................16 Trouble shooting for common faults ..........17 XII.
  • Page 3 Warning: Please read the following notes before installation, use and maintenance. Installation, removal and maintenance must be carried out by professional personnel in accordance with the instructions. 1. Use The heat pump must be installed or removed by professionals and should NOT be dismantled without permission.
  • Page 4 Vacuum completely before welding, field welding is not allowed, welding can only be performed by professional personnel in a professional maintenance center. Installation must be stopped if there is gas leakage, and the unit must be returned to a professional maintenance center. 3.
  • Page 5: Application

    Thank your choosing our product. Please read this instruction manual carefully and operate strictly in accordance with the user manual. Failure to do so may cause damage to the heat pump or may cause personal injury. I. Application 1- Our series of INVERTER heat pumps are designed to efficiently and economically provide pool heating to comfortable temperature levels.
  • Page 6: General Information

    III. General information 1. Contents: After unpacking, please check that you have all the following components. 2. Operating conditions and range: Items Range Operating range Air temp 0℃~43℃ 18℃~40℃ Temp. setting heating The heat pump will have optimum performance in the operational range. Air 15℃~25℃. 3.
  • Page 7: Technical Parameters

    IV. Technical Parameters Model PRO-07S PRO-09S PRO-13S PRO-17S PRO-21S PRO-24S Optimal pool volume (m 15~30 20~35 30~50 35~65 45~80 55~90 Operating air temperature (℃) 0~43 Performance Condition: Water 26°C, Humidity 80% 12.5 20.0 24.0 Heating capacity (kW) 16.0 Rated input power 0.29~1.04...
  • Page 8: Dimensions

    V. Dimensions UNIT=MM PRO-07S PRO-09S PRO-13S PRO-17S PRO-21S PRO-24S ※ Above data is subject to modification without notice. Note: The picture above is the specification diagram of the pool heater, it is for the technician’s installation and layout reference only. The product is subject to...
  • Page 9: Installation Instructions

    VI. Installation instructions 1. Water pipe connections (Notice:The drawing is just for demonstration, and layout of the pipes is only for reference.) 2. Connecting the power supply For power supply: 230V 50Hz Distribution Box Swimming Pool Heat Pump Wiring Board (Customer prepare) Power Cord Power Supply...
  • Page 10: Installation

    3. Electric Wiring Diagram Options for protecting devices and cable specification MODEL PRO-07S PRO-09S PRO-13S PRO-17S PRO-21S PRO-24S Rated Current A 15.0 20.5 23.5 25.0 Breaker Rated Residual Action Current mA Fuse 15.0 20.5 23.5 25.0 Power Cord 3×1.5 3×1.5 3×2.5...
  • Page 11 B. Installation instructions 1) Location and size The heat pump should be installed in a place with good ventilation * MINIMUM DISTANCE Filter Water switch Water processor 2) If a frame or bracket is used the unit must be fixed using bolts (M10) to concrete foundation or brackets.
  • Page 12 4) The heat pump requires a water pump (Supplied by the user). For the recommended pump specification-flux please refer to Technical Parameter section. The maximum lift is 10m. 5) When the heat pump is running, there will be condensation water discharged from the bottom of the unit, this is normal and a method of discharge may need to be considered.
  • Page 13: Operation Instructions

    VII. Operating instructions Controller keys and layout SYMBOL DESIGNATION OPERATION Power ON/OFF Press to power on or off the heat pump Up/ Down Press to set desired water temperature Press to select Silence mode ON/OFF Press to select Smart/Silence mode Mode Smart mode:100%-20% capacity Silence mode:80%-20% capacity...
  • Page 14 2.2.1 Display Status and representation Defrost Mode Heating Mode Timer ON/OFF  2.2.2. Time setting Press for 5 seconds to enter time setting. 88:88 is flashing on the display  Press to adjust the time (fast adjusting by continuous pressing). ...
  • Page 15 the time to cancel the relevant Timer setting. Exit automatically if no operation for 30 seconds in the Timer ON/OFF mode.  2.2.4. Silence mode The Smart mode is the default and will be activated when the machine is tuned ...
  • Page 16: Testing

    VIII. Testing 1. Inspection before use Check that the installation of the heat pump and the water pipe connections are in accordance with the pipe connection drawing. Check the electric wiring is compliant with the electrical wiring diagram and local regulations. Check the main machine power switch.
  • Page 17 the efficiency of the heater will be reduced, or it may fail. Do not put hands or foreign objects into the fan assembly of the swimming pool heater, and don’t remove the screen of the fan at any time. D. If there are abnormal conditions such as noise, smell, smoke or electrical issues, switch off the machine immediately and contact the local supplier.
  • Page 18: Maintenance

    X. Maintenance Caution: Danger of electric shock “Cut off” power supply of the heater before cleaning, examination and repairing A. In the winter season, when you don’t intend to swim: Turn off the power supply to prevent any machine damage Drain water clear of the machine.
  • Page 19: Trouble Shooting For Common Faults

    XI. Trouble shooting for common faults FAILURE REASON SOLUTION No power Wait until the power recovers Heat pump Power switch is off Switch on the power doesn’t run Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker evaporator blocked Remove the obstacles Fan running but...
  • Page 20: Failure Codes

    Failure codes DISPLAY NOT FAILURE DESCRIPTION No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder DISPLAY FAILURE DESCRIPTION High pressure protection Low pressure protection 3 phase sequence protection (three phase only) Water outlet temp too high or too low protection...
  • Page 21: Appendix 1: Heating Priority (Optional)

    XII. Appendix 1: Heating priority (Optional)
  • Page 22: Appendix 2: Heating Priority (Optional)

    XIII. Appendix 2: Heating priority (Optional)
  • Page 23 Note: The installer should connect A parallel with B (as above picture). To start the water pump, condition A or B is connected. To stop the water pump, both A and B should be disconnected. PREMIER HEAT PUMPS Ltd Version 0721R3201...
  • Page 25 Version: D00INr32...
