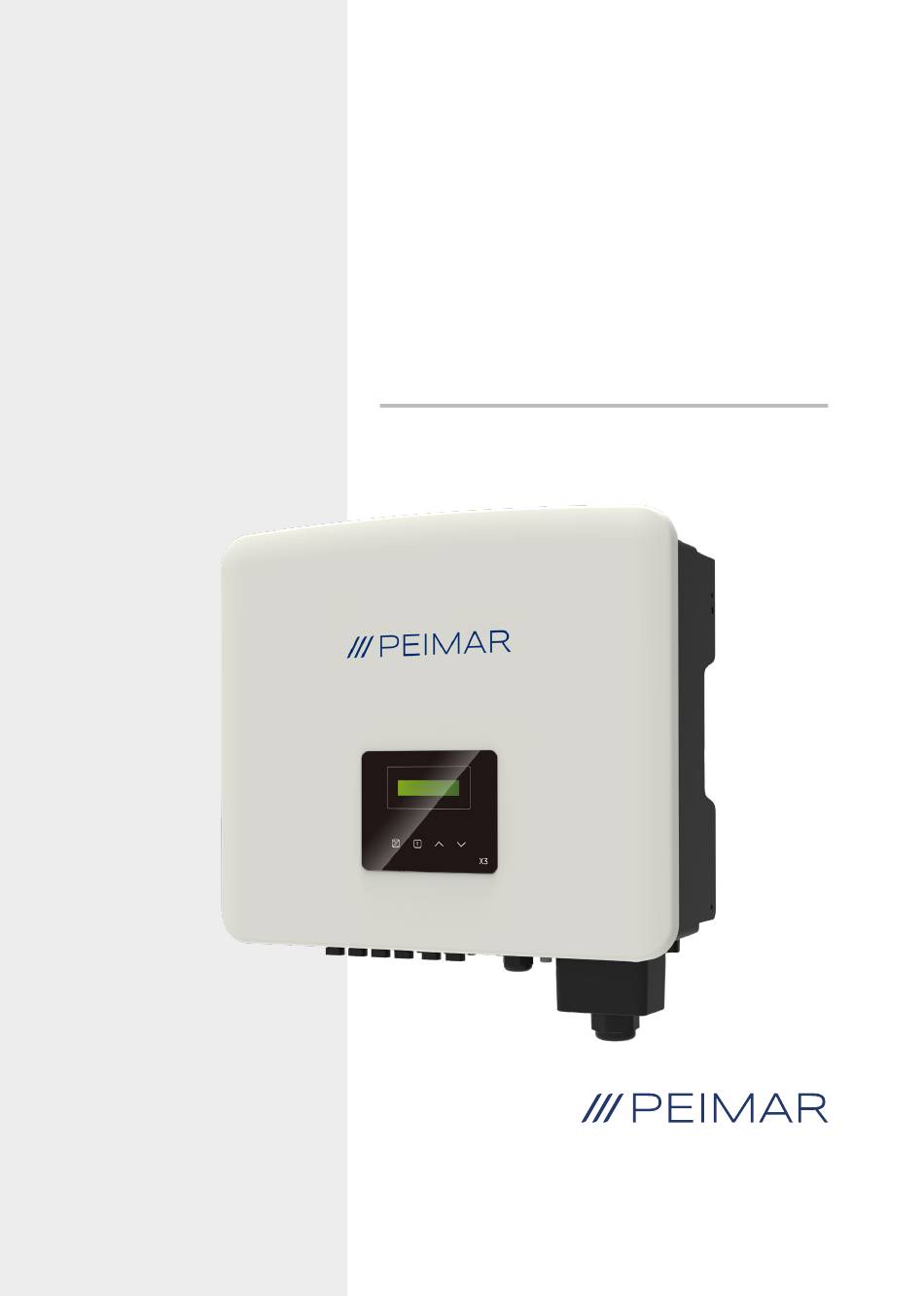

- Page 1 PSI-X3P15000-TPM PSI-X3P20000-TPM PSI-X3P30000-TPM THREE-PHASE ON GRID INVERTER User Manual...
- Page 2 It is specified that the technical data, information and representations reported in this document maintain a purely indicative value. Peimar reserves the right to modify the data, drawings and information contained in this document at any time and without notice.
-
Page 4: Table Of Contents
Introduction ..................6 Security measures ..............6 1.1. Security tips ....................6 1.2. Legend of safety symbols ................6 1.3. Safety instructions ..................7 1.4. Key to symbols on the label ..............10 Product information ..............12 2.1. Field of application .................12 2.2. Product model specifications ..............12 2.3. - Page 5 Earthing ..................37 Parallel conn. of multiple PSI-X3P-TPM series inverters ..38 7.1. Electrical communication and display setup ...........38 7.2. Connecting several inverters in parallel ..........40 Inverter start ................41 Setting and display interface ...........42 10. Block diagram of the inverter screens ........43 11.
-
Page 6: Introduction
Introduction This user manual defines detailed instructions and procedures for the installation, operation, maintenance and troubleshooting of the following grid connected Peimar inverters: PSI-X3P15000-TPM PSI-X3P20000-TPM PSI-X3P30000-TPM Please always keep this manual available in case you need it. Security measures 1.1. Security tips The inverter is a device directly connected to a HIGH VOLTAGE electric generator;... -
Page 7: Safety Instructions
1.3. Safety instructions DANGER 1. The user must comply with the applicable electrical codes,national and local regulations during the installation, operation and maintenance of the inverter, to avoid incurring personal injury or death, and damage to the inverter. 2. Do not touch the parts of the inverter while the device is running; There is danger to death from electric shock and high voltage. - Page 8 3 The Peimar inverter must only be used in combination with photovoltaic panels only, in compliance with current regulations; do not connect other energy sources to the Peimar inverter.
- Page 9 ATTENTION 1. The photovoltaic inverter can reach high temperatures during operation. Please do not touch the heat sink or side surface during operation or immediately after turning off the power to avoid the risk of burns. 2. To prevent damage and personal injury, hold the inverter firmly when moving it, as it is a heavy piece of equipment.
-
Page 10: Key To Symbols On The Label
1.4. Key of symbols on the label DANGEROUS ELECTRIC VOLTAGE This device is directly connected to the public electricity grid, therefore any work on the inverter must be carried out by qualified personnel. DANGER TO LIFE due to high voltage There may be residual voltage in the inverter due to the high capacity of the condenser. - Page 11 EARTHING The connection point of the protective conductor for earthing is indicated on the inverter. CE MARK Devices with the CE mark meet the essential requirements of the Low Voltage Directive and the Electromagnetic Compatibility Directive. RoHS This device complies with the directive ROHS (Restriction of Hazardous Substances) INSTRUCTIONS Refer to the present manual for inverter installation, operation, maintenance, and troubleshooting instructions.
-
Page 12: Product Information
Product information 2.1. Field of application The inverters in this manual are three-phase grid inverters, which receive electricity generated in direct current (DC) by photovoltaic panels and convert it into alternating current (AC), in accordance with the requirements of the public grid. 2.2. Product model specifications PSI-X3PXXXX-TPM •... -
Page 13: Packing List
2.4. Packing list Specifiche Quantità Inverter Support bracket already screwed to the inverter Positive DC connectors Negative DC connectors Negative DC pin connectors Connettori pin CC negativi Dowels for screws Washers for screws Expansion screws Ring terminal for grounding RJ45 plug Terminal block Terminal sleeve AC Terminals... -
Page 14: Installation Hypothesis
Installation hypothesis 3.1. Packing check Although Peimar inverters have passed rigorous checks and are tested before they leave the factory, it is not excluded that they may suffer damage during transport. Please check that the packaging has not shown any obvious signs of damage; in the event that such evidence occurs, please do not open the box and contact your dealer as soon as possible. - Page 15 1. Please install the device as shown in the figure below. Vertical installation is recommended, or with a maximum inclination of ±5°. Never install the inverter tilted sideways, horizontally or upside down. 2. Install the inverter at eye level to facilitate viewing of the display and the possible maintenance activities.
-
Page 16: Assembly Procedure
3.4. Assembly procedure 1. Mark the position of the 3 drilling points for mounting the bracket anchor; 2. Drill the necessary holes in the wall (Φ10 and at least 60 mm deep) at the marked points and insert the wall plugs using a rubber hammer. 3. - Page 17 4. Carefully fix the inverter to the bracket, making sure that the rear of the device is mounted snugly against the bracket. 5. Tighten the screw on the side of the inverter to ensure correct fastening.
-
Page 18: Hypothesis Of Installation
Hypothesis of installation Configuration of a three-phase network inverter PSI-X3P-TPM series. ENERGY METER PRODUCED THREE-PHASE LOADS L3 N L2 L3 EARTH COLLECTOR GRID... - Page 19 PLEASE NOTE Peimar does not provide the protections described in this document. Contact your distributor to purchase. 3. For correct operation of the inverter, make sure that the voltage and current compatibility between the inverter and the photovoltaic strings are respected.
-
Page 20: Electrical Connection
Electrical connection 5.1. Connection inputs for the inverter L2 L3 DC switch Photovoltaic inputs (2 MPPT for PSI-X3P15000-TPM & PSI-X3P20000-TPM whereas 3 MPPT for PSI- X3P30000-TPM) USB port for Wi-Fi/Ethernet module connection Terminal for AC line connection COM (RJ45 port for optional connections) - Page 21 NOTICE Make sure that the voltage and current of the strings do not exceed those at the inverter input; an incorrect configuration can cause permanent damage to the inverter, which will not be included in the warranty: Voc_Tmin (Open circuit voltage at minimum temperature) < Vmax_cc (maximum DC voltage) Vmp_Tmin (Voltage at Pmax at minimum temperature) <...
- Page 22 1. It is possible for each MPPT to connect only one string, it is not necessary to use both DC inputs. 2. The maximum current on each output is 16 A. In the case of a string with a current greater than 16 A, it is necessary to use Y connectors as shown in the figure.
- Page 23 PV 1 PV 2 Inverter 4. In the event of more than two strings connected in parallel, but with a maximum current of less than 32A, assume the use of a parallel switchboard as shown in the figure. PV 1 PV 2 Inverter PLEASE NOTE...
- Page 24 STRING INVERTER PLEASE NOTE Peimar does not supply the solar cables and MC4 connectors from the side of the panels described above in this document. Contact your distributor to purchase. DC connection procedure. For the DC connection, observe the following assembly procedure: 1.
- Page 25 3. Insert the locking nut and the waterproof gasket of each MC4 connector on the PV string cables. 4. Pair the plugs to the respective metal pins, paying attention to respect the polarities; you will hear a "click" indicating that the connection is complete. Male plug Tighten the cap Female plug...
-
Page 26: Ac Connection
Nominal Power (kW) section PE switch size (A) L1, L2, L3 + N (mm2) (mm2) PSI-X3P15000-TPM 32 A PSI-X3P20000-TPM 40 A PSI-X3P30000-TPM 50 A NOTICE If the connection distance between the inverter and the grid is very large, please increase the AC cable cross-section to avoid excessive voltage drop. - Page 27 Check that the voltage arriving from the grid is compatible with the voltage supported by the inverter. AC connection procedure For the AC connection observe the following assembly procedure: 1. Make sure you have cut off the AC side power 2.
-
Page 28: Meter Connection
6. Reassemble the cover by tightening the 4 screws and tightening the cable glands. PLEASE NOTE It is also possible to connect to the AC line without using the neutral cable. In this case, the following setting must be activated on the inverter display: MENU >... - Page 29 PRODUCTION METER 24 25 SINGLE-PHASE THREE-PHASE LOADS LOADS RS485 RS485 L2 L3 GRID EARTH COLLECTOR...
- Page 30 For the connection of the PSI-X-3PMETER-HY meter observe the following assembly procedure: NOTICE Make sure you have cut off the AC side power on the utility line. INVERTER SIDE 13 14 16 17 19 21 24 25 485B 485A GRID SIDE 1.
- Page 31 2. Strip the three phases arriving from the exchange meter (mains side) by 8-10 mm and secure them respectively to inputs 1, 4 and 7 of the meter by tightening the terminal. 3. Strip the three phases arriving from the system (inverter side) by 8-10mm and fix them respectively to outputs 3, 6 and 9 of the meter by tightening the terminal.
-
Page 32: Meter Psi-X-3Pmeter-Hy-Ct
Definition 485A 485B 485A 485B meter A meter B 5. To activate the export limit function, activate the appropriate option in the advanced settings of the inverter; from the display go to the menu: MENU > OPTIONS > Password “2014” > Export Control > MODE > METER > 0 W. = = = Export Control = = = >... - Page 33 PRODUCTION METER 2 5 8 2425 SINGLE-PHASE THREE-PHASE LOADS LOADS RS485 L2 L3 GRID EARTH COLLECTOR...
- Page 34 For the connection of the PSI-X-3PMETER-HY-CT meter observe the following assembly procedure: NOTICE Make sure you have cut off the AC side power on the utility line. TOWARDS THE CT - - - 2 5 8 485 B 485 A + + + TOWARDS THE CT 1.
- Page 35 (17~23AWG). 2. Fix the three positive (red) cables of the 3 CT’s respectively to outputs 1, 4 and 7 of the meter by tightening the clamp; repeat the procedure for the three negative cables (black) and fix them to outputs 3, 6 and 9 of the meter as shown in the figure.
-
Page 36: Inverter Connection
Inverter connection 1. Insert the other end of the cable into the RS485 port of the inverter by unscrewing the grommet and inserting it through the waterproof gasket. 2. Set the incoming wire from terminal 24 of the meter to pin 5 (meter A) of the 6-pin terminal block included in the inverter package. -
Page 37: Earthing
MENU > OPTION > Password “2014” > EXPORT CONTROL > MODE’ > METER > 0 W. = = = Export Control = = = > Mode Select Meter/Disable Earthing For the safety of the system, it is mandatory to earth the inverter: 1. -
Page 38: Parallel Conn. Of Multiple Psi-X3P-Tpm Series Inverters
7. Parallel connection of multiple PSI-X3P-TPM series inverters This chapter describes the parallel connection of several inverters of the PSIX3P-TPM series, respectively with a power of 15 kW, 20 kW and 30 kW, through the use of a meter for energy management. PLEASE NOTE Parallel connection, through the use of a three-phase grid meter in the system, is allowed up to a maximum of 5 inverters. - Page 39 Inverter Inverter Inverter Slave 1 Slave N Master 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 Meter Grid ˜ Phase 1: Connect the three phases, neutral and earth of the inverters to the same three- phase line.
-
Page 40: Connecting Several Inverters In Parallel
Phase 3: Once the meter has been connected to the master inverter, activate it from the display and set the "System limit" value on the master inverter. This will be the operating power limit value of the parallel system. The output power from each Slave inverter will be distributed respectively according to the rated output power of each one. -
Page 41: Inverter Start
Inverter start Before turning on the inverter, pay attention to the following: 1. Make sure the inverter is properly set to the wall 2. Make sure the DC and AC switches on the inverter are in the “OFF” position. 3. Make sure the AC cord is properly connected to the network. 4. -
Page 42: Setting And Display Interface
Setting and display interface The display allows the inverter production data to be viewed and the operating Display parameters to be set. Solid blue light: The inverter is in normal state Flashing blue light: The inverter is in waiting or checking state LED indicators Red light on: The inverter is in error state. -
Page 43: Block Diagram Of The Inverter Screens
10. Block diagram of the inverter screens Status English Language Deactivate Date and time Export control Mode Options Mode DRM Function New Password Energy Meter Reset error log Active Reset energy Error log Deactivate Reset Meter PV Connection Indipendent Wi-Fi Reset Parallel Modbus function Template... -
Page 44: Main Functions On The Display
11. Main functions on the display When the inverter is turned on, the screen that appears on the display is the main one which shows the following information: • Power = indicates the instantaneous output power. • P-Grid = indicates the energy sent to the grid or absorbed by the grid (if the value is positive, the energy is fed into the grid, if negative, the energy is taken from the grid). - Page 45 Language: The Italian language is already set by default on the device. Check that the desired options are set or, if necessary, modify them by following the relative path: MENU > LANGUAGE > Italian. Date and Time: This function sets the date and time in the inverter. Settings: Use this screen to access and change the operating parameters of the inverter.
- Page 46 • Network option Normally it is not necessary to modify these parameters, as they are set automatically by setting the correct grid standard. If it is necessary to make changes, they must be in accordance with current legislation. Power Limit Function – Setting the AC power limit. MENU>OPTIONS (password “2014”)>Network option>POWER LIMIT.
- Page 47 • Reset Energy By selecting it, the user can reset the energy. • Reset Wi-Fi By selecting it, the user can reset the WIFI. • Model By selecting this, the user can view the model of the inverter. • PV Connection With this function you can select the type of connection of the photovoltaic strings.
-
Page 48: Error Logs
Meter Energy: With this setting, the user can control the entry or withdrawal of energy from the network; there are 4 parameters: Today Import, Total Import, Today Export and Total Export. Error logs: The error log contains information about the errors that have occurred (only the last 6 errors are kept). -
Page 49: Inverter Monitoring System Configuration
Tracking SN printed on the Wi-Fi module • Password As soon as the credentials are received from Peimar technical assistance, it will be possible to log in from the link https://www. peimar-psix-portal.com/#/login and possibly change the password. To monitor the customer's system it will be necessary to go to: Device management >... -
Page 50: Configuration Via Browser Wi-Fi Module
PLEASE NOTE • If the SN of the module starts with SWxxxxxxxx it is possible to carry out the connection procedure only via browser; • If the SN of the module starts with SXxxxxxxxx or SVxxxxxxxx it is possible to carry out the connection procedure both via browser and via App. •... - Page 51 PLEASE NOTE For older inverter models, which have a PSI-X-H-WIFI stick (or for PSI-X-H-WIFI-3.0 sticks with SN starting with SX) use the address http://5.8.8.8/ (Normally it is sufficient to type in the address bar 5.8.8.8) Be careful not to connect to the address https://5.8.8.8/ 5.
-
Page 52: Create New User
Once the monitoring system has been successfully configured, type in the address https://peimar-psix-portal.com/#/login to create a new end user account by pressing the "Sign up" button. Create new user SN for tracking Insert device’s serial number Username Password for accessing... - Page 53 1. Download the Peimar X Portal App from the store App Store Google Play Store 2. Choose the language clicking on the 3 dots at the top left. 3. Press the "Create new account" button, type or scan the tracking SN printed on the Wi-Fi module itself and press the "Next"...
- Page 54 Create new account Access account Password E-mail Plant power(kW) Time zone Nation Username Telephone Daylight savings time I agree that this information is visible to agents and installers Connection procedure 1. Log in to the App with the credentials you just created. 2.
-
Page 55: Configuration Via Ethernet Cable (Lan) With Psi-Xh-Eth-3.0
3. At the message "Peimar X portal wants to access the Wi-Fi network", press the option "Login". 4. Enter the name of the home wi-fi network (SSID) and relative password. PLEASE NOTE Network name and password must contain only numbers or letters, no special characters... - Page 56 PLEASE NOTE To complete the configuration of the monitoring system, the same procedure described in the paragraphs "Creating an end user account" must be followed for configuration via the Wi-Fi module from the browser or from the App; the procedure described in the "Connection procedure" paragraph is not necessary as the connection is made directly via cable.
-
Page 57: Error Codes And Troubleshooting
14. Error codes and troubleshooting TIPO DI ERRORE RESOLUTION Over current error: Check the compatibility between PV generator and inverter via TZ Protect Fault project planner. Check the integrity of the MC4 connectors of the photovoltaic strings. Mains voltage lost: Measure the grid voltage at the inverter terminal block. - Page 58 Over current error: Check the compatibility between the PV generator and inverter via the Residual OCP project planner. Check the integrity of the MC4 connectors of the photovoltaic strings. Insulation error: Iso Fault Check the insulation of the AC and DC lines. Overtemperature error: Over Temp Fault Check the place of installation of the devices...
- Page 59 Power Failure: PowerTypeFault Check for firmware updates. Meter error: Meter Fault Check the correct installation of the meter/TA. Abnormal operation of fan 1: Fan1 Warning Check that the fan is working properly. Abnormal operation of fan 2: Fan2 Warning Check that the fan is working properly.
-
Page 60: Periodic Maintenance
Illegal disposal of the product by the user involves the application of the sanctions referred to in current legislation. 17. Warranty conditions For the warranty conditions, refer to the relative document which can be downloaded from the website www.peimar.com... - Page 64 | www.peimar.com Version: 2024_11_00...
