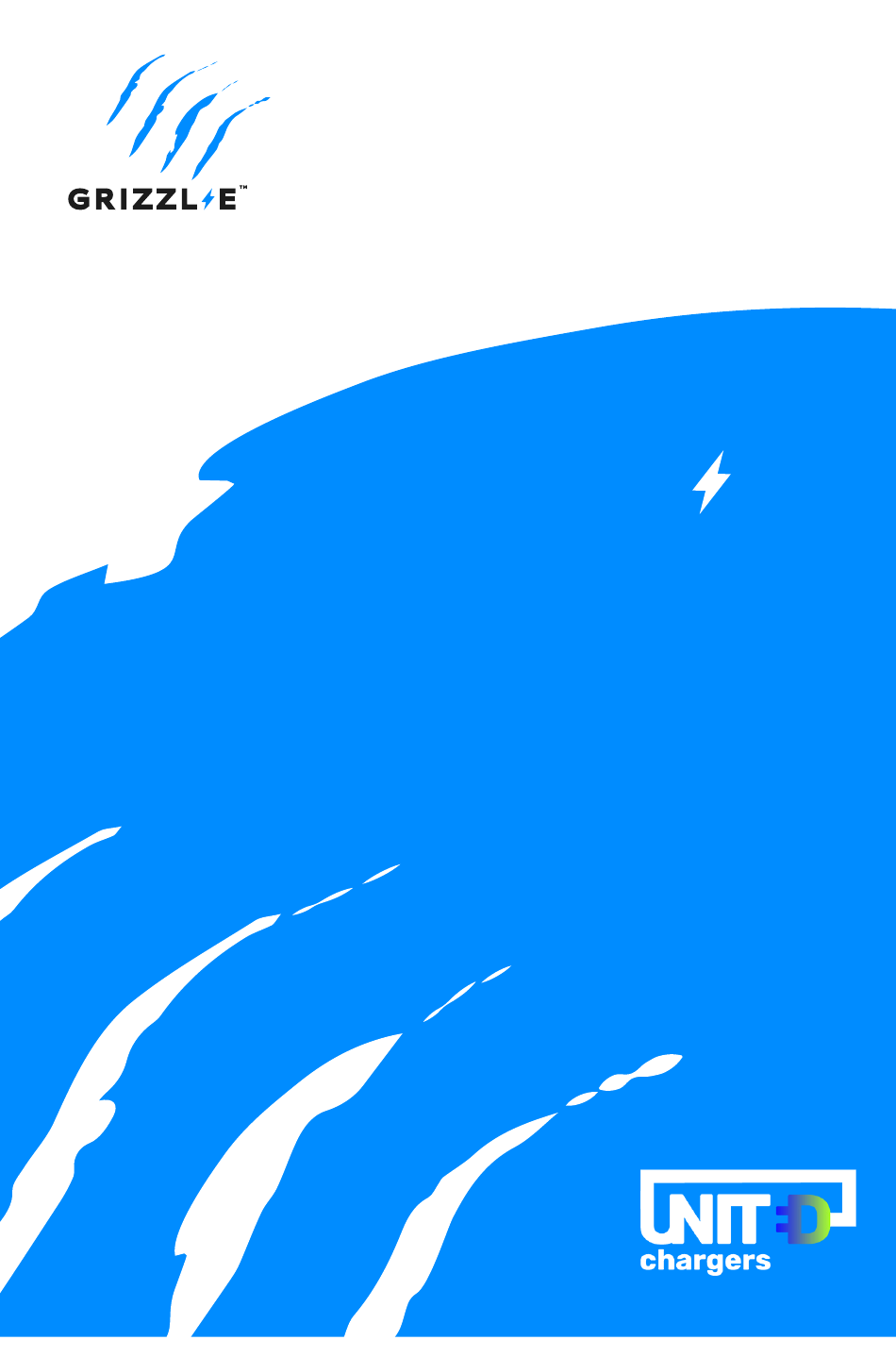

- Page 1 All manuals and user guides at all-guides.com ™ GRIZZL E EV charger Version 2 User Manual & Installation Guide...
-
Page 2: Model Numbers
All manuals and user guides at all-guides.com Grizzl-E Manual Grizzl-E Version 2: All units sold after June 15, 2021*. All Grizzl-E Refurbished Units. Manual Revision: 1.0 Model Numbers: Grizzl-E Classic: Grizzl-E Refurbished Grizzl-E Avalanche Edition: Grizzl-E Special Edition: GR1-6-18-XX GR1-14-24-AW... -
Page 3: Important Safety Instructions
All manuals and user guides at all-guides.com Grizzl-E Home EV Charging Station The Grizzl-E is a simple, powerful, heavy-duty, and portable electric vehicle charging station made in Canada and built to withstand the harshest conditions. Grizzl-E comes in three different varieties Classic Black, Avalanche White, or Extreme Camo. Grizzl-E comes with either a 18ft or 24ft Premium or Regular cable. - Page 4 Check with a licensed electrician if you are in doubt as to whether the product is properly connected and grounded. Repair and Maintenance Clause • All United Chargers products do not require routine maintenance however, periodic inspections should be conducted to ensure that all parts remain in good working order and no damage exists. •...
-
Page 5: Product Features
Security and Tamper Feature In addition to the security pin that secures the GRIZZL-E charging station to the wall mount bracket, the GRIZZL-E Classic can also be used with a coupler lock and key with a length of 90mm and diameter of 7mm... -
Page 6: Product Specifications
All manuals and user guides at all-guides.com Product Specifications United Chargers GRIZZL-E™ Electric Vehicle Charging Station (EVSE) Description Specifications GR1-6-18-XX: GRIZZL-E™ EVSE, 18 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug GR1-6-24-XX: GRIZZL-E™ EVSE, 24 ft. J1772 Cordset, Plug-in: NEMA 6-50 Plug Model Numbers GR1-14-18-XX: GRIZZL-E™... -
Page 7: Table Of Contents
All manuals and user guides at all-guides.com INSTRUCTIONS Manual United Chargers GRIZZL-E ™ Smart Electric Vehicle Charging Station (EVSE) Table of Contents 1. Introduction & Unpacking ................8 2. Installation Planning and Service Wiring: ............9 2.1 Electrical Source Requirements ..............9 2.2 Grounding Instructions ................ -
Page 8: Introduction & Unpacking
All manuals and user guides at all-guides.com 1. Introduction & Unpacking This user manual applies to the GRIZZL-E™ EVSE for Plug-in Hybrid Electric Vehicles (PHEVs) and Electric Vehicles (EVs). Made in Canada Charging Station with input and Mounting Bracket (x1) output cable (x1) Security Pin (x1) Robertson Head... -
Page 9: Installation Planning And Service Wiring
All manuals and user guides at all-guides.com 2. Installation Planning and Service Wiring: WARNING: Disconnect the power supply to the charging station before installing, adjusting, or repairing the charging. Failure to do so may result in physical injury or damage to the power supply system and the charging station. -
Page 10: Adjustable Maximum Current Output
All manuals and user guides at all-guides.com 3. Adjustable Maximum Current Output The GRIZZL-E ™ charging station features the ability to adjust the maximum Charging Station current output to support 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows: Circuit Rating Maximum Charging Station Output 40A (9.6 kW) -
Page 11: Generation 1 Grizzl-E (3 Dip Switches)
All manuals and user guides at all-guides.com CAUTION: The LED pipe is attached to the front cover. When the front cover is removed, place it on a flat surface facing down to avoid damage to the LED pipe. 3.2 Generation 1 Grizzl-E (3 DIP Switches) The Generation 1 Grizzl-E has 3 DIP switches located at the top left corner of the circuit board. - Page 12 All manuals and user guides at all-guides.com 2. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or 16A, using the following combination of DIP switch settings: Maximum Current Output DIP 3 DIP 2 DIP 1 DIP Switch Setting (Picture) 40A Maximum Current Output DOWN...
-
Page 13: Generation 2 Grizzl-E (4 Dip Switches)
All manuals and user guides at all-guides.com 3.3 Generation 2 Grizzl-E (4 DIP Switches) The Generation 2 Grizzl-E has 4 DIP switches located at the top left corner of the circuit board. 1. With the front cover placed to the side, locate the DIP switch on the charging station circuit board. - Page 14 All manuals and user guides at all-guides.com 2. Using a non-conductive object adjust the Maximum Current Output to either 32A, 24A or 16A, using the following combination of DIP switch settings: Switch 3 Switch 4 Switch 1 Switch 2 40A Maximum Current Output DOWN (Factory Default Setting) DOWN...
-
Page 15: Installation
All manuals and user guides at all-guides.com 4. Installation 4.1 Tools & Parts Required for Installation Prior to mounting, determine the location of an acceptable mounting support. All charging station products must be anchored into a mounting support such as a 2” x 4” stud or a solid concrete wall. -
Page 16: Install The Charging Station
All manuals and user guides at all-guides.com 4.2 Install the Charging Station 1. Separate the front and back piece of the mounting bracket by pushing down on the notch. Back Piece Front Piece 2. Attach the front piece of the mounting bracket to the back of the charging station using the Socket-cap screws. - Page 17 All manuals and user guides at all-guides.com 3. Secure the back piece of the mounting bracket to the wall or other suitable structure using the Robertson-head screws. The back piece of the mounting bracket has 3 holes to support attachment to various surfaces.
- Page 18 All manuals and user guides at all-guides.com 4. Mount the charger on the wall by securing the front piece of the mounting bracket to the back piece of the mounting bracket. 5. Secure the charger in place by inserting either the security pin or the outdoor security lock into the mounting bracket.
-
Page 19: Input Wiring Connection (Optional Hardwire Connection)
All manuals and user guides at all-guides.com 5. Input Wiring Connection (Optional Hardwire Connection) 1. Choose the appropriate conduit in accordance with all applicable, local, and electrical safety codes and standards. 2. Using the appropriate tool, clamp the wire terminal to the copper wire. For non-insulated terminals, use heat shrink tube to cover the non-insulated portion of the terminal. - Page 20 All manuals and user guides at all-guides.com Model Terminal Conductor Screw Rating Torque GRIZZL-E ™ L1, L2, G 8 AWG 90C, 16 kgf-cm 13.88 lb-in copper wire CAUTION: To reduce the risk of fire, connect only to a circuit provided with the appropriate amperes minimum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part I, C22.1.
-
Page 21: Easyevplug Holster And Cable Management System
All manuals and user guides at all-guides.com 6. EasyEvPlug Holster and Cable Management System The EasyEVPlug™ Holster or Tesla EasyEVPlug™ Holster is the new innovative method to pro- tect your plug and manage your cord. It has the following features: •... -
Page 22: Charging Status Indicators And Buzzers
All manuals and user guides at all-guides.com 7. Charging Status Indicators and Buzzers 7.1 Indicator Lights Grizzl-E uses the following indicator lights for the charger status: LED Indicator Buzzer Description Definition No buzzer Not illuminated Power Off No buzzer White Initialization No buzzer Blue Steady... -
Page 23: Led Fault Indicator
4. With the circuit breaker in the “OFF” position, wait 1-2 minutes and then switch the upstream circuit breaker back to the “ON” position 5. Confirm the Fault light is no longer present. 6. If the Fault light remains, please contact United Chargers. Download the Technical Support Form and send an email to techsupport@unitedchargers.com. -
Page 24: Operation
All manuals and user guides at all-guides.com 8. Operation 8.1 Connect and Charge Insert the charging Connector into the EV and ensure the connector is fully seated/locked in place. Once complete, the charging session will begin. 8.2 Stop Charging 1. Unplug the charging station by pressing the connector button and removing the Charger Connector from the EV (once the connector button is depressed, the charging session terminates immediately). -
Page 25: General Product Care And Use Information
Ensure the power cable is stored on the charging station after use to avoid damage. • If the power cable or the charging connector is damaged, turn off the charging station supply circuit breaker, do not use the charging station, and Contact United Chargers Customer Support for replacement parts. •... -
Page 26: Warranty
United Chargers is not responsible or liable for any costs associated with faulty installations. United Chargers shall make the final decision, in fairness to all concerned, as to the legitimacy of any such claim on this warranty. Upon discovery of any defective GRIZZL-E ™, please contact our Customer Service Department for further instructions as to how to repair or replace the defective unit or log into your account at www.grizzl-e.com and submit support...
