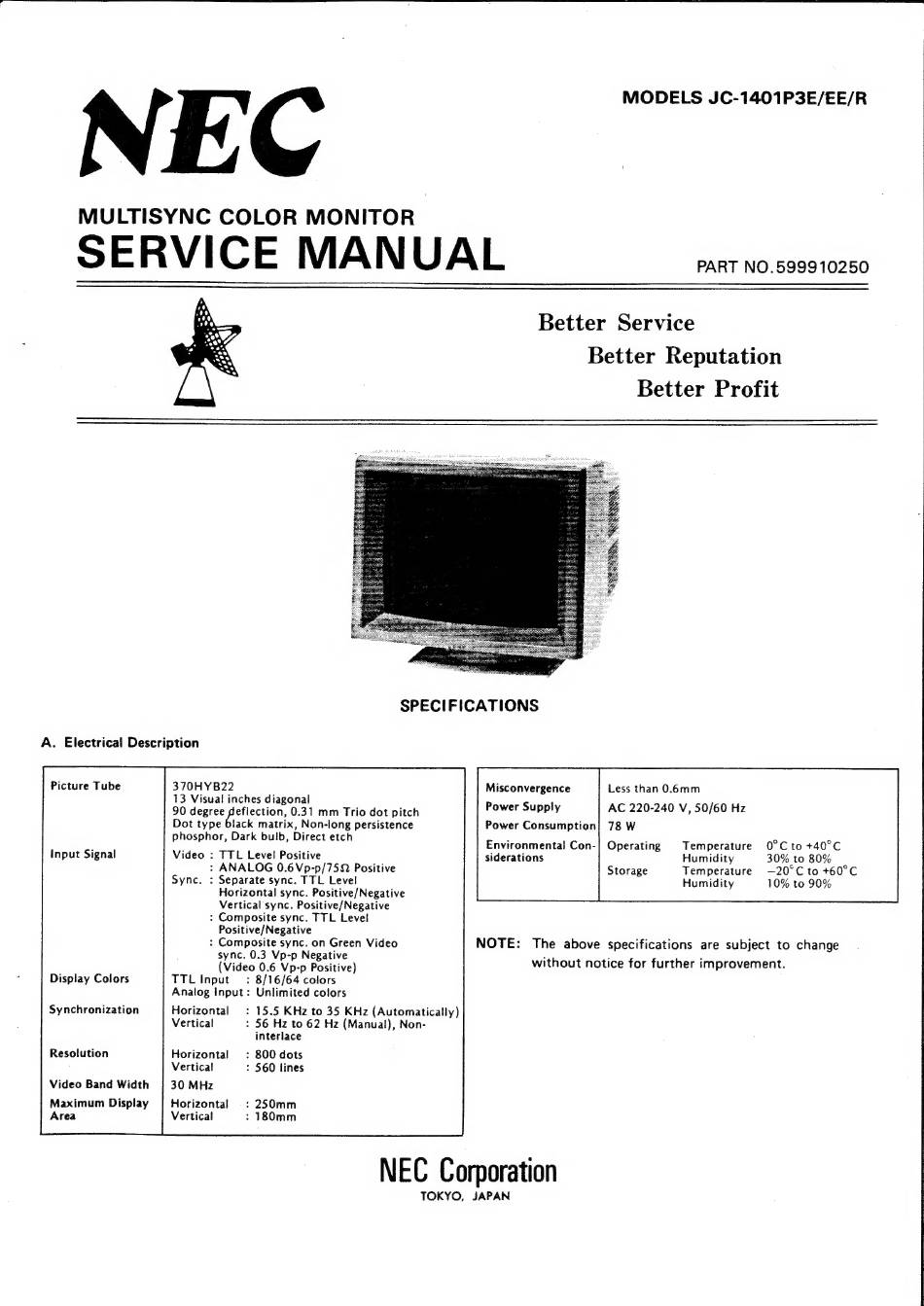

NEC JC-1401P3E Service Manual

MODELS JC-1401P3E/EE/R
MULTISYNC COLOR MONITOR
Better Service
Better Reputation
Better Profit
SPECIFICATIONS
A. Electrical Description
Picture Tube 370HYB22
13 Visual inches diagonal
90 aclu ara ee 0.31 mm Trio dot pitch
Dot type black matrix, Non-long persistence
phosphor, Dark bulb, Direct etch
Input Signal Video : TTL Level Positive
: ANALOG 0.6Vp-p/75Q Positive
Sync. : Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
: Composite sync. TTL Level
Positive/Negative
: Composite sync. on Green Video
NOTE:
The above specifications are subject to change
(Vics Oe oo Pee)
without notice for further improvement.
Display Colors TTL Input: 8/16/64 colors
Analog Input: Unlimited colors
Synchronization Horizontal : 15.5 KHz to 35 KHz (Automatically)
Vertical : 56 Hz to 62 Hz (Manual), Non-
interlace
Resolution Horizontal : 800 dots
Vertical : 560 lines
Video Band Width 30 MHz
Misconvergence Less than 0.6mm
Power Supply AC 220-240 V, 50/60 Hz
Power Consumption] 78 W
Environmental Con-| Operating Temperature O°Cto +40°C
siderations Humidity 30% to 80%
Storage Temperature —20°C to +60°C
Humidity 10% to 90%
Maximum Display Horizontal : 250mm
Area Vertical : 180mm
NEC Corporation
TOKYO, JAPAN
