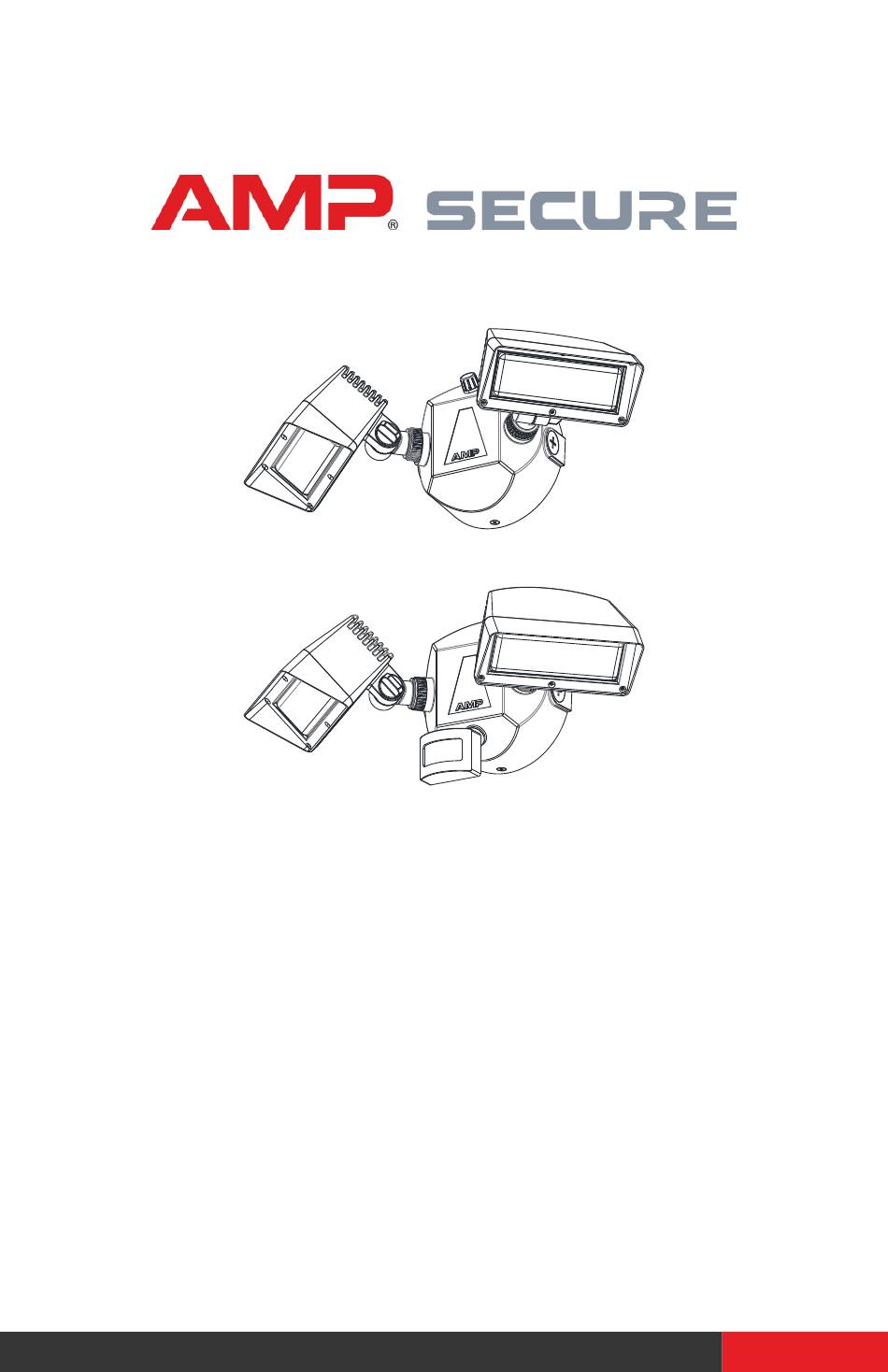

- Page 1 SECURE Twin Wall Flood Light, 120V ® ITEM: AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S SAVE THESE INSTRUCTIONS - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S IMPORTANT: PLEASE READ BEFORE INSTALLATION READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Fixtures must be wired in accordance with all local codes and the National Electrical Code. -
Page 3: Package Contents
PACKAGE CONTENTS D. (2) P2 Connectors A. (1) Luminaire E. (1) Clear Cap (AFL-4039 only) B. (2) Outlet Box Screws C. (3) P4 Connectors PRODUCT DIMENSIONS 5.17” 1.6” 2.9” 2.5” 5.5” 2.6” 5” 4.23” AFL-4039-30S-LI-S Photocell 5.17” 1.6” 2.5” 2.9” 5.5”... -
Page 4: Remove Mounting Plate
INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S REMOVE MOUNTING PLATE Allen Wrench Loosen the mounting screws (not included) until the mounting plate disengages. Mounting Mounting Screw Plate Coverplate Mounting Screw MOUNTING PLATE INSTALLATION Junction Box... - Page 5 TETHER Secure the Tether Ball Ball into the Mounting Plate Tether Notch to help with hands-free wiring. Notch Tether Notch CONNECT THE LUMINAIRE WIRES TO THE SUPPLY WIRES P4 Wire Connector P2 Wire Connector Junction Box Mounting Plate Supply Wires Fixture Wires Feed the Supply Wires through the Mounting Plate.
-
Page 6: Important Note
INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S INSTALL LUMINAIRE Allen Wrench 1. Carefully insert all the (not included) wires and connections Mounting into the Junction Box. Plate 2. Place the fixture Mounting Screw Coverplate over the Coverplate Mounting Plate. - Page 7 ACCESS TO SELECTION SWITCHES Coverplate Coverplate Plug Plug Remove threaded plug from the left and right sides of the coverplate to access the selection switches. COLOR TEMPERATURE (CCT) & POWER SELECT SWITCHES Coverplate Coverplate Color Temperature 30W Max: Selection Switch Power Selection Switch 3000K –...
- Page 8 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S PHOTOCELL FUNCTION Black Cap To use the built-in Photocell Photocell function: Remove the Black Cap and replace it with the Clear Cap. Clear Cap Photocell 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 9 ADJUST MOTION SENSOR The detection angle of the Motion Sensor is 120°. To adjust, loosen the Thumb Screw and aim. Tighten the Thumb Screw. Thumb Screw Motion Sensor Motion Sensor Max. 120 LIGHT CONTROL SWITCH AND TIME SETTING SWITCH Back of Motion Sensor TIME TIME 360S...
- Page 10 INSTALLATION & MAINTENANCE GUIDE SECURE Twin Wall Flood Light ® AFL-4039-30S-LI-S & AFL-4040-30S-MS-LI-S ADJUST LUMINAIRE DIRECTIONS Loosen the Thumb Screw Coverplate and adjust the angle of the Luminaire. Tighten the Thumb Screw Thumb Screw. Thumb Screw CAUTION: ENSURE THE NUT IS...
- Page 11 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 12 1-813-978-3700 • Mon-Fri 9am-6pm (ET) Specifications and product details subject to change without notice. © Copyright 2024, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
