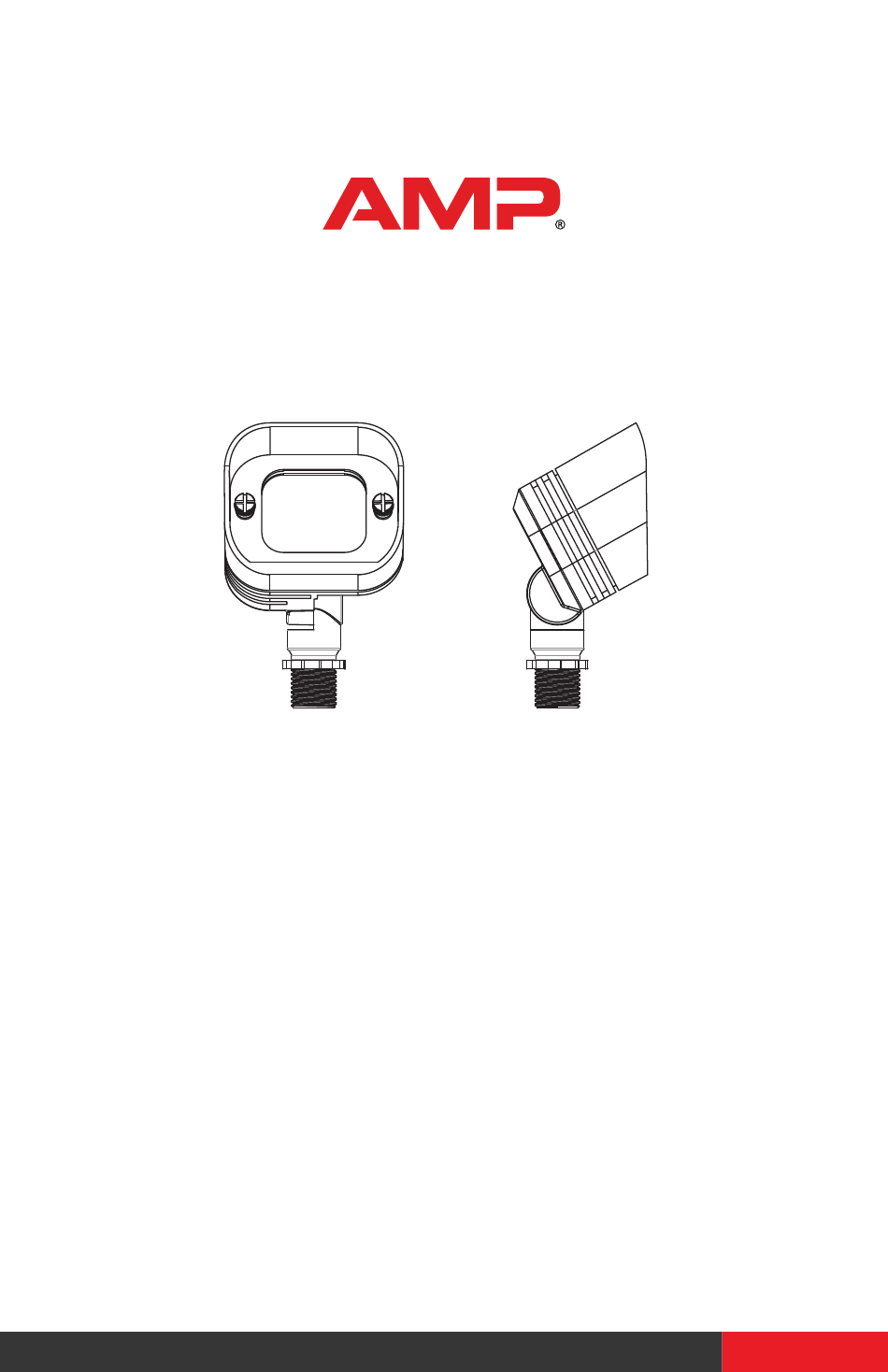

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® RGBCW ParamountPro LED Flood Light ® ITEM: AFL-4031-B-BZ 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Product Dimensions
PACKAGE CONTENTS A. (1) Fixture Body C. (1) Frosted Lens B. (1) Allen Wrench D. (1) Diffused Lens PRODUCT DIMENSIONS 3.24” 2.68” 2.43” 1.33” INSTALL STAKE Determine the desired Board location for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. -
Page 4: Wire Connection
INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® INSTALL FIXTURE TO STAKE Pass supply wires through the center hole of the stake and thread the stem onto the stake. Hand tighten until snug. Clear away an... - Page 5 ADJUST DIRECTION By using the Allen wrench, unlock the screw at the joint to adjust the luminaire directions. Tighten the screw when the desired direction is achieved. Allen Wrench Luminaire Screw HOW TO REPLACE LENS There are three lenses provided with the product. A clear lens has been installed on the product as a default lens, which can be replaced with a frosted lens or diffused lens by using the following steps.
- Page 6 INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® REMOVE GLARE GUARD AND GASKET WITH LENS Screw Fixture Body Glare Guard Gasket with Lens Unlock the screws to remove the glare guard and gasket with lens from the fixture body.
- Page 7 INSTALL FROSTED OR DIFFUSED LENS Insert the desired frosted Gasket lens or diffused lens into the gasket. Frosted Lens or Diffused Lens INSTALL FROSTED OR DIFFUSED LENS Screw Fixture Body Glare Guard Gasket with New Lens Place the gasket with new lens, the glare guard back onto the fixture body and secure with previously removed screws.
-
Page 8: Remote Control Instructions
INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® REMOTE CONTROL INSTRUCTIONS Button Function Description ALL OFF ALL ON Name Turns on all lights which are controlled by this remote that ALL ON are within range. Turns off all lights which are... -
Page 9: Install Aaa Batteries
INSTALL AAA BATTERIES Open the battery cover, install two AAA 1.5V batteries into the battery compartment. Pay attention to the “+”/“-” Back of Re- polarities of the battery when mote Controller installing. Always reinstall the battery cover after installing AAA 1.5V batteries. Battery Compartment AAA Battery... - Page 10 INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® PAIRING THE REMOTE (CONTINUED) 1. Using the same process you can pair additional fixtures to the same or different zones. Note: 1. Please ensure light(s) are within range of the remote controller.
- Page 11 ADJUST BRIGHTNESS 1. Select the desired lights by ALL OFF pressing the zone to which ALL ON they have been assigned. 2. Press the brightness increase button to increase Brightness Brightness the light brightness, or Decrease Increase press the brightness decrease button to decrease the light brightness.
-
Page 12: Adjust Color
INSTALLATION & MAINTENANCE GUIDE RGBCW ParamountPro LED Flood Light - AFL-4031-B-BZ ® QUICK COLOR TEMPERATURE ADJUSTMENT The preset color temperatures ALL OFF ALL ON of the CCT button are 2200K, 27000K, 3000K and 4000K. 1. Select the lights by pressing the zone they are in. - Page 13 CONTROL BY GROUP 1. To control lights by All ON ALL OFF ALL ON group, Select the lights by pressing the zone they are in. And then press respective function buttons to adjust the lights. ZONE (Group) ZONE UNPAIR LIGHTS If you need to re-pair the light(s) All ON ALL OFF...
- Page 14 1-813-978-3700 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • amplighting.com...
